ABB 5SHY3545L0010 (3BHB013088R0001) Integrated Gate Commutated Thyristor (IGCT) Power Module
Product Description
The 5SHY3545L0010, with part code 3BHB013088R0001, is an ABB high-power asymmetric IGCT module assembly. This unit combines the IGCT semiconductor die and integrated gate driver circuit within a single compact package. Designed for medium-voltage high-current power conversion, it delivers reliable snubberless turn-off performance and outstanding robustness under heavy industrial operating conditions. Widely adopted in ABB medium voltage drive platforms, this power module is a critical switching device for high-energy industrial power electronics, engineered for long service life and low failure rate in continuous heavy-duty operation.

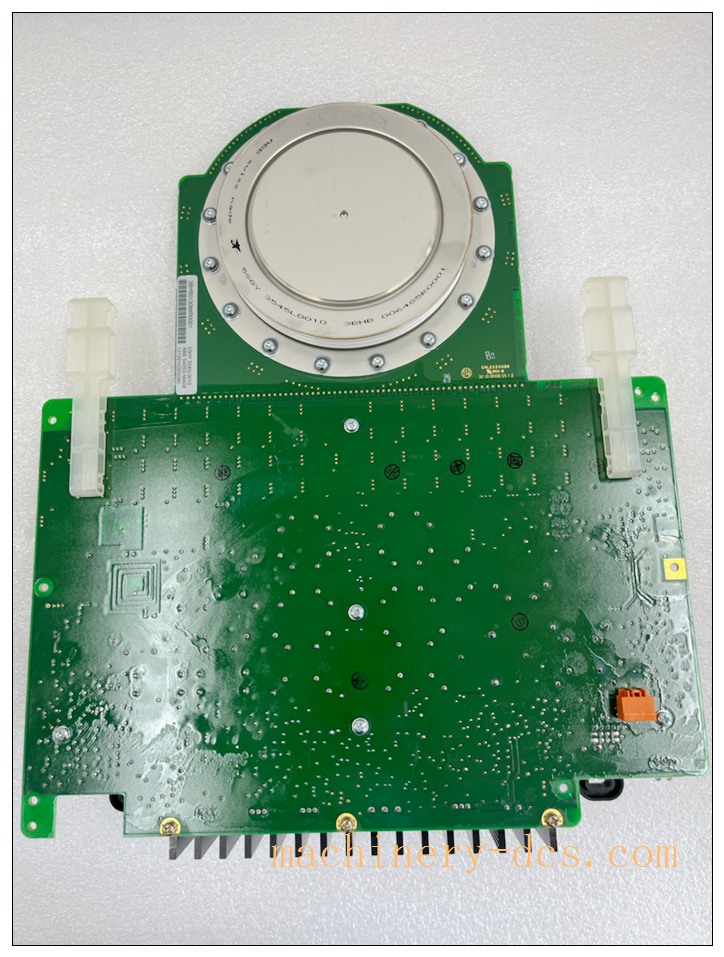

5SHY3545L0010 3BHB013088R0001
Technical Specifications
- Part Number: 5SHY3545L0010
- Alternative Code: 3BHB013088R0001
- Device Type: Asymmetric IGCT (Integrated Gate-Commutated Thyristor)
- Rated Voltage: 4500 V
- Rated Current: 3500 A
- Package: Integrated module with built-in gate drive unit
- Switching Characteristic: Snubberless turn-off
- Application Voltage Class: Medium voltage
- Cooling Method: Liquid cooling / forced air cooling (depends on system design)
- Brand: ABB
Key Features
- Integrated gate commutated thyristor with pre-assembled gate drive, simplifying system integration
- Snubberless turn-off capability to reduce peripheral circuit components
- High current carrying capacity and low switching losses
- Excellent dv/dt and di/dt withstand capability
- Compact and rugged packaging for harsh industrial environments
- High long-term operational stability for continuous heavy-load working
- Optimized for medium voltage converter topologies
- Strict industrial quality screening to guarantee reliability

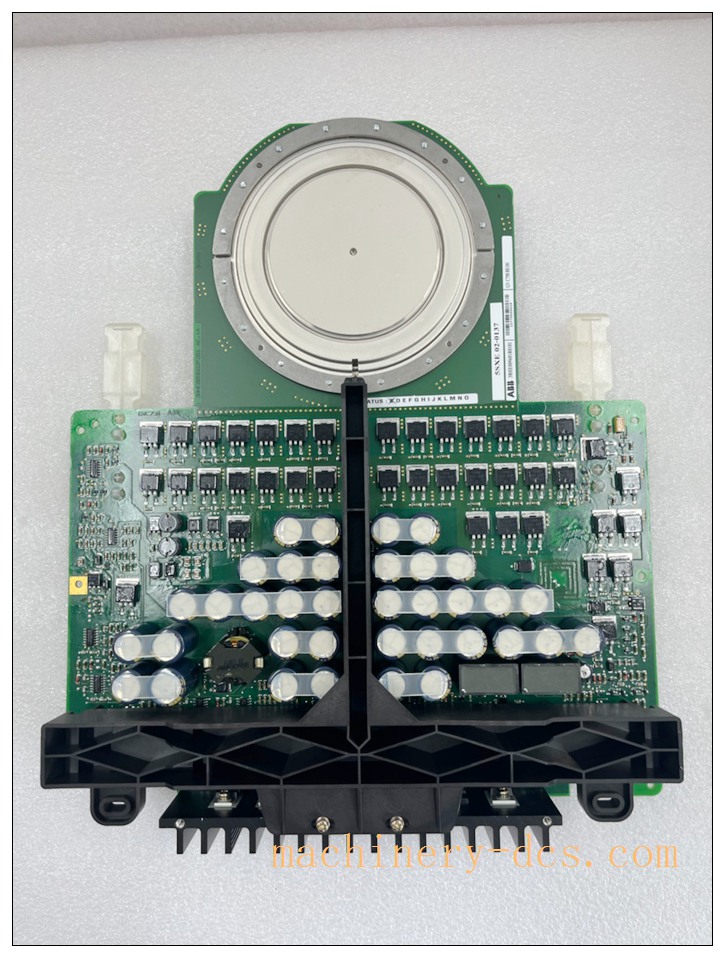

5SHY3545L0010 3BHB013088R0001
Application Scenarios
- ABB ACS6000 medium voltage variable frequency drives
- Static Var Compensator (SVC) and static var generator (SVG) power quality equipment
- Medium voltage power converters for metallurgy, mining, and oil & gas industries
- Large synchronous motor excitation systems
- Renewable energy grid-tied power conversion systems
- HVDC and flexible AC transmission (FACTS) power stations
- Large industrial traction and high-power power supply systems
Matching / Auxiliary Components
- IGCT snubber capacitors (optional, system-dependent)
- Gate connection cables
- Liquid cooling cold plate / heat sink assembly
- Voltage & current sensing boards
- Fiber optic trigger boards
- Module clamping hardware
- Protection monitoring units for power stack
Related ABB IGCT Series Models (9 pcs)
- 5SHY3545L0002 3BHL000968P3105
- 5SHY3545L0006
- 5SHY3545L0009 3BHB013085R0001
- 5SHY3545L0014
- 5SHY3545L0020 3BHE014105R0001
- 5SHX1960L0006 3BHB016120R0002
- 5SHX2645L0002 3BHB012961R0001
- 5SHX2645L0004 3BHL000389P0104
- 5SHY3545L0005
