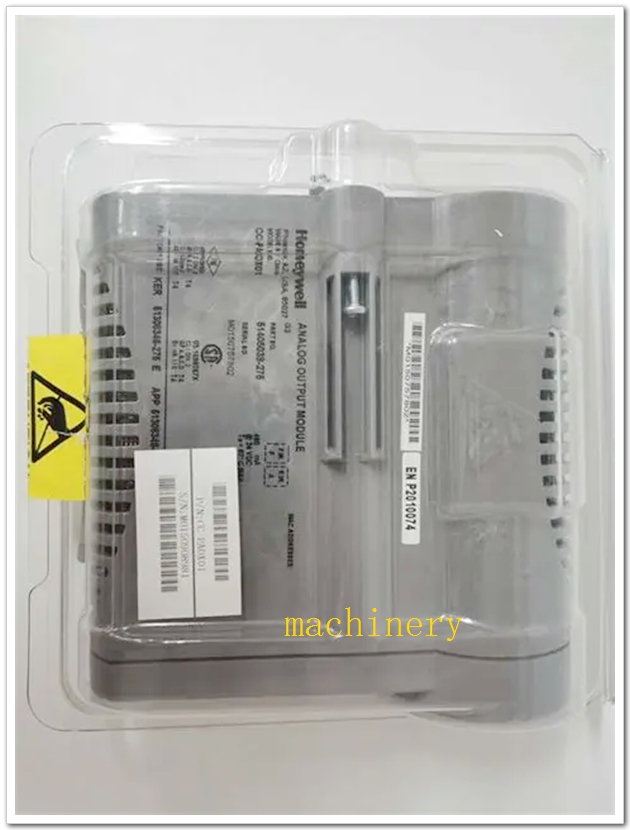

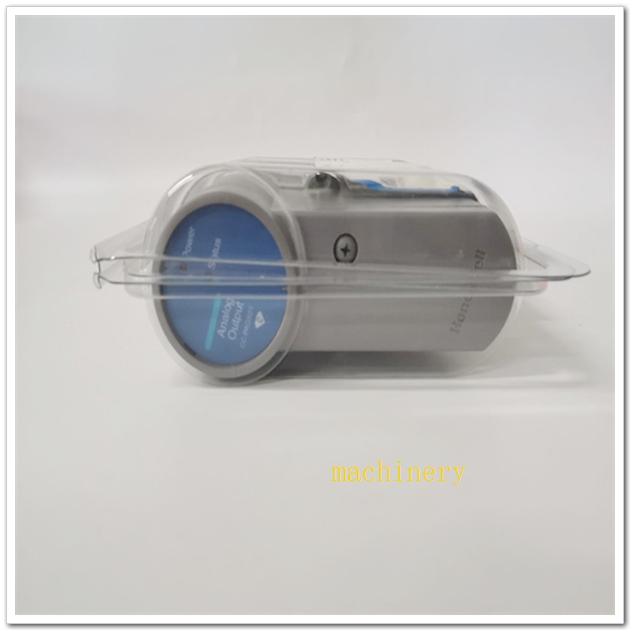

Honeywell CC-PAOX01 Analog Output Module

Description

Honeywell CC-PAOX01 Analog Output Module

Core Product Introduction
The Honeywell CC-PAOX01 is a high-performance Analog Output (AO) module designed for the Honeywell C300 controller within the Experion Process Knowledge System (PKS). This module is responsible for converting digital control signals into standard analog signals (e.g., 4-20 mA) to drive final control elements like control valves, actuators, and variable frequency drives. Engineered for continuous process control, it ensures precise and reliable regulation of critical process variables in demanding industrial environments.

Key Technical Specifications

• Product Type: Analog Output (AO) Module
• System Compatibility: Honeywell C300 Controller (Experion PKS Platform)
• HART Protocol Support: Not Supported (Note: For HART communication, the CC-PAOH01 module is required)
• Channel Configuration: Typically 16 independent analog output channels
• Signal Type: Standard current output (e.g., 4-20 mA)
• Terminal Board Compatibility: Requires specific IOTA terminal boards (e.g., CC-TAOX01 for non-redundant, CC-TAOX11 for redundant configurations)
• Mounting: Modular design, mounts on C300 I/O link drop cables

CC-PAOX01

Recommended Models in the Same Series
For different I/O requirements or system expansions within the Honeywell C300 I/O family, consider the following models:

• CC-PAOH01: Analog Output Module with HART protocol support.
• CC-PAIX01: High-Level Analog Input (HLAI) Module without HART.
• CC-PAIH01: High-Level Analog Input (HLAI) Module with HART support.
• CC-PDIL01: Digital Input (DI) Module (24VDC).
• CC-PDOB01: Digital Output (DO) Module (24VDC).

Related Model Cross-Reference
The following part numbers and descriptions are directly associated with the CC-PAOX01 in various supply chains and documentation:

• CC-PAOX01 (Primary model number)
• 51405039-275 (Common associated part number)
• CC-TAOX01 / CC-TAOX11 (Compatible non-redundant and redundant terminal boards)

Application Scenarios & Key Features

• Continuous Process Control: Widely deployed in oil & gas, petrochemical, and power generation industries to precisely regulate flow, pressure, temperature, and level loops.
• Final Element Actuation: Provides the critical analog drive signals for control valves and dampers, ensuring accurate positioning based on controller output.
• Redundant System Integration: When paired with redundant terminal boards (CC-TAOX11) and C300 controllers, it supports high-availability architectures essential for Safety Instrumented Systems (SIS) and critical process control.
• Seamless PKS Integration: Fully integrated into the Experion PKS environment, allowing for easy configuration, diagnostics, and monitoring via Control Builder.

Key Features:

• High-Precision Output: Delivers stable and accurate analog signals to ensure precise control of field devices.
• Flexible Configuration: Supports both standard and redundant I/O configurations to meet varying system availability requirements.
• Robust Diagnostics: Provides comprehensive module and channel diagnostics to quickly identify field wiring issues or device failures, minimizing troubleshooting time.
• Hot-Swap Capability: Supports online module replacement, allowing for maintenance without shutting down the control system, thereby maximizing plant uptime.
