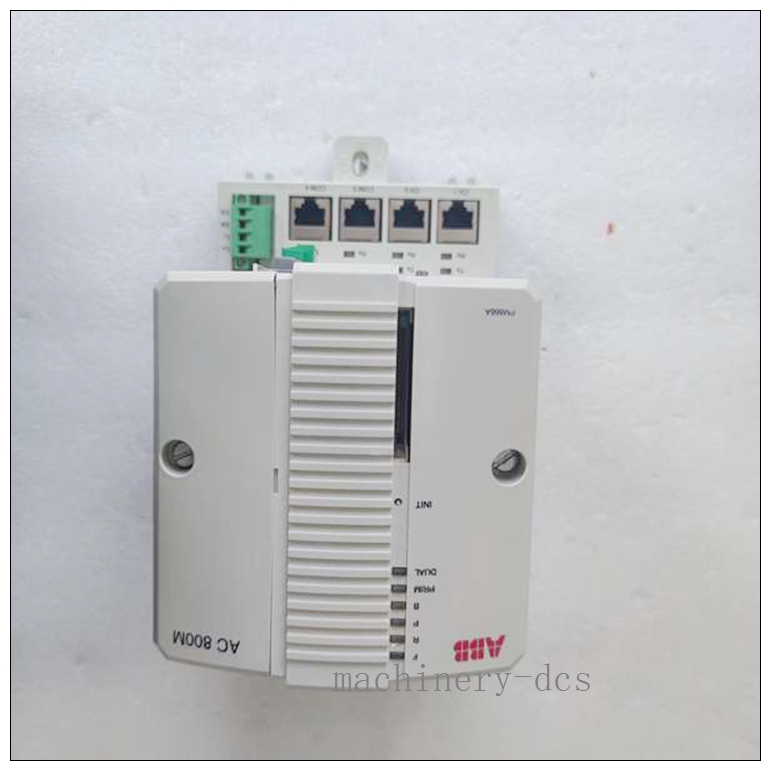

ABB PM866 3BSE050200R1 High-Performance Redundant Controller

Description

ABB PM866 3BSE050200R1 High-Performance Redundant Controller

Executive Brief

The ABB PM866 3BSE050200R1 is a flagship high-performance controller unit belonging to the AC 800M series, purpose-built for large-scale process automation and mission-critical industrial control scenarios. Powered by a 133 MHz MPC 866 processor, it supports native 1+1 hot standby redundancy with a switchover time no more than 10ms, delivering near-zero downtime for continuous production operations. Equipped with 64 MB RAM (51.389 MB dedicated for application execution) and 4 MB flash memory for firmware storage, this unit can handle up to 96 I/O modules in single CPU configuration and 84 modules in redundant setup, making it a robust core control component for complex distributed control systems across heavy industries. All brand new original units come with a 12-month official warranty and global expedited shipping support.

Core Technical Specifications

1. Manufacturer: ABB
2. Exact Part Number: PM866 3BSE050200R1
3. Product Line: AC 800M High-Performance Controller
4. Processor: MPC 866, 133 MHz, 32-bit RISC architecture
5. Memory: 64 MB RAM (51.389 MB available for user applications), 4 MB dedicated flash memory for firmware
6. Power Supply: 24 V DC (operating range 19.2–30 V DC), 210 mA typical current consumption, 360 mA maximum
7. Redundancy: Native 1+1 hot standby support, bumpless switchover time ≤10 ms
8. Communication Interfaces: 10 Mbit/s Ethernet (RJ-45), 2 RS-232 ports (COM3/COM4)
9. I/O Capacity: Up to 96 I/O modules for single CPU configuration, up to 84 I/O modules for redundant configuration
10. Minimum Application Cycle Time: Down to 1 ms
11. Dimensions: 12.7 cm × 12.7 cm × 10.2 cm
12. Net Weight: 0.5 kg
13. Supported Programming Standards: Full compliance with IEC 61131-3 (LD, FBD, IL, SFC, ST), compatible with C and C++ custom development
14. Real-Time Clock Stability: 100 ppm (~1 hour drift per year)
15. Certified Industrial Protection: Designed for IP20 rated industrial cabinet deployment, with wide operating temperature range for harsh plant environments

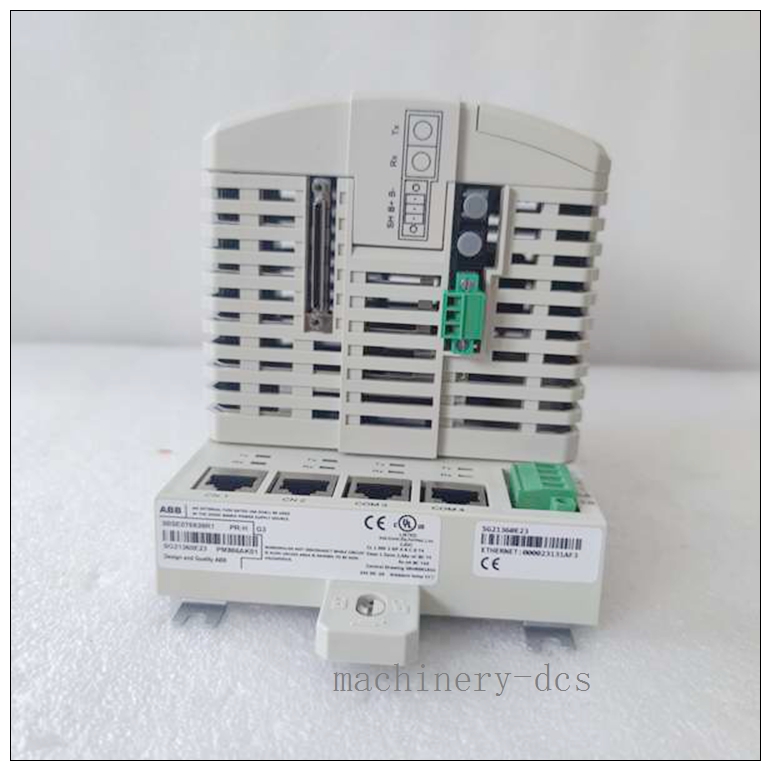

ABB PM866 3BSE050200R1

Key Features & Advantages

• Ultra-fast Redundancy Switchover: The dedicated fiber-optic TDM bus for redundant CPU synchronization ensures ≤10ms bumpless switchover, eliminating unplanned process interruption caused by single CPU faults.
• Outstanding Real-time Performance: The 1ms minimum application execution cycle guarantees precise control for high-speed industrial processes, far exceeding the response requirements of most conventional automation scenarios.
• Massive I/O Expansion Capability: Supporting up to 96 I/O modules in single CPU mode, it can cover large-scale distributed control demands without adding extra intermediate control nodes.
• Rich Native Protocol Compatibility: Built-in support for MMS, IAC and mainstream industrial communication protocols, seamlessly integrates with ABB 800xA DCS systems and third-party field devices.
• Compact Space-saving Design: The 12.7cm × 12.7cm footprint drastically reduces cabinet space occupation, which is ideal for retrofitting projects with limited installation space.
• Open Programming Flexibility: Full support for IEC 61131-3 standard languages plus C/C++ custom development, allowing engineers to implement complex advanced control algorithms such as model predictive control easily.
• High Reliability Industrial-grade Design: Optimized for long-term continuous operation in heavy industrial sites, with exceptional anti-electromagnetic interference performance to adapt to harsh plant electromagnetic environments.

Typical Application Scenarios

1. Large-scale Process Industry Distributed Control: Core control unit for petrochemical, chemical, pharmaceutical and pulp & paper production lines that require 24/7 non-stop operation.
2. Critical Automation Redundant Configuration: Mission-critical control systems for power generation, substation automation and nuclear power auxiliary facilities, where zero downtime is mandatory.
3. High-precision Motion & Process Hybrid Control: Suitable for metallurgical rolling lines, large packaging production lines and new energy manufacturing processes that demand both fast logic response and precise motion control.
4. Massive Data Acquisition & Processing: Central data processing node for large-scale water treatment plants, urban sewage systems and industrial park centralized monitoring platforms.
5. Heavy Machinery & Offshore Engineering Control: Control systems for offshore oil platforms, port heavy cranes and large mining equipment, adapting to long-term unattended operation in harsh field conditions.

Same Series Model Display

1. ABB PM861: Entry-level AC 800M controller, designed for small and medium-sized automation projects with moderate I/O scale, offering cost-effective non-redundant control solutions.
2. ABB PM864: Mid-range AC 800M controller, balancing performance and cost for standard redundant control scenarios with medium I/O capacity.
3. ABB PM865: Mid-to-high end AC 800M controller, with upgraded processor frequency and memory capacity for medium-large complex control systems.
4. ABB PM867: Flagship high-end AC 800M controller, with top-tier processing performance and maximum I/O expansion for ultra-large scale industrial automation systems.

Related Supporting Product Model Display

1. ABB CI854: S800 I/O communication interface module, dedicated for high-speed connection between PM866 controller and S800 field I/O stations.
2. ABB SS822Z: Dual redundant power supply module, providing stable redundant power input for PM866 controller to eliminate power supply single point of failure.
3. ABB DP840: Pulse counting & position detection module, expanding high-precision motion control functions for PM866 based systems.
4. ABB TB825: Module termination baseplate, providing reliable mechanical installation and bus signal termination for and its matching modules.
5. ABB CI502: Fieldbus communication adapter, expanding Profibus DP and other industrial fieldbus access capabilities for controller.

Frequently Asked Questions

Q1: Can 3BSE050200R1 be directly integrated into existing ABB 800xA systems?
A1: Yes, this unit is a native AC 800M series controller, which supports native MMS protocol communication and can be seamlessly connected to ABB 800xA distributed control systems without extra protocol conversion.

Q2: What is the maximum I/O capacity when is configured in redundant mode?
A2: Under standard 1+1 redundant configuration, can support up to 84 I/O modules, which fully meets the control demands of most large process industry production units.

Q3: Does this controller support hot-swap of I/O modules during system operation?
A3: When paired with compatible S800 I/O stations, the system supports hot-swap replacement of individual I/O modules without shutting down the main controller, minimizing maintenance downtime.

Q4: What is the typical power consumption of 3BSE050200R1?
A4: The typical operating current is 210 mA under 24 V DC power supply, with maximum current no more than 360 mA, which is energy-efficient and reduces the load pressure of the system power supply.

Q5: Can I use custom C/C++ programs on this controller?
A5: Yes, supports not only all IEC 61131-3 standard programming languages, but also C and C++ custom program development, allowing engineers to deploy complex custom control algorithms as needed.
