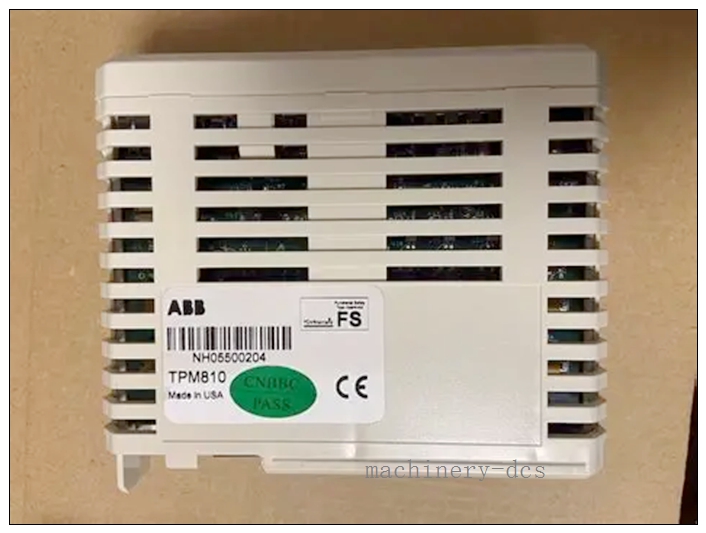

ABB TPM810 Turbine Protection Module



Executive Brief

The ABB TPM810 is a high-integrity dedicated safety and turbine protection I/O module within the ABB 800 Series, specifically engineered for critical safety-critical steam and gas turbine protection and monitoring applications. It provides ultra-low latency deterministic protection logic that operates independently of the main control system, preventing catastrophic turbine failures in demanding power generation environments.

ABB TPM810

Core Technical Specifications

  1. Manufacturer: ABB
  2. Exact Part Number: TPM810
  3. Product Category: Turbine Protection Module
  4. Product Family: S+ Turbine
  5. Country of Origin: Sweden / Malta
  6. Gross Weight: 0.6 kg
  7. Net Weight: 160 g
  8. Customs Tariff Number: 8538908180
  9. Warranty: 12 months for brand new original units
  10. Monitored Parameters: Overspeed, vibration anomalies, thermal excursions
  11. Architecture: Industrial-grade high-reliability hardware design
  12. Response Performance: Ultra-low latency for mechanical protection trip logic
  13. Integration: Seamless compatible with ABB 800 Series I/O systems
  14. Minimum Order Quantity: 1 EA
  15. Order Multiple: 1 EA



Key Features & Advantages

  • Dedicated Independent Protection Layer: Operates as a completely independent deterministic protection layer, executing safety-critical trip logic reliably even if the main control system encounters anomalies.
  • Multi-parameter Rapid Detection: Simultaneously monitors three core turbine safety parameters including overspeed, vibration and thermal excursions, providing comprehensive fault perception capability.
  • Ultra-low Latency Response: Industrial-grade architecture delivers extremely fast protection response speed, ensuring that dangerous turbine operating conditions are detected and tripped within the shortest possible time.
  • Seamless System Integration: Compact lightweight design can be directly integrated into ABB 800 Series I/O systems without complex transformation, reducing on-site deployment difficulty.
  • Harsh Environment Adaptability: Designed for long-term stable operation in demanding power generation industrial environments, with excellent anti-interference and reliability performance.
  • Strict Industrial Quality Control: Manufactured with ABB’s global industrial manufacturing standards, ensuring long-term stable operation in high-risk turbine protection scenarios.



Typical Application Scenarios

  1. Steam Turbine Protection in Thermal Power Plants: Dedicated safety protection unit for large and medium-sized thermal power plant steam turbines, preventing overspeed, excessive vibration and overheating catastrophic failures.
  2. Gas Turbine Protection in Combined Cycle Power Plants: Core protection module for gas turbines in combined cycle power generation systems, ensuring the safety of high-speed rotating gas turbine units.
  3. Industrial On-site Turbine Drives: Safety protection for large industrial turbines used to drive compressors, pumps and other equipment in petrochemical and metallurgical industries.
  4. Distributed Energy Generation Turbines: Protection and monitoring for small and medium-sized distributed power generation steam and gas turbine units.
  5. Offshore Oil & Gas Turbine Units: Safety protection for turbine power generation and drive units on offshore oil and gas platforms, adapting to harsh marine operating environments.



Related Supporting Product Model Display

  1. ABB 800 Series I/O Baseplate: Dedicated installation baseplate for TPM810, providing reliable mechanical installation and bus signal connection.
  2. ABB Speed Sensor Interface Module: Supporting signal conditioning module for turbine speed sensors, converting field speed signals into recognizable signals for TPM810.
  3. ABB Vibration Monitoring Module: Matching vibration signal processing module, preprocessing field vibration signals before inputting to TPM810.
  4. ABB Redundant Power Supply Module: Providing stable redundant 24V DC power input for , eliminating power supply single point of failure.
  5. ABB Safety Relay Output Module: Expanding high-reliability trip output channels for , directly driving turbine emergency trip actuators.



Frequently Asked Questions

Q1: What is the main function of ABB ?
A1: It is a dedicated turbine protection module, used for rapid detection of overspeed, vibration anomalies and thermal excursions of steam and gas turbines, executing independent safety trip logic.

Q2: Which system series does belong to?
A2: It is a high-integrity I/O module within the ABB 800 Series, belonging to the S+ Turbine product family.

Q3: What is the gross weight of this module?
A3: The gross weight of is 0.6 kg, and the net weight is only 160 g, which is very lightweight and easy for on-site installation.

Q4: What is the standard warranty period for brand new original units?
A4: All brand new original units come with a 12-month official warranty.

Q5: Can work independently without the main control system?
A5: Yes, it operates as an independent deterministic protection layer, ensuring reliable execution of trip logic even when the main control system is abnormal.
