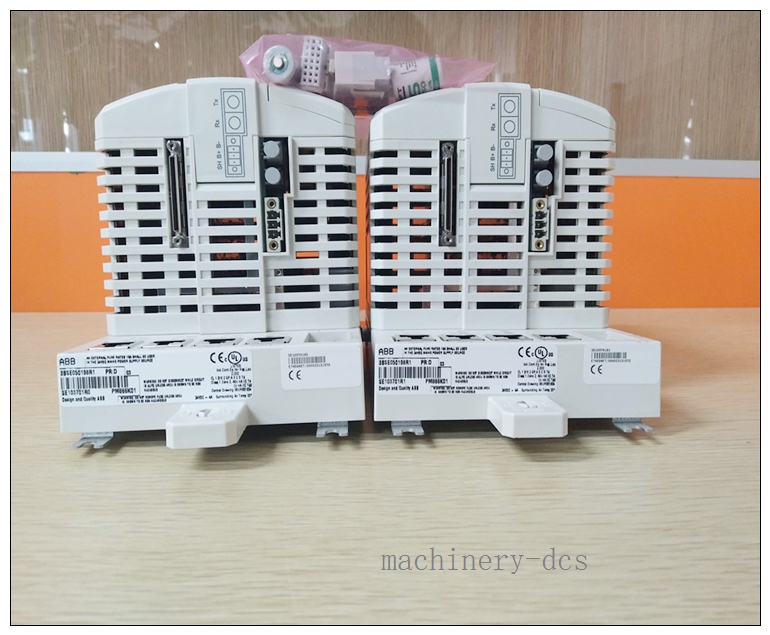

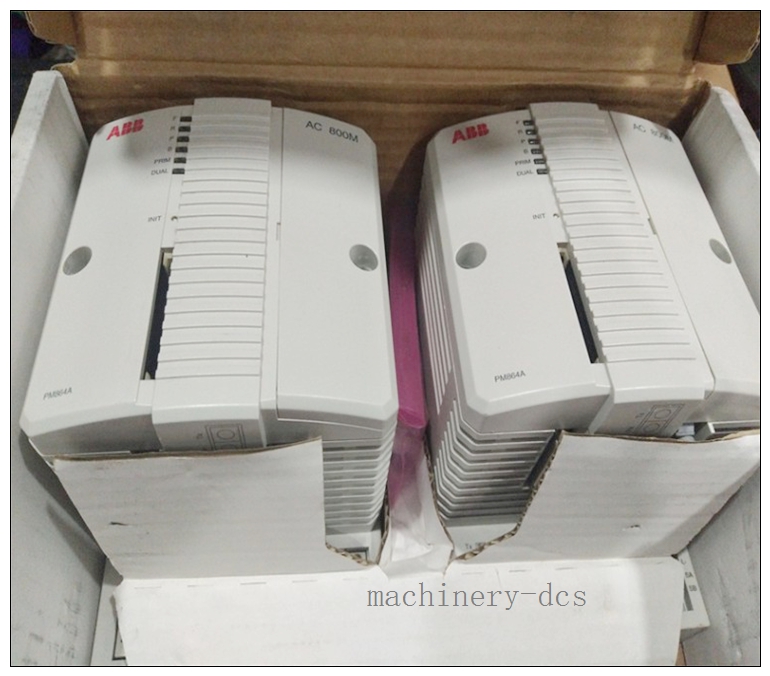

ABB PM866K01 3BSE050198R1 Processor Unit



Product Brand, Model & Title

Field Information
Brand ABB
Model PM866K01
Ordering Number / Part Code 3BSE050198R1
Product Title AC 800M Processor Unit / Controller Module
Product Origin Switzerland



Product Description

The ABB PM866K01 (Ordering No. 3BSE050198R1) is a high-performance Processor Unit engineered for the ABB AC800M controller platform, a cornerstone of the ABB Ability™ System 800xA industrial automation suite . This factory-integrated module serves as the central processing brain in demanding process control environments, executing control logic, managing communication, and coordinating I/O. It is designed for critical process applications requiring high availability, robust performance, and fault tolerance, supporting CPU redundancy for uninterrupted operation in industries such as power generation, oil & gas, and chemical processing .

The unit integrates a microprocessor, RAM, real-time clock, LED indicators, an INIT push button, and a CompactFlash interface on its CPU board . The base plate provides the necessary connectivity and bus interfaces for system integration .

PM866K01 3BSE050198R1

Technical Specifications

Parameter Category Specification Details
Model & ID Model Name PM866K01
Product ID 3BSE050198R1
Processor CPU Type MPC866 Microprocessor
Clock Speed 133 MHz
Memory RAM 64 MB (with internal/external battery backup)
Flash Storage Supports CompactFlash card for application and data storage
Communication Ethernet Ports 2 x RJ45 (IEEE 802.3, 10Base-T) for Control Network
Serial Ports 1 x COM3 (RS-232C with modem support)
1 x COM4 (RS-232C, isolated, for service tool)
System Buses CEX-Bus, ModuleBus, RCPU-Link (for redundancy)
Power Input Voltage 24 V DC (isolated)
Environmental Operating Temperature -40°C to +70°C
Protection Rating IP20 (front panel)
Physical & Certification Mounting DIN Rail (Slide & Lock mechanism)
Certification ISA Secure certified
Weight Approx. 1000 g



Key Features and Advantages

  • High-Performance Processing: Equipped with a 133 MHz MPC866 microprocessor and 64 MB RAM, it delivers the computational power needed for complex control algorithms and fast cycle times in demanding applications .
  • Integrated Redundancy Support: Natively supports CPU, communication interface, and I/O redundancy (via RCPU-Link), providing a high-availability architecture for critical processes where downtime is not an option .
  • Versatile Connectivity: Dual Ethernet ports and serial ports offer flexible integration into various control networks and facilitate easy connection for configuration and diagnostic tools .
  • Robust Industrial Design: Built for harsh industrial environments with a wide operating temperature range, EMI/RFI shielding, and a rugged DIN-rail mountable housing .
  • Secure and Reliable: Benefits from ABB’s focus on security, with ISA Secure certification, ensuring a high level of protection against cyber threats for industrial control systems .
  • Easy Maintenance & Diagnostics: Features like the INIT button, LED indicators, and CompactFlash interface simplify commissioning, troubleshooting, and firmware updates .



Application Areas

The PM866K01 Processor Unit is deployed across a spectrum of industries where reliable, continuous process control is paramount:

  • Power Generation: Control systems for turbines, boilers, and plant-wide balance of plant.
  • Oil & Gas: Processing plants, refineries, offshore platforms, and pipeline management.
  • Chemical & Petrochemical: Reactor control, batch processing, and safety instrumented systems (SIS).
  • Manufacturing: Advanced automation lines, material handling, and quality control systems.
  • Water/Wastewater Treatment: Pumping stations, filtration control, and distribution network management.

Its design makes it particularly suitable for SIL-compliant (Safety Integrity Level) applications requiring fault-tolerant control .



Related Product Recommendations

Product Category Recommended Product / Series Relation to PM866K01
Controller Family ABB AC800M series (e.g., PM851, PM864) Alternative CPU units with different performance/price points.
Redundancy Kit -based Redundant Processor Unit Kit For deploying in a hot-standby redundancy configuration .
Communication Interfaces CI854, CI856, etc. Additional communication interface modules to expand network connectivity.
I/O Systems S800 I/O series The primary I/O system connected to the controller via ModuleBus or CEX-Bus.
Software & Engineering ABB Ability™ System 800xA The engineering and operation platform where the controller is configured.
Base Plate TP830 Base Plate The specific base plate that houses the PM866 controller, providing connectivity .



Installation and Maintenance

Installation Guidelines

  • Mounting: The unit is designed for simple DIN rail mounting using ABB’s unique slide & lock mechanism, allowing for quick and secure installation or removal .
  • Wiring: Connect the 24 VDC power supply, Ethernet cables for the control network, and serial cables for service tools to the designated ports on the base plate.
  • Configuration: Utilize the COM4 serial port for connecting a configuration tool (e.g., a laptop with Control Builder) to load the application and set up parameters .
  • Redundancy Setup: For redundant configurations, ensure proper cabling for the RCPU-Link and synchronization between the primary and backup controllers.

Maintenance Best Practices

  • Firmware Updates: Regularly check for and apply firmware updates from ABB to ensure optimal performance, security patches, and new features.
  • Battery Replacement: Monitor the status of the internal battery for RAM backup. Replace it according to the manufacturer’s recommended schedule to prevent data loss on power failure.
  • Diagnostics: Leverage the LED indicators and diagnostic software within System 800xA for proactive health monitoring and fault diagnosis.
  • Spare Parts: Keep a spare unit on hand for critical systems. Its hot-swap capability (where supported) allows for replacement without shutting down the entire control system .
  • Environmental Control: Ensure the installation cabinet maintains appropriate temperature and is free from excessive dust, moisture, and vibration to prolong the unit’s lifespan.
