ABB PM865K01 3BSE031151R1 High Integrity Processor Unit

Description

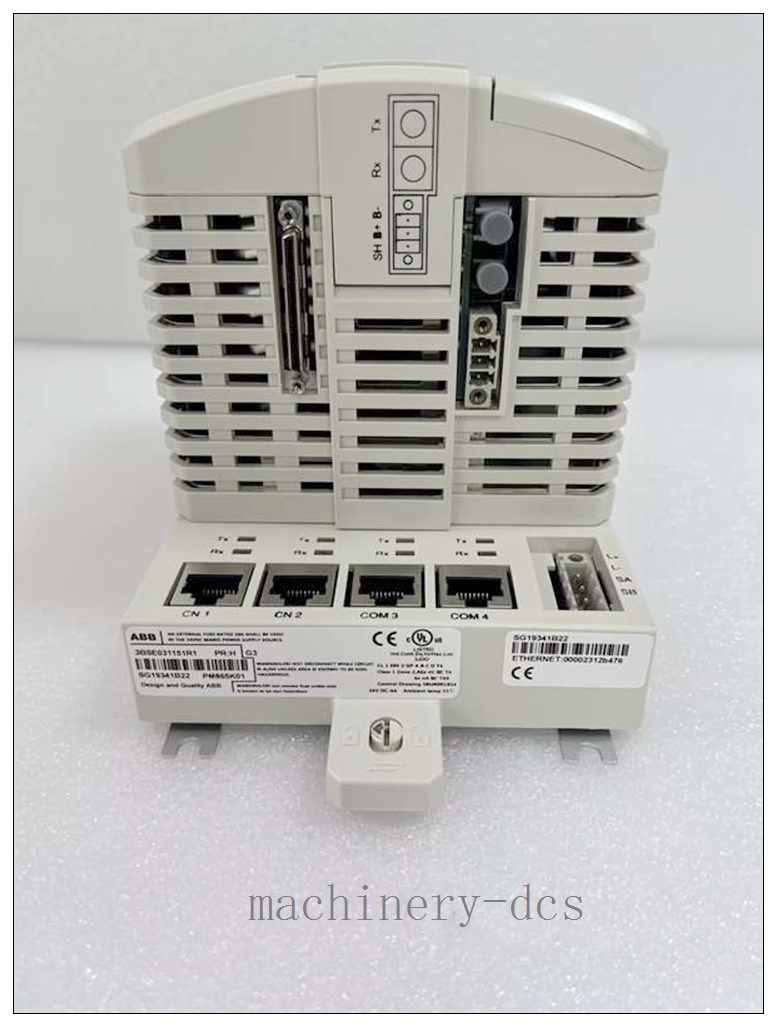

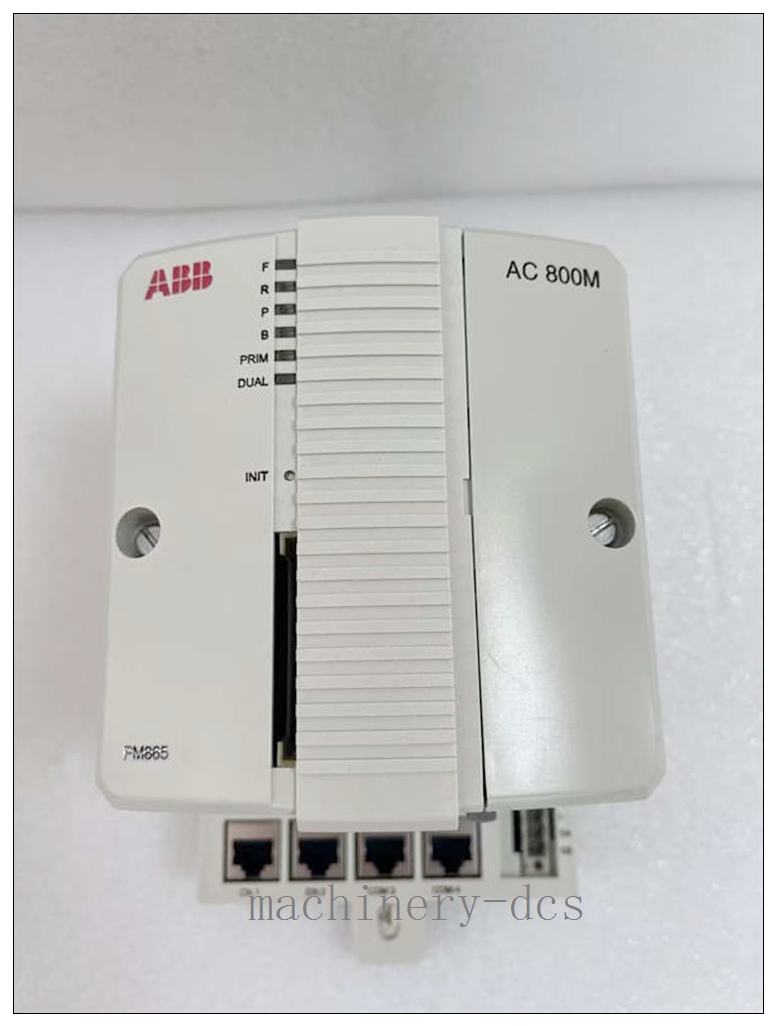

ABB PM865K01 3BSE031151R1 High Integrity Processor Unit

Executive Brief

The ABB PM865K01 3BSE031151R1 is a high-integrity safety-certified processor unit belonging to the AC 800M control system family, purpose-built for safety-critical industrial applications that demand strict functional compliance. Designed to operate reliably across a wide range of harsh industrial environmental conditions, it delivers stable real-time control performance with full compliance to global industrial safety and marine certification standards. This unit is fully compatible with ABB 800xA distributed control systems, supporting seamless integration into existing automation architectures, and all brand new original units come with a 12-month official warranty and global expedited shipping support.

PM865K01 3BSE031151R1

Core Technical Specifications

1. Manufacturer: ABB
2. Exact Part Number: PM865K01, Product ID: TES3BSE031151R1
3. Product Category: AC 800M High Integrity Processor Unit
4. Dimensions: 220 mm (Depth) × 130 mm (Height) × 80 mm (Width)
5. Net Weight: 2.0 kg
6. Operating Temperature Range: +5 °C to +55 °C (+41 °F to +131 °F)
7. Storage Temperature Range: -40 °C to +70 °C (-40 °F to +158 °F)
8. Maximum Operating Altitude: Up to 2000 m
9. Pollution Degree: Degree 2 compliant to IEC/EN 61131-2
10. Corrosion Protection: Compliant to ISA 71.04 G3 standard
11. Relative Humidity: 5% – 95%, non-condensing
12. Emitted Noise: < 55 dB(A)
13. Vibration Resistance: 10–50 Hz at 0.0375 mm amplitude; 50–150 Hz at 0.5 g acceleration; 5–500 Hz at 0.2 g acceleration
14. Rated Isolation Voltage: 500 V a.c.
15. Dielectric Test Voltage: 50 V
16. Protection Class: IP20 compliant to EN 60529 and IEC 529
17. EMC Performance: Complies with EN 61000-6-4 and EN 61000-6-2 standards
18. Safety & Certifications: CE marked; electrical safety compliant to EN 50178, IEC 61131-2, UL 508; CULus Class 1 Zone 2 hazardous location certified; marine certificates approved by ABS, BV, DNV-GL, LR, RS, CCS

Key Features & Advantages

• High Integrity Safety Design: Built to meet strict functional safety requirements, making it suitable for safety-related control loops that demand high reliability and fault tolerance.
• Harsh Environment Adaptability: With G3-level corrosion protection, wide temperature tolerance and strong vibration resistance, it can operate stably in heavy industrial sites with poor environmental conditions.
• Full Global Certification Coverage: Equipped with complete hazardous location and marine classification society certifications, it can be directly deployed in offshore, petrochemical and explosion-risk scenarios without additional compliance transformation.
• Seamless System Compatibility: Natively supports ABB 800xA DCS and AC 800M control system versions 4.0, 4.1 and 5.0, enabling easy integration into existing automation architectures.
• Low Electromagnetic Interference: Strict EMC compliance ensures stable operation even in industrial sites with dense high-power electrical equipment and complex electromagnetic environments.
• Rugged Industrial-grade Construction: IP20 protection and reinforced mechanical structure effectively prevent dust and accidental contact, extending long service life in industrial cabinet deployment.

Typical Application Scenarios

1. Offshore Oil & Gas Platforms: Core control unit for offshore production facilities, fully compliant with marine classification society requirements for long-term unattended operation.
2. Petrochemical Explosion-risk Zones: Safety-critical process control for Class 1 Zone 2 hazardous locations, ensuring production safety in flammable and explosive environments.
3. Marine & Ship Automation: Main control component for ship propulsion systems, cargo handling systems and vessel automation platforms, meeting international marine safety standards.
4. Heavy Process Industry Safety Loops: High-reliability control for chemical, pharmaceutical and power generation safety-related production processes, preventing unplanned safety risks.
5. Mining & Metallurgical Sites: Stable control for mining processing lines and metallurgical production units with high dust, strong vibration and severe corrosion conditions.

Same Series Model Display

1. ABB PM861K01: Entry-level high integrity processor unit, designed for small and medium-sized safety-related automation projects with moderate performance requirements.
2. ABB PM864K01: Mid-range high integrity processor unit, balancing performance and cost for standard safety control scenarios with medium I/O capacity.
3. ABB PM865K02: Upgraded variant of PM865K01, with expanded memory and enhanced processing performance for larger high-integrity control systems.
4. ABB PM866K01: Flagship high integrity processor unit, with top-tier processing power and maximum I/O expansion for ultra-large scale safety-critical industrial control systems.

Related Supporting Product Model Display

1. ABB EXC3BSE031151R1: PM865K01 exchange processor unit kit, providing direct replacement for faulty units to minimize system downtime during maintenance.
2. ABB CI854K01: High integrity S800 I/O communication interface module, dedicated for high-speed connection between PM865K01 and safety-related field I/O stations.
3. ABB SS823: Redundant safety power supply module, providing stable redundant power input for to eliminate power supply single point of failure.
4. ABB TB845: Dedicated high integrity baseplate, providing reliable mechanical installation and safety bus signal termination for .
5. ABB TK851: Safety-certified CEX-bus extension cable, realizing high-speed redundant data interconnection between and other control modules.

Frequently Asked Questions

Q1: Can 3BSE031151R1 be used in Class 1 Zone 2 hazardous locations?
A1: Yes, this unit has obtained official CULus Class 1, Zone 2, AEx nA IIC T4 certification, which fully meets the deployment requirements of such hazardous locations.

Q2: Does this processor support marine application scenarios?
A2: Absolutely, it holds full marine certificates issued by ABS, BV, DNV-GL, LR, RS and CCS, which can be directly applied to various ship and offshore engineering automation systems.

Q3: Which versions of ABB AC 800M control software are compatible with this unit?
A3: It is fully compatible with AC 800M Control Software 4.0, 4.1 and 5.0, and can be seamlessly integrated into corresponding ABB 800xA distributed control systems.

Q4: What is the corrosion protection level of ?
A4: Its corrosion protection performance fully complies with ISA 71.04 G3 standard, which can adapt to industrial sites with moderate corrosive gas presence.

Q5: Can I replace a regular non-safety AC 800M processor with directly?
A5: It can be physically installed in the same system rack, but you need to complete corresponding safety configuration and functional verification in the control software to meet the high integrity application requirements.
