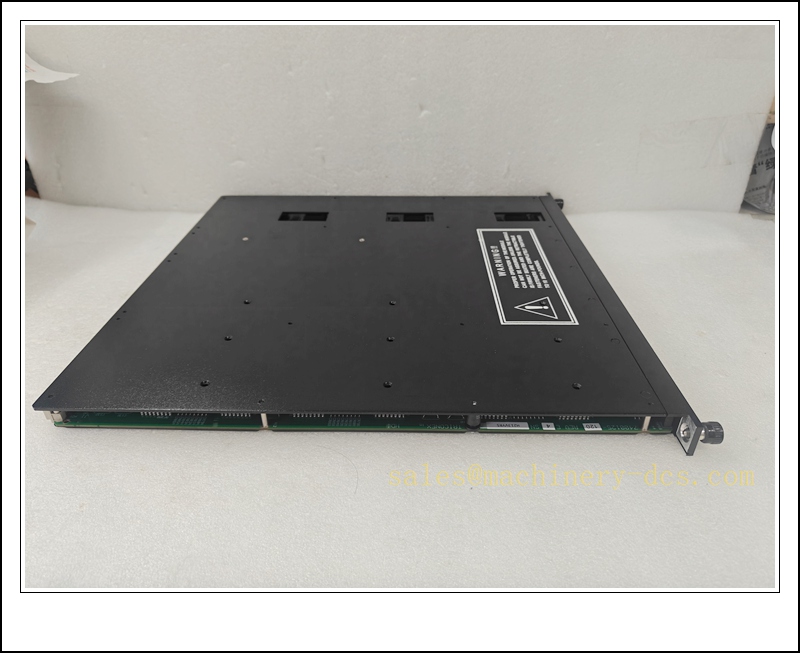

Triconex 3504E High Density 64-Point Commoned Digital Input Module, TMR SIL 3 SIS Module

Description

Triconex 3504E High Density 64-Point Commoned Digital Input Module, TMR SIL 3 SIS Module

Product Description

The 3504E is a triple modular redundant (TMR) high-density commoned digital input module for the Tricon safety instrumented system (SIS). It accepts 24/48 VDC discrete field signals from switches, contact sensors, emergency stop buttons, pressure and level switches, and transmits validated digital status to the Tricon main processor via the triplicated backplane bus. All signal paths are triplicated for fault tolerance; three independent processing legs vote on input status to tolerate single hardware faults without losing safety function. This module supports stuck-on / stuck-off channel testing to validate field circuit integrity, a critical feature for SIL 3 proof-test requirements. It communicates diagnostic and input status to the Tricon chassis and TriStation software. Hot-swap capability allows module replacement while the rack remains online, minimizing downtime for continuous process plants. It requires an external termination panel (ETP) for field wiring termination.

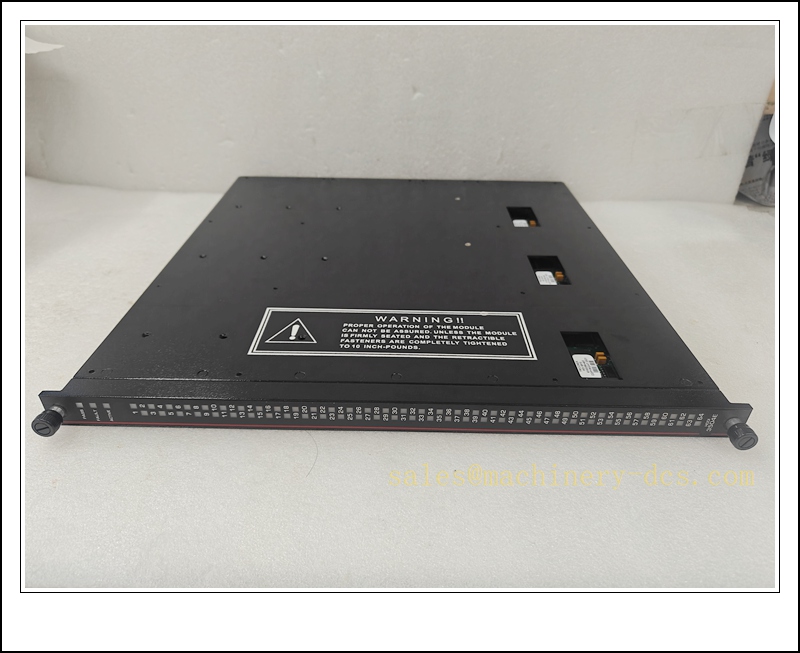

3504E

Technical Specifications

• Brand: Triconex (Schneider Electric)
• Model: 3504E
• Module Type: High Density Commoned Digital Input (DI)
• Architecture: TMR Triple Modular Redundancy
• Number of Input Points: 64 commoned DC inputs
• Input Voltage Range: 20–72 VDC, rated for 24 VDC / 48 VDC field circuits
• Input Coupling: DC coupled, commoned return
• Hysteresis: Typical 4 VDC / 7 VDC
• Diagnostic Features: Per-channel stuck test (ON / OFF), open circuit, module self-test, leg fault detection
• Backplane Interface: Tricon triplicated system bus
• Hot Swap: Supported with rack online
• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5% to 95% non-condensing
• Safety Certification: SIL 3 per IEC 61508
• Configuration Software: TriStation
• Input Update Rate: 75 ms
• Mechanical Keying: Yes, prevents incorrect slot insertion
• Power Source: Powered from Tricon chassis backplane

Application Scenarios

• Petrochemical and refinery ESD emergency shutdown systems
• Oil & gas onshore and offshore safety interlock systems
• Power plant boiler protection, turbine trip and burner management systems (BMS)
• LNG terminal and cryogenic plant safety instrumented functions
• Pipeline pressure safety, fire and gas detection interlocks
• Chemical continuous process critical switch and contact monitoring
• Hazardous Class I Div 2 / Zone 2 SIS cabinets
• High I/O density safety systems requiring SIL 3 fault tolerance

8 Related Triconex Model Recommendations

1. 3503E – 32-Point Digital Input Module
2. 3505E – Low Threshold 32-Point Digital Input Module
3. 3706A – Digital Input Module
4. 3707A – Digital Output Module
5. 3704E – 8-Channel Analog Output Module
6. 3805E – Tricon Main Processor Module
7. 4000098-510 – Tricon Redundant Power Supply
8. 3721 – Communication Interface Module

Compatibility & Installation Pitfalls

Compatibility

• Designed exclusively for Tricon TMR chassis and Tricon backplane; incompatible with Bently 3500 or other non-Triconex SIS racks.
• Requires compatible TriStation firmware for main processors and I/O firmware to preserve SIL 3 certification.
• It is a commoned-input type; not suitable for isolated individual point requirements, select 3503E or other isolated DI models instead.
• Must pair with the correct external termination panel (ETP) and matched ribbon cable set.
• Configuration logic resides in the main processor; the module itself does not store application logic.
• TMR safety function requires a fully triplicated rack architecture; a standalone module cannot achieve SIL 3.

Installation Pitfalls

1. Hot-swap is permitted only when all three processor legs are healthy; avoid hot-swap during active system faults.
2. This is a commoned return module; incorrect field return wiring creates cross-talk between input points and false switch status.
3. Field 24/48 VDC wiring must be segregated from high-power AC and VFD cables; induced noise can trigger spurious input changes.
4. Stuck-channel diagnostic test will force the channel state for verification; isolate safety trips or coordinate with operations during proof-testing.
5. Do not exceed the 72 VDC maximum input rating; overvoltage damages input circuitry and voids safety certification.
6. The module is mechanically keyed; never force it into an incompatible slot, which can damage the backplane connector.
7. Fault LEDs indicate internal leg or channel faults, but they cannot detect mechanical switch failure; proof-test of field contacts is mandatory.
8. Ground potential differences between the SIS cabinet and field devices can create common-mode noise; follow SIS single-point grounding design.

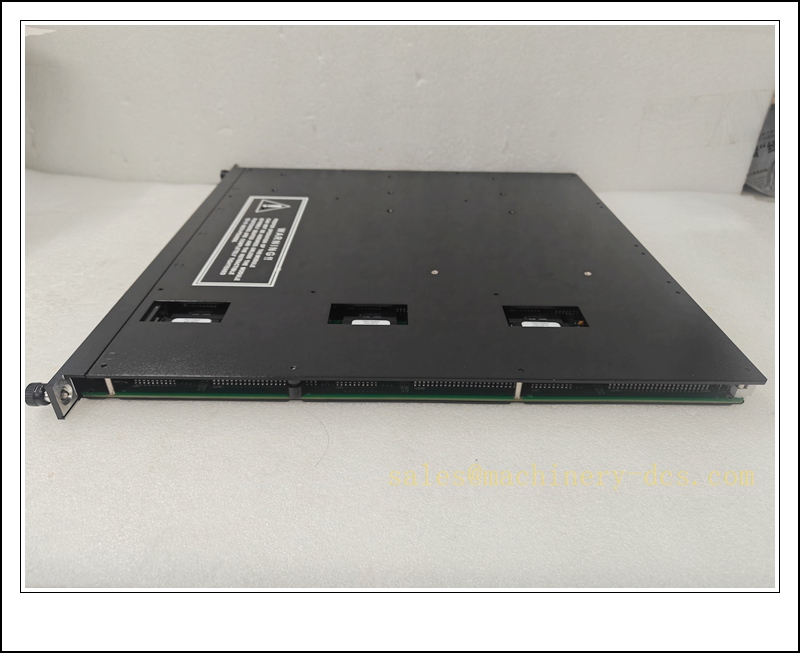

3504E

Standard Operating Procedure (SOP)

SOP for 3504E Digital Input Module Inspection, Installation and Functional Test

1. Pre-Installation Inspection Inspect the module for physical damage, connector pin damage or contamination. Confirm part number matches SIS design drawings. Verify the matching external termination panel and ribbon cable assembly. Review field switch voltage and commoned return circuit design. Apply lockout-tagout to associated ESD and trip circuits before rack work.
2. Rack Installation Power down the rack if the module supports a critical safety function without redundant I/O. Insert the 3504E into the designated Tricon I/O slot and engage the locking latch. Connect the ribbon cable from the module rear connector to the external termination panel. Terminate field switch wiring on the ETP, segregate low-voltage discrete wiring from high-energy circuits.
3. Software Configuration Open TriStation and upload the existing Tricon application. Map the 3504E in the I/O configuration table. Enable per-channel stuck test diagnostics as required by the SIL safety plan. Download the validated application to the main processor and resolve all configuration fault codes. Archive the safety application file for IEC 61508 audit traceability.
4. Channel Functional and Diagnostic Test Force field switch states and verify corresponding status in TriStation. Simulate open circuit and switch state transitions to confirm correct input reading. Execute the stuck-on / stuck-off diagnostic test sequence for selected channels and confirm fault reporting. Record input status and diagnostic response in the SIS proof-test log.
5. Safety Interlock Verification With the system approved for test, verify that switch trip conditions trigger the designed SIS logic, alarms and shutdown sequences. Confirm TMR voting rejects single-leg faults and does not produce spurious trips. Validate that detected channel faults raise diagnostic alarms as configured.
6. Return to Service Clear all temporary test forces and diagnostic latches. Remove lockout tags and restore the safety interlock to online status. Monitor module health and input stability for the required observation window. Notify operations that discrete input safety monitoring is active.
7. Periodic Maintenance and Replacement During planned outages, inspect ETP terminal torque, cable shielding and switch contact integrity. Repeat channel status checks and stuck-test diagnostics per the site SIS proof-test schedule. If persistent unrecoverable TMR leg faults occur, confirm rack health before hot-swap. After installing a replacement module, confirm automatic synchronization with the Tricon processor, re-run the full channel and diagnostic test before releasing the module to safety duty.
