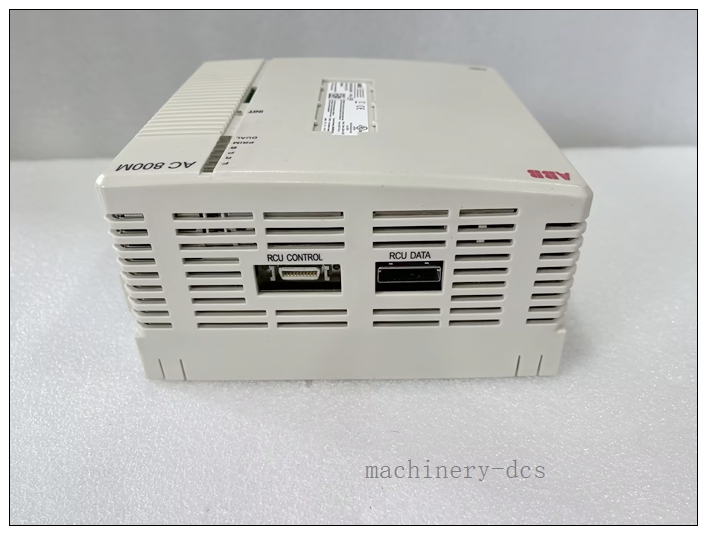

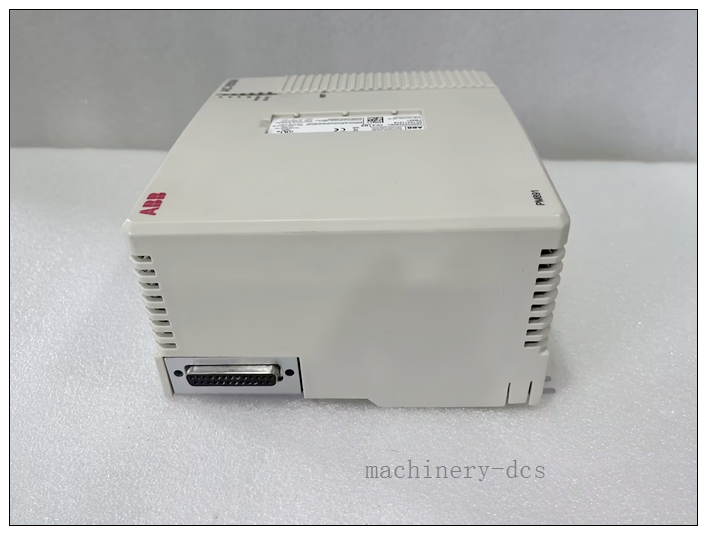

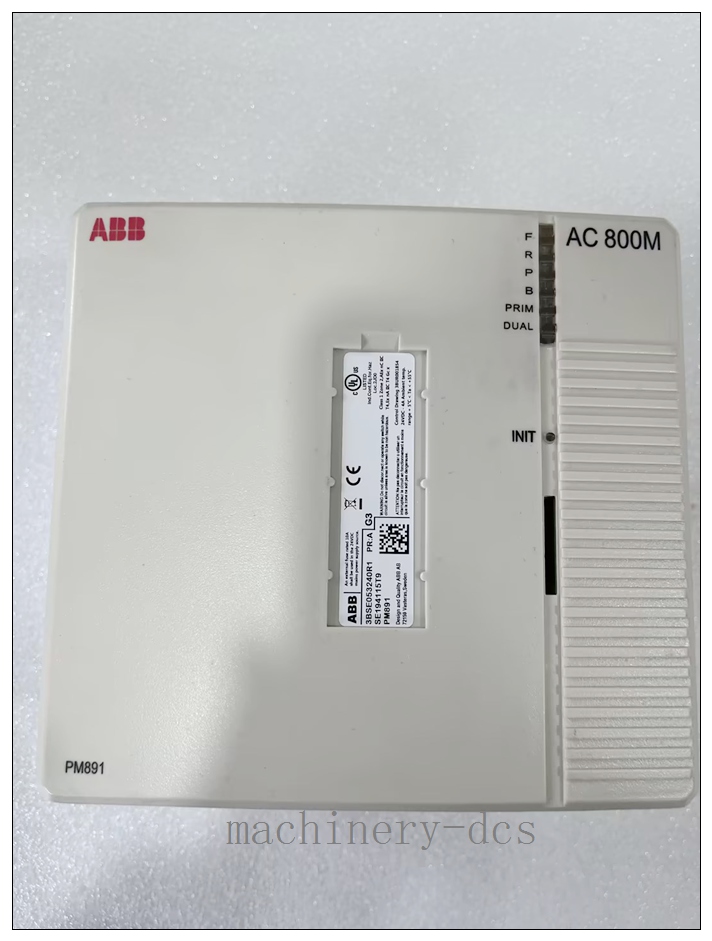

ABB AC800M 3BSE053240R1 PM891 High-Performance Processor Module

Description

ABB AC800M 3BSE053240R1 PM891 High-Performance Processor Module

Executive Brief

The ABB AC800M 3BSE053240R1 PM891 is a high-performance core processor module belonging to ABB’s AC800M distributed control system (DCS) family, engineered to serve as the central “brain” for complex industrial automation processes. Built with a PowerPC-based architecture, it delivers exceptional deterministic processing power for real-time control tasks, supports SIL 2 safety applications, and features robust industrial-grade design that guarantees reliable operation in harsh field environments. This module enables seamless integration between process control, safety systems and enterprise networks, and all brand new original units come with a 12-month official warranty and global expedited shipping support.

AC800M 3BSE053240R1 PM891

Core Technical Specifications

1. Manufacturer: ABB
2. Exact Part Number: PM891, Order ID: 3BSE053240R1
3. Product Category: AC800M Distributed Control System Main Processor Module
4. Processor Architecture: High-performance RISC PowerPC processor for embedded real-time control
5. Memory Configuration: 32 MB RAM for real-time data processing, 1 MB NVRAM for non-volatile data retention, 512 MB flash memory for program storage
6. Communication Interfaces: Two 10/100 Mbps redundant Ethernet ports; supports connection with CI854, CI853, CI862, CI840, CI801 and other ABB communication modules
7. Safety Compliance: Certified for SIL 2 safety applications
8. Operating Temperature Range: -40°C to +70°C
9. Environmental Protection: EMI-shielded enclosure, conformal-coated electronics for harsh condition resistance
10. Real-time Clock: Built-in real-time clock with dedicated battery backup
11. Redundancy Support: Natively supports CPU redundant configuration, operating in pairs with identical PM891 modules for bumpless switchover
12. Software Compatibility: Runs control programs configured via ABB Control Builder M engineering software
13. Hot-swap Capability: Supports hot-swap module replacement during system operation to maximize uptime
14. Diagnostics: Integrated advanced self-diagnostic functions for real-time module health monitoring

Key Features & Advantages

• Outstanding Processing Performance: The PowerPC-based architecture delivers powerful computing capacity for PID loop execution, sequential control, complex strategy calculation and large-scale data logging, while maintaining low energy consumption.
• Dual Redundant Ethernet Design: Two independent 10/100 Mbps Ethernet ports with redundant support eliminate communication single point of failure, ensuring stable and uninterrupted data transmission.
• Extreme Environmental Adaptability: With wide -40°C to +70°C operating temperature range, conformal-coated electronics and EMI-shielded enclosure, it can reliably operate in extremely harsh scenarios such as offshore platforms and arctic mining sites.
• High-level Safety Capability: SIL 2 safety certification qualification makes it suitable for safety-related industrial control loops, meeting strict functional safety requirements of high-risk industries.
• Seamless Ecosystem Integration: Extensive protocol support including Ethernet IP, Profibus DP and more enables seamless interconnection between process control systems, safety systems and upper-layer enterprise management networks.
• High Availability Design: Hot-swap support and advanced self-diagnostic functions drastically reduce system downtime, maximizing continuous operation time for mission-critical production processes.
• Flexible Redundancy Deployment: Native 1+1 CPU redundant configuration support achieves millisecond-level bumpless switchover upon primary module failure, completely eliminating unplanned production interruption risks.

Typical Application Scenarios

1. Heavy Process Industry Control: Core control unit for petrochemical, chemical, energy and chemical processing production lines, supporting complex continuous process control with high reliability requirements.
2. Offshore & Marine Engineering Automation: Main processor for offshore oil platforms, LNG terminals and marine vessel automation systems, adapting to long-term unattended harsh marine operating conditions.
3. Mining & Metallurgical Production: Central control for large mining sites and metallurgical rolling lines, withstanding strong vibration, wide temperature fluctuation and severe dust industrial environments.
4. Power Generation & Energy Facilities: Distributed control for thermal power plants, new energy generation stations and substation automation systems, ensuring stable and safe operation of power production processes.
5. Water Treatment & Public Utilities: Core control for large-scale water treatment plants, urban water supply networks and industrial park utility systems, supporting 24/7 non-stop operation.

Same Series Model Display

1. ABB PM885: Entry-level AC800M processor module, designed for small and medium-sized automation projects with moderate performance requirements, offering cost-effective non-redundant control solutions.
2. ABB PM886: Mid-range AC800M processor module, balancing performance and cost for standard industrial control scenarios with medium I/O capacity.
3. ABB PM892: Upgraded high-performance processor module, with expanded memory and higher main frequency for medium-large complex control systems.
4. ABB PM893: Flagship top-tier processor module, with maximum processing power and largest I/O expansion capacity for ultra-large scale distributed control systems.

Related Supporting Product Model Display

1. ABB CI854: Profibus DP communication interface module, dedicated for high-speed fieldbus connection between PM891 and distributed field I/O stations.
2. ABB CI862: Modbus communication interface module, expanding Modbus RTU/TCP protocol access capability for PM891 based systems.
3. ABB SS891: Redundant power supply module, providing stable redundant system power input for to eliminate power supply single point of failure.
4. ABB TB891: Dedicated baseplate for , providing reliable mechanical installation and bus signal termination for the processor module.
5. ABB TK891: Redundancy synchronization dedicated cable, realizing high-speed real-time data synchronization between two redundant modules.

Frequently Asked Questions

Q1: Does 3BSE053240R1 support SIL 2 safety applications?
A1: Yes, this processor module is specially engineered and certified to support SIL 2 safety applications, meeting the functional safety requirements of high-risk industrial scenarios.

Q2: What is the operating temperature range of this module?
A2: It supports a wide operating temperature range from -40°C to +70°C, which can adapt to extremely cold, high-temperature and other harsh industrial field environments.

Q3: Does support CPU redundant configuration?
A3: Absolutely, it natively supports 1+1 hot standby redundant configuration, operating in pairs with identical modules to achieve seamless bumpless switchover.

Q4: Can I replace the module without shutting down the system?
A4: Yes, this module supports hot-swap operation, allowing engineers to replace the faulty unit during system operation without interrupting the whole production process.

Q5: What software environment is required to configure this processor?
A5: It runs the control programs configured by ABB Control Builder M engineering software, which is the standard configuration tool for series controllers.
