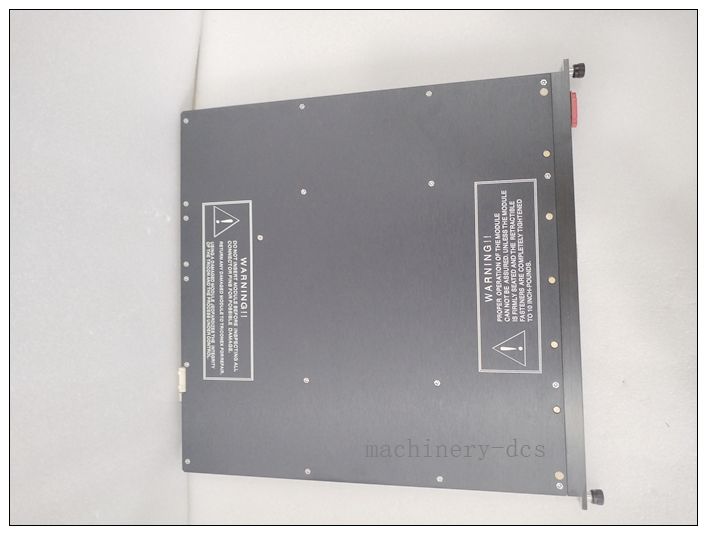

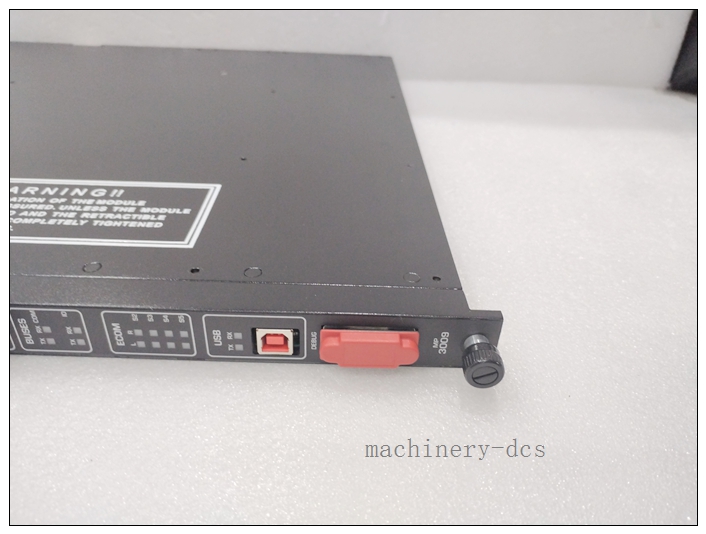

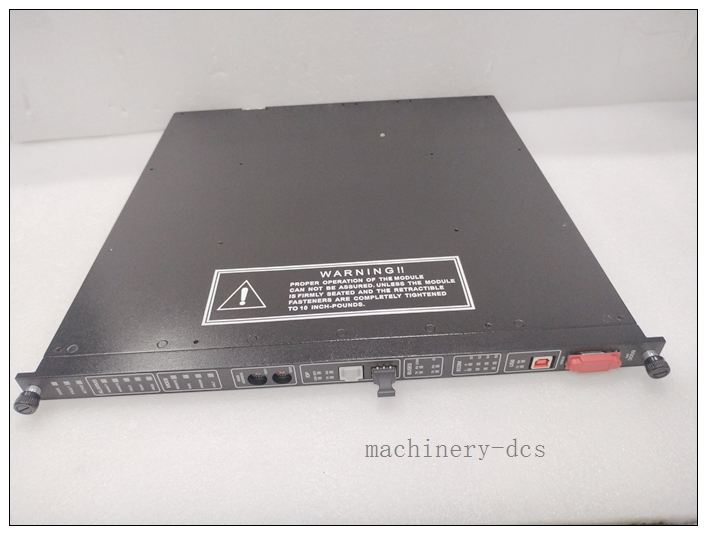

TRICONEX 3009 V11.2 Enhanced Main Processor (UMP) Module

Description

Brand‌: TRICONEX (Honeywell Safety Automation)
‌Model‌: 3009
‌Official Full Title‌: TRICONEX 3009 V11.2 Enhanced Main Processor (UMP) Module for Tricon Safety Instrumented Systems

Product Description

The TRICONEX 3009 is a high-reliability Enhanced Main Processor (UMP) module, the core computing component of TRICONEX’s Tricon Safety Instrumented System (SIS). Built for safety-critical industrial environments where zero downtime is non-negotiable, it leverages native Triple Modular Redundancy (TMR) architecture to deliver fault-tolerant real-time control, ensuring continuous system operation even if single or dual processor channels experience faults. Fully SIL 3 certified to meet IEC 61508 and ISA 84.01 global safety standards, it processes massive real-time data from field sensors and actuators, executes complex safety control logic, and supports seamless interconnection with distributed control systems across high-risk industrial sectors.

TRICONEX 3009

Technical Specifications

• ‌Processor Configuration‌: Intel Xeon E5-2690v3 dual-CPU architecture, 2.6 GHz clock speed
• ‌Onboard Memory‌: 32GB DDR4 RAM, 240GB SSD local storage
• ‌Communication Interfaces‌: 2 × Ethernet ports, 2 × RS-232 serial ports, 1 × USB port
• ‌Redundancy Design‌: Full Triple Modular Redundancy (TMR) with three independent parallel processor channels
• ‌Safety Certification‌: SIL 3 certified, compliant with IEC 61508 and ISA 84.01 standards
• ‌Firmware Version‌: V11.2
• ‌Origin‌: USA, original factory new with sealed packaging
• ‌Warranty‌: 12 months official manufacturer warranty
• ‌System Compatibility‌: Fully interoperable with all Tricon series I/O modules and communication cards
• ‌Operating Environment‌: Designed for harsh industrial plant conditions with wide temperature tolerance

Main Features and Advantages

1. ‌High-Performance Computing Power‌
   The dual Intel Xeon E5-2690v3 CPU architecture delivers exceptional processing speed, easily supporting complex safety control algorithms and high-volume real-time industrial data processing.
2. ‌Native TMR Fault-Tolerant Architecture‌
   Three independent redundant processor channels run parallel logic execution and median voting, ensuring uninterrupted system operation even if two channels experience faults, eliminating single points of failure completely.
3. ‌Rich Multi-Protocol Interconnection Capability‌
   Integrated Ethernet, RS-232 and USB interfaces support seamless compatibility with Modbus master/slave devices, TCP/IP industrial networks, Foxboro/Honeywell DCS systems and peer-to-peer Tricon network communication.
4. ‌Built-In Full-Coverage Diagnostics‌
   Embedded self-testing and real-time health monitoring features automatically detect processor anomalies, reducing manual maintenance workload and enabling predictive fault response before unplanned trips occur.
5. ‌Modular Scalable Design‌
   The hot-swappable modular form factor supports flexible system expansion, allowing users to add I/O modules and expand control loops without full system reconfiguration.

TRICONEX 3009

Application Fields

• Oil and gas onshore processing and offshore platform safety instrumented systems
• Petrochemical refining plant ESD (Emergency Shutdown) and F&G (Fire & Gas) protection systems
• Chemical processing high-risk process safety control architectures
• Thermal and nuclear power generation critical safety control and turbine protection systems
• Heavy industrial mission-critical automation systems where zero downtime is mandatory
• Global industrial sites requiring SIL 3 certified safety control performance

Related Product Recommendations

• TRICONEX 3002 TMR Main Processor Module
• TRICONEX 3101S2 Tricon TMR Control Processor
• TRICONEX 3805E TMR 8-Channel Digital Output Module
• TRICONEX 3700A TMR 32-Channel Analog Input Module
• TRICONEX 8312 230VAC TMR Safety Power Supply Module

Installation and Maintenance

1. ‌Pre-Installation Validation‌
   Confirm the 3009 V11.2 firmware version matches your existing Tricon system software compatibility requirements before deployment, to avoid configuration mismatch issues.
2. ‌Rack Mounting Procedure‌
   Align the module with the dedicated main processor slot on the Tricon backplane, push firmly until the locking latch clicks into place, then tighten the captive mounting screws to ensure stable electrical contact.
3. ‌System Configuration Best Practice‌
   Complete all control logic programming and validation via TriStation software before putting the processor into online operation, confirm TMR three-channel voting functionality is fully activated.
4. ‌Routine Preventive Maintenance‌
   Conduct periodic inspections to verify all processor status LEDs show normal operation, clear accumulated dust from ventilation slots to preserve cooling efficiency, and confirm the cabinet operating temperature stays within the rated range.
5. ‌Fault Troubleshooting & Replacement‌
   When a fault alarm appears in the system diagnostic dashboard, first pull detailed fault logs via TriStation to identify the root cause. Confirm the remaining redundant processor channels are fully operational before initiating hot-swap replacement, and validate full system logic execution returns to normal after the new module is seated.
6. ‌Spare Part Management‌
   Store backup 3009 modules in a temperature-controlled ESD-safe industrial cabinet, and perform annual bench functionality validation on spare units to guarantee immediate operational readiness when on-site replacement is required.
