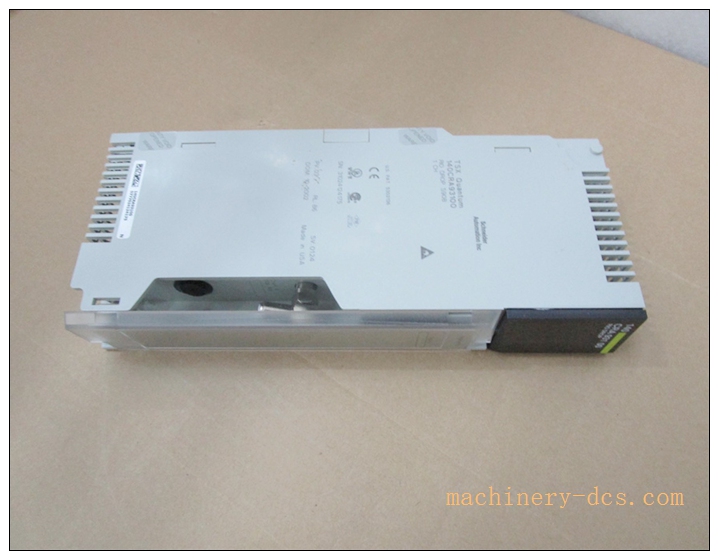

Schneider Electric 140CRA31908 Modicon Quantum S908 RIO Drop Adapter
Product Description
The 140CRA31908 is an S908 RIO drop adapter for Schneider Modicon Quantum remote I/O racks, compatible with M580 ePAC controllers. It acts as the communication gateway between the M580 EIO Ethernet network and the S908 remote I/O bus. This module receives implicit I/O data from the main CPU over Ethernet and exchanges real-time process data with local Quantum I/O modules on the S908 bus. It supports daisy-chain or ring network topology for redundant communication, and provides continuous diagnostics of bus health, module faults and I/O status. Equipped with multiple Ethernet ports and LED diagnostic indicators, it enables distributed remote I/O deployment for large-scale process control systems, allowing I/O racks to be placed near field instruments to reduce long field wiring cost.
Technical Specifications
- Part Number: 140CRA31908
- Manufacturer: Schneider Electric
- Series: Modicon Quantum / M580 ePAC
- Device Type: S908 RIO Drop Adapter
- Network Interface: 4 × 10/100BASE-TX Ethernet ports (EIO network + service port)
- Field Bus: S908 remote I/O bus for Quantum I/O racks
- Max adapters per EIO network: 31 units
- Power Supply: Powered by Quantum rack backplane
- Operating Temperature: 0°C ~ +60°C
- Storage Temperature: -40°C ~ +85°C
- Relative Humidity: 5% ~ 93%, non-condensing
- Mounting: Hot-swappable, fits standard Quantum rack slot
- Protection Class: IP20 (cabinet use only)
- Weight: Approx. 0.55 kg
- Certifications: UL508, CE, Class I Div 2 hazardous location approval
- Vibration & Shock: Compliant with IEC 61131-2 industrial standard
140CRA31908
Key Features
- RIO drop adapter linking M580 EIO Ethernet and Quantum remote I/O bus
- 4-port 10/100Mbps Ethernet, supports ring topology for redundant network
- Implicit real-time I/O data exchange between main controller and distributed I/O racks
- Hot-swappable design for maintenance without full system shutdown
- LED indicators for module status, network health and I/O fault alarms
- Continuous self-diagnosis for communication failures and hardware errors
- Reduces field wiring length by placing I/O racks close to field sensors and actuators
- Compatible with Control Expert programming software for configuration and diagnostics
Application Scenarios
- Petrochemical and refinery distributed process control systems
- Power plant auxiliary control and boiler PLC systems
- Oil & gas onshore production and pipeline automation
- Pulp & paper mill large-scale production line control
- Water and wastewater treatment plant automation
- Mining and cement plant heavy machinery control
- Food & beverage batch and continuous manufacturing
- Large material handling and conveyor control systems
Matching / Auxiliary Components
- Modicon M580 ePAC controller (BMEP58 / BMEH58 series)
- Quantum local / remote I/O rack and backplane
- Quantum AI/AO/DI/DO I/O modules
- bus cable for remote I/O rack connection
- Industrial Ethernet shielded cables and managed switches
- Control Expert programming & diagnostic software
- Quantum rack power supply modules
- Terminal blocks and field instrument wiring accessories
