Metso D201832 IPSP Power Supply for Metso/Valmet Automation Control Systems

Description

Metso D201832 IPSP Power Supply for Metso/Valmet Automation Control Systems

Model introduction

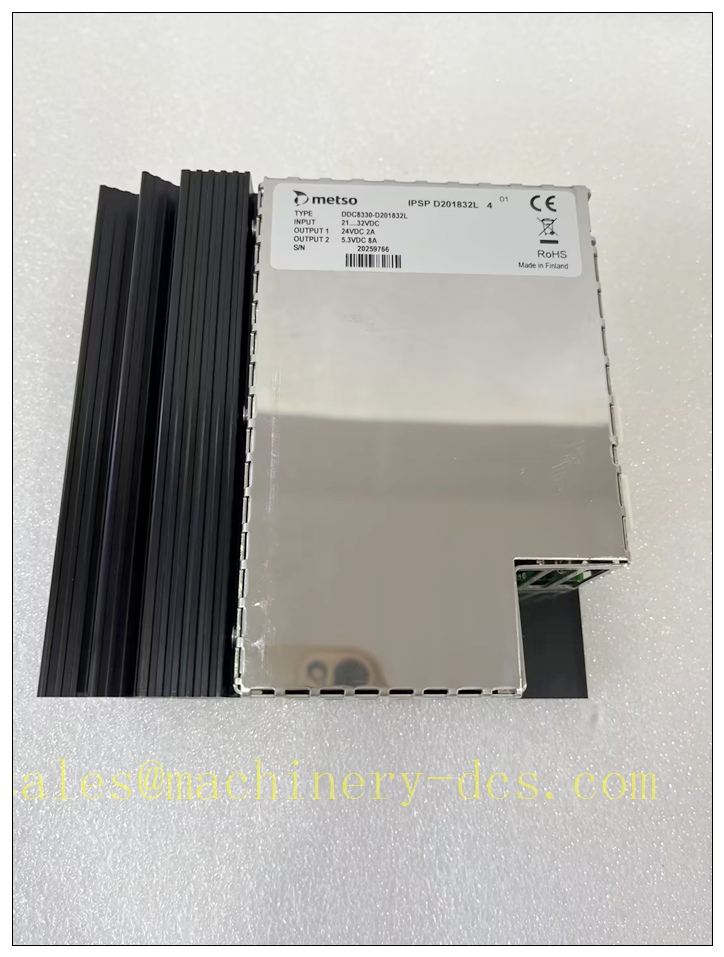

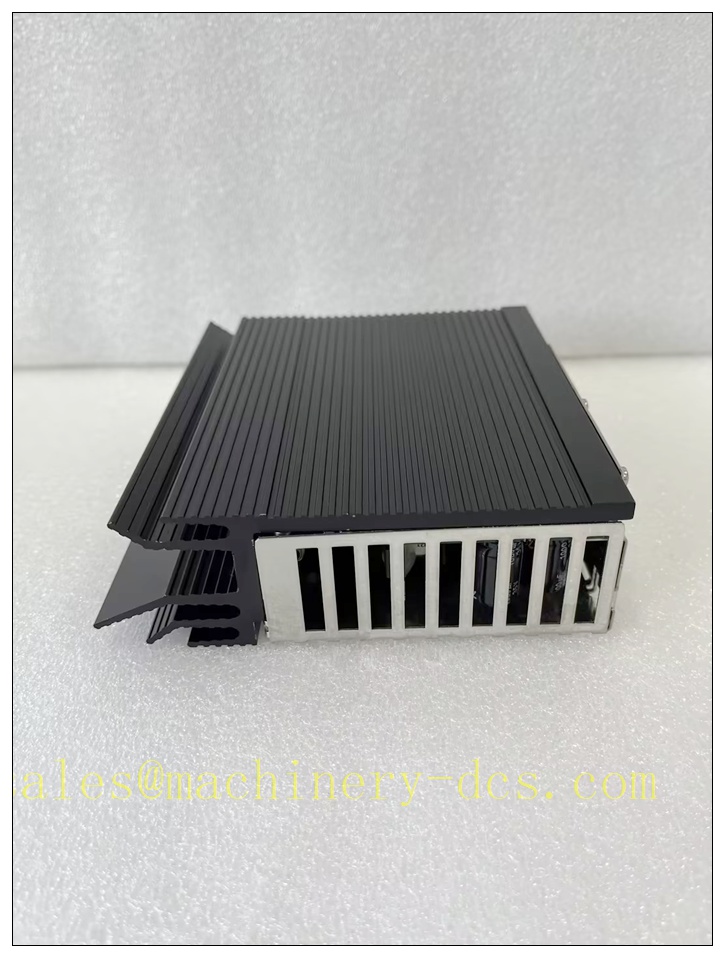

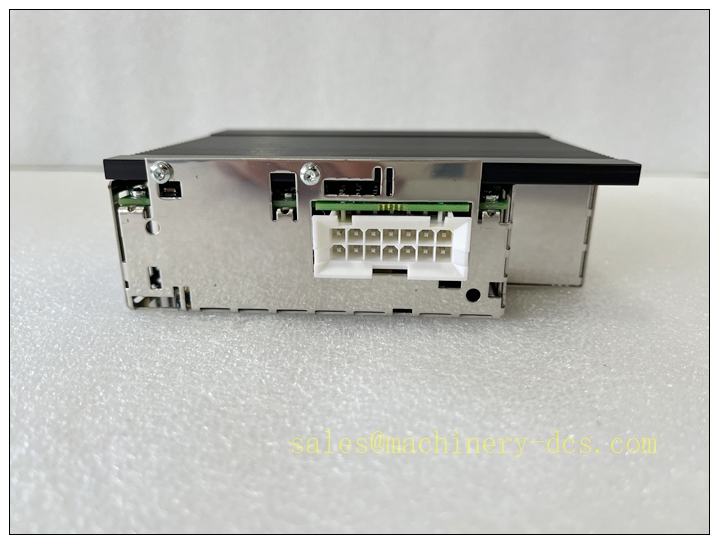

The METSO D201832 is an IPSP power supply module used in Metso/Valmet automation and process control systems. It is commonly identified as DDC8330-D201832 and supplies regulated internal power to controllers, I/O modules, communication cards, or related control racks.

This module is typically found in legacy Metso/Valmet distributed control and automation installations. Because no public official datasheet was found, the exact input voltage, output rails, current rating, slot type, and firmware/revision details must be confirmed from the nameplate, original purchase order, or Metso/Valmet documentation before replacement or commissioning.

D201832

Technical overview

Adaptive QA and test protocol

1. Identity verification
   Confirm brand, model D201832, alternate code DDC8330-, revision, serial number, and rack compatibility before testing.
2. Visual inspection
   Check for burnt components, swollen capacitors, cracked PCB traces, corrosion, loose connectors, and damaged edge contacts.
3. Nameplate validation
   Record input voltage, output voltage/current, power rating, revision, and applicable rack. Do not energize if ratings are unclear.
4. Insulation and continuity check
   Verify input/output isolation, ground continuity, and absence of short circuits before applying power.
5. No-load power-up test
   Apply rated input power using a controlled supply. Confirm stable startup, correct LED indicators, and absence of abnormal noise or odor.
6. Output voltage accuracy test
   Measure all output rails under no-load, partial-load, and rated-load conditions. Record deviation, ripple, and stability.
7. Protection function verification
   Test overvoltage, undervoltage, overcurrent, and short-circuit protection where safely applicable. Confirm correct shutdown or current limiting.
8. Thermal and aging check
   Operate under load for a defined period. Monitor temperature rise, output drift, connector heating, and fan/thermal behavior if applicable.
9. System insertion verification
   Install into the correct rack slot following site procedures. Confirm normal module indication, rack power distribution, and absence of system alarms.
10. Documentation and traceability
    Archive nameplate data, test readings, revision, serial number, installation position, and acceptance result.

Field engineer notes

• Always confirm the exact revision and DDC8330- marking before substitution; older Metso/Valmet racks may have multiple power card revisions.
• Do not assume compatibility with other Metso power modules unless input voltage, output rails, pinout, and rack type match.
• Verify the upstream rack supply, fuses, and backplane connectors before replacing the module; a failed power card can sometimes be a secondary symptom.
• Handle the module as an ESD-sensitive device. Use proper grounding and avoid touching connector pins.
• If the module is used in a live process system, coordinate replacement with operations and follow lockout/tagout or hot-swap rules.
• Keep the original failed module for comparison, especially when the site has multiple Metso/Valmet control racks.
• For long-term spare management, record the full identifier: METSO / DDC8330-, revision, serial number, and rack model.
