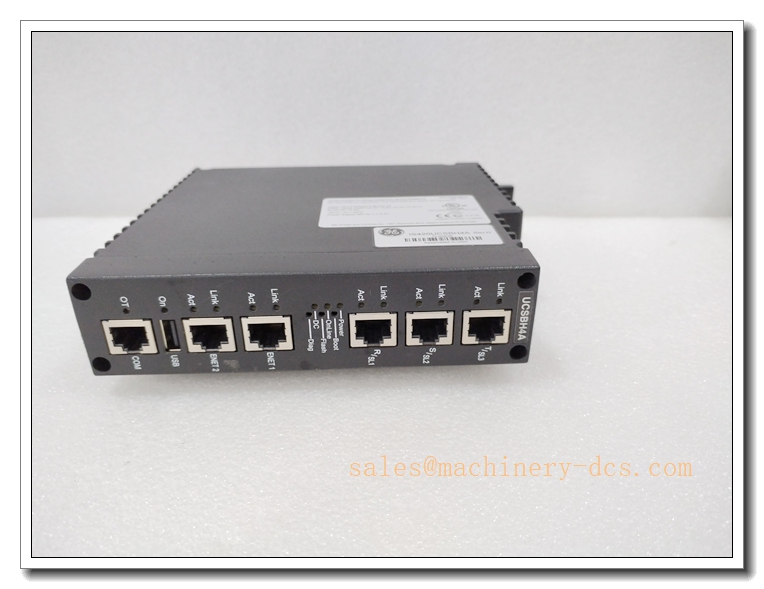

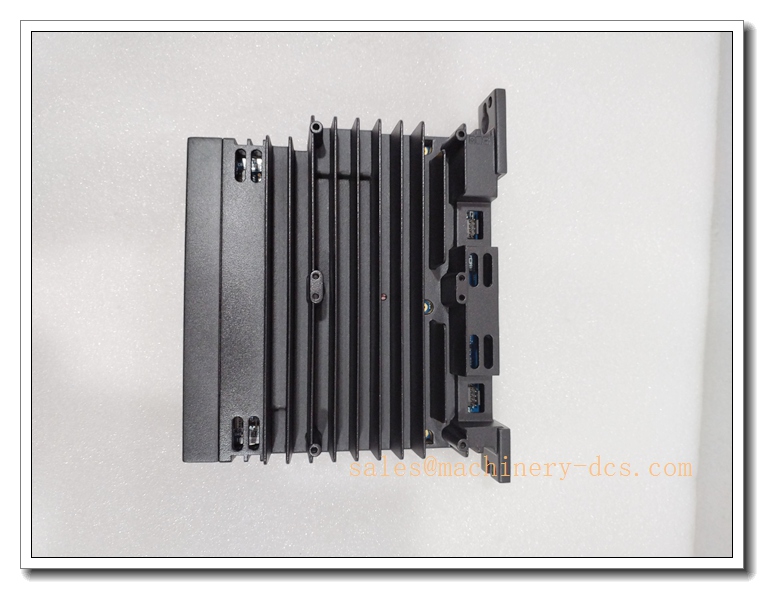

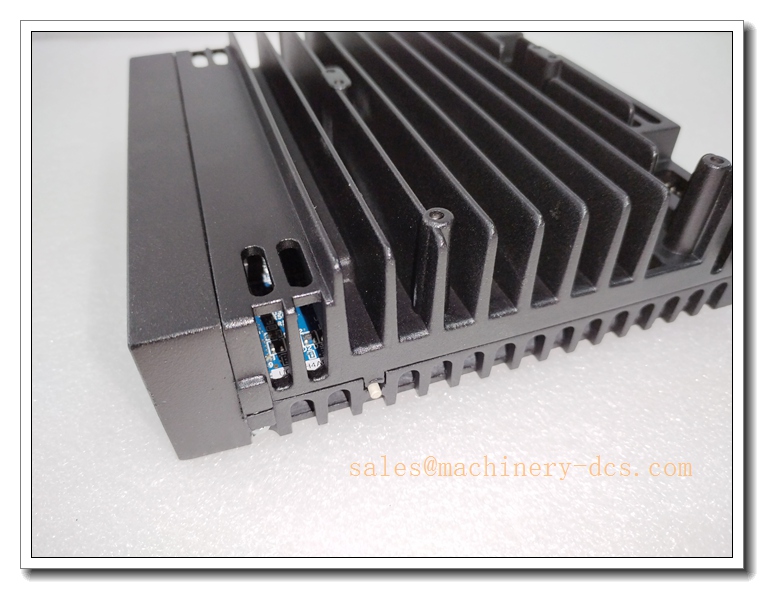

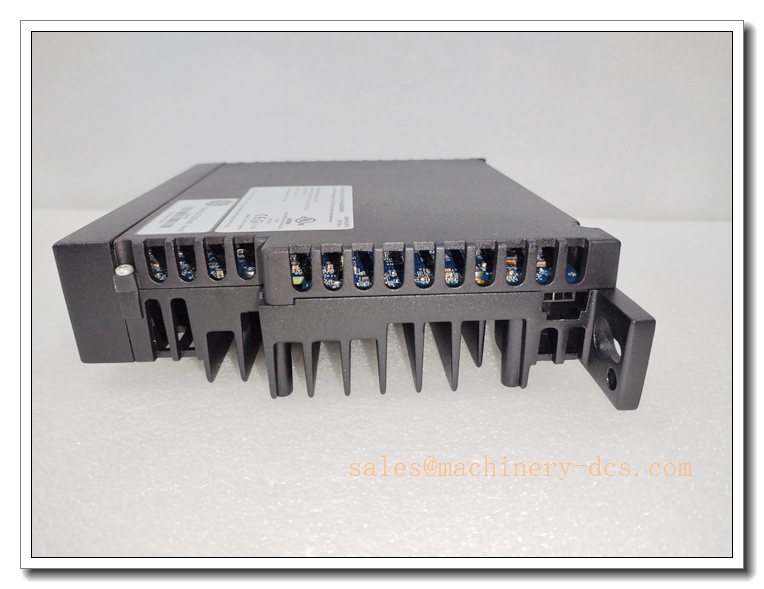

IS420UCSBH4A GE Mark VIe Universal Control Station Module

Description

IS420UCSBH4A GE Mark VIe Universal Control Station Module

Product Description

The IS420UCSBH4A is a high-performance universal control station module developed for GE Mark VIe turbine control systems. It serves as the core processing unit for real-time control, data acquisition, logic execution and communication management in gas turbine, steam turbine and generator control applications. Built with rugged industrial-grade hardware, this module supports hot swap operation to minimize system downtime. It exchanges high-speed data with I/O packs and other controllers via the Mark VIe high-speed serial bus. The unit integrates embedded processing, memory and multiple communication interfaces to handle closed-loop control, protection sequencing and alarm monitoring for critical power generation equipment. It is widely deployed in combined cycle power plants, simple cycle gas turbine facilities and auxiliary generator control systems.

IS420UCSBH4A

Technical Specifications

• Product Model: IS420UCSBH4A
• Product Family: GE Mark VIe
• Function: Universal Control Station (UCS) Controller Module
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 5% to 95% non-condensing
• Communication Bus: Mark VIe high-speed I/O serial link
• Support: Hot-swappable, redundant configuration capable
• Enclosure: Rack mount, fits standard Mark VIe backplane
• Power Supply: Powered through Mark VIe system backplane
• Safety Rating: Designed for turbine safety and control applications
• Real-Time Operation: Deterministic control cycle for turbine protection & regulation
• Firmware: Mark VIe system firmware dependent; firmware version must match overall system configuration

Compatibility & Installation Pitfalls

Compatibility

• Compatible System: GE Mark VIe control system only
• Matching Backplane: Must use corresponding Mark VIe UCS backplane
• I/O Packs: Works with Mark VIe series I/O modules (IS200, IS400 series I/O packs)
• Redundancy: Supports dual redundant UCS architecture; paired modules need matched hardware and firmware revision
• Firmware Requirement: Mismatched firmware revisions between controller and I/O packs will lead to communication failure or logic malfunction

Installation Pitfalls

1. Firmware Version Mismatch: Do not install a module with different firmware revision directly into an existing running Mark VIe rack; it can cause loss of turbine control.
2. Electrostatic Discharge (ESD): The PCB is sensitive to static electricity. Always wear ESD wrist strap during handling; static discharge can permanently damage internal chips.
3. Backplane Pin Damage: Do not force insertion. Bent backplane connector pins result in intermittent communication faults which are hard to troubleshoot.
4. Redundancy Sync Check: After replacement, verify redundant sync status; unsynchronized dual controllers may trigger false protection trips.
5. Environment: Avoid installation in locations with corrosive gas, heavy dust or excessive vibration.
6. Hot Swap Precondition: Confirm the system allows hot swap before removal. Some running turbine protection states prohibit hot module replacement.

Standard Operating Procedure (SOP)

Pre-Installation

1. Verify part number, hardware revision and firmware version match the BOM and system drawing.
2. Inspect module for physical damage, scratches or connector deformation.
3. Prepare ESD protection tools, system backup of control logic and configuration files.
4. Confirm system operating status and whether the turbine is online or offline.

Installation / Replacement

1. Wear ESD wrist strap properly.
2. If hot swap is permitted: unlock the module handle, pull out the old unit steadily.
3. Align the new module connector with the rack backplane, insert evenly and lock the handle.
4. Wait for power-up and self-test cycle. Observe LED status indicators.
5. Connect control software to check module status, communication links and redundant synchronization.
6. Download matching configuration if required.

Post-Installation Verification

1. Confirm no fault alarms exist in the system diagnostic menu.
2. Validate communication between UCS and all connected I/O packs.
3. Perform redundancy switchover test if unit is part of redundant pair (offline test recommended).
4. Save updated system configuration backup.
5. Document replacement date, serial number and firmware version in equipment log.

IS420UCSBH4A

Application Scenarios

• Gas turbine control & protection
• Steam turbine governor and protection system
• Combined cycle power plant control
• Generator excitation and auxiliary control
• Industrial power generation critical control
• Turbine retrofitting and Mark VIe system upgrade projects

Supporting / Matching Components

• Mark VIe UCS backplane
• Mark VIe power supply modules
• Mark VIe I/O packs: IS200 series, IS400 series I/O modules
• High-speed serial communication cables
• Redundant UCS pairing module
• System programming & configuration software (ToolboxST)
• ESD protective case, rack mounting hardware
