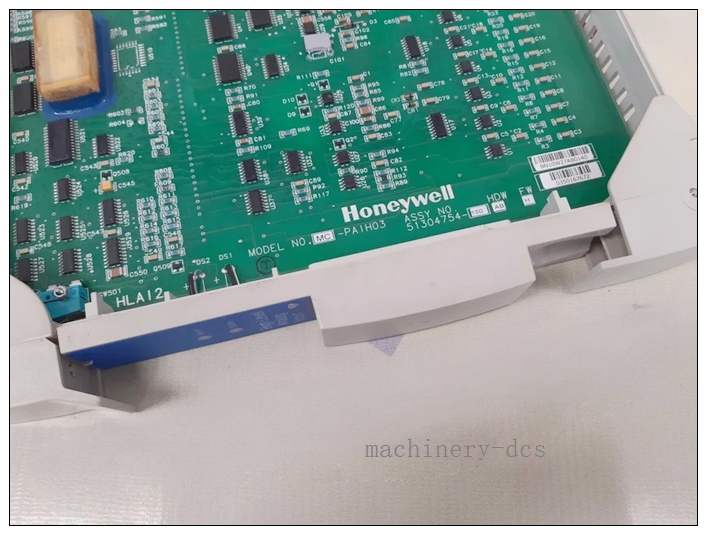

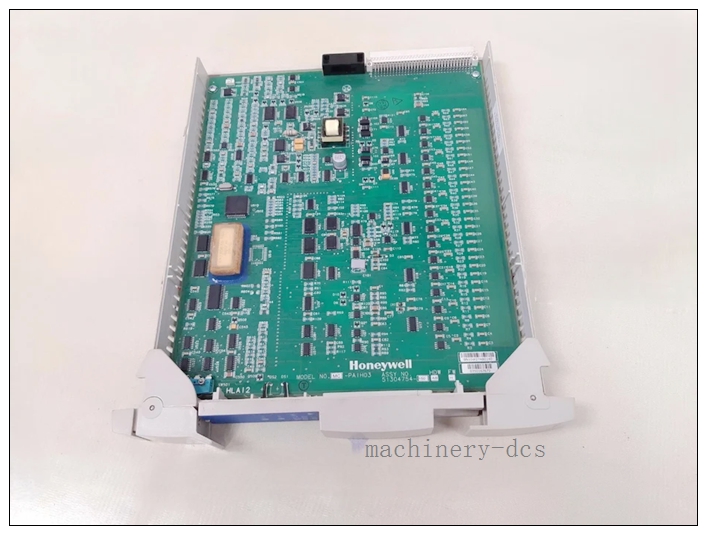

Honeywell MC-PAIH03 51304754-150 16-Channel High-Performance Analog Input Module

Description

Honeywell MC-PAIH03 51304754-150 16-Channel High-Performance Analog Input Module

Detailed Product Information

The Honeywell MC-PAIH03 is a high-performance analog input module purpose-built for seamless integration with Honeywell Experion PKS and C300 controller systems. It is engineered to deliver precise, reliable analog signal acquisition for demanding industrial process monitoring scenarios. The module features 16 fully isolated independent input channels, each capable of accurately measuring and processing a wide range of standard industrial analog signals. It is equipped with 16-bit high-resolution analog-to-digital conversion, and its rugged industrial design includes channel-to-channel and channel-to-system isolation, which effectively eliminates common-mode noise interference and guarantees signal integrity even in high-electromagnetic-interference industrial environments. The module also supports built-in fault detection, open circuit detection, and intuitive LED status indicators, and comes with native hot-swap capability that allows technicians to perform maintenance and replacement without shutting down the entire control system.

MC-PAIH03

Technical Specifications

• Manufacturer: Honeywell
• Part Number: MC-PAIH03 (51304754-150)
• Product Type: 16-Channel Isolated Analog Input Module
• Supported Signal Types: 4–20 mA, 0–10 V, thermocouples, RTDs
• Resolution: 16-bit analog-to-digital conversion
• Measurement Accuracy: ±0.1% of full scale
• Isolation Rating: Channel-to-channel, channel-to-system full galvanic isolation
• Hot-Swap Capability: Yes, supports insertion/removal without system shutdown
• Built-in Diagnostics: Fault detection, open circuit detection, LED status indicators
• Mounting Form: Plug-in module for Honeywell dedicated I/O chassis
• Operating Temperature: 0°C to +60°C
• Storage Temperature: −40°C to +85°C
• Humidity Range: 5% to 95% RH, non-condensing
• Compliance: CE marked, meets industrial EMC and safety standards
• Net Weight: 1000g
• Warranty: 12-month original manufacturer warranty
• Origin: USA

Compatibility & Installation Pitfalls

Compatibility

1. Natively interoperable with Honeywell Experion PKS distributed control system and C300 controller platforms
2. Fully compatible with Honeywell dedicated I/O chassis, backplanes and matched redundant power supply units
3. Seamlessly supports all standard 4–20 mA transmitters, 0–10 V field sensors, industrial thermocouples and RTD temperature probes
4. Works with Honeywell DCS engineering software for full configuration, calibration and diagnostic operations
5. Matches with industry standard 2.5 mm² shielded field wiring without signal attenuation or measurement drift

Installation Pitfalls

1. Never install the MC-PAIH03 in a slot designated for digital I/O modules. Mismatched slot configuration will cause backplane communication errors and prevent all analog input channels from being recognized by the controller.
2. Do not connect field signals exceeding the module’s maximum 30V overvoltage tolerance directly to the channels. Uncontrolled overvoltage transients will permanently damage the isolated input circuits.
3. Avoid routing analog signal cables in the same cable tray as high-power variable frequency drive or AC motor power cables. Severe electromagnetic interference will introduce measurement drift and degrade the module’s ±0.1% full-scale accuracy.
4. Never perform hot-swap replacement while critical process control loops relying on this module are in automatic operation without pre-engaging the maintenance bypass. This action may cause momentary signal loss and trigger unplanned process trips.
5. Do not mix MC-PAIH03 modules with drastically different firmware revisions in the same control chassis. Inconsistent firmware versions will cause asynchronous channel sampling timing and unexpected process data mismatch.

Standard Operating Procedure

1. Pre-installation verification: Inspect the MC-PAIH03 module for physical damage on circuit boards and connectors, confirm the I/O chassis backplane power output is stable within the rated operating range.
2. Mechanical mounting: Align the module with the chassis guide rails, slide it smoothly into the designated analog input slot, and secure the front panel locking mechanism to ensure full and reliable electrical contact with the backplane.
3. Field wiring termination: Connect all field transmitters, sensors and signal devices to their corresponding channel terminals, torque every connection to the manufacturer specified value, and apply clear permanent labels for each channel with its corresponding process tag number.
4. Power-on configuration: Access the Honeywell DCS engineering workstation, assign unique channel tags, configure signal type, range, engineering unit and scaling parameters for each individual input channel.
5. Functional validation: Inject calibrated standard reference signals to every channel one by one, confirm the measured value displayed on the HMI falls within the specified ±0.1% accuracy range, verify the open circuit and fault diagnostic alarms trigger correctly under simulated fault conditions.
6. Commissioning handover: Export and save the final configuration profile to secure backup, complete the loop check and calibration log, and confirm all analog input points are operating normally before releasing the system to full operational service.

Typical Application Scenarios

• Petrochemical process plants: Collects pressure, flow, level and temperature signals from process transmitters, delivering high-accuracy real-time data to the DCS for closed-loop process control.
• Oil and gas production facilities: Monitors critical process parameters in hazardous production zones, leveraging its full isolation design to resist electrical noise from drilling and pumping equipment.
• Power generation and utilities: Acquires boiler temperature, steam pressure and water level signals in thermal power plants, ensuring stable and accurate data input for unit coordinated control systems.
• Pharmaceutical manufacturing facilities: Measures precise temperature, pressure and flow parameters in production reactors and purification systems, meeting strict regulatory requirements for process data accuracy and traceability.
• Water treatment plants: Monitors water quality parameters, pump operating conditions and tank level signals, providing reliable analog data for automated water treatment process control.

Recommended Supporting Components

• Honeywell Experion PKS dedicated I/O chassis with matched redundant power supply unit
• Honeywell certified 4–20 mA process transmitters, industrial thermocouples and RTD temperature probes
• Shielded twisted-pair analog signal cables for interference-free field signal transmission
• Honeywell official DCS engineering configuration software and dedicated calibration toolkit
• Flame-retardant 2.5 mm² industrial field wiring terminals with certified strain relief

Related Part Number Recommendations

• MC-PAIH01: 8-channel basic analog input module, for cost-effective non-critical process signal collection
• MC-PAOY22: 16-channel analog output module, for complementary 4–20mA analog signal output to field control valves
• MC-PDIX02: 16-channel digital input module, for discrete status signal acquisition from field switches and sensors
• MC-TAMT04: dedicated temperature monitoring module, optimized for high-precision RTD and thermocouple signal processing
• 51304754-150: Original factory part number identifier for MC-, for spare part ordering and full product traceability
