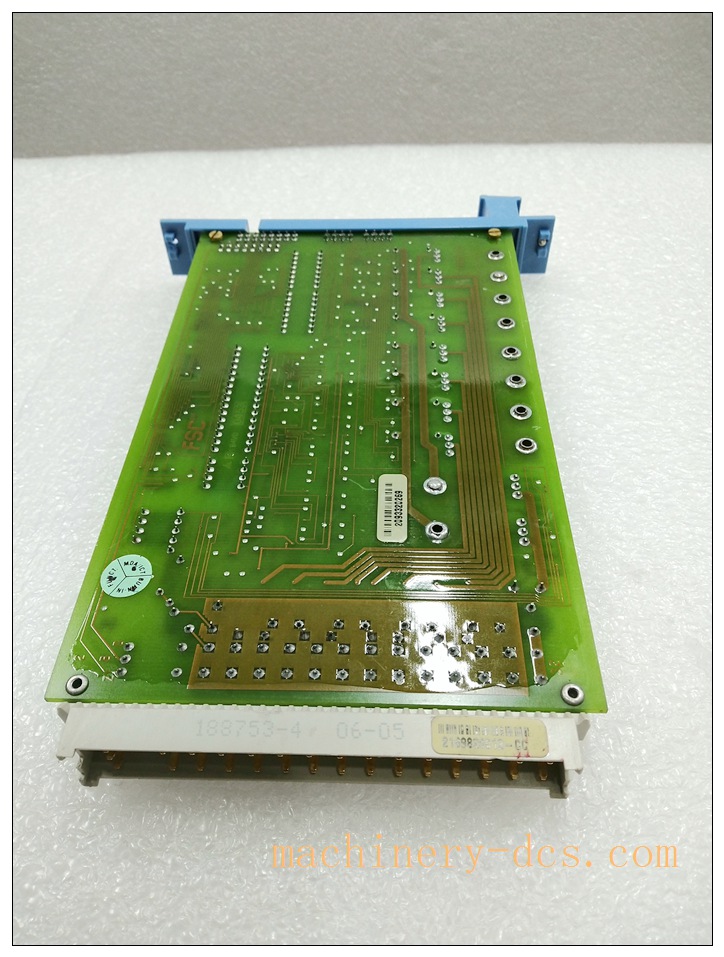

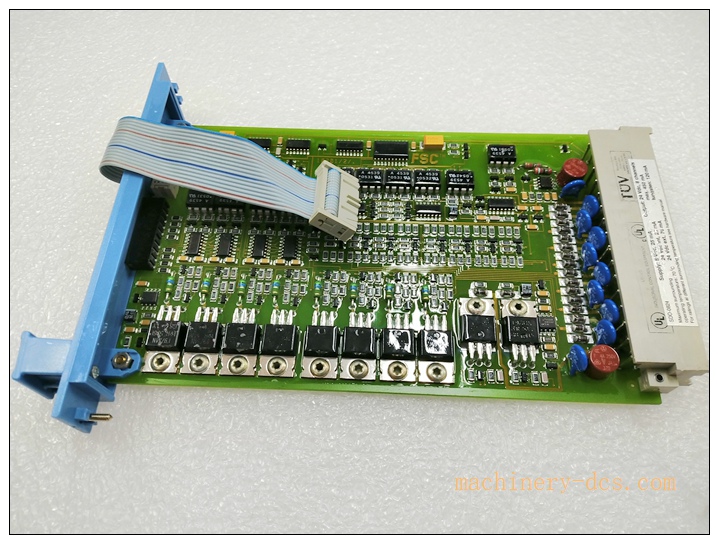

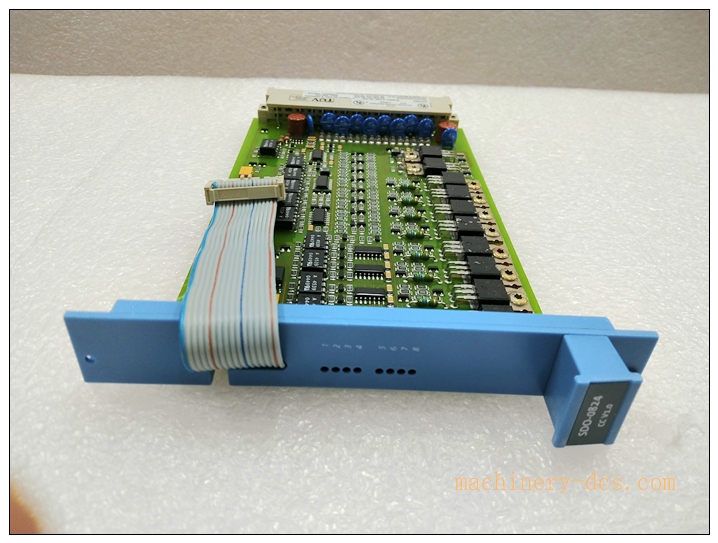

Honeywell FC‑SDO‑0824 Safety Digital Output Module

Description

Honeywell FC‑SDO‑0824 Safety Digital Output Module

Title

Honeywell FC‑SDO‑0824 8‑Channel SIL3 Safety Digital Output Module for Safety Manager / FSC SIS System

Meta‑Description

Honeywell FC‑SDO‑0824 is an 8‑channel solid‑state safety digital output module for Honeywell Safety Manager / FSC SIS. 24 VDC sourcing output, per‑channel loop diagnostics for open‑circuit, short‑circuit and ground fault, TÜV‑certified SIL3 IEC61508, drives solenoid valves, ESD valves and safety actuators for petrochemical safety‑instrumented interlock systems.

FC-SDO-0824

Product Core Overview

FC‑SDO‑0824 is safety‑grade solid‑state digital output module for Honeywell FSC / Safety Manager safety instrumented system. It delivers 8 independent 24 VDC sourcing outputs to drive safety field actuators such as solenoid valves, ESD shutdown valves and safety relays.

Output channels are split into two groups of four channels, supporting Secondary Means of De‑energizing (SMOD) independent watchdog cut‑off for fail‑safe behaviour. Built‑in periodic loop diagnostics detect open‑wire, short‑circuit and earth‑leakage faults on field wiring, reporting fault status to SIS controller for event logging and alarm handling. Each channel integrates inductive‑load suppression diodes to absorb switching voltage spikes. TÜV certified SIL‑3 compliance according to IEC 61508. It plugs into FSC rack backplane and communicates over fault‑tolerant safety bus with safety processor. Used widely in oil‑gas and chemical plants for emergency shutdown and safety interlock loops.

Main Technical Specifications

Quality Control Procedures

1. Visual & Mechanical Incoming Inspection: Inspect PCB conformal coating, backplane connector, front‑panel LED assembly and part‑number labeling. Serial number recorded for full‑lifecycle traceability.
2. Backplane Interface Continuity Test: Verify pin continuity, insulation and isolation performance of FSC backplane connector.
3. Channel‑by‑Channel Functional Calibration: Load simulation applied on every channel; validate output voltage, current‑limiting and short‑circuit protection performance.
4. Diagnostic‑Logic Verification: Simulate field‑loop faults: open‑circuit, short‑circuit and earth‑leakage conditions; confirm fault reporting and LED indication behave correctly.
5. SMOD / Watchdog Fail‑Safe Test: Trigger watchdog timeout condition, verify all outputs de‑energize as per safety requirement.
6. Safety‑bus Communication Test: Validate reliable safety‑data exchange between module and Safety Manager / FSC controller.
7. Environmental Stress Screening: Temperature‑cycle test across full operating temperature range for thermal stability verification.
8. EMC Compatibility Test: Test under industrial electromagnetic‑interference environment.
9. Final End‑of‑Line Validation & Archiving: Complete full‑function test suite; all test data archived bound to unit serial‑number before factory release.

Related Brand Model Recommendations

1. FC‑SDIL‑160824VDC: Matching 16‑channel loop‑monitored safety digital input module.
2. FC‑TSDO‑0824: Relay‑type safety digital output module, higher switching current capacity, SIL2 rated.
3. FC‑SCDO‑0824: Redundant‑capable safety output variant for high‑availability SIS applications.
4. Matching Controller: Honeywell Safety Manager / FSC safety processor unit.
5. System Accessories: FSC rack carrier, FTA termination assemblies, safety‑rated screened field cables.

Frequently Asked Questions (FAQ)

Q1: What field devices can FC‑SDO‑0824 drive? A: 24 VDC solenoid valves, ESD shutdown valves, safety relays, indicator lamps. Respect per‑channel 0.55 A current derating curve at high cabinet temperature.

Q2: What diagnostic functions are supported? A: Per‑channel open‑wire, short‑circuit, earth‑leakage fault detection. Periodic self‑test verifies output switching capability. Fault events are reported to SIS controller for alarm and sequence‑of‑event logging.

Q3: Can I hot‑swap this module in live SIS rack? A: Hardware hot‑plug is mechanically possible. However, safety‑bypass procedure must be strictly followed before replacement. Direct hot‑swap without bypass may cause unintended safety trip. Follow Honeywell official operation manual.

Q4: What is SMOD secondary de‑energize function? A: Secondary Means of De‑energizing provides independent hardware watchdog path to cut‑off output power, independent of application logic, to achieve fail‑safe de‑energize under internal module fault conditions.

Q5: Can FC‑SDO‑0824 work on other brand DCS racks? A: No. It is exclusively designed for Honeywell FSC / Safety Manager backplane rack.

Q6: Can I repair the module on‑site? A: No. Unauthorized disassembly voids SIL‑certification and warranty. Return defective units to authorized service centre.

FC-SDO-0824

Installation & Configuration Guide

Pre‑Installation

1. Inspect module for transit damage. Confirm part‑number FC‑SDO‑0824 and serial‑number match purchase‑order.
2. Confirm FSC / Safety Manager rack, carrier‑backplane and safety‑processor are fully functional.
3. Prepare field actuators (solenoid valves etc.), FTA termination assembly, safety‑rated screened field cables.
4. Review SIS safety drawing: define channel assignment, load parameters, fault‑response logic and safety‑bypass strategy.

Mechanical Installation

1. Insert FC‑SDO‑0824 into designated FSC rack carrier slot, push firmly until backplane‑connector fully mates. Tighten front‑panel captive fasteners.

Important: Before replacing module in running SIS system, execute safety‑bypass procedure per project safety manual.

Electrical Wiring

1. Route safety‑field screened cables through FTA termination assembly. Separate safety‑signal wiring from high‑power‑cable routes to reduce EMI interference.
2. Pay attention to external 24 VDC field‑power supply wiring requirement per hardware manual.
3. Complete continuity and insulation‑resistance check for each output‑loop before power‑on. Implement single‑point grounding for cable shield.

System Configuration & Commissioning

1. Launch Honeywell Safety Manager configuration software and connect to SIS controller.
2. Add FC‑SDO‑0824 module in corresponding rack‑slot position within project hardware‑configuration.
3. Configure each channel: enable/disable loop‑diagnostic functions, define fault‑response logic, set SMOD/watchdog parameters, download configuration to safety‑processor.
4. Field‑loop commissioning: toggle each output channel ON/OFF, verify field actuator responds correctly and channel LED status matches logic state.
5. Inject simulated loop‑faults (open‑circuit / short‑circuit / earth‑fault), verify fault‑alarm reporting and diagnostic‑event logging.
6. Complete safety‑bypass function test as required. Save full‑project configuration backup file, then place module into formal safety‑interlock operation.
