Description
Honeywell DC-TDIL51 (51307609-176) Experion C-series Digital Input IOTA Termination Assembly
Product Description
The DC-TDIL51 (51307609-176) is the IOTA (Input/Output Termination Assembly) field wiring terminal base matched with Honeywell DC-PDIL51 electronic DI module for Experion C200/C300 DCS. It serves as the marshalling terminal board for 32-channel 24VDC discrete input field cables. It provides screw terminals for landing field wiring, signal routing, surge path and status indication between DC-PDIL51 electronic module and field switches, valve limit switches, pressure contacts and ESD feedback signals. It plugs directly onto DC-PDIL51 via internal connector and transfers field contact status to the electronic module for acquisition, including SOE sequence-of-event timestamp capture. Conformal coated PCB version is available for corrosive, dusty and high-humidity plant environments. Widely deployed in power, petrochemical and oil & gas Experion DCS marshalling cabinets for discrete input signal termination.

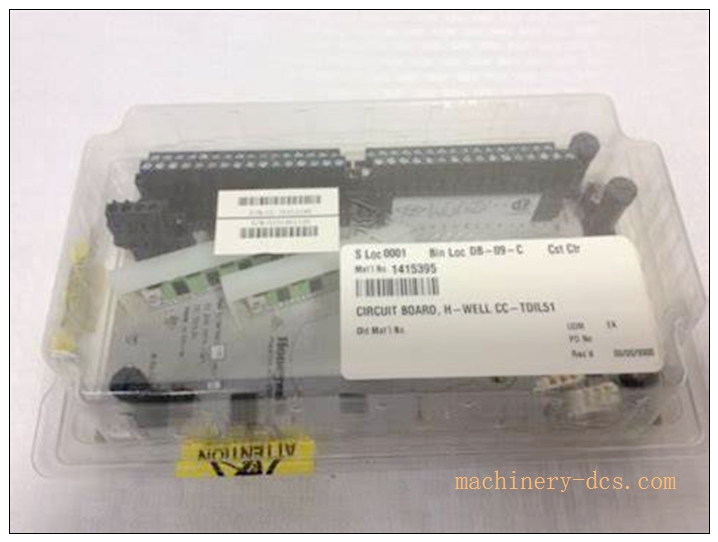

DC-TDIL51
Technical Specifications
- Part Number: DC-TDIL51, 51307609-176
- Manufacturer: Honeywell
- Series: Experion C-series DCS IOTA
- Device Type: Digital Input IOTA Field Termination Base
- Channels: 32 channels, matched with DC-PDIL51 32CH DI electronic module
- Field Input Voltage: 24VDC (18~30VDC range)
- Termination: Screw terminal blocks for field cable landing
- Indicator: Per-channel status LED indicators
- Interface: Internal connector for mating with DC-PDIL51 electronic module
- PCB: Conformal coated PCB option available
- Operating Temperature: -40°C ~ +70°C
- Storage Temperature: -40°C ~ +85°C
- Relative Humidity: 5%~95%, non-condensing
- Mounting: DIN rail I/O rack installation, paired with C-series I/O chassis
- Weight: Approx. 0.35 kg
- Certifications: CE, UL
Key Features
- Dedicated IOTA terminal base for DC-PDIL51 32-channel 24VDC digital input electronic module
- Screw terminal block for field cable termination, simplifies marshalling cabinet wiring
- Per-channel LED status lights for fast on-site troubleshooting of contact status
- Fully compatible with SOE function of DC- to capture high-resolution event timestamps
- Seamless mechanical and electrical mating with DC- electronic module
- Conformal coating PCB option for harsh corrosive industrial plant environments
- Supports hot-swap maintenance of paired DC- electronic module without rewiring field cables
- Designed for field discrete contact input: limit switches, auxiliary contacts, pressure/temperature switches
Application Scenarios
- Petrochemical refinery ESD valve limit switch and safety contact signal termination
- Thermal power plant boiler, pump and fan running/fault feedback wiring terminal
- Oil & gas pipeline valve position feedback discrete signal marshalling
- Chemical reactor safety interlock digital input termination cabinet
- Fertilizer plant emergency shutdown system field contact signal wiring
- Water treatment plant pump status and alarm switch signal assembly
- Pulp & paper mill machinery safety interlock discrete input termination
- Spare replacement of Experion C-series DI IOTA terminal base

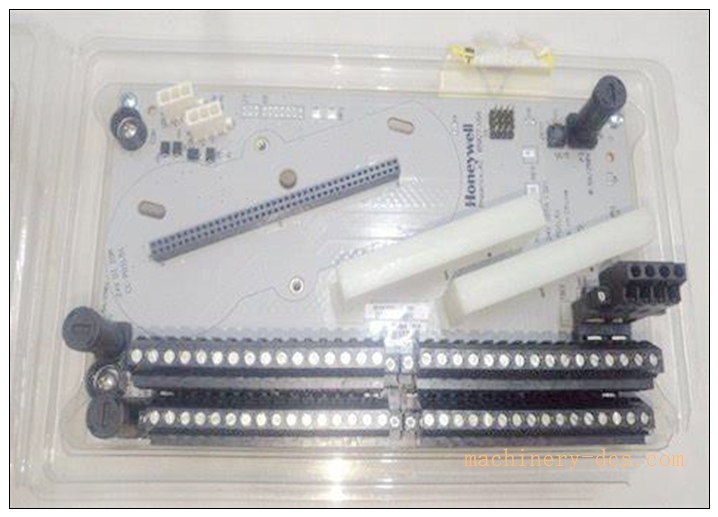

DC-TDIL51
Matching / Auxiliary Components
- Honeywell DC- 32CH 24VDC digital input electronic module
- C200 / C300 controller and C-series I/O rack backplane
- 24VDC isolated field power supply
- Shielded twisted pair field cable and cable glands
- Experion PKS Control Builder configuration software
- DIN rail rack mounting accessories and retaining clips
- Surge protection barriers installed before IOTA field terminals
- Junction box for field cable distribution
