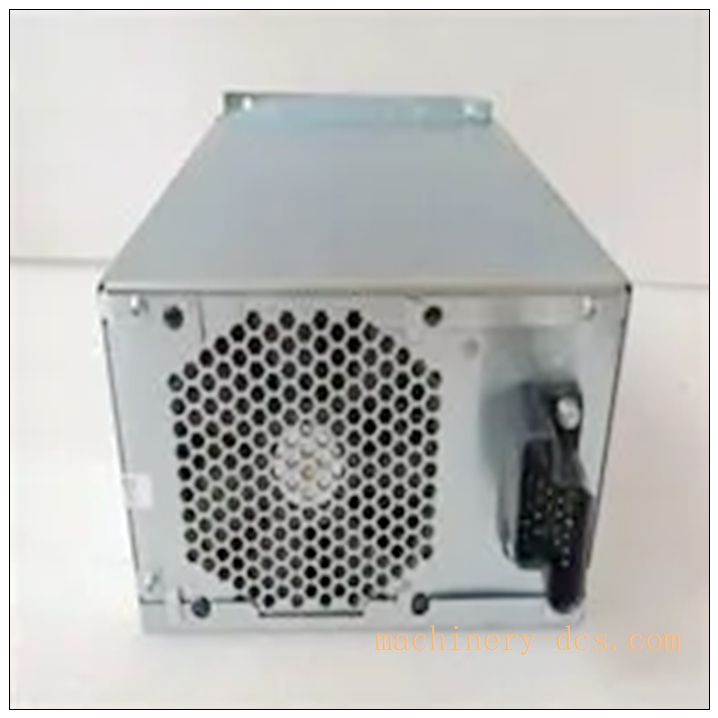

Honeywell 51198651‑100 (SPS5785) HPM Bulk Power Supply Module

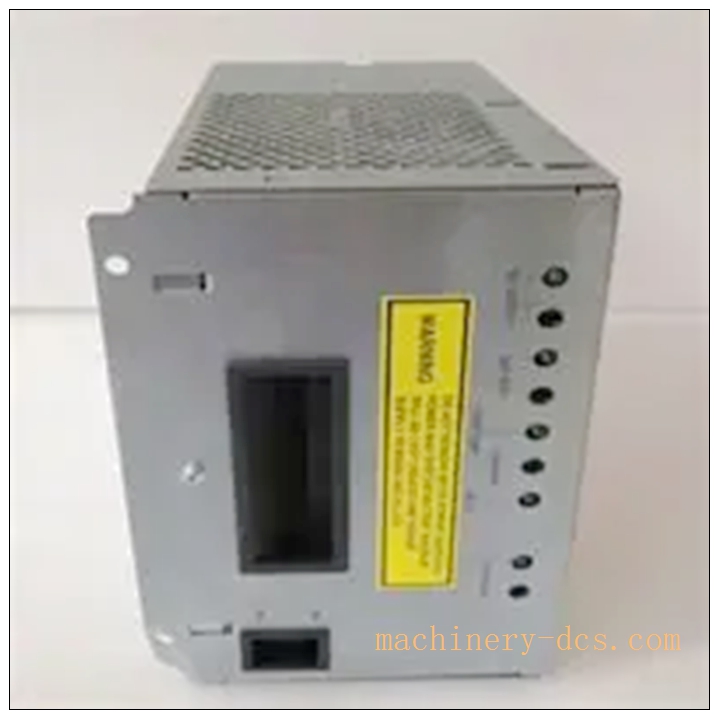

Honeywell 51198651‑100 (SPS5785) HPM Bulk Power Supply Module - Image 2
Honeywell 51198651‑100 (SPS5785) HPM Bulk Power Supply Module - Image 3

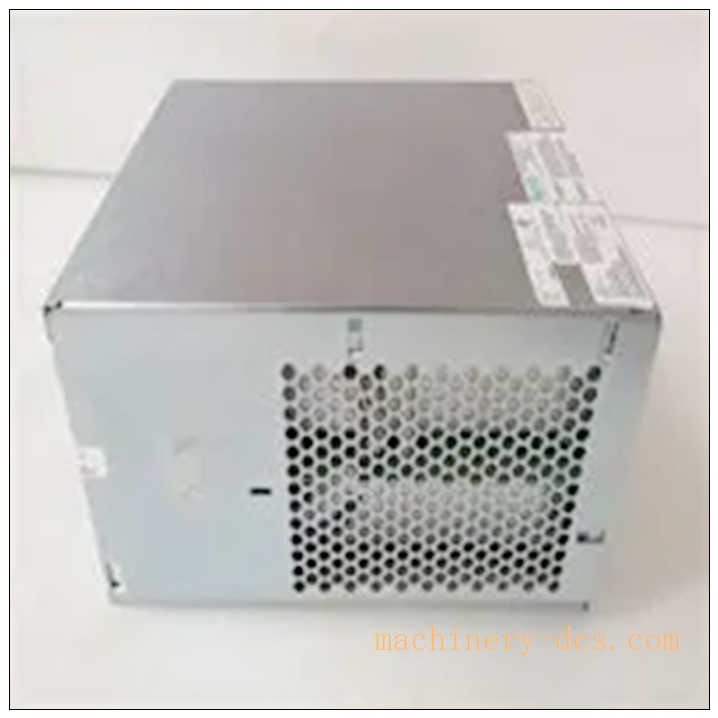

Honeywell 51198651‑100 (SPS5785) HPM Bulk Power Supply Module - Image 4

Honeywell 51198651‑100 (SPS5785) HPM Bulk Power Supply Module

  • 51198947‑100 (Direct cross‑replacement)
  • SPS5711 Honeywell UCN power supply series
  • 51198650‑100
  • 51198652‑100
Add To Quote
Category: SKU: Honeywell 51198651‑100 (SPS5785) Brand:

Description

Honeywell 51198651‑100 (SPS5785) HPM Bulk Power Supply Module



Product Title

Honeywell 51198651‑100 (SPS5785) UCN HPM Bulk Power Supply Module, AC‑Input Regulated Power Unit for DCS High‑Performance Process Manager System



Product Overview

The 51198651‑100 (SPS5785) is a legacy bulk power supply module for Honeywell Universal Control Network (UCN) DCS systems. It converts wide‑range AC mains input into multiple regulated DC output rails to power HPM (High‑Performance Process Manager), APM and PM controller racks and associated I/O modules. Designed for cabinet‑mount installation inside Honeywell process control cabinets, this unit delivers stable, isolated power for continuous heavy‑duty process operation. It is widely used for spare‑part replacement, system maintenance and retrofitting of existing UCN‑based DCS installations, as original manufacturing has been discontinued.

51198651-100 SPS5785

Technical Specifications

Item Parameter
Manufacturer Honeywell
Part Number 51198651‑100
Model Code SPS5785
Input Voltage 100‑240 VAC, 47‑63 Hz, 10A; Supports 48 VDC battery backup inputes.Made-in…
Main DC Output 24‑26 VDC @20A; Auxiliary 54VDC @1A, 6VAC @35mAes.Made-in…
Isolation Galvanic isolation between AC input and DC outputs
Approvals FM Approved, Class I Div 2, RoHS compliantes.Made-in…
Operating Temperature 0 °C ~ +55 °C (maximum ambient 55℃)es.Made-in…
Storage Temperature ‑20 °C ~ +70 °C
Cooling Built‑in forced air cooling fan
Weight Approx. 3 kg
Mounting Rack‑mount inside Honeywell UCN control cabinet
Protection Functions Over‑voltage, over‑current, over‑temperature, short‑circuit protection
Status Indication Front‑panel LED indicators for power status and fault alarm



Key Features

  1. Multi‑rail regulated DC outputs: Supplies all required power rails for HPM/APM/PM controller racks and I/O backplane. Supports AC mains and 48 VDC battery backup input for uninterrupted operation capabilityes.Made-in….
  2. UCN system native compatibility: Purpose‑built for Honeywell Universal Control Network architecture; drop‑in replacement for part number 51198947‑100.
  3. Complete built‑in protection suite: Over‑voltage, over‑current, short‑circuit and overtemperature protection safeguard DCS hardware from power‑related damage. Front‑panel LED status lights offer quick local fault diagnosis.
  4. Industrial‑grade robust design: Forced fan cooling for continuous 24/7 heavy‑load operation; certified for hazardous location Class I Div 2 applicationses.Made-in….
  5. Rack‑mount form factor: Optimized mechanical form factor for direct installation within standard Honeywell DCS cabinet enclosures.
  6. Legacy system maintenance solution: Discontinued original production; serves as critical spare for existing UCN plant‑wide DCS modernization & asset‑life extension projects.



Application & Typical Scenarios

Application Information

This power supply module provides bulk regulated power to Honeywell UCN DCS racks. It supplies power for HPM, APM and PM process controller hardware, communication interface boards and field I/O modules. It maintains stable power supply for closed‑loop process control, interlock logic and field signal acquisition across continuous‑run industrial plants. Primarily deployed for replacement and maintenance of existing in‑service UCN DCS systems.

Typical Application Scenarios

  • Petrochemical & refinery DCS control rooms
  • Oil & gas production and pipeline control systems
  • Chemical processing plants
  • Power generation plant process control
  • Pulp & paper manufacturing automation
  • Pharmaceutical batch process facilities
  • Heavy‑industry legacy DCS retrofit & spare‑part renewal projects

51198651-100 SPS5785

Compatible / Matching Components

  • Host Hardware: Honeywell HPM (High‑Performance Process Manager), APM, PM controller racks, UCN backplane chassis
  • Replacement equivalent: 51198947‑100 (direct substitute part)
  • System modules: UCN communication boards, analog / digital I/O modules for HPM rack
  • Accessories: Cabinet mounting hardware, power input cables, ground wiring assemblies, spare cooling fan assembly



Related & Alternative Models

  • 51198947‑100 (Direct cross‑replacement)
  • SPS5711 Honeywell UCN power supply series
  • 51198650‑100
  • 51198652‑100
