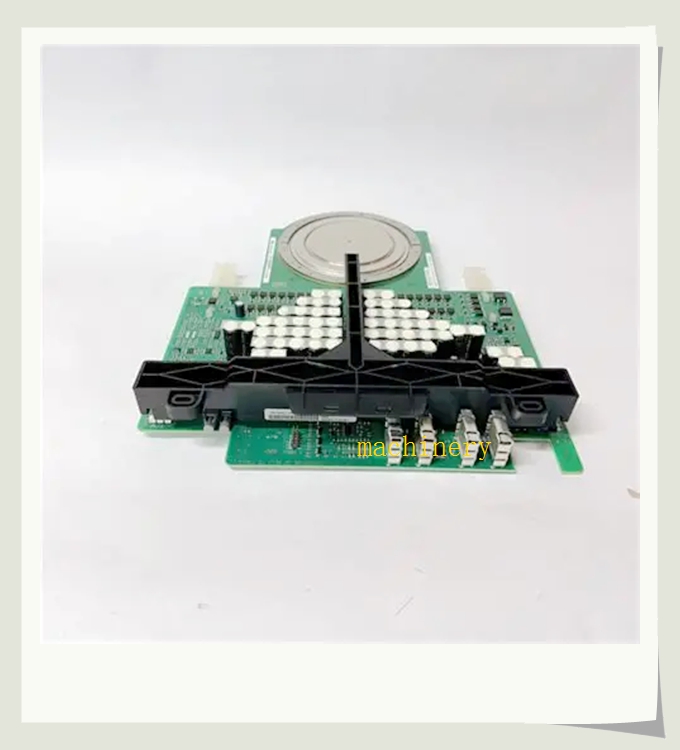

ABB 5SHY4045L0004 3BHB021400R0002 IGCT Power Module

Description

ABB 5SHY4045L0004 3BHB021400R0002 IGCT Power Module

Core Product Introduction
The ABB 3BHB021400R0002 is a high-performance Integrated Gate-Commutated Thyristor (IGCT) power module, commercially designated as the 5SHY4045L0004. Engineered for demanding industrial environments, this semiconductor device combines the high-current capacity of a traditional thyristor with the fast-switching capabilities of a MOSFET. It serves as a critical solid-state switch for high-power conversion, motor drive, and energy transmission systems, ensuring robust control and exceptional reliability in heavy-duty applications.

5SHY4045L0004 3BHB021400R0002

Key Technical Specifications

• Device Type: IGCT (Integrated Gate-Commutated Thyristor)
• Commercial Model: 5SHY4045L0004
• Rated Voltage: Supports high-voltage operations (e.g., up to 4400V DC in pulsed applications)
• Current Capacity: High current handling (e.g., 1850A in pulsed conditions, with continuous ratings varying by configuration)
• Switching Speed: Ultra-fast switching with gate signal delay tolerances within 100ns
• Thermal Management: Supports both air-cooling and liquid-cooling methods
• Operating Temperature: Wide range from -40°C to +85°C
• Protection Features: Integrated over-current, over-voltage, and over-temperature protection

Recommended Models in the Same Series
For system expansion or alternative sourcing within the ABB IGCT family, consider the following related models:

• 5SHY3545L0010 (Associated Part: 3BHB013088R0001)
• 5SHX2645L0002
• 5SHX2645L0004
• 5SHY4045L0006
• 5SHX06F6004

Related Model Cross-Reference
The following part numbers are directly associated with or interchangeable with the 3BHB021400R0002 in various supply chains:

• 5SHY4045L0004 (Primary commercial model)
• 3BHB021400R0002 (Internal ABB material/part number)

Application Scenarios & Key Features

• High-Voltage Direct Current (HVDC) Transmission: Provides efficient power conversion and regulation for large-scale power grids.
• Renewable Energy Systems: Essential for wind turbine converters and solar inverters, enabling efficient grid integration.
• Industrial Motor Drives: Delivers precise, high-torque control for large AC motors in sectors like steel, mining, and marine propulsion.
• FACTS & SVC Devices: Offers rapid reactive power compensation to stabilize electrical networks.
• Traction Converters: Powers electric locomotives and rail transit systems with high reliability.

Key Features:

• High Power Density: Minimizes switching losses and maximizes efficiency (up to 92%).
• Robust Reliability: Designed for long operational lifecycles with low failure rates (FIT).
• Modular Design: Compact packaging facilitates easy integration, stacking, and parallel operation.
• Advanced Protection: Built-in safeguards ensure system safety under extreme electrical stress.
