Description

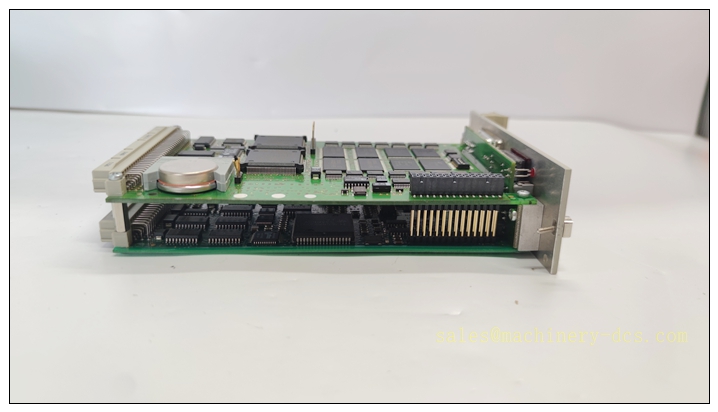

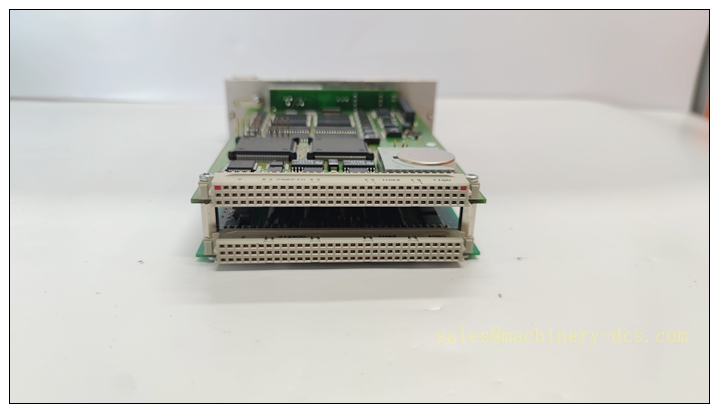

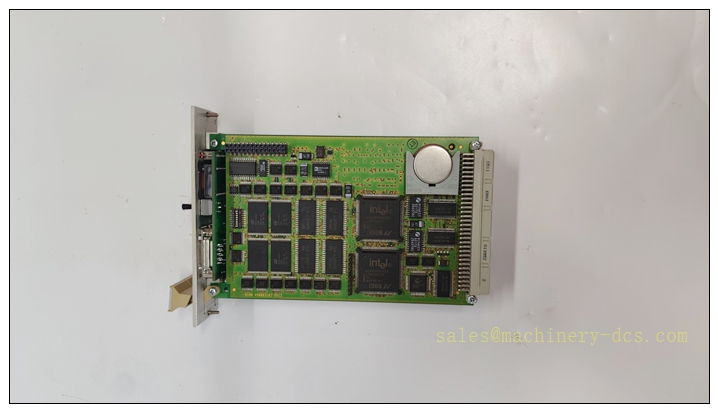

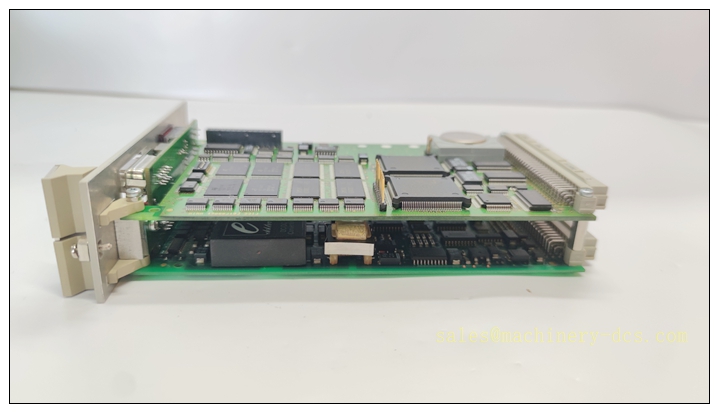

HIMA F8650E Dual‑Processor Safety CPU Module for HIMatrix Safety Instrumented System (SIS), SIL 3 Certified
Product Introduction
The HIMA F8650E is the core central processing unit of the HIMA HIMatrix programmable electronic safety system (PES). Built with dual synchronous Intel 386EX 32‑bit processors, it executes safety logic programs, collects field I/O signals, drives safety shutdown outputs and communicates with upper‑level DCS / SCADA systems. Dual‑processor comparison architecture detects internal hardware faults in real time to force the system into a safe state upon failure. Two galvanic‑isolated RS485 ports support safe communication with remote I/O slices and host systems. A front 4‑digit diagnostic display and LED indicators quickly show CPU status, communication and fault information. Certified to IEC 61508 SIL 3, F8650E is widely deployed for emergency shutdown (ESD), fire & gas protection (F&G), boiler protection and turbine safety interlock. It is a high‑demand spare module for petrochemical, power and offshore safety system maintenance and emergency replacement.
Specific Application Information
- ESD emergency shutdown logic execution: Run safety interlock logic for process plant emergency shutdown.
- Fire & Gas system controller: Process flame, smoke and gas detector signals to trigger fire suppression and valve isolation.
- Turbine & compressor safety interlock: Execute overspeed, overpressure and high‑temperature trip protection for rotating machinery.
- Safety I/O data exchange: Communicate with HIMatrix digital / analog I/O modules via isolated RS485 bus.
- System self‑diagnosis & fault reporting: Continuous hardware self‑check; report CPU, memory and communication failures.
- Safe watchdog output: 24VDC watchdog shutdown output to cut power to final actuators under CPU failure.
- DCS interface: Transmit safety system status, alarm and trip events to distributed control system.
- Redundant safety controller configuration: Support dual redundant CPU setup for high‑availability safety loops.
F8650E
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | F8650E |
| Manufacturer | HIMA (Germany) |
| Safety Rating | IEC 61508 SIL 3 |
| Processor | Dual Intel 386EX, 32‑bit, 25 MHz |
| Memory | 1 MB Flash‑EPROM, 1 MB SRAM per processor |
| Communication | 2 × galvanic isolated RS485 serial ports |
| Front Panel | 4‑digit diagnostic display + status LEDs (ERROR, CPU, ACK, IO) |
| Power Supply | 24 V DC |
| Watchdog Output | 24 VDC shutdown output, max. 500 mA |
| Internal Logic Power | 5 V / 2 A |
| Mounting | Eurocard 8 SU slot rack mounting |
| Operating Temperature | -20°C ~ +60°C |
| Weight | Approx. 0.8 kg |
Main Features
✅ Dual synchronous CPU architecture: Cross‑comparison of calculation results to eliminate single‑point hardware failure risk. ✅ SIL3 safety certification: Fully compliant with global functional safety standards for process safety applications. ✅ Isolated dual RS485 interfaces: Prevent common‑mode noise and surge damage between safety bus and control network. ✅ Onboard diagnostic display: Direct local fault code reading without laptop connection for fast field troubleshooting. ✅ Independent watchdog safety output: Hardware‑based safe state forcing to guarantee fail‑safe behaviour. ✅ Compact Eurocard form factor: Fits standard HIMatrix rack, supports hot‑swap replacement. ✅ Rich safety logic capacity: Sufficient memory for complex ESD, F&G and machinery protection application programs. ✅ Wide industrial temperature range: Stable operation inside control cabinets of refineries, power plants and offshore platforms.
Application Scenarios
- Oil & Gas Refineries: ESD emergency shutdown and fire & gas safety control system.
- Chemical Process Plants: Reactor and pipeline overpressure / over‑temperature safety interlock.
- Thermal Power Plants: Boiler protection, steam turbine and compressor safety trip system.
- Offshore Oil & Gas Platforms: Platform safety instrumented system for hazardous zone protection.
- Pulp & Paper Mills: High‑speed machinery safety protection and emergency stop control.
- Mining Process Facilities: High‑risk process safety interlock and hazardous gas monitoring.
- LNG & Petrochemical Terminals: Safety interlock for storage tank and loading arm protection.
Supporting Components
- HIMA HIMatrix system rack & backplane
- F7130 / F7130A power supply module
- HIMatrix digital input / output modules (F3236, F3322 etc.)
- Analog I/O modules F6705
- Isolated RS485 communication cables
- HIMA SILworX engineering software for safety logic programming & diagnostics
- 24V DC redundant power supply for safety cabinet
- Terminal relays, solenoid valves and safety actuators for final trip loops
F8650E
Related Series Models (HIMA HIMatrix Safety Family, 8 Models)
- F8650E — Dual‑Processor SIL3 Safety CPU (Target Item)
- F8650X — Upgraded high‑performance safety CPU module
- F8641 — Compact HIMatrix safety controller
- F7130A — Rack power supply module
- F3236 — 16‑Channel Digital Input Module
- F3322 — 16‑Channel Digital Output Module
- F6705 — Dual‑Channel Analog Output Module
- F8621A — Communication co‑processor board
