GE Vernova HYDRAN 201R (Model i) – Continuous Online Dissolved Gas Monitor for Power Transformers

Description

GE Vernova HYDRAN 201R (Model i) – Continuous Online Dissolved Gas Monitor for Power Transformers

Executive Summary
The GE Vernova HYDRAN 201R (Model i) is a proven, continuous online monitoring system designed to detect dissolved fault gases in oil-filled power transformers. As a cornerstone of GE’s legacy Hydran product family, the 201R Model i provides an early warning system for developing transformer faults by continuously measuring the concentration of composite fault gases. By delivering real-time gas readings, historical trend data, and configurable alarms, it enables operators to make proactive maintenance decisions, minimize the risk of unplanned outages, and extend the operational lifespan of critical power assets.

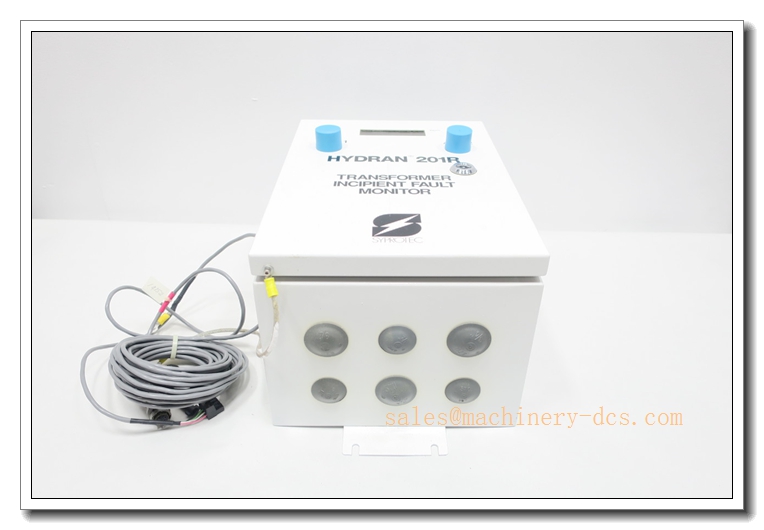

HYDRAN 201R

Core Technical Specifications

• Manufacturer: GE Vernova (formerly GE Energy / GE Grid Solutions)
• Product Series: Hydran 201i Monitoring System
• Module Type: Online Transformer Dissolved Gas Monitor
• System Composition: Standard H201 Sensor + HYDRAN 201Ti Intelligent Transmitter + HYDRAN 201Ci-1 Single-Channel Controller
• Gas Measurement Principle: Electrochemical fuel cell sensor behind a vacuum-resistant gas-permeable membrane
• Measured Gases: Composite fault gas reading reflecting the sum of Hydrogen (H₂), Carbon Monoxide (CO), Acetylene (C₂H₂), and Ethylene (C₂H₄)
• Gas Measurement Range: 0 – 2,000 ppm (volume/volume, H₂ equivalent)
• Display: LCD display for local gas readings, trends, and alarm indication
• Communication Interfaces: RS-232 (local configuration), RS-485 (remote communication)
• Supported Protocols: Modbus RTU, Hydran Protocol
• Analog Output: 4–20 mA isolated analog output for dissolved gas ppm value
• Alarm Relays: Configurable SPDT (Form C) relay outputs for High Gas, High-Hi Gas, and System Fault alarms
• Power Supply: Wide-range AC/DC input (100–240V AC 50/60Hz or 24V DC ±10%)
• Enclosure Rating: Weatherproof enclosure suitable for outdoor substation installation
• Operating Temperature: -30°C to +60°C (typical for Hydran 201i series)
• Mounting: Direct installation on a single transformer oil valve (1.5″ NPT); no extra piping or pump required

Key Features and Advantages

• Continuous Real-Time Monitoring: Continuously measures the composite concentration of key fault gases (H₂, CO, C₂H₂, C₂H₄), providing immediate visibility into transformer health without the need for manual oil sampling.
• Configurable Trend Alarms: Features adjustable alarms based on absolute gas concentration thresholds, as well as hourly and daily gas rate-of-change (ROC) trends, enabling early detection of rapidly developing faults.
• Comprehensive Data Logging: Built-in memory stores up to one year of historical data and records up to 500 major events with date and time stamps for offline analysis and forensic investigation.
• Robust Network Integration: Supports RS-485 daisy-chain networking, allowing up to 32 controllers to be connected via a single RS-232 computer port for centralized monitoring. Optional modem support enables remote access via telephone lines.
• Full System Self-Diagnostics: Automatic self-test and diagnostic capabilities continuously monitor the sensor and system health, triggering a fault alarm in the event of power loss, communication failure, or sensor malfunction.
• Pump-Free, Low Maintenance Design: Installs directly onto a single transformer oil valve using dynamic oil sampling. Features no moving parts, no pumps, and requires no field calibration, significantly reducing lifecycle maintenance costs.
• Remote Configuration & Upgrades: Supports remote parameter setting, sensor calibration, and program upgrades via serial communication, minimizing the need for on-site technician visits.

Application Scenarios

• Power Utility Substations: Continuous DGA monitoring for transmission and distribution transformers, providing an essential early warning system for fault conditions.
• Industrial Power Systems: Monitoring transformers in manufacturing plants, refineries, and data centers to reduce the risk of process interruption and costly unplanned downtime.
• Renewable Energy Plants: Remote monitoring of step-up transformers in wind and solar farms, eliminating the need for frequent manual oil sampling in dispersed locations.
• Transformer Fleet Management: Serving as a cost-effective first-line defense for large transformer fleets, enabling centralized asset supervision via RS-485 networking.
• Legacy Transformer Retrofit: Upgrading older transformers with online DGA monitoring capability without requiring major modifications, additional piping, or planned outages.

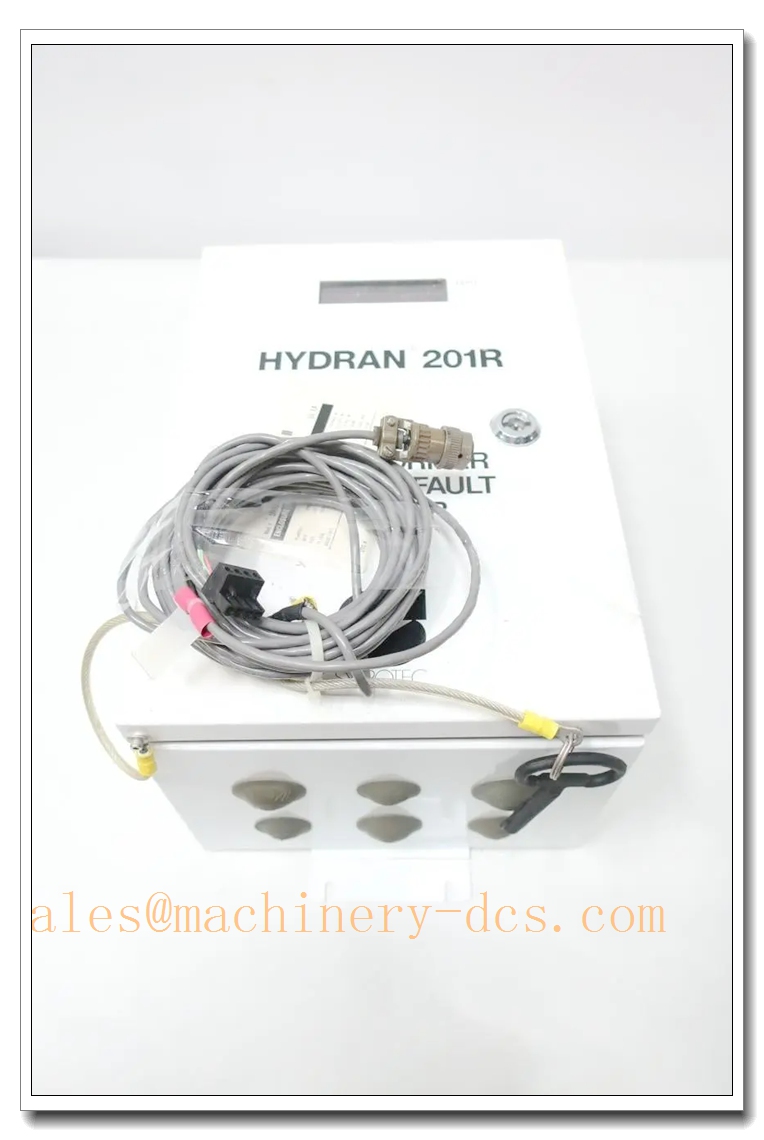

HYDRAN 201R

Related Product Recommendations
For comprehensive transformer monitoring and system integration, consider the following compatible GE Vernova products:

1. GE Hydran M2 / M2-X: Advanced DGA monitors with moisture measurement, IEEE transformer models, and broader communication protocol support (DNP 3.0, IEC 61850).
2. GE Hydran 201Ti (Mark IV): The latest generation intelligent transmitter that pairs with the 201Ci controller, featuring RoHS-compliant electronics and USB local configuration.
3. GE Hydran 201Ci-C: Communication controller variant with optional modem support for remote dial-up access.
4. GE Kelman MultiGas DGA Devices: Advanced multi-gas DGA solutions for more detailed gas analysis in critical transformer applications.
5. GE Vernova Perception™ Software: Transformer fleet management software for downloading, trending, and analyzing Hydran DGA data.
6. GE Vernova APM Software: Asset Performance Management platform for fleet-level analytics and predictive maintenance strategies.

Frequently Asked Questions (FAQ)

• Q: What is the difference between the HYDRAN 201R and the HYDRAN 201Ti?
  A: The HYDRAN 201R (Model i) refers to the complete monitoring system package, which includes the H201 field sensor, the 201Ti intelligent transmitter, and the 201Ci-1 controller. The 201Ti specifically refers to the intelligent transmitter unit that interfaces directly with the sensor.
• Q: What gases does the HYDRAN 201R detect?
  A: The 201R uses a composite gas sensor that responds 100% to Hydrogen (H₂) and is also sensitive to Carbon Monoxide (CO), Acetylene (C₂H₂), and Ethylene (C₂H₄). The output is a composite ppm reading reflecting the sum of these key fault gases.
• Q: Does the HYDRAN 201R require a pump or extra piping?
  A: No. The system installs directly onto a single transformer oil valve and uses dynamic oil sampling through a gas-permeable membrane. No pumps, extra piping, or moving parts are required.
• Q: How many units can be networked together?
  A: Up to 32 HYDRAN 201Ci-1 controllers can be daisy-chained via RS-485 and accessed through a single RS-232 computer port. Optional modem support allows for remote access over telephone lines.
• Q: What alarm types does the HYDRAN 201R support?
  A: The system supports configurable alarms based on absolute gas concentration thresholds (High and High-Hi levels) and rate of change (ROC) over one hour or one day. It also provides system fault alarms for power loss, communication failure, or sensor issues.
• Q: Is the HYDRAN 201R suitable for outdoor installation?
  A: Yes. The controller and transmitter are housed in weatherproof enclosures designed for direct outdoor substation installation.
