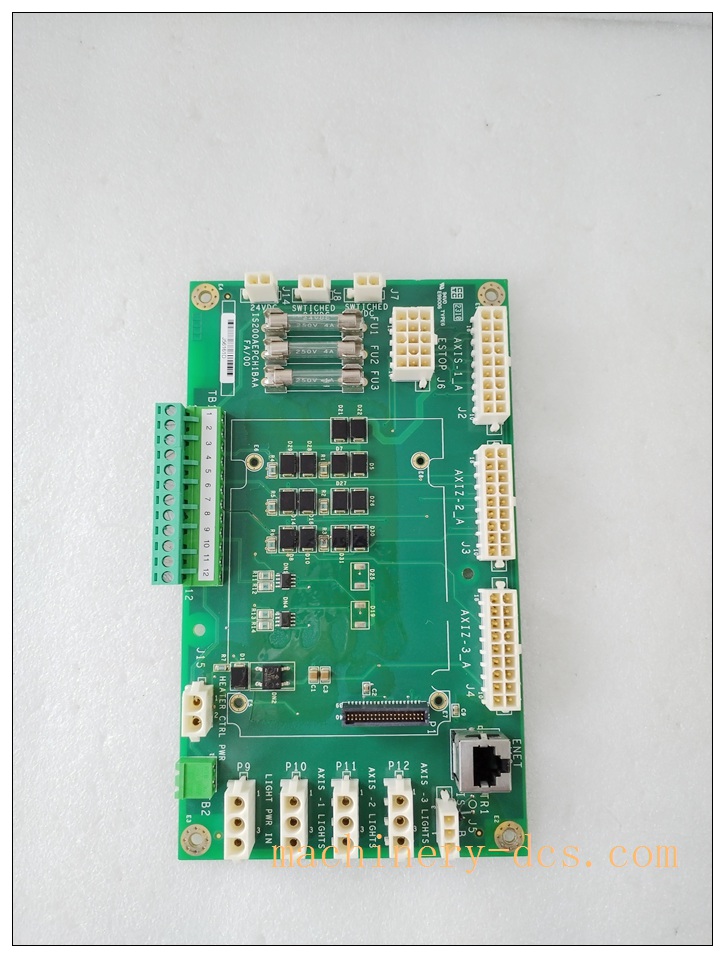

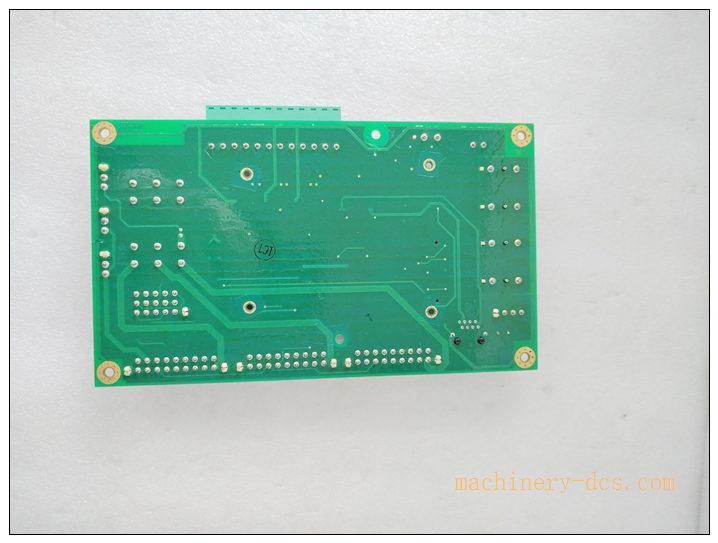

GE IS200AEPCH1ABC Mark VI Speedtronic AEPC Auxiliary Control Processor Board

Description

GE IS200AEPCH1ABC Mark VI Speedtronic AEPC Auxiliary Control Processor Board

Product Description

The IS200AEPCH1ABC is an AEPC auxiliary processor PCB card designed for GE Speedtronic Mark VI turbine control systems, also compatible with EX2100 excitation control platform. This plug-in auxiliary board handles high-speed signal timing, auxiliary logic processing and inter-board communication between the main controller and I/O packs. It processes analog and digital field signals, manages local timing sequences and transfers critical measurement & status data across the rack backplane. The PCB is conformal coated for protection against humidity, dust and airborne contaminants in power plant cabinets. It supports simplex and TMR triple modular redundant architectures, playing a vital supporting role for gas/steam turbine closed-loop control, excitation regulation and machine protection functions.

Technical Specifications

• Part Number: IS200AEPCH1ABC
• Manufacturer: GE (GE Vernova)
• Series: Speedtronic Mark VI / EX2100
• Product Type: AEPC Auxiliary Control Processor Board
• Supply Voltage: 24 VDC
• Communication: Backplane parallel bus, RS422 serial interface
• Onboard Components: FPGA, logic ICs, capacitors, fuses and signal conditioning circuits
• PCB Protection: Conformal coating
• Operating Temperature: -30°C ~ +70°C
• Storage Temperature: -40°C ~ +85°C
• Relative Humidity: 5%–95%, non-condensing
• Mounting: Plug-in card mounted inside Mark VI rack
• Supported Architecture: Simplex, TMR triple modular redundancy
• Weight: Approx. 0.22 kg
• Approvals: CE, UL

IS200AEPCH1ABC

Key Features

1. Auxiliary processor board for Mark VI / EX2100 turbine and excitation control systems
2. Executes auxiliary control logic, timing management and inter-module data exchange
3. High-speed backplane communication with main CPU and I/O packs
4. Integrated signal conditioning for analog and digital turbine measurement signals
5. Conformal coated PCB for reliable operation in harsh power plant cabinet environments
6. Supports TMR triple redundant configuration for high availability turbine protection
7. Compact plug-in design for easy installation, inspection and spare replacement
8. Continuous hardware self-diagnosis for board faults and communication errors

Application Scenarios

• Gas turbine and steam turbine Mark VI control cabinets
• Generator EX2100 excitation control systems
• Combined cycle power plant turbine monitoring & protection
• Turbine speed, temperature and vibration auxiliary signal processing
• Petrochemical large turbine and compressor control systems
• Power plant generator excitation regulation and interlock logic
• Heavy rotating machinery triple redundant safety control
• Boiler auxiliary equipment sequence and interlock control

Matching / Auxiliary Components

• Mark VI main controller card
• Mark VI system rack and backplane
• Analog & digital I/O packs (PAIC, VIB, TCI packs)
• Mark VI terminal boards (TBAI, WETB, TREG etc.)
• Shielded field sensor cables
• ControlST / ToolboxST programming & diagnostic software
• Redundant 24VDC rack power supply
• Internal rack wiring harness
