GE IC695CPU315 high-performance programmable logic controller central processing unit module

Description

GE IC695CPU315 high-performance programmable logic controller central processing unit module

Product Brand & Model Title

GE Fanuc IC695CPU315, a core CPU module for Emerson PACSystems RX3i control platform

Product Core Introduction

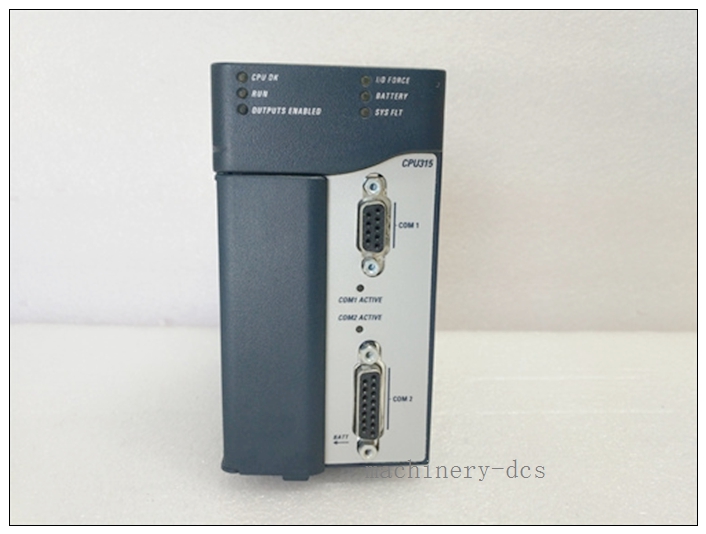

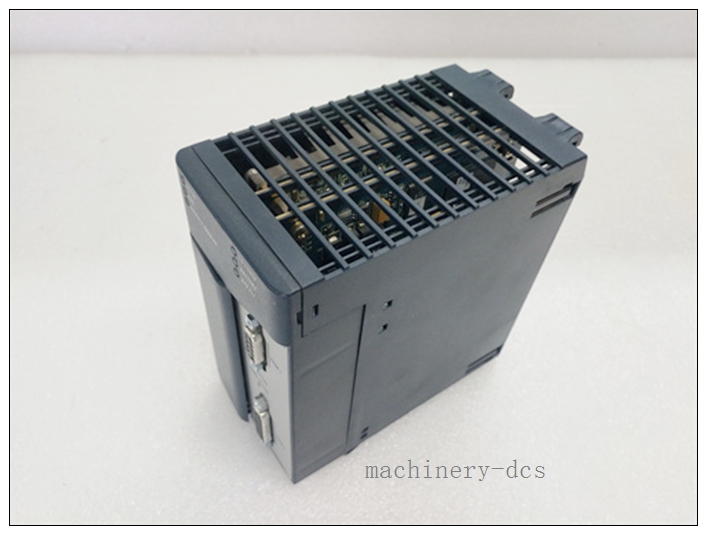

The GE IC695CPU315 is a high-performance programmable logic controller central processing unit module, designed as the core control component for PACSystems RX3i and VersaMax PLC platforms. Built around a 32-bit RISC architecture, it integrates powerful processing capability, large user memory and robust dual Ethernet communication ports, delivering reliable, flexible control for mid-to-high complexity industrial automation applications. Its rugged industrial-grade casing ensures stable operation in harsh manufacturing environments, and it fully complies with IEC 61131-3 programming standards to support diverse development requirements for different industrial scenarios.

IC695CPU315

Main Technical Specifications

• ‌Processor Type‌: 32-bit RISC processor
• ‌Communication Interfaces‌: Dual independent Ethernet ports for enhanced network redundancy and data integrity
• ‌Programming Compliance‌: Supports all standard programming languages defined in IEC 61131-3
• ‌Physical Parameters‌: Weight 0.5kg, dimensions 7.0 cm × 13.3 cm × 13.3 cm
• ‌Operating Environment‌: Designed for wide-temperature industrial scenarios with strong anti-interference capability
• ‌Expansion Compatibility‌: Modular architecture supports full range of RX3i series I/O modules and special function cards
• ‌Origin‌: USA, brand new original unit comes with 1-year official warranty

Recommended Same-Series Models

1. ‌IC695CPU320‌: Higher-performance upgraded CPU with expanded memory capacity and faster logic execution speed, for ultra-complex process control tasks
2. ‌IC695CPU310‌: Cost-effective entry-level CPU for small-scale automation systems with moderate control logic demands
3. ‌IC695CPE305‌: Integrated CPU with built-in enhanced motion control function, specially optimized for high-precision machine automation scenarios
4. ‌IC695CPU330‌: Redundancy-supported hot-backup CPU, designed for critical production lines requiring zero downtime continuous operation

Professional Quality Control Test Standard Operating Procedure

1. ‌Pre-Power Visual Inspection‌: Verify module housing integrity, connector pin condition, no physical damage or residual contamination
2. ‌Power Supply Performance Test‌: Apply rated DC power, monitor steady-state current and temperature rise to confirm no abnormal power consumption
3. ‌Communication Function Verification‌: Establish stable connection with programming workstation, test full-duplex data transmission of dual Ethernet ports for 2 consecutive hours with zero packet loss
4. ‌Logic Execution Calibration‌: Download standard complex logic program, verify instruction execution speed and calculation accuracy meet official specification
5. ‌Compatibility Check‌: Test interoperability with mainstream RX3i series I/O modules to ensure no configuration or communication conflict
6. ‌Environmental Stress Screening‌: Complete temperature cycle test across industrial operating range, followed by EMC interference test to confirm no program crash or data error
7. ‌Final Sign-off‌: Archive all test data, generate traceable quality report, label qualified unit with unique serial number before delivery.

IC695CPU315

New Module Installation

1. Power off the target control rack, confirm all connected field loops are placed in safe locked state to avoid unintended action during installation
2. Align the module with the RX3i backplane slot, push it firmly until the locking buckle clicks into place to ensure reliable backplane connection
3. Terminate dual Ethernet communication cables and system power wiring strictly following GE official technical drawings, torque all terminals to specified standard value
4. Restore rack power, observe front panel status LEDs to confirm the module enters normal running state
5. Complete hardware configuration synchronization via Proficy Machine Edition software, download user control program, then perform full loop test to verify all functions work normally before putting into formal operation.

Application Scenarios and Features

This module is widely applied in automobile manufacturing automated production lines, packaging machinery control, food and beverage production process management, metallurgical process control, energy and distribution system scenarios. Its core features include ultra-fast processing speed and quick system response, high reliability adapting to harsh industrial environments, flexible configuration to meet diverse customized demands, and strong scalability to expand system functions by adding various I/O and special modules.

Frequently Asked Questions

1. Q: Can IC695CPU315 be hot-swapped when the rack is powered on?
   A: It supports hot-swap under non-critical running state, but it is recommended to back up configuration in advance and suspend related control tasks to avoid system exception.
2. Q: What programming software is compatible with this CPU?
   A: It fully supports Proficy Machine Edition, and complies with IEC 61131-3 standard for multiple programming languages.
3. Q: What is the warranty period for a brand new original unit?
   A: Regular new original IC695CPU315 comes with 12-month manufacturer warranty, and extended warranty service is available for critical application scenarios.
4. Q: Can it directly communicate with third-party HMI devices?
   A: Yes, with dual Ethernet ports supporting mainstream industrial protocols, it can seamlessly connect with most standard industrial HMI products on the market.
