GE Hydran M2 – Continuous Online Dissolved Gas and Moisture Monitor for Power Transformers

Description

GE Hydran M2 – Continuous Online Dissolved Gas and Moisture Monitor for Power Transformers

Executive Summary
The GE Hydran M2 is a compact, permanently installed online monitoring device designed to continuously measure dissolved fault gases and moisture levels in transformer oil. By providing real-time Dissolved Gas Analysis (DGA) data, the Hydran M2 serves as an early warning system for developing transformer faults, enabling operators to minimize the risk of unplanned outages and optimize asset maintenance strategies. The device supports both composite gas monitoring and hydrogen-only detection, and features extensive communication options for seamless integration into SCADA, DCS, and asset management systems.

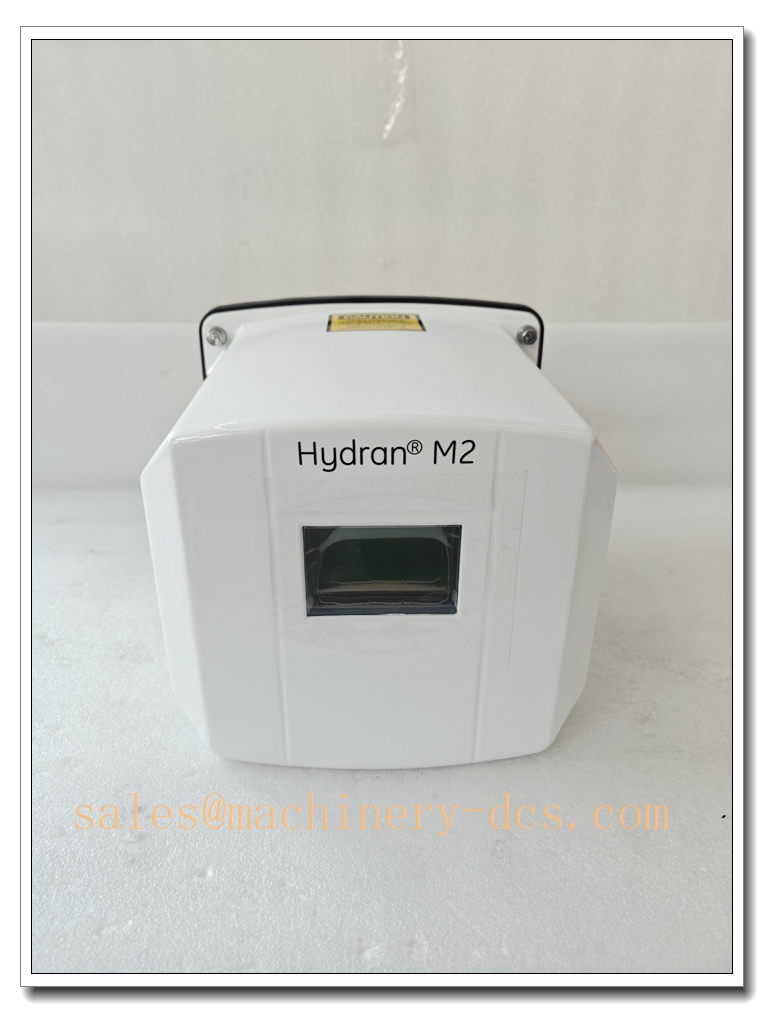

Hydran M2

Core Technical Specifications

• Manufacturer: GE / GE Vernova (formerly GE Energy)
• Product Series: Hydran M2 (Mark III)
• Module Type: Online Transformer DGA & Moisture Monitor
• Gas Measurement Principle: Vacuum-resistant gas-permeable membrane
• Moisture Measurement Principle: Thin-film capacitive sensor
• Gas Measurement Range: 25 – 2,000 ppm (H₂ equivalent, volume/volume)
• Gas Accuracy: ±10% of reading ± 25 ppm (Ref: ASTM D3612)
• Moisture Measurement Range: 0 – 100% RH
• Moisture Accuracy: ±2% RH
• Relative Gas Sensitivity: H₂: 100%; CO: ~15 ± 4%; C₂H₂: ~8 ± 2%; C₂H₄: ~1.5 ± 0.5%
• Response Time: ~10 minutes (to reach 90% of step change)
• Communication Interfaces: Standard RS-232 (local) and RS-485 (remote); Optional Ethernet (TCP/IP copper or fiber)
• Supported Protocols: Modbus, DNP 3.0, IEC 61850 (optional via Ethernet)
• I/O Expansion: Up to 4 optional I/O cards (isolated 4-20mA analog input/output, digital input)
• Alarm Relays: 4 programmable SPDT alarm relays + 1 self-test relay
• Power Supply: Universal switch-mode power supply (90–132 Vac or 180–264 Vac, 47–63 Hz)
• Enclosure Rating: NEMA 4X / IP56 (Aluminum housing)
• Operating Temperature: -40°C to +55°C (ambient); Up to +105°C at valve with heatsink adapter
• Mounting: Direct installation on a single transformer oil valve (1.5″ NPT male threads); no extra piping or pump required

Key Features and Advantages

• Continuous Early Fault Detection: Continuously monitors dissolved fault gases (H₂, CO, C₂H₂, C₂H₄) and moisture, providing real-time alerts before serious transformer failures occur.
• Flexible Sensor Options: Offers a choice between a “Composite Gas” sensor (sensitive to H₂, CO, C₂H₂, C₂H₄) and a “Hydrogen Only” (H₂) sensor, tailored to specific monitoring needs.
• Onboard IEEE Transformer Models: Utilizes built-in mathematical models based on IEEE standards to convert raw sensor data into actionable insights, such as estimated winding hotspot temperature, moisture in paper, and insulation aging.
• Seamless System Integration: Supports a wide range of communication protocols (Modbus, DNP 3.0, IEC 61850) and optional I/O cards, making it easy to integrate into existing SCADA, DCS, or GE Perception™ software ecosystems.
• Pump-Free, Low Maintenance Design: Features a solid-state design with no moving parts, pumps, or required reagents. Installs directly onto a single transformer valve without the need for additional piping.
• Comprehensive Self-Diagnostics: Performs automatic self-tests every 15 days to detect faults such as power loss, closed oil valves, or sensor failures, triggering a service alarm if issues are found.
• Broad Oil Compatibility: Compatible with standard mineral insulating oils as well as newer natural and synthetic ester-based fluids.

Application Scenarios

• Power Utility Substations: Continuous condition monitoring of critical transmission and distribution transformers to prevent unexpected grid outages.
• Industrial Power Systems: Monitoring transformers in heavy industrial facilities (e.g., steel mills, refineries) to minimize costly production downtime caused by transformer failures.
• Renewable Energy Plants: Remote monitoring of step-up transformers in wind and solar farms, reducing the need for manual oil sampling in hard-to-reach locations.
• Transformer Asset Management: Providing real-time DGA and moisture data for fleet-wide asset performance management (APM) and predictive maintenance strategies.
• Legacy Transformer Retrofit: Upgrading older transformers with online monitoring capabilities without requiring major modifications or additional piping.

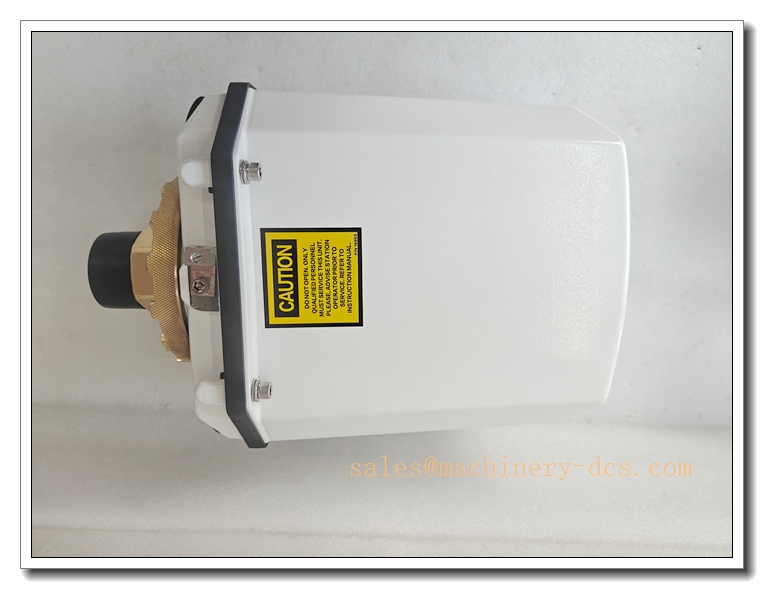

Hydran M2

Related Product Recommendations
For comprehensive transformer monitoring and system integration, consider the following compatible GE products:

1. GE Hydran M2-X: Next-generation Hydran monitor with extended sensor life (>10 years) and optimized low-maintenance design.
2. GE Hydran 201Ti / 201Ci: Earlier generation transformer gas monitoring systems for basic DGA applications.
3. GE Multilin 845 / 850: Advanced transformer protection relays that can integrate with Hydran data for comprehensive electrical and chemical monitoring.
4. GE Perception™ Software: Transformer fleet management software for downloading, trending, and analyzing Hydran M2 data.
5. GE Kelman MultiGas DGA Devices: Multi-gas DGA solutions for more detailed gas analysis, compatible with Hydran integration.
6. GE Vernova APM Software: Asset Performance Management platform for fleet-level analytics and predictive maintenance.

Frequently Asked Questions (FAQ)

• Q: What is the difference between the “Composite Gas” and “Hydrogen Only” sensors?
  A: The Composite Gas sensor responds 100% to Hydrogen (H₂) and is also sensitive to Carbon Monoxide (CO), Acetylene (C₂H₂), and Ethylene (C₂H₄), providing a broader view of fault types. The Hydrogen Only sensor responds exclusively to H₂, which is a general fault gas produced by most transformer faults, offering a more cost-effective solution for basic monitoring.
• Q: Does the Hydran M2 require a pump to extract oil samples?
  A: No. The Hydran M2 installs directly onto a single transformer oil valve and uses a passive gas-permeable membrane for gas extraction. No pumps, extra piping, or moving parts are required.
• Q: What communication protocols does the Hydran M2 support?
  A: Standard communication includes RS-232 (local) and RS-485 (remote) supporting Modbus and DNP 3.0 protocols. An optional Ethernet card (copper or fiber) enables TCP/IP communication and supports IEC 61850.
• Q: Can the Hydran M2 monitor transformer oil temperature and load?
  A: Yes. Through optional analog input cards, the Hydran M2 can accept external sensor inputs for top/bottom oil temperature, transformer load, or ambient temperature. This data is used in conjunction with onboard IEEE transformer models to provide deeper insights into transformer health.
• Q: Is the Hydran M2 compatible with ester-based transformer oils?
  A: Yes. The Hydran M2 (Mark III) and its successor, the Hydran M2-X, are compatible with both standard mineral insulating oils and newer natural or synthetic ester-based fluids.
• Q: How often does the Hydran M2 perform self-diagnostics?
  A: The device automatically performs a full system self-test every 15 days. If a fault is detected (e.g., power loss, sensor failure, closed oil valve), a service alarm is triggered to alert maintenance personnel.
