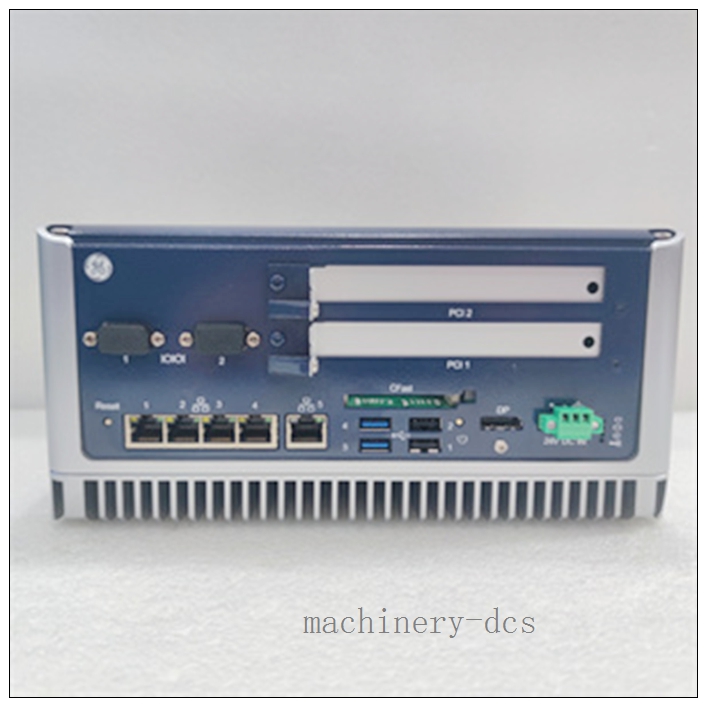

GE 04220FL11232A Industrial DCS I/O Module

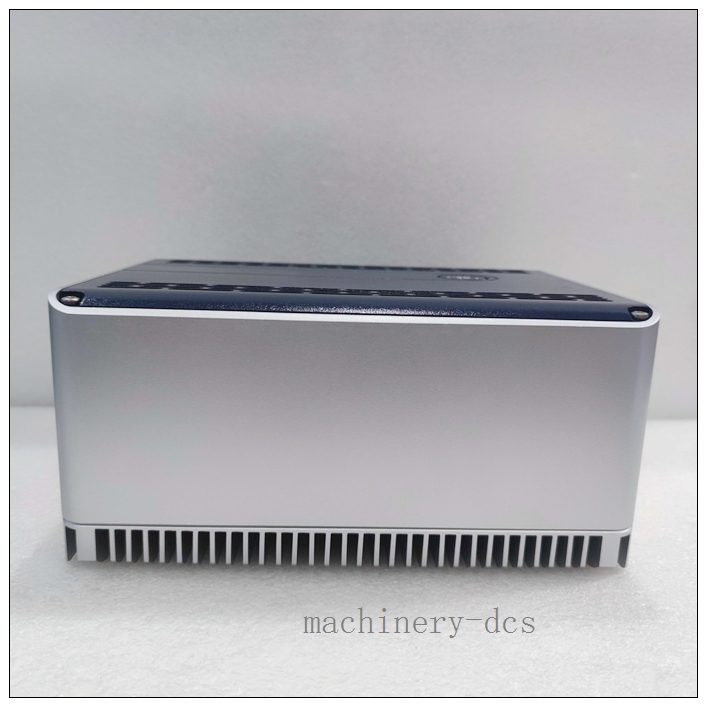

GE 04220FL11232A Industrial DCS I/O Module - Image 2
GE 04220FL11232A Industrial DCS I/O Module - Image 3

GE 04220FL11232A Industrial DCS I/O Module

H201Ti
H201CI-1
RS-E2-0285
RS-FS-9001
IC698CRE030
IS220PTURH1A
RXI042
IC695CPU315
IS420UCSCH2A-C
IS420UCSCH1A-C
SR489-P5-HI-A20-E
Add To Quote
Category: SKU: GE 04220FL11232A Brand:

Description

GE 04220FL11232A Industrial DCS I/O Module



Executive Brief

The GE 04220FL11232A is a high-performance Industrial DCS Input/Output (I/O) Module from General Electric, designed for mission-critical distributed control system applications in harsh industrial environments. It supports multiple mainstream industrial communication protocols, features a compact DIN rail mounting form factor, and delivers reliable signal acquisition and transmission capabilities for industrial automation and process control systems.

04220FL11232A

Core Technical Specifications

  1. Manufacturer: GE (General Electric)
  2. Exact Part Number: 04220FL11232A
  3. Product Category: Industrial DCS Input/Output (I/O) Module
  4. Power Supply: 24V DC, with 18V-32V DC wide operating voltage range
  5. Supported Communication Protocols: Modbus TCP, Ethernet/IP, PROFIBUS DP
  6. Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
  7. Mounting Standard: 35mm Standard DIN Rail
  8. Physical Dimensions (H×W×D): 105mm × 70mm × 50mm (4.13″ × 2.76″ × 1.97″)
  9. Net Weight: 195g (0.43 lbs)
  10. Typical Interfaces: 2× Ethernet (RJ45), 1× RS485, 6× Digital I/O Ports
  11. Compliance Certifications: CE, RoHS, UL 508
  12. Installation Type: Field-side DIN rail mounting, no additional adapter required
  13. Isolation Performance: Built-in electrical isolation between communication ports and power supply
  14. System Compatibility: Natively compatible with GE DCS series control systems and mainstream third-party industrial PLC platforms



Key Features & Advantages

  • Multi-protocol Flexible Compatibility: Natively supports Modbus TCP, Ethernet/IP and PROFIBUS DP three mainstream industrial communication protocols, no additional protocol conversion equipment required, adapting to diverse industrial control system architectures.
  • Wide Operating Voltage Adaptability: 18V-32V DC wide power input range, effectively resisting industrial field power supply voltage fluctuations, ensuring stable operation even under unstable power grid conditions.
  • Ultra-compact DIN Rail Design: 105×70×50mm compact size and standard 35mm DIN rail mounting design, saving valuable cabinet space and making on-site installation and replacement extremely convenient.
  • Rich Interface Configuration: Equipped with dual Ethernet ports, RS485 serial port and 6 digital I/O channels, integrating multiple signal access capabilities in one single module.
  • Harsh Environment Durability: -20°C to 60°C wide operating temperature range and full industrial-grade component selection enable stable operation in extreme industrial field environments.
  • Full Safety Compliance: CE, RoHS and UL 508 three major international safety certifications, fully meeting global industrial electrical safety and environmental protection standards.

04220FL11232A

Typical Application Scenarios

  1. Petrochemical Process Control: Core signal acquisition and transmission I/O module for distributed control systems in refineries and chemical plants.
  2. Power Plant DCS Systems: Reliable I/O unit for distributed control systems in thermal power, hydropower and new energy power plants.
  3. Metallurgical & Mining Automation: Signal access module for industrial automation control systems in metallurgical smelting and mining production sites.
  4. Water Treatment Process Control: Dedicated I/O module for distributed control systems in municipal and industrial water treatment facilities.
  5. Intelligent Manufacturing Production Lines: Signal collection and transmission unit for automated production line control systems in intelligent manufacturing factories.



Related Supporting Product Model Display

  1. GE DCS Main Controller Modules: Corresponding main control units of GE DCS systems, which work with 04220FL11232A to form a complete distributed control system.
  2. GE Analog I/O Modules: Analog signal acquisition and output modules, which can be combined with 04220FL11232A to realize full signal coverage.
  3. Industrial Ethernet Switches: Industrial-grade Ethernet switches that support Modbus TCP and Ethernet/IP, providing stable network communication for the module.
  4. GE DCS Configuration Software: Dedicated upper configuration and monitoring software, supporting parameter configuration, status monitoring and fault diagnosis for 04220FL11232A.



Frequently Asked Questions

Q1: What is the core function of GE 04220FL11232A?
A1: It is an industrial DCS I/O module that provides signal acquisition and transmission for distributed control systems, supporting multiple mainstream industrial communication protocols.

Q2: What is the power supply requirement of this module?
A2: It uses 24V DC power supply, with a wide operating range of 18V to 32V DC.

Q3: What communication protocols does 04220FL11232A support?
A3: It natively supports Modbus TCP, Ethernet/IP and PROFIBUS DP three mainstream industrial communication protocols.

Q4: What is the installation method of this module?
A4: It adopts standard 35mm DIN rail mounting, no additional adapter required for on-site installation.

Q5: What safety certifications does this module have?
A5: It has obtained CE, RoHS and UL 508 three major international industrial safety compliance certifications.
