Foxboro P0924WV I/A Series USB Annunciator & Numeric Operator Keyboard

Description

Foxboro P0924WV I/A Series USB Annunciator & Numeric Operator Keyboard

Product Description

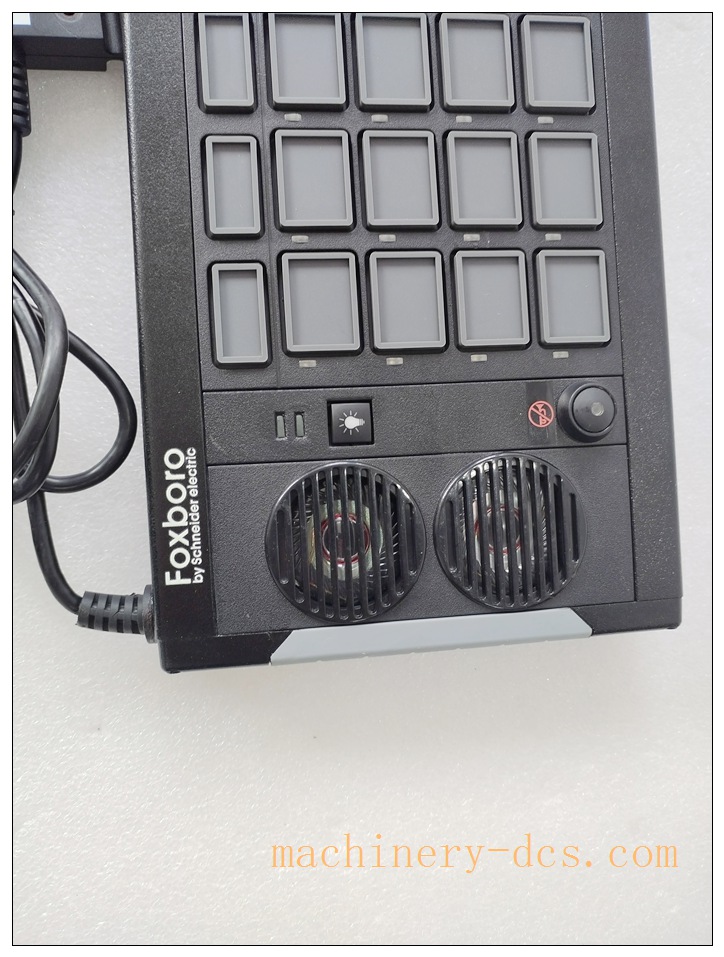

The P0924WV is a dedicated USB annunciator operator keyboard for Foxboro I/A Series DCS (Schneider Electric Foxboro). It is an industrial annunciator panel combined with numeric and function keys, connected to operator workstation via USB interface. Most keys are equipped with configurable multi-color LED indicators (red/yellow/green/off), used for alarm annunciation, alarm silence, lamp test, numeric value entry and system operation commands. It has dedicated horn silence and lamp test buttons on the left side, with built-in alarm horn. It is used in control room operator stations, for quick alarm acknowledgement, process setpoint input and DCS operation. This part has been discontinued by manufacturer, widely used as spare replacement for legacy I/A Series control room consoles in power and petrochemical plants.

P0924WV

Technical Specifications

• Part Number: P0924WV
• Manufacturer: Foxboro (Schneider Electric)
• Series: I/A Series DCS
• Device Type: USB Annunciator / Numeric Operator Keyboard
• Connection: USB 2.0, standard USB cable, can extend up to 30.5m with dedicated extender kit

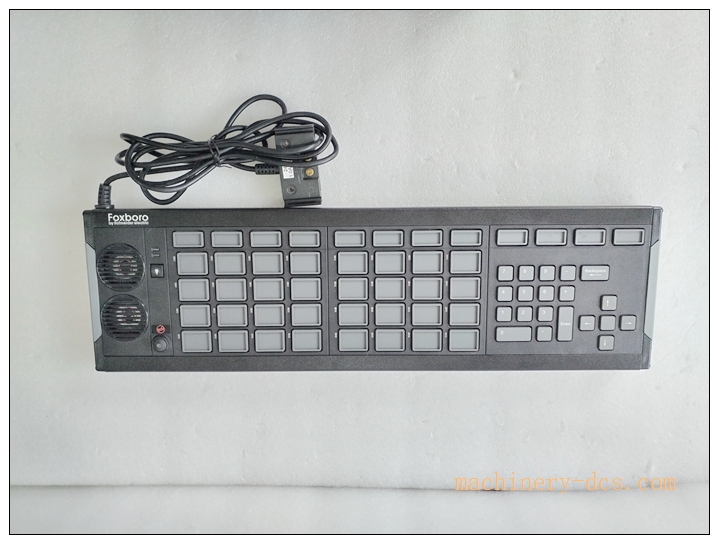

• Key layout: 4 rows × 8 LED keys + 12 macro keys (no LED), numeric & navigation arrow keys
• LED: Red/Yellow/Green configurable per LED key
• Special function keys: Silence Horn, Lamp Test
• Built-in: Alarm annunciator horn
• OS Support: Windows for I/A workstation
• Operating Temperature: 10°C ~ +40°C
• Storage Temperature: -20°C ~ +70°C
• Relative Humidity: 20%~80%, non-condensing
• Mounting: Control console desktop mounting
• Weight: Approx. 1.0 kg
• Status: Discontinued, available as aftermarket spare
• Certifications: CE

Key Features

1. Integrated alarm annunciator keyboard with multi-color LED alarm status indication
2. Built-in horn for audible alarm, dedicated Silence Horn and Lamp Test buttons
3. USB plug-and-play for I/A Series operator workstation
4. Configurable LED colors for alarm priority visual classification
5. Numeric keypad and navigation keys for fast setpoint entry and screen operation
6. Rugged industrial key design for continuous 24h control room operation
7. Dedicated macro keys for one-click shortcut operation of DCS displays
8. Used for alarm acknowledgment, process parameter modification and console operation

Application Scenarios

• Thermal power plant I/A Series DCS main control room operator console
• Petrochemical refinery central control room alarm annunciation and operation
• Chemical plant large process control room workstation
• Pulp & paper mill main DCS control console
• Oil & gas pipeline central control system
• Legacy Foxboro I/A system upgrade and spare keyboard replacement
• Fertilizer plant process DCS alarm and operation station
• Large water treatment plant central control room operator console

P0924WV

Matching / Auxiliary Components

• Foxboro I/A Series operator workstation
• I/A Series DCS HMI software
• USB extension cable / USB repeater kit for long distance
• 24VDC workstation power supply
• Control console mounting bracket
• Workstation USB port
• Spare replacement keys and horn
• DCS alarm configuration tool
