EPRO PR6424/000‑100 Non‑Contact Eddy‑Current Probe Sensor for Rotating Machinery Condition Monitoring

Description

EPRO PR6424/000‑100 Non‑Contact Eddy‑Current Probe Sensor for Rotating Machinery Condition Monitoring

Product Details

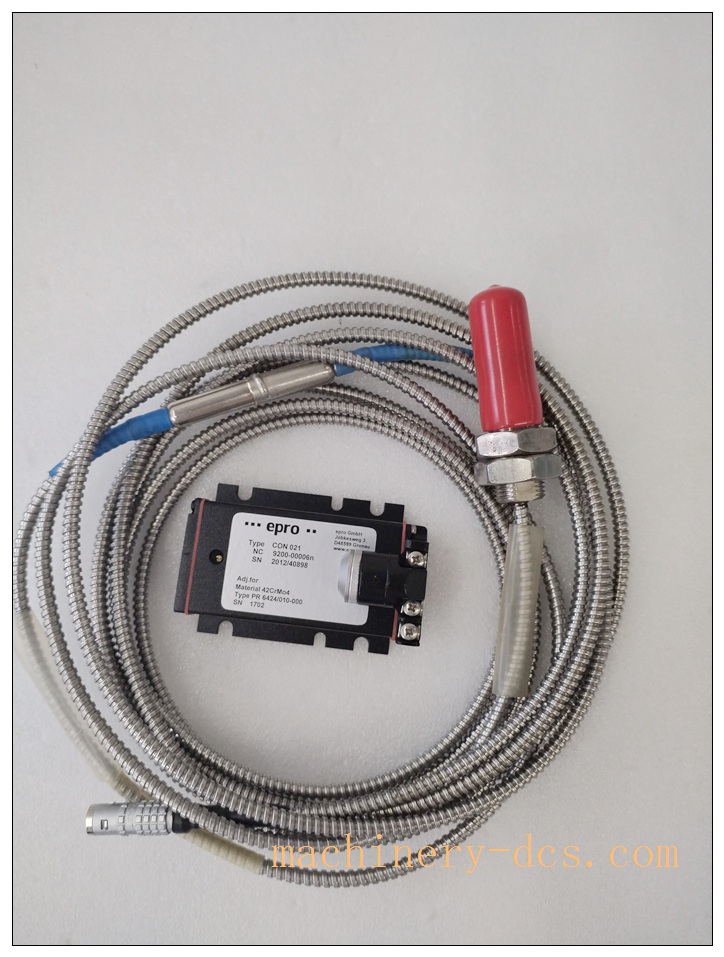

The PR6424/000‑100 is a high‑precision eddy‑current displacement probe manufactured by EPRO (Emerson), widely deployed for turbomachinery protection systems. It is a 16 mm probe with 10‑meter standard extension cable, working cooperatively with CON021 signal converter (pre‑amplifier) to achieve non‑contact measurement. Based on eddy‑current induction principle, it converts shaft gap variation into linear analog voltage signal. The probe features stainless‑steel housing, good oil‑resistance and high‑temperature tolerance, suitable for long‑term installation near high‑speed rotating shafts. It complies with API‑670 machinery protection standard, outputs stable linear signal for TSI monitoring systems. Lemo connector ensures reliable connection with extension cable and preamplifier. This unit is commonly used as original spare‑part for steam turbine, gas turbine and compressor condition‑monitoring retrofitting projects.

PR6424/000-100

Applications

‑ Steam turbine axial thrust displacement monitoring ‑ Gas turbine shaft vibration and eccentricity measurement ‑ Centrifugal compressor rotor position supervision ‑ Heavy‑duty pump & fan shaft dynamic condition monitoring ‑ Turbo‑generator machinery protection system (TSI) ‑ Petrochemical and power plant rotating‑asset online monitoring ‑ Retrofit & spare‑part replacement for EPRO machinery monitoring systems ‑ Differential expansion measurement for large rotating equipment

Related Series Models (6+)

1. PR6424/000‑040
2. PR6423/000‑010
3. PR6425/010‑110
4. PR6426/010‑010
5. PR6422/000‑030
6. CON021 (Matching Preamplifier)
7. CON041

Key Features

1. Non‑contact eddy‑current measuring principle, no mechanical wear on measured shaft surface.
2. Stainless‑steel probe construction, oil‑proof, moisture‑proof, adapts to harsh turbine‑site environment.
3. Wide operating temperature range, capable of stable operation near high‑temperature rotating shafts.
4. Excellent linearity and high resolution for micro‑meter‑level displacement & vibration detection.

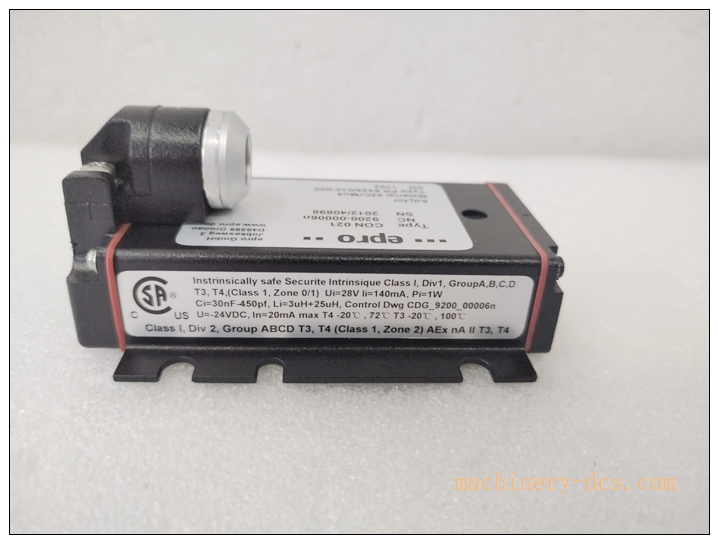

5. Matches with CON021 preamplifier, delivers standard linear analog output for TSI system.
6. Reliable LEMO quick‑lock connector for stable signal transmission.
7. Complies with API‑670 international machinery‑protection specification.
8. Resists vibration and shock interference for continuous 24‑7 industrial operation.

Main Functions

1. Non‑contact measurement of axial shaft displacement, monitor rotor thrust position to avoid rotor‑stator collision.
2. Detect radial shaft vibration amplitude for rotating‑machinery health evaluation.
3. Measure shaft eccentricity and differential expansion of large turbomachinery rotors.
4. Convert physical gap changes between probe tip and metal shaft into linear electrical signal.
5. Transfer measured signal to CON021 preamplifier for signal conditioning and output to TSI monitor.
6. Capture dynamic vibration signal for early fault warning of bearings and rotors.
7. Support long‑term field installation inside turbine casings and compressor units.
8. Provide critical raw measurement data for machinery protection interlock logic.
