Emerson DeltaV S‑Series SE4050E0C0 (KJ4005X1‑BE1) 8‑Wide I/O Interface Carrier, 8 Power Buss Plugs with Shield Bar

Description

Emerson DeltaV S‑Series SE4050E0C0 (KJ4005X1‑BE1) 8‑Wide I/O Interface Carrier, 8 Power Buss Plugs with Shield Bar

Product Details

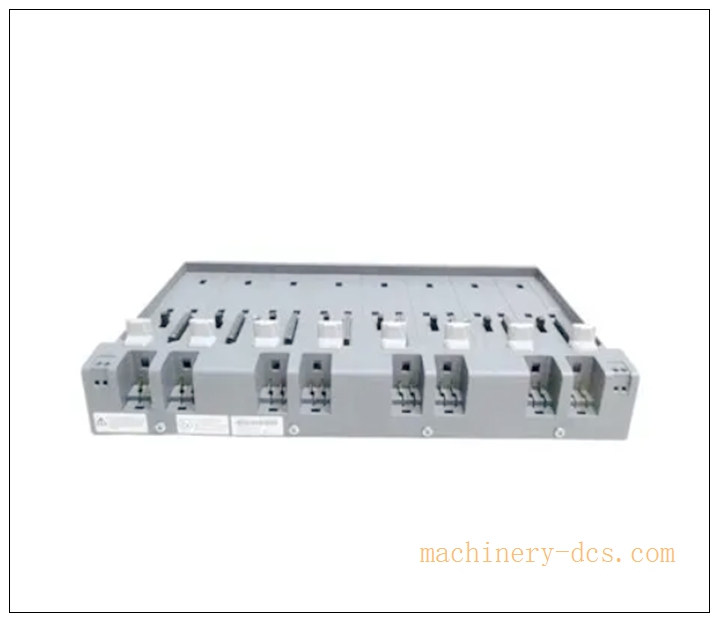

The SE4050E0C0, alternate part number KJ4005X1‑BE1, is an 8‑slot I/O interface carrier (backplane base) for Emerson DeltaV S‑Series DCS system. Origin: USA. It is a mechanical and electrical backplane rack, accommodating up to 8 pieces of S‑Series standard I/O modules. Equipped with 8 power buss plugs and integrated carrier shield bar for EMC noise suppression. Supports DIN‑rail snap‑on installation, allows online system expansion. Integrated 24 VDC power distribution and system I/O bus routing. No extender cable fitted (contrast SE4050E1C0 single‑cable, SE4050E2C0 dual‑cable variants). Weight approx 0.5 kg, dimension 348 × 229 mm; operating temperature ‑20℃ ~ +60℃, IP20 protection rating, passive cooling design. Lifecycle status: active production, new original available, widely used for petrochemical, power plant DCS cabinet assembly and spare‑part replacement.

Applications

‑ DeltaV S‑Series DCS cabinet I/O hardware assembly ‑ Power plant boiler & turbine control system cabinet construction ‑ Petrochemical & refinery process DCS system retrofit ‑ Chemical plant reactor control I/O rack configuration ‑ Oil‑gas processing plant distributed control system ‑ Spare‑part replacement for damaged DeltaV S‑Series backplane carriers ‑ Industrial automation DCS cabinet expansion project

SE4050E0C0

Related Series Models (6+)

1. SE4050E1C0 (8‑wide carrier, single 1.1m extender cable)
2. SE4050E2C0 (8‑wide carrier, dual 1.1m extender cables)
3. SE4059E0C0 (8‑wide carrier with power terminal plugs)
4. SE3051C0 (2‑wide power / controller carrier)
5. SE4003S0B1 (RTD CHARM module)
6. SE4004S6B1 (TC CHARM conformal coated)
7. SE6501T01 (Redundant CIOC CHARM I/O Card)

Key Features

1. 8‑wide S‑Series I/O carrier, holds maximum 8 DeltaV S‑Series I/O modules.
2. Built‑in 8 power buss plugs plus dedicated shield bar, improves EMC performance for heavy‑noise industrial cabinet environment.
3. DIN‑rail snap‑in mounting structure, convenient installation and online expansion without system shutdown.
4. Integrated backplane power distribution and I/O system bus routing, reduces field wiring workload.
5. No extender cable onboard; select SE4050E1C0 / SE4050E2C0 if remote cabinet extension is required.
6. Wide operating temperature range ‑20℃ ~ +60℃, IP20 for cabinet‑only installation.
7. Passive backplane hardware; no onboard logic chip, function depends on inserted I/O modules.
8. Manufactured in USA, CE certified, original new spare‑parts commercially available.

SE4050E0C0

Main Functions

1. Provide mechanical mounting base and electrical backplane bus connection for up to 8 DeltaV S‑Series I/O modules.
2. Distribute 24 VDC system power to each inserted I/O module via integrated power buss plugs.
3. Route DeltaV system I/O bus signal between modules, realize inter‑module data communication.
4. Integrated shield bar ensures equipotential grounding, suppress cabinet electromagnetic interference.
5. Support flexible cabinet layout, realize online hardware expansion by adding additional carriers.
6. Work cooperatively with DeltaV controller, power supply and various S‑Series I/O cards to build complete DCS hardware architecture.
7. Accept hot‑swap I/O module operation, support online maintenance for individual I/O channel.
8. Serve as core mechanical‑electrical back‑bone component inside DeltaV S‑Series control cabinet.
