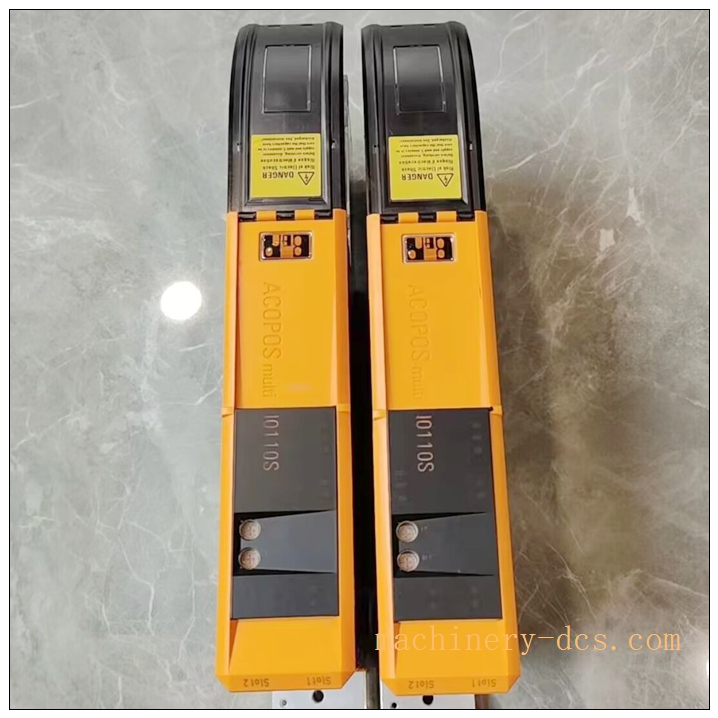

B&R 8B0P0110HW00.000‑1 ACOPOSmulti Passive Power‑Supply Module, 11A, Wall‑Mount Version - Image 3

B&R 8B0P0110HW00.000‑1 ACOPOSmulti Passive Power‑Supply Module, 11A, Wall‑Mount Version

  1. 8B0P0110HC00.000‑1 (Backplane‑mount passive power supply)
  2. 8B0P0220HW00.000‑1 (22A wall‑mount passive power supply)
  3. 8B0R0000‑01 (External braking resistor)
  4. 8B0C0320‑01 (Auxiliary 24V power‑supply module)
  5. 8B0M0110‑01 (11‑slot ACOPOSmulti mounting backplane)
  6. 8B0V1000.00‑1 (ACOPOSmulti axis servo module)
  7. 8B0P0450HW00.000‑1 (45A wall‑mount power unit)
Add To Quote
Category: SKU: B&R 8B0P0110HW00.000‑1 Brand:

Description

B&R 8B0P0110HW00.000‑1 ACOPOSmulti Passive Power‑Supply Module, 11A, Wall‑Mount Version



Product Details

The 8B0P0110HW00.000‑1 is a passive DC‑bus power‑supply module for B&R ACOPOSmulti multi‑axis servo drive systemB& R Indus…. Origin: Austria. Lifecycle status: active production, original new parts available.

Mains input: 3‑phase 400‑480 VAC; continuous power 4 kW, peak power 12 kW, rated DC‑bus output current 11 A, DC‑bus voltage range 294‑679 VDC. Equipped with integrated mains line‑filter, built‑in braking resistor, supports external braking‑resistor expansion. 24 VDC auxiliary input, can supply max 90 W auxiliary power for ACOPOSmulti axis modules, often eliminates the requirement for separate 8B0C auxiliary power unitB& R Indus…. Wall‑mount installation (not DIN‑rail), dimension W53.5 × H317 × D263 mm, weight 3.5 kg, IP20 protection rating. Operating temperature 5‑40℃. Supports DNA dynamic node allocation. Certifications: cULus, CE, UKCAB& R Indus…. Overload protection built‑in; no short‑circuit or ground‑fault protection inside this module.



Applications

‑ Multi‑axis servo system for packaging machinery ‑ Printing, textile, metal‑processing machine tool ACOPOSmulti drive racks ‑ Robotics and material‑handling automation equipment ‑ Plastics injection‑molding machine multi‑axis motion control ‑ Factory automation production‑line servo power‑supply reconstruction ‑ Spare‑part replacement for existing B&R ACOPOSmulti installations ‑ Equipment retrofit for high‑power multi‑axis motion platforms

8BOP0110HW00.000-1

Related Series Models (6+)

  1. 8B0P0110HC00.000‑1 (Backplane‑mount passive power supply)
  2. 8B0P0220HW00.000‑1 (22A wall‑mount passive power supply)
  3. 8B0R0000‑01 (External braking resistor)
  4. 8B0C0320‑01 (Auxiliary 24V power‑supply module)
  5. 8B0M0110‑01 (11‑slot ACOPOSmulti mounting backplane)
  6. 8B0V1000.00‑1 (ACOPOSmulti axis servo module)
  7. 8B0P0450HW00.000‑1 (45A wall‑mount power unit)



Key Features

  1. Passive central power‑supply for ACOPOSmulti servo system, provides DC‑bus for multiple axis modules, no regeneration functionB& R Indus….
  2. 4 kW continuous / 12 kW peak power rating, 11A DC‑bus output for multi‑axis motion drives.
  3. Integrated mains EMC line filter, reduces grid‑side electromagnetic interference.
  4. Built‑in braking resistor, allows external braking resistor connection for heavy‑duty regenerative‑energy dissipation.
  5. 24 VDC auxiliary input, delivers up to 90 W auxiliary power for servo axis electronics, saves separate auxiliary‑power hardware.
  6. Wall‑mount mechanical structure, IP20 cabinet‑only installation, supports DNA dynamic node allocation.
  7. Overload protection; system startup can be triggered by either mains power or external 24 VDC supply.
  8. Manufactured in Austria, CE / cULus / UKCA certified, original new spare‑parts commercially available.



Main Functions

  1. Convert three‑phase 400‑480VAC mains into stable high‑voltage DC‑bus power, supply to ACOPOSmulti servo axis modules.
  2. Absorb motor regenerative energy via internal or external braking resistor during deceleration of servo motors.
  3. Integrated line‑filter suppresses conducted interference, improves power‑grid compatibility of multi‑axis drive cabinet.
  4. Provide up to 90 W 24 V auxiliary power for servo‑module control electronics, reduce system component count.
  5. Realize dynamic node assignment via DNA, automatically identify and configure connected ACOPOSmulti axis units.
  6. Monitor internal operating status, report fault information to upper‑level PLC via system bus.
  7. Support system cold‑start by external 24 VDC auxiliary power before mains power is switched‑on.
  8. Act as central DC‑bus power backbone for B&R ACOPOSmulti multi‑axis servo drive system.
