Bently Nevada 3500/42 SIL-01-00 4-Channel Vibration & Position Monitor Module, SIL 2 Rated

Description

Bently Nevada 3500/42 SIL-01-00 4-Channel Vibration & Position Monitor Module, SIL 2 Rated

Product Description

The 3500/42 SIL-01-00 is a safety-qualified 4-channel monitor card within the Bently Nevada 3500 machinery protection system. It accepts inputs from eddy current proximity probes, seismic velocity transducers and accelerometers to measure shaft vibration, radial vibration, thrust position, differential expansion and other critical rotor dynamic parameters. This SIL-rated version supports SIL 2 safety functions for machinery protection, providing independent alarm and trip outputs linked to the 3500 relay modules. Each channel can be configured for different measurement types, with high-speed signal processing to detect rapid mechanical faults such as rubbing, imbalance and thrust bearing failure. The module communicates measurement data, alarm status and diagnostic information over the rack internal backplane bus to the Rack Interface Module, software host and HMI systems. It performs continuous self-diagnostics for sensor faults, open circuits, short circuits and signal out-of-range conditions to support reliable safety protection.

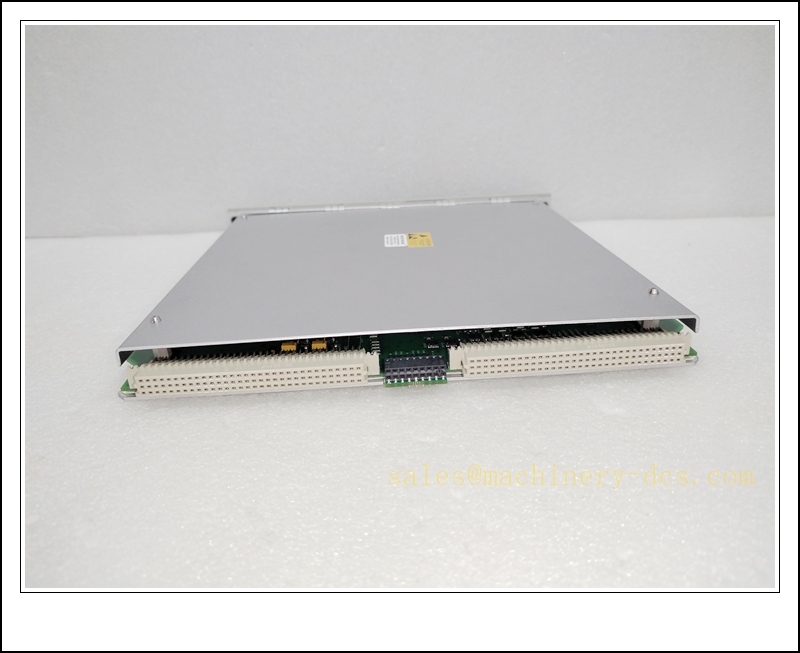

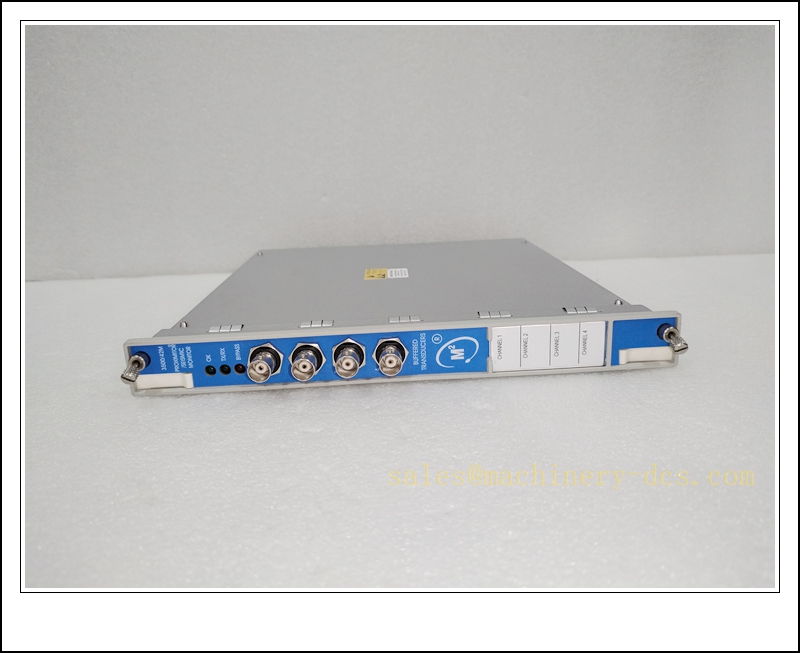

3500/42 SIL-01-00

Technical Specifications

• Brand: Bently Nevada
• Model: 3500/42 SIL-01-00
• Channel Count: 4 independent measurement channels
• Safety Rating: SIL 2
• Supported Transducers: Eddy current probe, velocity transducer, accelerometer
• Measured Parameters: Radial vibration, thrust position, shaft relative vibration, casing vibration, differential expansion
• Signal Input Type: Probe driver signal, AC vibration signal
• Bandwidth: Configurable per measurement type
• Alarm & Trip Logic: Independent alert and danger thresholds, configurable voting
• Diagnostics: Sensor fault, wire break, short circuit, signal over/under range, module self-test
• Rack Interface: 3500 series backplane bus
• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5% to 95% non-condensing
• Configuration Tool: Bently Nevada 3500 Rack Configuration Software
• Power Source: Powered via 3500 rack backplane from 3500/15 power supply
• Form Factor: Standard full-height 3500 rack module
• Certification: SIL 2 functional safety certification

Application Scenarios

• Steam turbine and gas turbine rotor vibration and thrust protection
• Centrifugal compressor and screw compressor machinery safety monitoring
• Power plant generator and large rotating equipment protection
• Petrochemical and refinery critical rotating machinery SIL 2 interlock systems
• Onshore and offshore oil & gas production compressors and pumps
• Large fans, blowers and high-speed process pumps condition protection
• Hazardous area Class I Div 2 / Zone 2 machinery monitoring cabinets
• Continuous process plants requiring certified safety trip for rotating assets

8 Related Bently Nevada Model Recommendations

1. 3500/33 SIL201-00 – 4-Channel SIL Rated Relay Output Module
2. 3500/15-05-05 – Dual AC Redundant Power Supply
3. 3500/20 – Rack Interface Module (RIM)
4. 3500/40M – 4-Channel Speed / Overspeed Monitor
5. 3500/45 – Position Expansion Monitor
6. 3500/92 – Communication Gateway Module
7. 3500/05 – 3500 Rack Chassis Assembly
8. 3500/42 Non-SIL Version – Standard 4-Channel Vibration & Position Monitor

Compatibility & Installation Pitfalls

Compatibility

• Designed exclusively for the Bently Nevada 3500 rack backplane; incompatible with older 3300 systems.
• Requires compatible Rack Interface Module firmware and 3500 configuration software versions to retain SIL certification.
• Works with standard Bently proximity probes and transducer drivers; verify probe cable length and driver type before configuration.
• SIL-rated 3500/42 SIL-01-00 may coexist with non-SIL modules in the same rack, but safety-related trip loops must only use SIL-qualified cards.
• Total rack power consumption must stay within the rating of the installed 3500/15 redundant power supplies.
• Channel configuration is stored in the rack system, not locally on the 3500/42 module.

Installation Pitfalls

1. Avoid hot-swapping this module while its associated SIL safety trip loop is active; unexpected alarm or trip states can occur.
2. Probe signal cables must be segregated from high-voltage AC or VFD power cables to prevent electromagnetic interference and false vibration spikes.
3. Verify probe extension cable total length matches the driver setting; mismatched cable length causes incorrect gap and vibration readings.
4. Do not mix SIL and non-SIL monitor modules within the same safety instrumented function (SIF); this voids SIL 2 certification for that loop.
5. Sensor wiring terminals must be properly torqued; loose connections trigger intermittent sensor fault diagnostics and spurious trips.
6. Confirm correct measurement type selection in software; misconfiguring thrust as radial vibration disables proper protection.
7. Proper single-point rack grounding is mandatory. Ground loops induce noise on low-level proximity signals and produce unstable readings.
8. Self-test OK status does not validate transducer calibration; sensor gap and vibration response must be verified with bench or field signal injection.

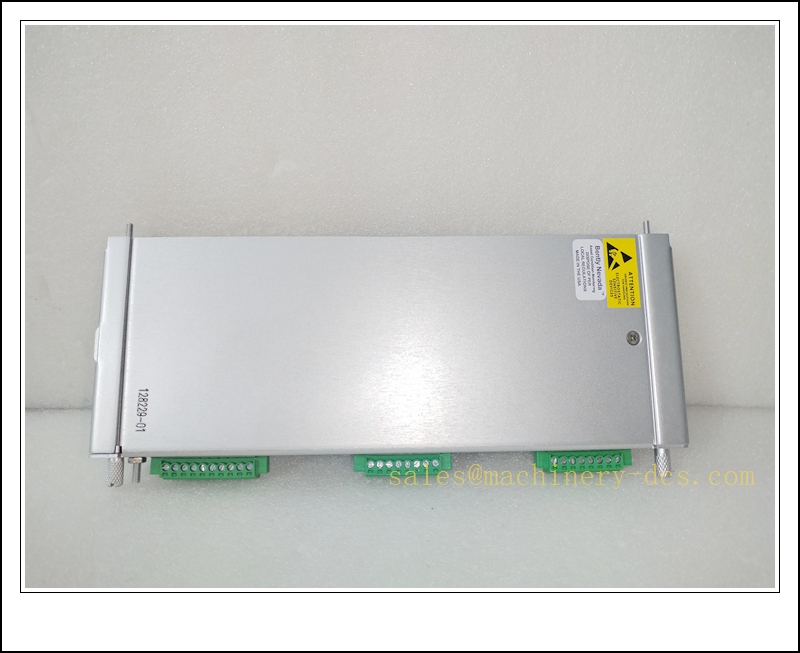

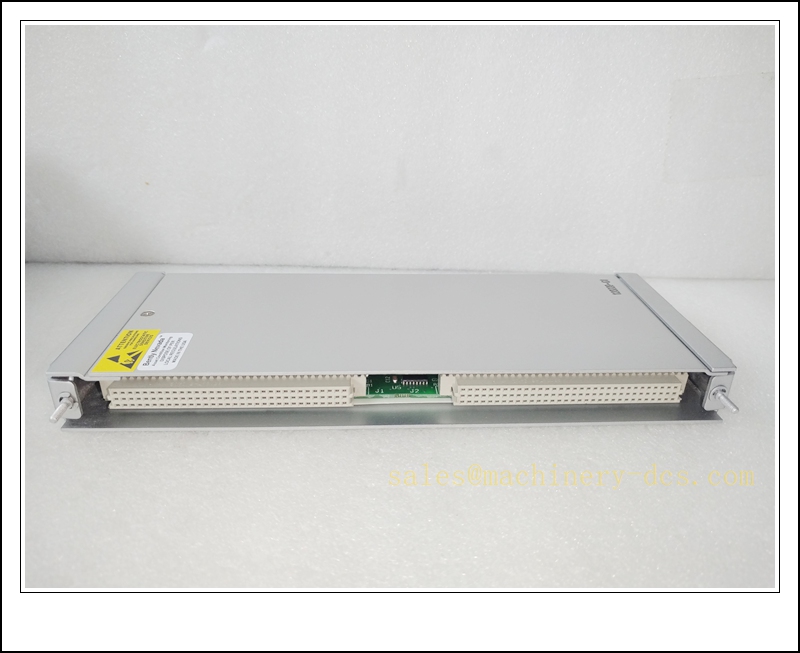

3500/42 SIL-01-00

Standard Operating Procedure (SOP)

SOP for 3500/42 SIL-01-00 Monitor Module Installation, Configuration and Functional Test

1. Pre-Installation Inspection Inspect the module for physical damage, connector pin deformation or contamination. Confirm the part number and SIL marking match project specifications. Review transducer type, cable length and safety loop design. Apply lockout-tagout to the associated machinery trip circuit before rack work begins.
2. Rack Installation Power down the rack if this is the only active monitor for a safety loop. Insert the 3500/42 SIL-01-00 module into the designated rack slot and fasten the retaining screw. Route and terminate proximity or seismic transducer cables to the module terminal assembly. Separate low-level sensor wiring from high-power circuits and apply shielding per vendor drawing.
3. Software Configuration Open the 3500 configuration software and read the existing rack configuration. Add the 3500/42 to the slot map. Assign each channel to the correct transducer type, cable length, measurement unit, alert and danger threshold values. Link trip outputs to the corresponding SIL-rated relay module channels. Download the validated configuration to the rack and resolve all configuration fault codes. Save the safety configuration file for functional safety audit records.
4. Sensor Loop Calibration and Injection Test Perform gap calibration for eddy current probes using calibration shims. Inject known vibration or position signals to each channel to confirm measured values match the expected input. Validate sensor fault detection by simulating wire break and short-circuit conditions. Confirm that alert and danger alarms activate at the configured setpoints and propagate to relay outputs.
5. Diagnostic and Trip Logic Verification Check continuous module self-diagnostics in rack software. Confirm alarm voting logic operates as designed. Test that trip commands drive the assigned SIL relay modules without unintended cross-channel activation. Record all calibration and trip test results in the site functional safety log.
6. Return to Service Clear all temporary test alarms and latch conditions. Remove lockout tags and restore the machinery protection loop to online status. Monitor channel readings for a defined observation period to confirm stable transducer signals and no intermittent faults. Notify operations that the vibration and position protection is active.
7. Periodic Maintenance and Replacement During planned outages, inspect cable terminations, shielding and probe mounting. Re-calibrate probes and re-run signal injection tests per the site SIF test schedule. If the module reports persistent unrecoverable diagnostics, isolate the safety loop before replacement. After installing a replacement module, reload the validated configuration, re-calibrate channels and repeat the full functional trip test before returning to protection service.
