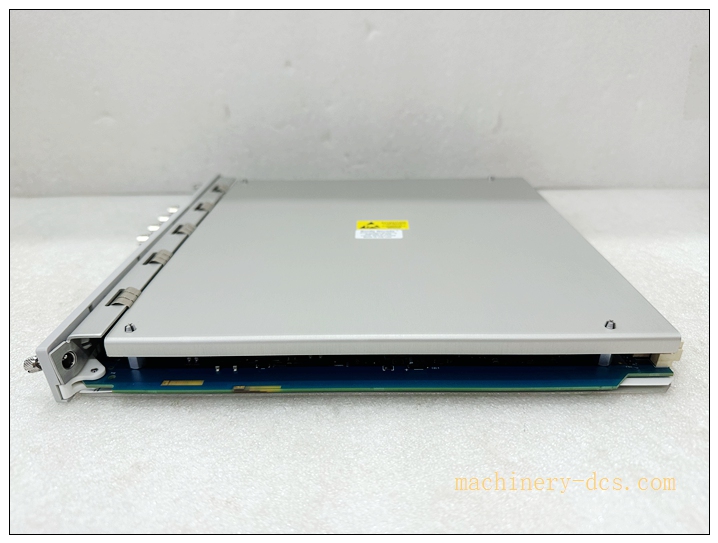

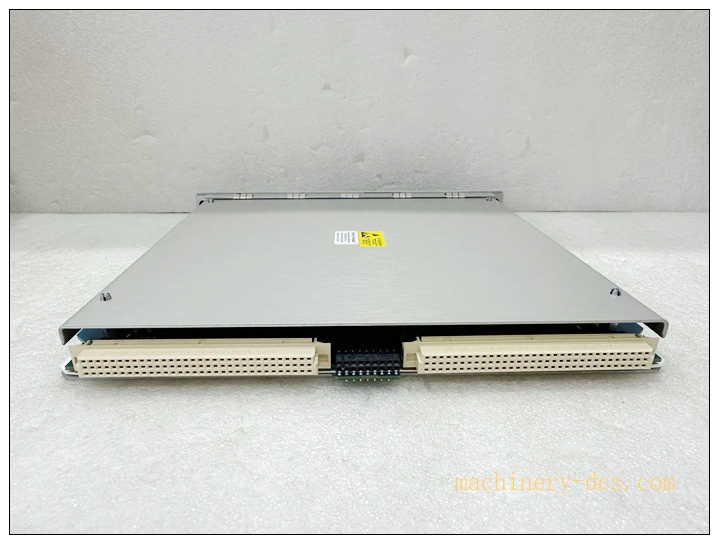

Bently Nevada 3500/70M‑01‑00 High‑Speed Differential Expansion Monitor Module - Image 3

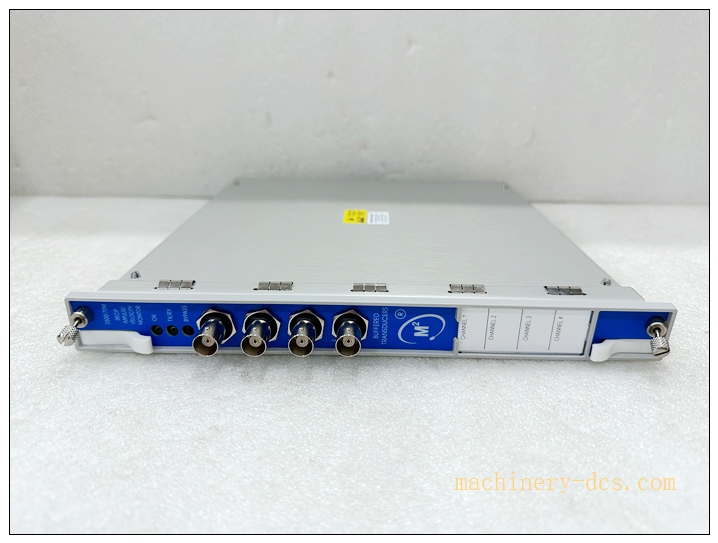

Bently Nevada 3500/70M‑01‑00 High‑Speed Differential Expansion Monitor Module - Image 4

Bently Nevada 3500/70M‑01‑00 High‑Speed Differential Expansion Monitor Module

  1. 3500/70M‑02‑XX: Alternative suffix hardware variants; verify option code compatibility before substitution
  2. 3500/42M: Vibration / position monitor module; different function, cannot replace differential‑expansion function
  3. Bently Nevada System‑1 modern machinery‑monitoring platform: For complete system‑migration new‑build projects
Add To Quote
Category: SKU: Bently 3500/70M‑01‑00 Brand:

Description

Bently Nevada 3500/70M‑01‑00 High‑Speed Differential Expansion Monitor Module



Product Detailed Information

The 3500/70M‑01‑00 is a high‑speed differential expansion monitor module within the Bently Nevada 3500 machinery protection system. It measures differential expansion (case‑to‑rotor thermal growth difference) for large steam and gas turbines. This module accepts input from two differential expansion LVDT sensors, provides real‑time thermal expansion value monitoring, configurable alarm and danger relay outputs, proportional analog 4‑20 mA conversion, and module‑level self‑diagnostics. It is designed for installation inside the 3500 rack backplane, supporting hot‑swap under controlled operating conditions. This variant is configured as part number 3500/70M‑01‑00: standard hardware, no special options. OEM production is discontinued; new‑old‑stock, calibrated refurbished and field‑pulled spare modules are widely used for power‑plant turbomachinery life‑extension maintenance projects.

350070-01-00 176449-09

Technical Parameters

Item Specification
Manufacturer Bently Nevada (GE Vernova)
Model 3500/70M‑01‑00
Product Status OEM Discontinued, spare‑part‑only supply
Measured Parameter Differential Expansion (turbine rotor‑to‑case thermal growth)
Sensor Type 2‑channel LVDT differential expansion transducer input
Measurement Range User‑configurable based on LVDT stroke; typical ±12.7 mm / ±0.5 inch
Update Rate High‑speed processing for turbine thermal‑transient tracking
Alarm Logic Independent Alert (Alarm) & Danger (Trip) set‑points per channel; latching / non‑latching configurable
Relay Outputs Form‑C dry‑contact relays for Alert, Danger, Module Fault; relay rating: 250 VAC / 30 VDC
Analog Output Isolated 4‑20 mA per channel, proportional to measured value; configurable fail‑safe output action
System Interface 3500 rack backplane; communicates with 3500 System Processor, display and external communication gateway
Power Supply Power derived entirely from 3500 rack power supply unit
Hot‑Swap Supported under controlled plant conditions
Mounting Slot‑mount inside Bently Nevada 3500 series rack chassis
Indicators Front‑panel LED: OK, Alert, Danger, Module Fault per channel
Operating Temperature 0 ℃ ~ +60 ℃ (cabinet indoor installation)
Storage Temperature ‑40 ℃ ~ +85 ℃
Humidity 5‑95 % RH non‑condensing
Weight ≈0.45 kg
Certifications CE, UL, ATEX compliant, IEC 61508 SIL‑2 capable with full system evaluation
Configuration Tool 3500 System Configuration Software



Compatibility & Installation Traps

Compatibility

  1. Bently Nevada 3500 series rack chassis, 3500/15 power supply unit, 3500/22M system processor module
  2. Differential expansion LVDT position sensors matched to turbine mechanical stroke requirement
  3. 3500/92 communication gateway for DCS / SCADA host connection
  4. 3500 configuration software for module parameter download and calibration setup

Critical note: 3500/70M‑01‑00 is dedicated differential expansion monitor. It cannot substitute vibration monitor modules such as 3500/42M or 3500/50M. Module firmware revision must match 3500 rack system‑processor firmware; version mismatch causes channel initialization failure or communication dropout.

Installation Pitfalls

  1. LVDT sensor‑range mismatch: The configured measuring span must match physical LVDT mechanical stroke. Misconfigured range leads to clipped readings, false alarm or hidden measurement dead‑zone.
  2. LVDT wiring noise susceptibility: LVDT signal cables shall run separately from high‑voltage power cables. Use factory‑recommended shielded multi‑pair cable; improper shielding or ground‑loop creates unstable floating readings.
  3. Hot‑swap operational risk: Hardware supports hot‑swap, but module removal during turbine running will drop differential‑expansion protection function. For turbine safety loops, perform replacement under unit‑shut‑down or controlled‑reduced‑load conditions.
  4. Backplane slot restriction: 3500/70M must occupy valid monitor‑module slots; cannot install in processor, power‑supply or gateway dedicated slots. Wrong slot position results in module non‑recognition.
  5. Relay inductive‑load risk: Dry‑contact relay outputs driving inductive field devices require external surge‑suppression components. Without suppression, relay contacts will suffer premature burnout.
  6. ESD sensitivity: Backplane connector and internal signal‑processing circuits are static‑sensitive. ESD wrist‑strap and anti‑static mat are mandatory during handling; invisible ESD damage triggers sporadic channel fault alarms.
  7. Part‑number identification: Confirm full marking 3500/70M‑01‑00. Different suffix variants (‑02‑00,‑03‑00 etc.) carry different hardware options and cannot be directly swapped without re‑configuration.
  8. Post‑replacement calibration requirement: After module replacement, re‑perform LVDT loop calibration, verify Alert / Danger set‑points, 4‑20 mA scaling and relay‑action logic; factory defaults do not retain turbine‑specific parameters.



Standard Operating Procedure (SOP)

  1. Pre‑work: Execute plant lock‑out‑tag‑out for turbomachinery protection rack. Confirm turbine operating status; avoid hot‑swap during high‑load or thermal‑transient phases. Wear certified ESD anti‑static wrist strap.
  2. Data backup: Backup complete 3500 system configuration file; record channel measuring range, Alert / Danger set‑points, 4‑20 mA scaling, relay‑latching mode and existing firmware revision. Export historical fault event log.
  3. Module removal: Record front‑panel LED status before extraction. Unlatch front‑panel handle, pull 3500/70M‑01‑00 module straight out from rack slot. Inspect 3500 backplane connector for bent pins, oxidation or contamination.
  4. Incoming inspection: Visual inspect spare module for mechanical damage on PCB and front‑panel hardware. Verify full part‑number marking and hardware / firmware revision.
  5. Mechanical mounting: Insert new 3500/70M‑01‑00 module smoothly into target rack slot; push firmly and close front‑panel latch to ensure full backplane contact.
  6. Cabling: Re‑connect field‑side LVDT sensor wiring on module front‑terminal block strictly per original drawing. Verify cable shielding termination implementation.
  7. Power‑on commissioning: Rack power remains active. Wait for module boot‑up sequence. If firmware mismatch exists, perform firmware upgrade / downgrade to align with rack system‑processor version. Download backed‑up module configuration parameters.
  8. Functional validation: Observe front‑panel OK LED steady‑on status. Perform LVDT loop test to validate mechanical‑stroke reading. Simulate high‑ / low‑value input to trigger Alert and Danger threshold crossing; verify LED indication, relay‑contact action and 4‑20 mA output response. Confirm DCS side analog‑value matches rack reading. Clear historical fault buffer and confirm no persistent module‑fault or channel‑fault alarms.
  9. Documentation: Fill turbomachinery maintenance log, archive configuration file, firmware‑version and calibration‑test records. Properly package defective removed module. Release lock‑out‑tag‑out permit only after full acceptance‑test successfully completed.

350070-01-00 176449-09

Application Scenarios

‑ Steam turbine / gas‑turbine differential‑expansion protection and continuous monitoring in thermal power plants ‑ Rotor‑case thermal‑growth difference monitoring for large rotating machinery; early detection of turbine rub‑risk conditions ‑ Machinery protection system interlock and DCS/SCADA condition‑monitoring integration ‑ Legacy Bently Nevada 3500 platform preventive maintenance & life‑extension retrofit projects



Matching & Supporting Components

  1. Bently Nevada 3500 rack chassis, 3500/15 power supply, 3500/22M system processor
  2. Matched‑stroke differential‑expansion LVDT position sensors and shielded field cables
  3. 3500 system configuration software; 3500/92 communication gateway for upper‑system interface
  4. ESD‑shielded anti‑static storage container for spare monitor‑module storage



Brand‑Related Alternative & Recommended Models

  1. 3500/70M‑02‑XX: Alternative suffix hardware variants; verify option code compatibility before substitution
  2. 3500/42M: Vibration / position monitor module; different function, cannot replace differential‑expansion function
  3. Bently Nevada System‑1 modern machinery‑monitoring platform: For complete system‑migration new‑build projects
