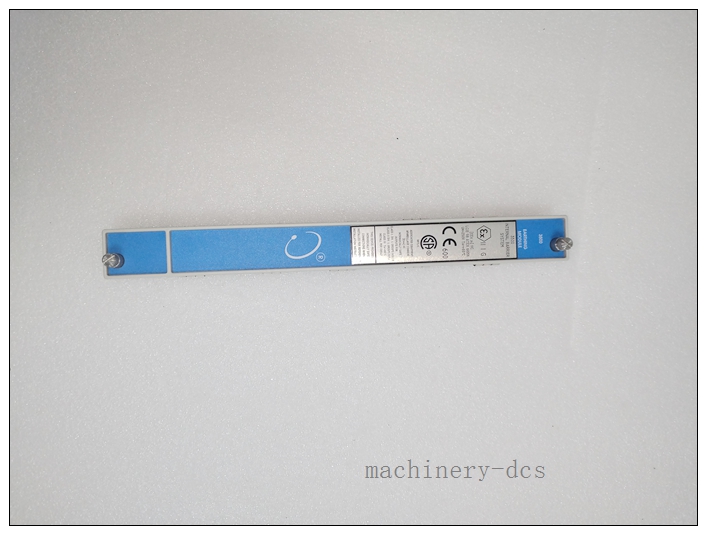

Bently Nevada 3500/04 138257-01 Earthing Module Front Panel
Bently Nevada 3500/04 138257-01 Earthing Module Front Panel - Image 2

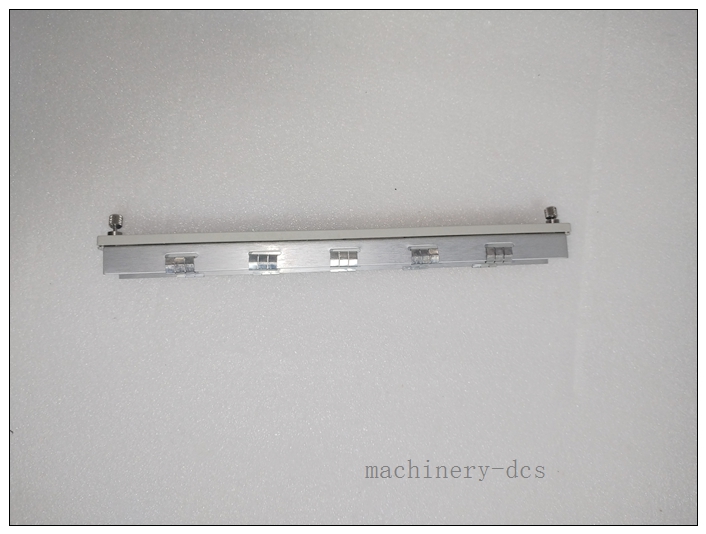

Bently Nevada 3500/04 138257-01 Earthing Module Front Panel - Image 3

Bently Nevada 3500/04 138257-01 Earthing Module Front Panel

  1. Bently Nevada 3500/22M: Transient Data Interface (TDI) module, used for high-speed transient data acquisition and transmission of rotating machinery.
  2. Bently Nevada 3500/42M: Vibration and Position Monitor module, for continuous monitoring of shaft vibration and axial position of rotating equipment.
  3. Bently Nevada 3500/53: Speed Monitor module, dedicated for high-precision rotating speed monitoring and overspeed protection of turbines.
  4. Bently Nevada 3500/64M: Dynamic Pressure Monitor module, for dynamic pressure monitoring of compressors and other fluid machinery.
Add To Quote
Category: SKU: Bently 3500/04 138257-01 Brand:

Description

Bently Nevada 3500/04 138257-01 Earthing Module Front Panel



Executive Brief

The Bently Nevada 3500/04 138257-01 is a dedicated earthing module front panel, a core accessory component of the Bently Nevada 3500 machinery protection monitoring system. It provides a dedicated user interaction interface for the system’s earthing management function, ensuring reliable system grounding connection, and is essential for maintaining the safety and stable operation of rotating machinery monitoring systems. Brand new original units are in stock globally, with a standard 12-month warranty.

3500/04 138257-01

Core Technical Specifications

  1. Manufacturer: Bently Nevada (Baker Hughes)
  2. Exact Part Number: 138257-01
  3. Model: 3500/04
  4. Product Category: Earthing Module Front Panel
  5. Product Origin: USA
  6. Weight: 300g (0.3kg)
  7. Dimension: 15cm1.5cm1.2cm
  8. HS Code: 8538900000
  9. Function: Provides user interface for the system earthing module
  10. Core Purpose: Monitors and adjusts the real-time status of the earthing module
  11. System Compatibility: Fully compatible with all Bently Nevada 3500 series monitoring systems
  12. Condition: Brand new original, factory sealed
  13. Warranty: 12 months official warranty



Key Features & Advantages

  • Dedicated Grounding Management Interface: Provides intuitive user interaction for the 3500 system’s earthing module, making it convenient for on-site engineers to view and adjust grounding status.
  • Critical System Safety Guarantee: Ensures the reliable connection of the monitoring system to the protective earth, eliminating potential safety hazards caused by poor grounding.
  • Real-time Status Feedback: Delivers real-time updates on the earthing module’s operating status, helping engineers quickly identify and resolve grounding anomalies.
  • Perfect System Compatibility: Seamlessly integrates with all Bently Nevada 3500 series monitoring systems without additional adaptation work.
  • Industrial-grade Durability: Designed for long-term stable operation in harsh industrial environments, matching the 3500 system’s 24/7 continuous operation requirements.



Typical Application Scenarios

  1. Petrochemical Rotating Machinery Monitoring: Supporting accessory for 3500 series monitoring systems on large rotating equipment such as refinery compressors and pumps.
  2. Power Generation Turbine Monitoring: Grounding management front panel for 3500 monitoring systems on steam turbines and gas turbines in power plants.
  3. Offshore Oil & Gas Platforms: Grounding status monitoring and management for 3500 machinery protection systems on offshore production facilities.
  4. Mining & Metallurgical Equipment Monitoring: Supporting component for 3500 monitoring systems on large motors and rolling mills in metallurgical plants.
  5. Industrial Fan & Pump Monitoring: Grounding management for 3500 protection systems on large industrial fans, water pumps and other rotating equipment.



Same Series Related Products

  1. Bently Nevada 3500/22M: Transient Data Interface (TDI) module, used for high-speed transient data acquisition and transmission of rotating machinery.
  2. Bently Nevada 3500/42M: Vibration and Position Monitor module, for continuous monitoring of shaft vibration and axial position of rotating equipment.
  3. Bently Nevada 3500/53: Speed Monitor module, dedicated for high-precision rotating speed monitoring and overspeed protection of turbines.
  4. Bently Nevada 3500/64M: Dynamic Pressure Monitor module, for dynamic pressure monitoring of compressors and other fluid machinery.



Frequently Asked Questions

Q1: What is the exact product type of Bently Nevada 3500/04 138257-01?
A1: It is the dedicated front panel for the 3500 system earthing module, not a main functional monitoring module.

Q2: Which Bently Nevada systems is this product compatible with?
A2: It is fully compatible with all Bently Nevada 3500 series machinery protection monitoring systems.

Q3: What is the main function of this front panel?
A3: It provides user interaction interface for the earthing module, monitors and adjusts the system’s grounding status in real time.

Q4: What is the standard warranty period for this product?
A4: Brand new original units come with a 12-month official manufacturer warranty.

Q5: Where is this product originally manufactured?
A5: The product origin is the United States, consistent with Bently Nevada’s standard industrial product manufacturing specifications.
