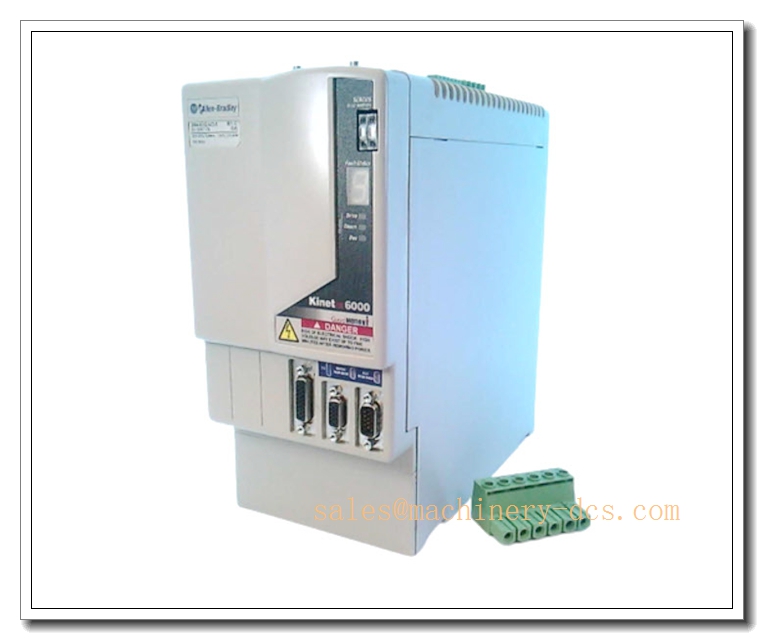

Allen-Bradley 2094-BC02-M02-S – Kinetix 6000 Common Bus Supply Module for Multi-Axis Servo Systems

Description

Allen-Bradley 2094-BC02-M02-S – Kinetix 6000 Common Bus Supply Module for Multi-Axis Servo Systems

Executive Summary
The 2094-BC02-M02-S is a Kinetix 6000 Common Bus Supply (Basic Rectifier Unit) module from Rockwell Automation’s Bulletin 2094 servo drive family. It serves as the core power conversion unit in a shared DC bus architecture, rectifying three-phase AC input into a regulated DC bus voltage to power multiple downstream axis modules. Featuring an integrated line filter, pre-charge circuit, and Active Front End (AFE) technology, it enables regenerative energy sharing across multiple axes — significantly reducing braking resistor requirements and improving overall system efficiency. This module is a critical building block for high-dynamic, multi-axis coordinated motion control applications.

Core Technical Specifications

• Product Family: Allen-Bradley Kinetix 6000 (Bulletin 2094)
• Module Type: Common Bus Supply / Basic Rectifier Unit (IAM – Integrated Axis Module category)
• AC Input Voltage: 324–528 V AC RMS, 3-phase (nominal 360–480 V AC)
• AC Input Frequency: 47–63 Hz
• AC Input Current (Rated RMS): 24.0 A
• AC Inrush Current (0-Peak): 22.0 A
• DC Bus Voltage Range: 458–747 V DC (nominal 650 V DC)
• DC Bus Input Current (Common Bus Follower): 22.6 A
• Converter Power Rating: 15 kW (at 460 V AC input)
• Output Current: 15 A (at 460 V AC input)
• Internal Shunt Resistance: 115 Ω
• Internal Shunt Power (Continuous/Peak): 50 W / 5.6 kW
• Efficiency: ~97–98%
• Safety Function Suffix “S”: Built-in Safe Torque Off (STO), compliant with SIL 3 / PL e safety standards
• Protection Features: Overvoltage, undervoltage, overcurrent, overtemperature, short-circuit protection; integrated pre-charge circuit to limit inrush current
• EMC Compliance: IEC 61800-3 C2/C3 industrial EMC standards
• Enclosure Rating: IP20 (indoor cabinet installation required)
• Operating Temperature: 0°C to 50°C (derating above 45°C)
• Weight: ~5.08 kg (11.2 lbs)
• Mounting: DIN rail or panel mount in Kinetix 6000 cabinet
• Lifecycle Status: Discontinued as of December 31, 2023. Official engineering replacement: 2198-D032-ERS3 (Kinetix 5700 series).

Key Features and Advantages

• Shared DC Bus Architecture: Enables regenerative energy from decelerating axes to be directly absorbed by accelerating axes on the same bus, dramatically reducing braking resistor sizing and thermal losses.
• Active Front End (AFE) Technology: Provides clean sinusoidal input current, low harmonic distortion, and bidirectional power flow capability for superior power quality.
• Integrated Pre-Charge Circuit: Prevents damaging inrush currents during power-up, protecting DC bus capacitors and extending component lifespan.
• Built-in Line Filter: Meets IEC 61800-3 C2/C3 EMC standards without requiring external filters, simplifying cabinet layout and reducing installation costs.
• STO Safety Function (“S” Suffix): Integrated Safe Torque Off meets SIL 3 / PL e requirements, enabling safe machine shutdown without additional safety relays.
• Modular Scalability: One BC02 module can supply power to multiple axis modules (2094-AMxx / 2094-BMxx) via the PowerRail backplane, minimizing hard-wiring and panel footprint.
• Software Integration: Fully configurable and diagnosable via Studio 5000 Logix Designer or DriveExplorer, with real-time monitoring of bus voltage, fault logs, and status indicators.

Application Scenarios

• Multi-Axis CNC Machining Centers: Coordinated spindle and feed axis control with regenerative energy recycling during rapid deceleration cycles.
• High-Speed Packaging Lines: Multiple servo axes performing frequent start-stop motions, where shared bus energy recovery reduces overall power consumption.
• Industrial Robotics: Multi-joint robot cells requiring synchronized motion with high dynamic response and efficient energy management.
• Semiconductor Manufacturing Equipment: Precision multi-axis positioning systems demanding low harmonic distortion and stable DC bus regulation.
• Printing & Converting Machinery: Synchronized web handling with multiple driven rollers, benefiting from common bus torque sharing.
• Material Handling & Automated Warehousing: High-throughput sortation systems with numerous servo-driven conveyors and lift mechanisms.

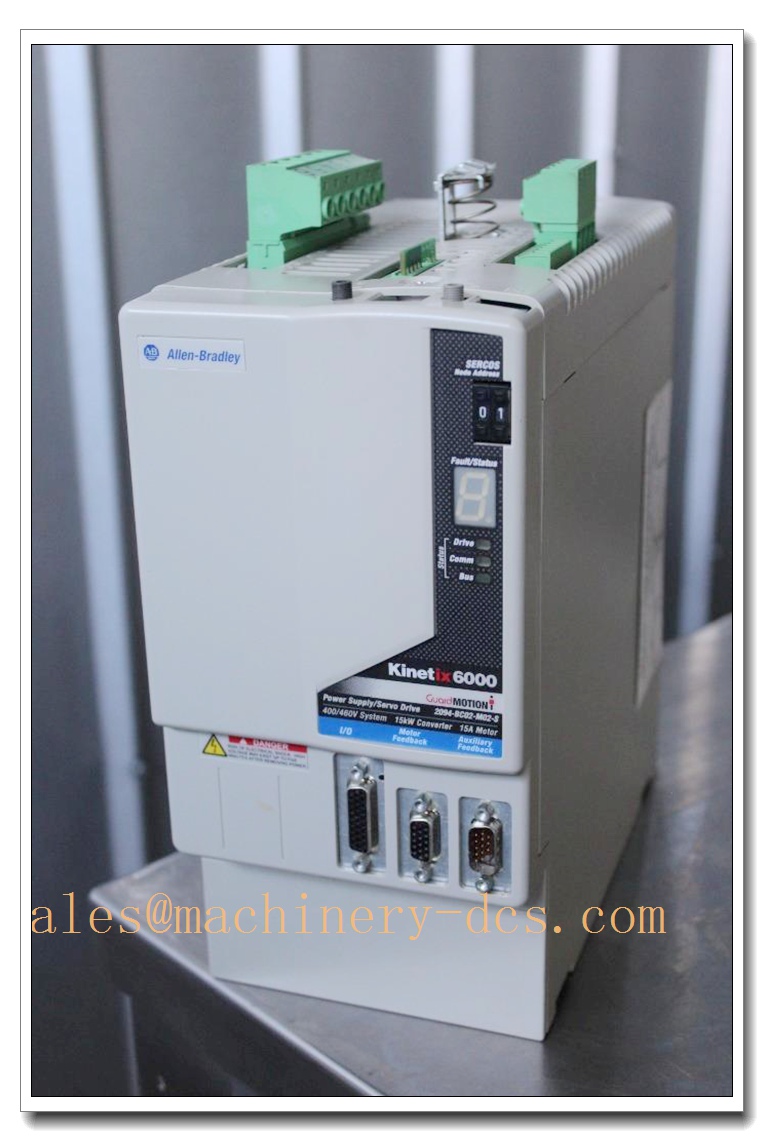

2094-BC02-M02-S

Related Product Recommendations
For comprehensive Kinetix 6000 system integration and maintenance, consider the following compatible components:

1. 2094-BM01-S / 2094-BM02-S: Single-axis servo modules for direct motor drive on the shared DC bus.
2. 2094-BM03-S / 2094-BM05-S: Higher-current single-axis modules for larger motor loads.
3. 2094-PRS6 / 2094-PRS7: PowerRail assemblies for modular axis module mounting and DC bus distribution.
4. 2094-PRF: Fill module for unused axis slots to maintain proper airflow and EMC shielding.
5. 2094-BRxx: Regenerative braking modules for systems with net regenerative energy (e.g., vertical axes).
6. 2094-EN02D-M01-Sx: Ethernet communication interface modules for EtherNet/IP CIP Motion integration.
7. 2198-D032-ERS3: Official engineering replacement (Kinetix 5700 series) for new projects or system upgrades.
8. MPL / MP-Series Servo Motors: Compatible Allen-Bradley servo motors optimized for Kinetix drive performance.

Frequently Asked Questions (FAQ)

• Q: What is the difference between the “S” and “M” suffix versions?
  A: The “S” suffix (2094-BC02-M02-S) includes built-in Safe Torque Off (STO) functionality compliant with SIL 3 / PL e safety standards. The “M” suffix (2094-BC02-M02-M) lacks STO and only provides basic overcurrent, overvoltage, and overtemperature protection.
• Q: Can this module directly drive a servo motor?
  A: No. The 2094-BC02-M02-S is a power supply / rectifier unit only. It converts AC to DC bus voltage but cannot directly drive motors. It must be paired with downstream single-axis modules (e.g., 2094-BMxx or 2094-AMxx) that perform the actual motor drive function.
• Q: How many axis modules can one module support?
  A: The maximum number depends on the total continuous current demand of all connected axis modules. The -M02-S provides up to 15 A output at 460 V AC. Use the Kinetix 6000 selection tool to verify that the sum of all axis module currents does not exceed the bus supply capacity.
• Q: Is this product still available for new orders?
  A: No. Rockwell Automation officially discontinued the Kinetix 6000 Integrated Axis Module family (including 2094–M02-S) as of December 31, 2023. The official engineering replacement is the 2198-D032-ERS3 from the Kinetix 5700 series. Legacy units may still be available through surplus/aftermarket suppliers for maintenance purposes.
• Q: What happens if the system generates net regenerative energy?
  A: If the total regenerative energy exceeds what other axes can absorb (e.g., a vertical axis lowering a heavy load), an external regenerative braking module (2094-BRxx) or braking resistor must be added to dissipate the excess energy and prevent DC bus overvoltage faults.
• Q: What software is used to configure this module?
  A: The module is configured and diagnosed using Studio 5000 Logix Designer or DriveExplorer software. Parameters include DC bus voltage settings, fault log retrieval, and real-time status monitoring via LED indicators (DC BUS OK, FAULT, ENABLE).
