ABB REF543KM129BAAA Medium-Voltage Feeder Protection, Control and Measurement Terminal

Description

ABB REF543KM129BAAA Medium-Voltage Feeder Protection, Control and Measurement Terminal

Product core overview
The REF543KM129BAAA is an ABB REF 543 series feeder protection terminal designed for medium-voltage switchgear, distribution feeders, and substation automation applications. It integrates protection, control, measurement, condition monitoring, and programmable logic functions in a single device. The REF 543 family supports single-busbar, double-busbar, and two-breaker systems, and can also be applied to motor and capacitor bank protection when configured accordingly.

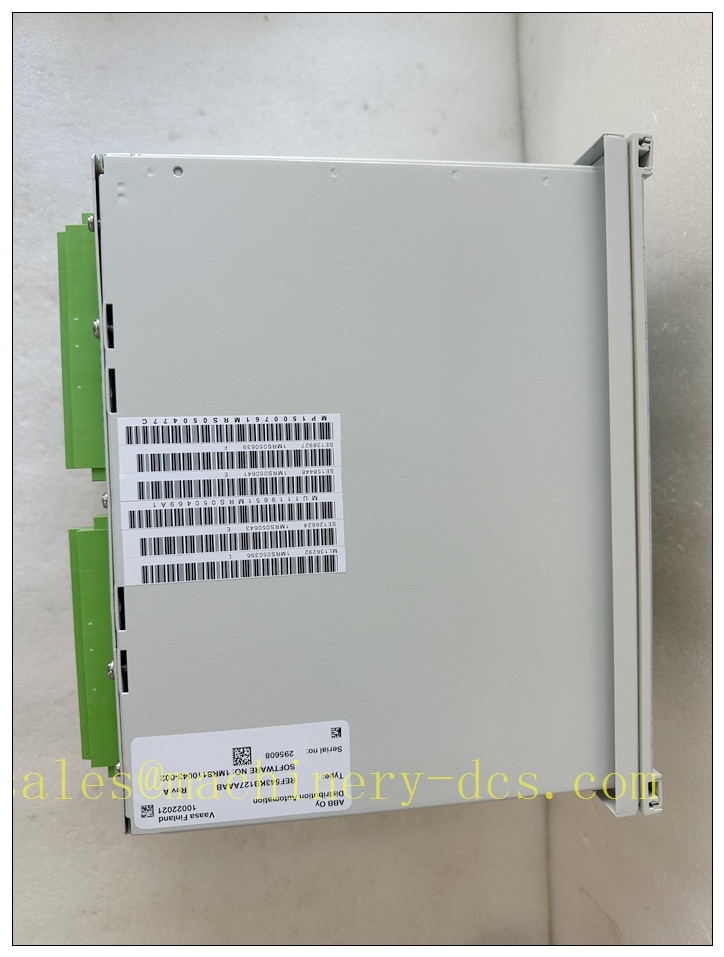

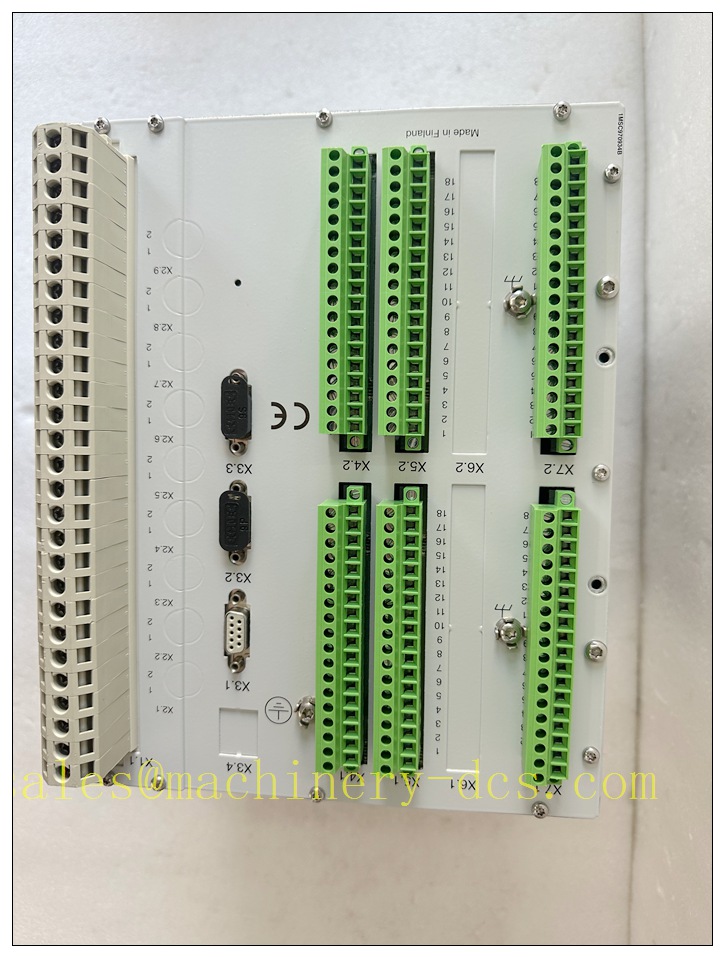

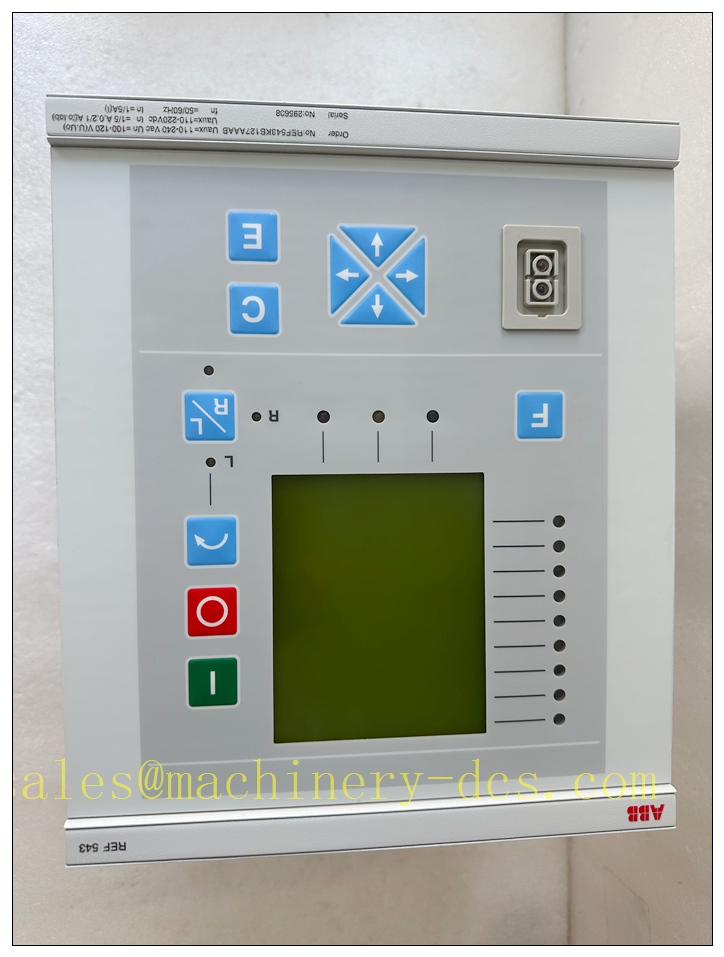

In the order code, K typically indicates a front-mounted MMI display panel, and B generally denotes the full protection/function level including feeder, motor, capacitor protection, IEC 61131/IEC 61131-3 programmable logic, fault recording, and synchrocheck/automatic transfer functions. The 129 segment defines the I/O and hardware version, while BAAA defines auxiliary supply, output rating, and communication options. Because ABB order codes are project- and revision-dependent, the exact DI/DO count, RTD inputs, and communication protocol set should be confirmed from the nameplate or original order documentation before commissioning.

REF543KM129BAAA

Key technical specifications

The exact number of binary inputs/outputs, RTD/analog inputs, and available communication ports must be verified against the ABB datasheet for the KM129BAAA configuration.

Recommended ABB same-family / related models

1. REF543KB127BAAA — REF 543 feeder terminal with full function level and large I/O capacity.
2. REF543KB127AAAA — REF 543 feeder terminal with full protection and communication functions.
3. REF541 — Compact feeder protection terminal for simpler MV feeder applications.
4. REF545 — Advanced feeder protection terminal in the same REF 54x family.
5. REF542plus — Switchgear protection and control unit for MV distribution.
6. REM543 — Motor protection relay for MV asynchronous and synchronous motors.
7. RET543 — Transformer protection terminal in the REF 54x family.
8. REU543 — Voltage protection and monitoring terminal for busbar and feeder applications.

Professional quality control test SOP

1. Incoming inspection
   Verify model REF543KM129BAAA, serial number, order code, auxiliary voltage, accessories, and certificate of conformity. Confirm the order code matches the project specification.
2. Visual and mechanical inspection
   Check enclosure, MMI display, terminal blocks, communication ports, mounting brackets, and nameplate. Ensure no moisture, corrosion, cracked connectors, or damaged terminals.
3. Power-up test
   Apply the specified auxiliary supply voltage. Confirm correct polarity, display startup, LED indication, and absence of abnormal heating or internal alarms.
4. Configuration verification
   Download and verify relay settings, including CT/VT ratios, feeder parameters, protection thresholds, PLC logic, I/O mapping, and communication addresses.
5. Protection function test
   Test phase overcurrent, ground fault, directional earth fault, undervoltage/overvoltage, under/overfrequency, thermal overload, breaker failure, and auto-reclose functions using secondary injection.
6. I/O channel validation
   Verify binary inputs, trip outputs, alarm outputs, RTD/analog inputs if equipped, and trip circuit supervision. Confirm correct signal mapping and response.
7. Communication test
   Verify SPA, LON, IEC 60870-5-103, Modbus, or DNP 3.0 communication as configured. If IEC 61850 is enabled via SPA-ZC 400, confirm MMS/GOOSE data mapping and SCADA integration.
8. Trip and alarm simulation
   Simulate fault conditions and confirm trip timing, alarm messages, event recording, fault recording, and fault report generation.
9. Final documentation
   Record test results, firmware version, configuration backup, serial number, and acceptance status. Archive the relay setting file and PLC logic program.

Application scenarios and features

• Medium-voltage distribution networks
  Protects incoming, outgoing, bus-tie, and sectionalizer feeders in industrial and utility substations.
• Single- and double-busbar systems
  Supports complex busbar configurations with interlocking, synchrocheck, and automatic transfer functions.
• Industrial power systems
  Used in petrochemical, metallurgy, cement, mining, and manufacturing plants where feeder reliability directly affects production continuity.
• Motor and capacitor applications
  Can protect medium-voltage motors and shunt capacitor banks when configured with appropriate protection functions.
• Substation automation
  Integrates with SCADA/DCS systems through SPA, LON, IEC 60870-5-103, Modbus, DNP 3.0, or IEC 61850.

Key features

• Integrated protection, control, measurement, and monitoring
• Programmable PLC logic for interlocking and sequence control
• Support for multiple grounding systems including ungrounded, resonant-grounded, and low-resistance grounded networks
• Fault recording, fault location, and event logging
• Synchrocheck and auto-reclose capability
• Multiple communication protocol options
• Large I/O capacity for complex feeder and busbar applications
• Suitable for harsh industrial environments

FAQ

What is the REF543KM129BAAA?
It is an ABB REF 543 series medium-voltage feeder protection terminal configured with the KM129BAAA order code. It provides protection, control, measurement, monitoring, and programmable logic for MV switchgear and distribution feeders.

What does the KM129BAAA suffix mean?
K typically indicates a front-mounted MMI display, and B generally denotes the full protection/function level including PLC logic, fault recording, and synchrocheck/automatic transfer. The 129 and BAAA segments define I/O hardware and auxiliary supply/communication options. Confirm the exact configuration from the ABB nameplate or order documentation.

Can REF543KM129BAAA replace REF543KB127BAAA?
Both belong to the REF 543 family, but the hardware version and I/O configuration may differ. Substitution requires verification of DI/DO count, RTD inputs, communication options, and existing PLC logic.

Does it support IEC 61850?
The REF 543 family can support IEC 61850 through the SPA-ZC 400 communication gateway. Whether a specific unit supports it depends on the installed communication hardware.

What protection functions are available?
Typical functions include phase overcurrent, directional/non-directional ground fault, over/undervoltage, over/underfrequency, thermal overload, breaker failure, auto-reclose, synchrocheck, and capacitor/motor protection depending on configuration.

What auxiliary supply does it use?
BAAA variants typically support 85–265 V AC/DC wide-range auxiliary supply, but the exact rating must be confirmed from the device nameplate.
