ABB PP886H (3BSE069297R1) Panel800 Series 15.4‑Inch Ruggedized Resistive‑Touch HMI Operator Panel

Description

ABB PP886H (3BSE069297R1) Panel800 Series 15.4‑Inch Ruggedized Resistive‑Touch HMI Operator Panel

Product Details

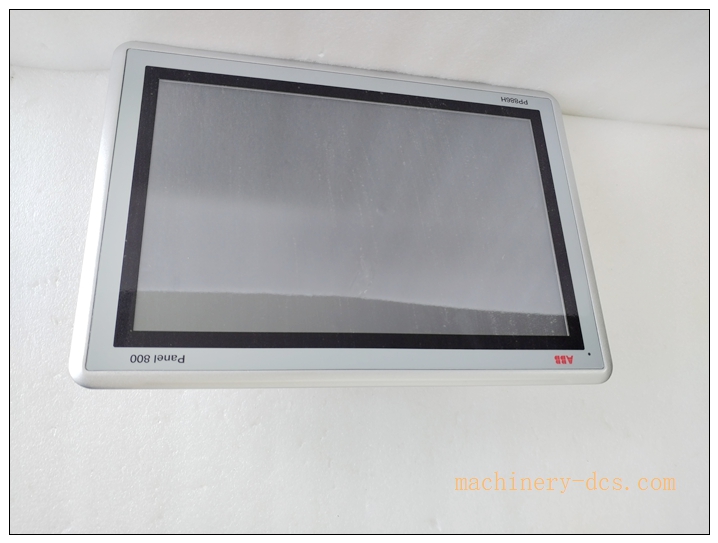

PP886H, order number 3BSE069297R1, is heavy‑duty rugged HMI touch panel of ABB Panel800 family, designed for harsh industrial, power‑plant, offshore and marine environment, compatible with ABB 800xA, AC800M, Unitrol excitation and Compact Product Suite systems。Origin: Sweden. Lifecycle status: EOL discontinued, OEM new production terminated; market supply includes NOS surplus and fully‑tested refurbished spare‑parts。

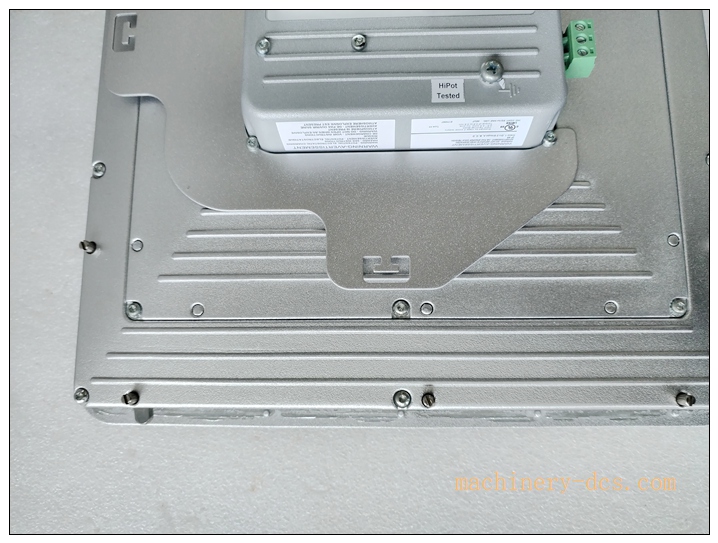

‑ Display: 15.4‑inch TFT‑LED widescreen (16:10), resolution 1280×800, brightness 450 cd/m² adjustable; resistive touch screen ‑ Power supply: 24 VDC (18‑32 VDC range) ‑ Memory: On‑board RAM and flash storage for HMI project, alarm logs and trend data ‑ Communication interfaces: Dual Ethernet ports, RS232 / RS485 serial port; supports ABB native protocols, Modbus‑TCP, Modbus‑RTU and multi‑brand PLC drivers ‑ Configuration tool: Panel Builder 800 engineering software ‑ Mechanical: Die‑cast aluminum housing; front‑face IP66 / NEMA4X, rear side IP20; panel cut‑out mounting for cabinet front installation ‑ Certifications: CE, UL, DNV, ABS marine certification, ATEX IECEx Zone 2 approved for hazardous location application ‑ Operating temperature: ‑10℃ ~ +60℃, storage‑40℃ ~ +85℃; humidity 5‑85 % non‑condensing, vibration‑shock resistance for heavy‑industrial site ‑ Weight: approx 3.2 kg

Applications

‑ Power‑plant control‑room local HMI: generator excitation system, turbine‑boiler auxiliary system monitoring & operation ‑ Petrochemical, refinery and offshore platform Zone 2 hazardous‑area local operator station ‑ Marine and ship‑board automation system human‑machine interface ‑ Cooperate with ABB Unitrol 5000/6000 excitation, AC800M / 800xA DCS system ‑ Heavy‑industry metallurgy process local monitoring panel ‑ Retrofit & spare‑part replacement for existing PP886H installations ‑ Spare inventory for power‑plant and process‑industry automation maintenance department

PP886H 3BSE069297R1

Related Series Models (6+)

1. PP886 3BSE092980R1 (standard non‑hazardous‑area version of 15.4‑inch Panel800 HMI)files.kemp…
2. PP885 (previous‑generation 15‑inch Panel800 operator panel)
3. PP895 (high‑end large‑size Panel800 HMI)
4. PPD113B01‑10‑150000 (AC800PEC excitation controller)
5. CMA130 3DDE300410 (SYNPOL‑D generator synchronizer controller)
6. RX886 (touch‑screen protective cover accessory for PP886 series)files.kemp…
7. AC800M controller series

Key Features

1. Ruggedized hazardous‑area qualified 15.4‑inch resistive‑touch HMI, belongs to ABB Panel800 product family, certified for ATEX Zone 2 and marine service.
2. IP66 front‑panel protection, die‑cast aluminum housing, well adapted to dusty, humid, vibration‑prone industrial cabinet‑front installation environment.
3. Rich communication interfaces, seamlessly connect with ABB 800xA / AC800M / AC800PEC and third‑party PLC via multi‑protocol support.
4. High‑resolution vector‑graphics display, supports multi‑language runtime switching, alarm management and historical‑trend function for process visualization.
5. Project developed and downloaded by Panel Builder 800 Windows‑based engineering tool, convenient for configuration, simulation and commissioningABB.
6. Dual Ethernet ports support network redundancy, improve communication reliability for critical process applications.
7. Marine & offshore certifications permit deployment on platform and ship‑board automation projects.
8. Manufactured in Sweden; EOL obsolete, only NOS or fully‑tested refurbished spare‑parts available.
