ABB PM644 (3BSE014664R0001) Processor Unit, Advant Controller 160 Main CPU Module with PROFIBUS-DP Master Interface

Description

ABB PM644 (3BSE014664R0001) Processor Unit, Advant Controller 160 Main CPU Module with PROFIBUS-DP Master Interface

Product Description

The PM644, part number 3BSE014664R0001, is the core rack-based processor module for ABB Advant Controller 160 (AC160) DCS. It executes real-time control logic, closed-loop PID regulation, sequence control and system data management. Integrated with a PROFIBUS-DP master port, it handles high-speed cyclic communication with distributed field I/O, drives and field instruments. It also includes serial ports for engineering access and peer controller interconnection. Designed for heavy-duty process industries, this EOL (end-of-life) controller spare delivers deterministic control and diagnostic functions for power, pulp & paper, and chemical plants. It supports redundant controller pairing for high-availability critical loops.

Technical Parameters

Recommended Related Models (8 units)

1. PM644 3BSE014664R1: Alternate revision of this AC160 processor
2. SA610: AC160 rack power supply module
3. DI651: Digital input I/O card for Advant Controller 160
4. DO651: Digital output I/O card for Advant Controller 160
5. AI650: Analog input 4–20mA module
6. AO650: Analog output control module
7. CI627: Serial communication interface for AC160 rack
8. PROFIBUS DP Terminator: Bus termination resistor for DP network

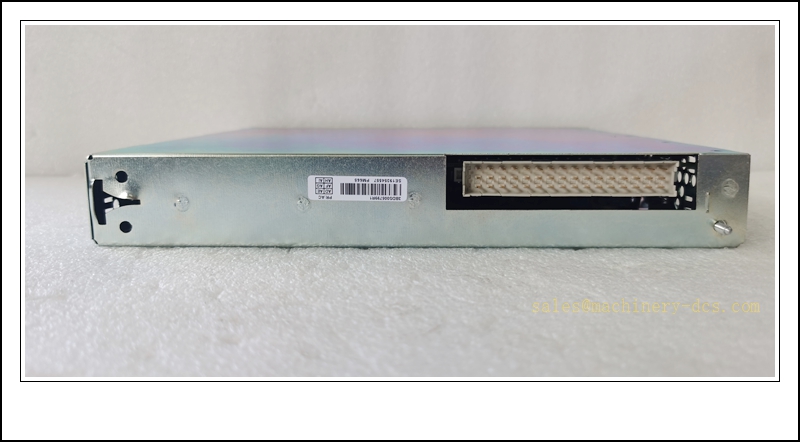

ABB PM644 3BSE014664R0001

Compatibility & Installation Traps

Compatibility

• Primary host system: ABB Advant Controller 160 () rack chassis
• Field network: PROFIBUS-DP slave I/O, drives, transmitters
• Note: Proprietary CPU; it cannot be used in AC800M or other ABB controller families. Different PM644 revisions are not always drop-in compatible.

Critical Installation Traps

1. Firmware and Application Version Lock: The onboard firmware must match the rack system software. Mismatched firmware causes failure to boot, PROFIBUS communication loss or unexpected control state changes. Always verify firmware revision before replacement.
2. Redundancy Sync Requirements: If deployed in redundant pair, the replacement PM644 must have matching firmware and application. Unequal versions break hot-standby synchronization and switchover logic.
3. Battery Backup Handling: The memory backup battery retains program and process values. Static discharge or incorrect battery removal can erase the application. Do not remove battery while powered.
4. ESD Vulnerability: CPU, memory and DP transceiver circuits are ESD-sensitive. All module exchange must be completed at a grounded ESD workstation with wrist strap.
5. PROFIBUS Termination Rules: Missing, duplicated or poor-quality bus terminators create signal reflections, intermittent slave dropout and jitter that worsens with temperature cycling.
6. Backplane Connector Integrity: Bent edge connector pins lead to unstable power or communication faults that are hard to reproduce on bench testing. Never force the module into the rack.
7. Cable Segregation for PROFIBUS: DP shielded twisted pair must be routed separately from high-power motor cables. Common-mode noise triggers random slave loss and communication timeouts.
8. Hot Swap Restriction: Some rack configurations do not support hot removal of the main CPU. Live extraction may cause full rack control trip. Confirm site lockout procedure.

Standard Operating Procedure (SOP)

1. Pre-installation inspection: Inspect module housing, front panel LEDs and edge connector for corrosion or physical damage. Confirm full part number 3BSE014664R0001 against the site spare register.
2. Application backup: Upload the control program, I/O mapping, PROFIBUS configuration and parameter set from the existing to the engineering station.
3. System preparation: Place all critical control loops into manual or hold mode. Prepare plant isolation permit if hot swap is not permitted.
4. Energy isolation: Cut rack 24VDC supply and apply lockout/tagout if required. Allow internal capacitors to discharge before extraction.
5. Mechanical replacement: Release the rack ejector latches and pull the faulty CPU out. Insert the replacement fully and engage latches to seat the backplane connector.
6. Power-up and self-test: Restore 24VDC rack power. Observe front panel LEDs, confirm power and run status. Execute memory and watchdog diagnostics via engineering tool.
7. Network and control validation: Download the saved application and bus configuration. Verify PROFIBUS-DP slaves, local I/O and serial links are online without fault codes. Test redundant switchover if applicable.
8. Process qualification: Gradually return loops to automatic mode. Monitor bus load, scan time and alarm behaviour through thermal and load transients before releasing to full production.
9. Decommissioning: Pack the defective CPU in anti-static shielding bags, label with fault symptoms for failure analysis. Handle backup battery carefully.

Application Scenarios

• Core real-time control for ABB Advant Controller 160 DCS racks
• PROFIBUS-DP master communication for distributed field I/O and variable speed drives
• Closed-loop PID control, interlock and sequence management for power generation, pulp, chemical and water treatment plants
• Redundant high-availability control for safety-related auxiliary and balance-of-plant loops
• Preventive maintenance and spare stocking for obsolete DCS lifecycle extension
• Troubleshooting of watchdog resets, intermittent PROFIBUS slave dropout and runtime program faults
• Plant DCS obsolescence retrofit and migration projects
• Commissioning and validation of rack topology and DP bus loading

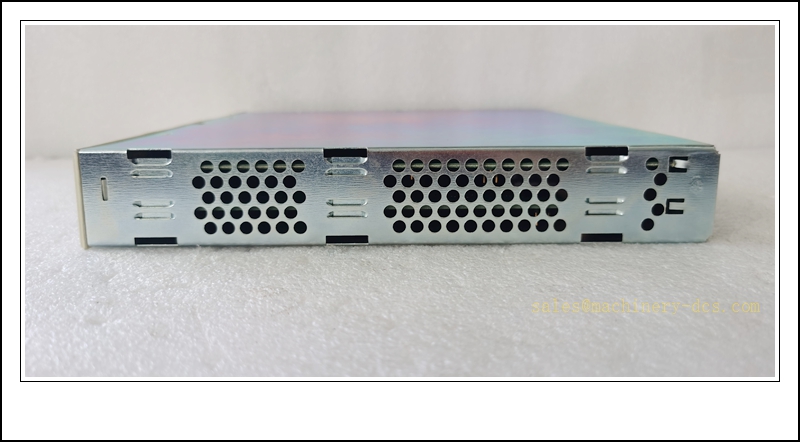

ABB PM644 3BSE014664R0001

Supporting Components

• ESD wrist strap, anti-static shielding bags and conductive work mat
• Rack ejector levers and torque screwdriver set
• SA610 rack power supply unit
• PROFIBUS-DP shielded twisted-pair cable and certified bus terminators
• ABB Advant Controller 160 engineering software and communication adapter
• rack fan and filter maintenance kit
• Spare backplane and edge contact repair kit
• Replacement memory backup battery for
