ABB DSQC663 (3HAC029818-001) IRC5 High Voltage Main Drive Unit (HV MDU) for Industrial Robots
Executive Summary
The DSQC663 (Order Number: 3HAC029818-001) is a Main Drive Unit (MDU) specifically engineered for ABB’s IRC5 robot controller generation. As a critical component within the robot’s control system, it functions as the power interface between the controller and the robot’s servo motors. This unit is designed to provide high-voltage power and precise control signals to drive the robot’s axes, ensuring accurate and dynamic motion performance for medium to large payload industrial robots. The DSQC663 is an essential spare part for maintaining and repairing ABB robot systems, particularly in automated manufacturing environments where uptime and precision are paramount.

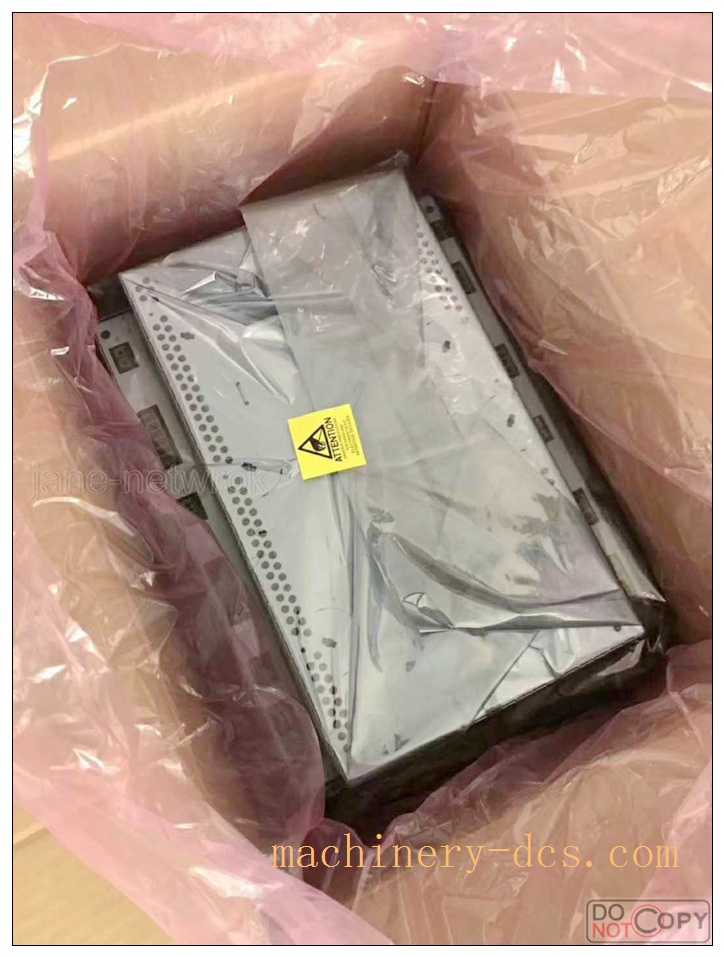

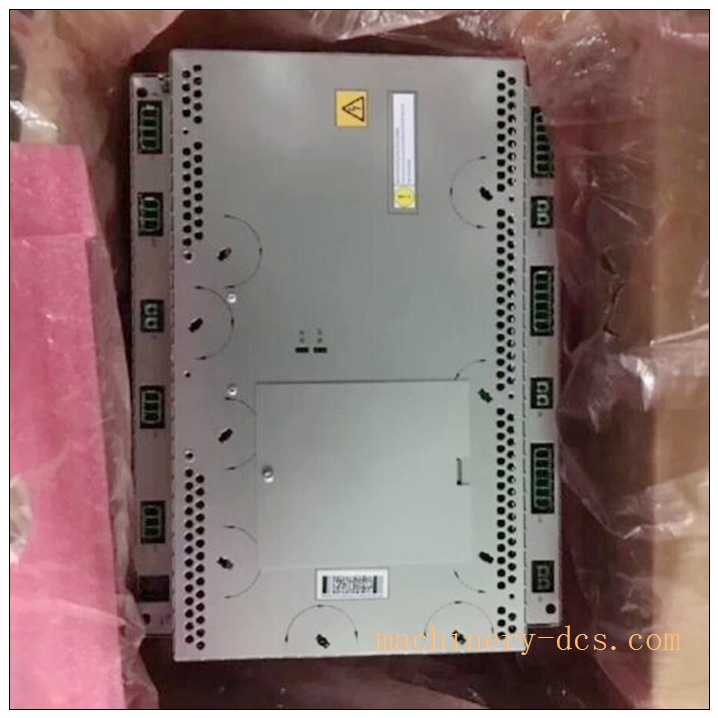

DSQC663 3HAC029818
Core Technical Specifications
| Specification | Details |
|---|---|
| Product Name | DSQC 663 Drive Unit |
| Order Number | 3HAC029818-001 |
| ABB Type Designation | 55x40x30 |
| Product Type | Main Drive Unit (MDU-790A) |
| Voltage Classification | High Voltage (HV) |
| Compatible Controller | ABB IRC5, IRC5P (Paint) |
| Compatible Robot Models | IRB 2400, IRB 2600, IRB 4400, IRB 4600, IRB 6400R, IRB 660, IRB 66XX, IRB 7600 |
| Net Weight | 12.33 kg |
| Gross Weight | 13.96 kg |
| Dimensions | Not explicitly provided in search results (refer to official ABB documentation) |
| Country of Origin | Estonia (EE) |
| Customs Tariff Number | 85389091 |
| Robotics Part Category | 9AAC210846 |
Key Features and Advantages
- High-Power Performance: The DSQC663 is a high-voltage drive unit capable of delivering substantial power to drive larger industrial robots, providing high torque and speed control for demanding applications.
- Precision Control: As part of the IRC5 control system, it enables precise feedback and control of servo motor movements, contributing to the robot’s high path accuracy and repeatability.
- Robust Design: Engineered for industrial environments, it is built to withstand electrical noise, vibration, and temperature fluctuations, ensuring reliable operation in harsh factory conditions.
- Seamless Integration: Specifically designed for the IRC5 controller architecture, it ensures plug-and-play compatibility and optimized performance when used with designated ABB robot models.
- Serviceability: Designed as a modular unit, it can be replaced or serviced relatively quickly, minimizing downtime during maintenance operations. Refurbished units are readily available, offering cost-effective maintenance options.
Application Scenarios
The DSQC663 is primarily deployed in industrial automation settings where ABB robots are used for material handling, welding, painting, assembly, and other precision tasks:
- Automotive Manufacturing: Used in body-in-white welding, material handling, and painting lines (especially with the IRC5P Paint variant).
- Heavy Industry: Employed in foundries, metal fabrication, and heavy machinery assembly where high-payload robots (e.g., IRB 6600, IRB 7600) are required.
- General Industry: Applied in packaging, palletizing, machine tending, and material removal applications where the IRC5 controller and compatible robots are utilized.
- Maintenance and Repair: Serves as a critical spare part for maintaining operational efficiency in existing robot cells that have been in service for several years.

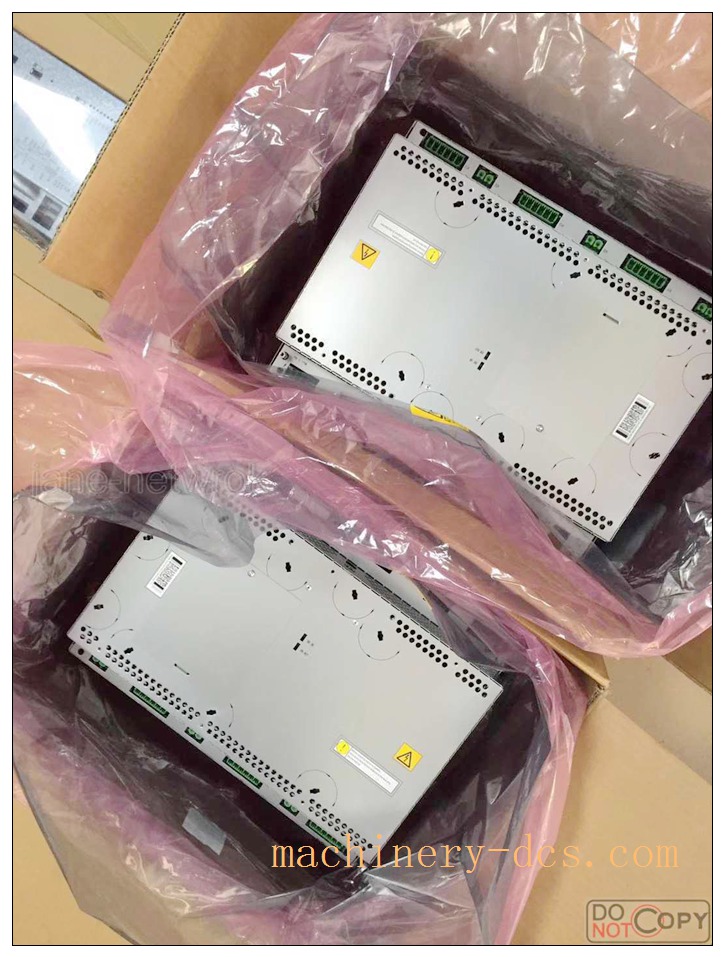

DSQC663 3HAC029818
Recommended Related Models (Brand: ABB)
- DSQC 643: Drive unit for smaller robots within the family (often referred to as the “Small Drive Unit”).
- DSQC 417: Additional Rectifier Unit (ARU-430A) used with small robots to provide additional power capacity.
- DSQC 664: Another variant of drive unit within the series, potentially for different robot models or power requirements.
- DSQC 679: Control Module for the controller, which works in conjunction with drive units like the DSQC663.
- 3HAC020536-014: Specific order number related to the controller module.
Frequently Asked Questions (FAQ)
Q: What is the difference between and DSQC643?
A: The is a High Voltage (HV) Main Drive Unit (MDU-790A) designed for larger robots with higher power requirements (e.g., IRB 4400, IRB 6600, IRB 7600). The DSQC643 is typically a drive unit for smaller robots within the family. The key distinction lies in the power handling capacity and the size of the robots they are intended to control.
Q: Can the be used with the newer OmniCore controller?
A: No. The is specifically designed for the controller generation. ABB’s newer controller generation, OmniCore, uses different drive unit modules (e.g., DSQC 1000 series). The components are not cross-compatible between these controller generations.
Q: What does the suffix in the order number (e.g., 3HAC029818-001/08) mean?
A: The suffix (e.g., /08, /12) typically denotes a revision version or a manufacturing batch of the same base part. Different revisions may include minor design updates, component changes, or software compatibility improvements. It is important to verify the compatibility of the revision with your specific robot controller and software version.
Q: How can I determine if my robot uses a ?
A: The best way is to consult your robot’s specific documentation (Parts List, Product Manual) or to physically inspect your controller cabinet. The is a large, heavy module that will be mounted inside the cabinet. It will have the part number “3HAC029818-001” and the designation “” printed on a label on its side. The compatible robot models are also listed in the technical specifications.
Q: Are refurbished units reliable?
A: Yes, refurbished units are a common and cost-effective alternative to new ones, especially given that the platform is a mature technology. Reputable industrial automation spare parts suppliers typically test and refurbish these units to meet or exceed original performance standards, often offering a warranty (e.g., 2 years). Always source from trusted suppliers and ensure the unit is fully tested before installation.
