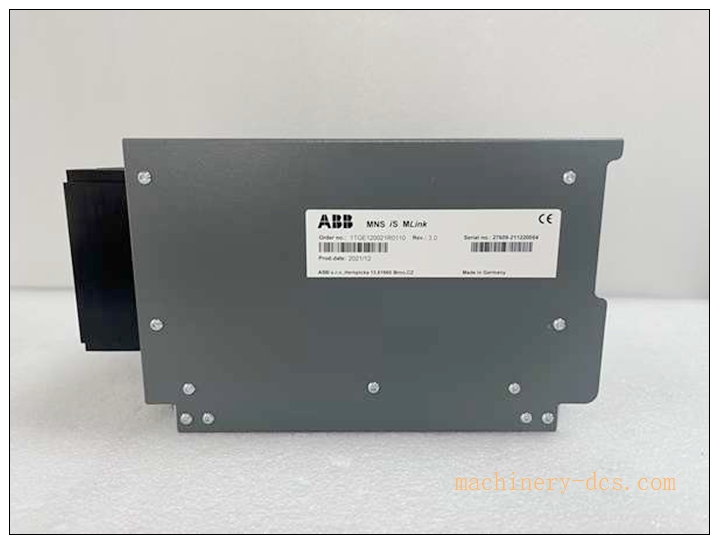

ABB 1TGE120021R8010 M‑Link V2 Communication Gateway (PROFIBUS‑DP variant) for MNS‑iS Intelligent MCC Switchgear

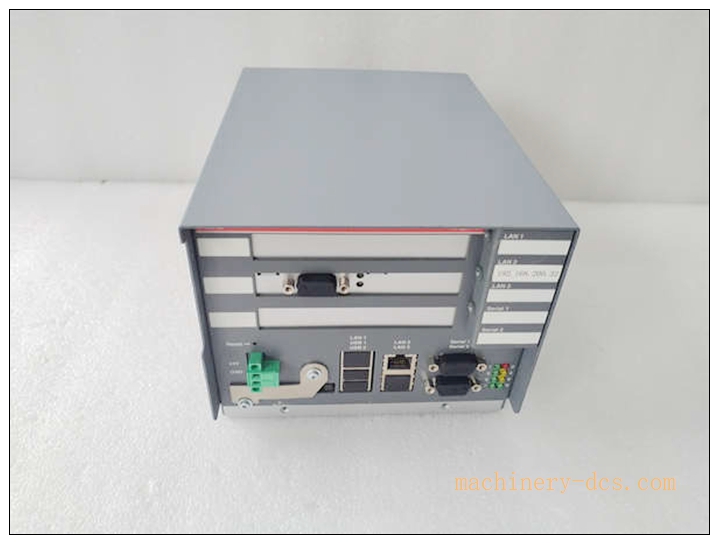

ABB 1TGE120021R8010 M‑Link V2 Communication Gateway (PROFIBUS‑DP variant) for MNS‑iS Intelligent MCC Switchgear - Image 2

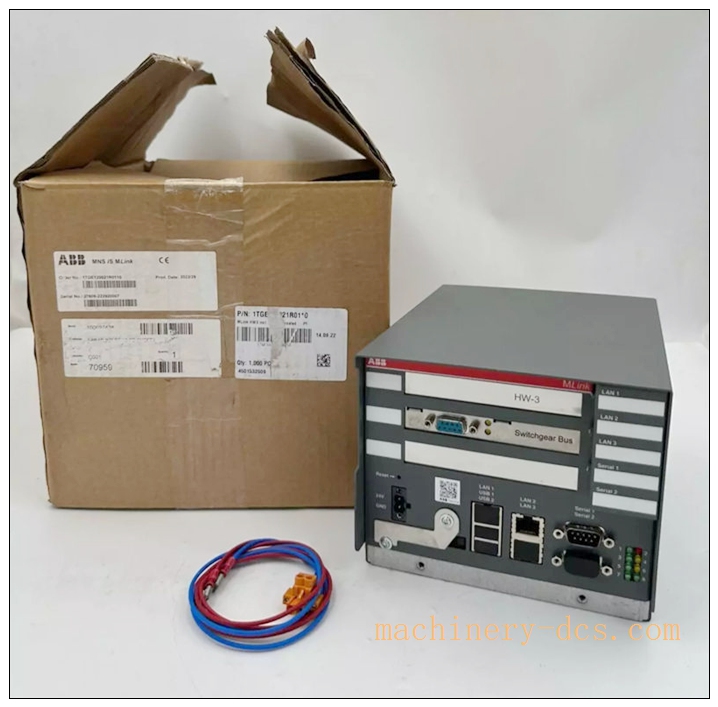

ABB 1TGE120021R8010 M‑Link V2 Communication Gateway (PROFIBUS‑DP variant) for MNS‑iS Intelligent MCC Switchgear - Image 3
ABB 1TGE120021R8010 M‑Link V2 Communication Gateway (PROFIBUS‑DP variant) for MNS‑iS Intelligent MCC Switchgear - Image 4

ABB 1TGE120021R8010 M‑Link V2 Communication Gateway (PROFIBUS‑DP variant) for MNS‑iS Intelligent MCC Switchgear

  1. 1TGE120021R6010 (M‑Link V2, PROFINET‑IO variant)
  2. 1TGE120021R0010 (M‑Link V2 base Modbus variant)
  3. 1TGE120011Rxxxx (M‑Link V1 older‑generation gateway)
  4. CI854A (AC800M PROFIBUS‑DP communication module)
  5. CI867K01 (AC800M Modbus‑TCP interface)
  6. PM866K01 (AC800M main CPU unit)
  7. MControl motor‑starter monitoring units for MNS‑iS



Add To Quote
Category: SKU: ABB 1TGE120021R8010 Brand:

Description

ABB 1TGE120021R8010 M‑Link V2 Communication Gateway (PROFIBUS‑DP variant) for MNS‑iS Intelligent MCC Switchgear



Product Details

1TGE120021R8010 is a hardware version 2 M‑Link gateway, dedicated for ABB MNS‑iS intelligent low‑voltage motor‑control‑center (MCC) system, PROFIBUS‑DP slave variantAlibaba.co…. Origin: Switzerland. Lifecycle status: EOL discontinued, OEM new production stopped; market supply includes NOS surplus and fully‑tested refurbished spare‑parts for plant maintenanceAlibaba.co…。

  • Power supply: 24 VDC, typical 1.2 A, max 2.0 A
  • Internal bus: MNS‑iS proprietary Modbus‑RTU for MControl motor‑starter units
  • External fieldbus: PROFIBUS‑DP‑V1 slave (9‑pin D‑Sub), additionally supports Modbus‑TCP / Modbus‑RTU
  • Ethernet: Dual independent RJ45 10/100 Mbps ports, supports network redundancy, SNTP/PTP time synchronization
  • Serial: Isolated RS485 interface
  • Configuration: ABB MNavigate software or built‑in web‑UI, parameters stored in non‑volatile memory
  • Mounting: Installed inside MNS‑iS cabinet control compartment (bracket mounting, not standard DIN‑rail)
  • Dimension: W160 × H140 × D250 mm, net weight approx 3.26 kg
  • Operating temperature: ‑20℃ ~ +55℃, IP20, humidity 5‑95 % non‑condensing
  • Indication: 8‑channel LED for power, system, bus communication and fault diagnostics

Note: This is PROFIBUS‑DP version of M‑Link V2; compare ordering suffix against 1TGE120021R6010 (Profinet‑IO). Firmware version must match during replacement; it cannot be used as general‑purpose gateway outside MNS‑iS MCC environmentKongJiang …。



Applications

‑ Power plant, petrochemical plant MNS‑iS intelligent MCC central data gateway ‑ Collect motor‑starter current, voltage, power, running status, overload/trip fault alarms ‑ Protocol conversion between MNS‑iS internal bus and PROFIBUS‑DP for upper‑level DCS / SCADA / 800xA ‑ Redundant network setup for critical low‑voltage motor monitoring ‑ Retrofit & spare‑part replacement for existing MNS‑iS cabinet ‑ Spare inventory for industrial site electrical maintenance department

1TGE120021R8010

Related Series Models (6+)

  1. 1TGE120021R6010 (M‑Link V2, PROFINET‑IO variant)
  2. 1TGE120021R0010 (M‑Link V2 base Modbus variant)
  3. 1TGE120011Rxxxx (M‑Link V1 older‑generation gateway)
  4. CI854A (AC800M PROFIBUS‑DP communication module)
  5. CI867K01 (AC800M Modbus‑TCP interface)
  6. PM866K01 (AC800M main CPU unit)
  7. MControl motor‑starter monitoring units for MNS‑iS



Key Features

  1. Dedicated M‑Link V2 gateway for MNS‑iS MCC, PROFIBUS‑DP‑V1 slave interface for process‑control‑system connectionAlibaba.co….
  2. Multi‑protocol conversion: bridge MNS‑iS internal Modbus‑RTU to PROFIBUS‑DP, Modbus‑TCP/RTU.
  3. Dual Ethernet ports support network redundancy, automatic fail‑over to improve communication availability.
  4. Real‑time acquisition of measuring values, status and fault‑trip events from large quantity of MControl motor‑starter units.
  5. Supports SNTP / PTP precise time synchronization for whole MCC system event timestamp consistency.
  6. Configurable via MNavigate tool or web‑interface; non‑volatile memory preserves parameters after power loss.
  7. Multiple LED status indicators for on‑site quick troubleshooting of power, bus and device faults.
  8. Manufactured in Switzerland; EOL obsolete, only NOS or fully‑tested refurbished spare‑parts available.



Main Functions

  1. Collect measurement data, running status and protection‑trip alarm signals from MNS‑iS MControl motor‑starter and feeder units.
  2. Realize protocol conversion between MNS‑iS internal bus and PROFIBUS‑DP‑V1 / Modbus, upload data to DCS/SCADA/System 800xA.
  3. Dual‑Ethernet redundant network function ensures continuous data transmission upon single‑path network failure.
  4. Support remote reading of motor‑starter parameters, fault logs and historical event records.
  5. Time‑stamp events via SNTP/PTP synchronization for plant‑wide sequence‑of‑event analysis.
  6. Diagnose internal and bus‑communication faults, report alarms to upper‑level automation system.
  7. Cooperate with MControl units to complete centralized monitoring for MNS‑iS intelligent low‑voltage MCC.
  8. Serve as PROFIBUS‑DP‑oriented central communication hub inside ABB MNS‑iS motor‑control‑center cabinet.
