Description

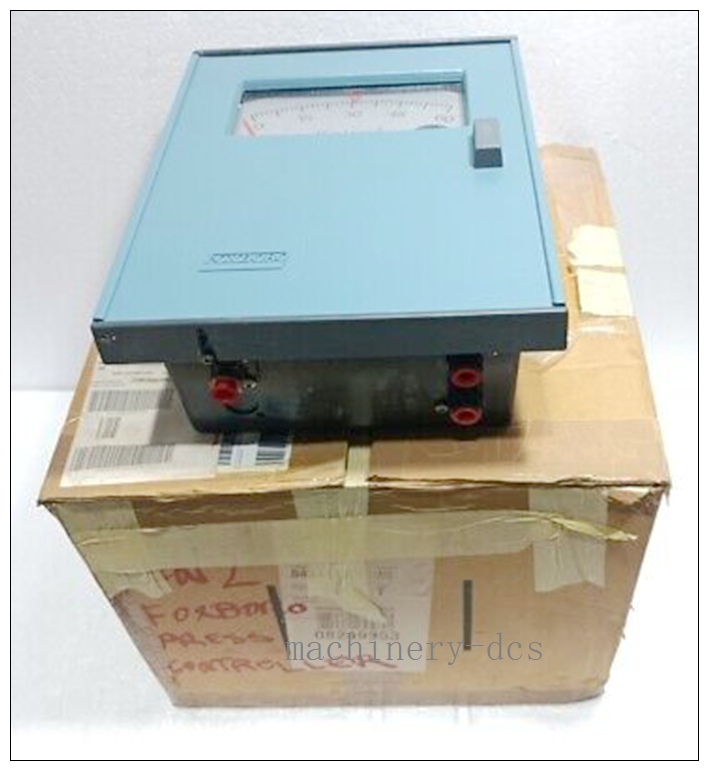

43AP-PA42C/XX-XX Series Pneumatic Indicating Controller
Detailed Product Information
The 43AP-PA42C/XX-XX is a rugged industrial-grade pneumatic indicating controller engineered for harsh process control environments, delivering reliable pneumatic control performance without relying on electrical power for core operation. Its control unit and precision measurement element are both mounted on a rigid steel plate, which fully isolates these critical components from case stresses introduced during mounting, ensuring consistent and dependable measurement accuracy that will not be compromised by installation-related mechanical deformation. Even during complete power failures and the subsequent loss of supply pressure, the process-driven local indication on the front panel remains fully functional, allowing field operators to continue reading real-time process values without interruption. The controller features a weatherproof construction with a glass fiber reinforced housing and a gasketed door fitted with a shatterproof polycarbonate window, fully meeting IEC IP53 ingress protection standards and delivering NEMA® Type 3 level environmental protection. It also integrates an internal bumpless automatic-manual transfer station, which enables smooth, balanceable switchover between automatic and manual control via a simple two-step procedure, effectively preventing accidental misoperation since the outer door must be opened to complete the transfer action.
Technical Specifications
- Product Type: Pneumatic Indicating Controller
- Accuracy: Input to pointer: ±0.5% span for qualified units; Input to output accuracy depends on the matched measuring element
- Repeatability: 0.2% of full span
- Dead Zone: 0.1% of full span
- Ambient Temperature Effect: For every 55°C (100°F) ambient temperature change, the maximum mid-span control point offset is limited to 1% of the input range
- Supply Pressure Effect: For every 7 kPa (1 psi) supply pressure fluctuation, the maximum mid-span control point offset is limited to 0.2% of the input range
- Air Consumption: 0.5 m³/h (0.3 cfm) under standard operating conditions
- Output Pressure Scale: 0 to 200 kPa, 0 to 30 psi, or 0 to 2 bar
- Control Algorithms: Supports standard PID (proportional-integral-differential) control and simple on/off control modes
- Communication Protocols: Compatible with Hart and Modbus industrial communication standards
- Configuration Methods: Local operation via front panel buttons and display, or remote configuration through host computer software
- Mounting Options: Panel mounting, flat surface mounting, continuous vertical pipe mounting, or vertical pipe stub mounting
- Environmental Performance: Excellent temperature resistance, humidity resistance and dust resistance, fully adapted to harsh industrial field conditions
43AP-PA42C/XX-XX
Compatibility & Installation Pitfalls
Compatibility
- Natively interoperable with standard industrial pneumatic supply systems with 200 kPa (30 psi) instrument air pressure
- Fully compatible with all standard pneumatic control valves, valve positioners and pneumatic actuators in traditional process control loops
- Seamlessly works with common industrial pressure, temperature, flow and level pneumatic measurement elements
- Matches with standard 1/4″ industrial pneumatic tubing and certified air filter regulator units
- Compatible with legacy pneumatic control system architectures for direct drop-in replacement of old pneumatic controllers
Installation Pitfalls
- Never mount the 43AP-PA42C/XX-XX on a thin, non-rigid mounting bracket. Excessive mechanical vibration and mounting stress will be transmitted to the precision measurement element, causing permanent measurement drift and degraded control accuracy.
- Do not connect the controller directly to an unfiltered instrument air supply line without a properly sized air filter regulator unit. Moisture, oil mist and solid particulates in unconditioned compressed air will clog the internal pneumatic circuits and cause premature component failure.
- Avoid installing the controller in locations with direct exposure to continuous high-temperature radiation, severe mechanical shock or corrosive chemical vapors. These conditions will damage the polycarbonate window, corrode internal components and break the IP53 environmental protection integrity.
- Never perform disassembly of the internal precision pneumatic components without professional factory authorization. Unauthorized disassembly will disrupt the calibrated zero and span settings, and void the original product warranty.
- Do not route pneumatic signal tubing longer than the maximum recommended length between the controller and the field control valve. Excessively long tubing will introduce large control lag, degrade the dynamic response performance of the closed control loop and cause process oscillation.
Standard Operating Procedure
- Pre-installation verification: Inspect the 43AP-PA42C/XX-XX controller for physical damage on the housing, measurement element and pneumatic ports, confirm the instrument air supply system can deliver stable, dry, oil-free filtered air within the specified pressure range.
- Mechanical mounting: Select the appropriate mounting method according to field site conditions, secure the controller firmly to the rigid mounting structure, ensure no mechanical stress is applied to the controller housing during and after installation.
- Pneumatic tubing connection: Connect the instrument air supply line, process measurement signal line and control output line to their corresponding designated pneumatic ports on the controller, secure all tubing connections properly and perform a full air tightness test to eliminate any leakage.
- Calibration and configuration: Perform zero and span calibration for the measurement indication, set the PID control parameters, configure the control action direction and complete the bumpless automatic-manual transfer function verification.
- Functional validation: Introduce standard calibrated process signals to the measurement input, confirm the local indication accuracy meets the ±0.5% span requirement, verify the output pressure responds correctly to setpoint changes and process disturbances.
- Commissioning handover: Seal the controller’s front gasketed door, complete the installation and calibration log, and confirm the controller is operating stably before releasing the control loop to automatic operation.
Typical Application Scenarios
- Petrochemical refining operations: Serves as a local field-mounted controller for traditional pneumatic control loops, delivering reliable PID control for distillation columns, heat exchangers and storage tank level control systems.
- Oil and gas production facilities: Deploys in remote field locations without reliable electrical power supply, using only instrument air to perform fully autonomous closed-loop process control.
- Chemical processing plants: Adapts to highly explosive and flammable hazardous process zones, eliminating all electrical ignition sources to meet strict intrinsic safety requirements.
- Legacy industrial system retrofit projects: Acts as a direct drop-in replacement for old-generation pneumatic controllers, requiring no modification to existing pneumatic tubing and field devices to minimize retrofit downtime.
- Water treatment facilities: Provides robust, low-maintenance pneumatic control for water pressure, flow and chemical dosing loops in harsh outdoor treatment plant environments.
Recommended Supporting Components
- Industrial certified instrument air filter regulator unit with pressure gauge and automatic drain
- High-quality corrosion-resistant 1/4″ industrial pneumatic tubing and certified compression fittings
- Matched precision pneumatic measurement elements for pressure, temperature, flow or level process variables
- Standard industrial pneumatic control valve with positioner and pneumatic actuator
- Portable precision pneumatic calibrator for on-site calibration and routine maintenance operations
Related Part Number Recommendations
- 43AP-PA41C/XX-XX: Basic version pneumatic indicating controller without the bumpless auto-manual transfer station
- 43AP-PA43C/XX-XX: Enhanced version pneumatic indicating controller with additional auxiliary output signal function
- 43AP-PA44C/XX-XX: High-accuracy version pneumatic indicating controller with ±0.2% span indication accuracy
- 43AP-PA45C/XX-XX: Explosion-proof certified version pneumatic indicating controller for Class I Division 1 hazardous locations
- 43AP-PA46C/XX-XX: Remote mounting version pneumatic indicating controller designed for long-distance signal transmission scenarios
