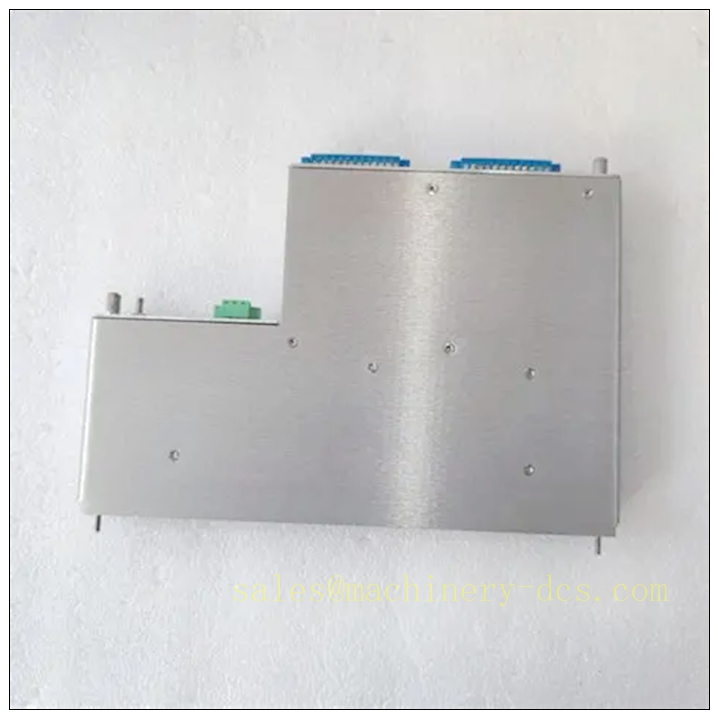

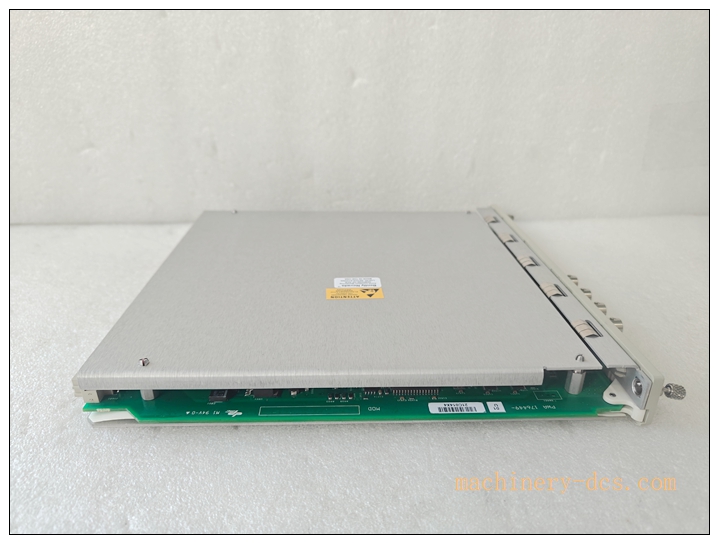

3500/40 SIL-01-00 Bently Nevada Proximity Monitor Module with Intrinsic Safety Barrier & SIL Certification

Description

3500/40 SIL-01-00 Bently Nevada Proximity Monitor Module with Intrinsic Safety Barrier & SIL Certification

Product Overview & Detailed Description

The 3500/40 SIL-01-00 is a high-reliability, safety-certified proximity monitor module designed for the Bently Nevada 3500 machinery protection system. Engineered with integrated intrinsic safety (IS) barriers and compliant with strict SIL safety standards, this module delivers precise, continuous vibration and position monitoring for rotating and reciprocating machinery in hazardous industrial environments. It serves as a critical safety and condition monitoring component, eliminating the need for external safety barriers and ensuring uncompromised system performance while meeting explosive area installation requirements.

This module integrates dual-channel proximity monitoring functionality with certified IS circuit protection, enabling direct connection of proximity transducers in Zone 2 and Division 2 hazardous locations. It supports real-time machinery health data acquisition, fault diagnosis, and alarm interlock output, effectively preventing equipment failure and operational safety risks. The SIL-01-00 configuration denotes standard safety certification grading without additional customized agency approvals, suitable for general industrial safety instrumented system (SIS) integration scenarios. Unlike discrete external barrier solutions, the embedded barrier design maintains the original signal accuracy and system response speed of the 3500 platform, achieving seamless integration of monitoring and safety protection.

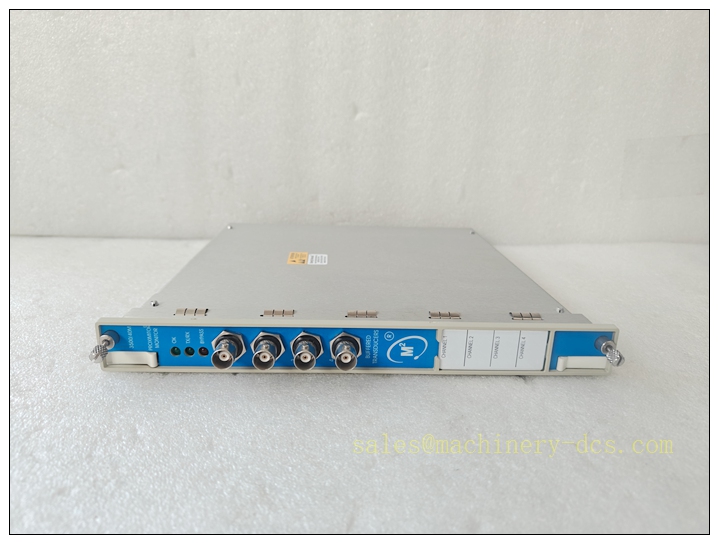

3500/40 SIL-01-00

Core Technical Parameters

3.1 Electrical & Circuit Parameters

• Maximum Rated Voltage (Um): 250 V
• Open Circuit Voltage (Uo): 27.45 V
• Short Circuit Current (Io): 113.24 mA
• Internal Capacitance (Co): 0.086 μF
• Internal Inductance (Lo): 2.77 mH
• Maximum Output Power (Po): 726.96 mW
• Power Circuit Parameters: Uo=26.25 V, Minimum Resistance=237.6 Ω, Io=110.48 mA
• Signal Circuit Parameters: Uo=13.65 V, Minimum Resistance=4985 Ω, Io=2.74 mA

3.2 Performance Parameters

• Signal Bandwidth: Up to 30 kHz
• Amplitude Accuracy: ±3% @ 10 kHz, -15%/+10% @ 30 kHz
• Phase Accuracy: -11° @ 10 kHz
• Monitoring Channels: Dual independent proximity monitoring channels
• Safety Grade: Certified SIL compliant for industrial safety instrumented systems

3.3 Physical & Environmental Parameters

• Dimensions: 241.3 mm × 24.4 mm × 163.1 mm (9.50 in × 0.96 in × 6.42 in)
• Weight: 0.46 kg (1.01 lb)
• Operating Temperature Range: -20 °C to +65 °C (-4 °F to +149 °F)
• Hazardous Area Rating: ATEX/IECEx II 3 G Ex nA nC ic IIC T4 Gc; Class I Zone 2/Division 2 Groups A/B/C/D
• Compliance Standards: EN 61000-6-2, EN 61000-6-4, EN 61010-1, FCC Part 15

Compatibility & Installation Pitfalls

4.1 System & Hardware Compatibility

This module is fully compatible with the Bently Nevada 3500 series rack system and supports mixed installation with standard 3500 series non-barrier modules without interfering with system operation. It requires matched system software and firmware versions for normal operation: 3500 Rack Configuration Software V2.3 or later; no additional firmware upgrade required for 3500/40M variant devices. It supports mainstream proximity transducer series including 3300 XL 5mm/8mm Proximitor Sensors, 3300 RAM Proximitor Sensors, and 7200 series proximity sensors. Notably, it does not support 1-5 Vdc or 0-10 Vdc process variable signal access modes.

4.2 Critical Installation Pitfalls & Restrictions

• Mandatory IS Earthing Module Matching: All racks equipped with 3500/40 SIL-01-00 modules must install a dedicated 3500/04-01 IS Earthing Module, which occupies an independent rack position and reduces the standard 19-inch rack available monitor positions to 13. No idle occupation or replacement with other modules is allowed.
• Wiring Separation Specification Violation Risk: A strict 50mm physical separation must be maintained between hazardous area field wiring and safe area wiring. Hazardous area cables must be routed above the rack, and safe area cables below. Mixed wiring in the same cable tray without isolation partitions will invalidate hazardous area certification.
• Cabinet Size Mismatch Risk: The integrated barrier module increases the rack depth by 50mm. Standard 400mm deep cabinets cannot accommodate the device; only 600mm deep cabinets or 3500/06 weatherproof housings are applicable.
• TMR System Incompatibility: This barrier module cannot be used with triple modular redundant (TMR) rack configurations, as multi-module parallel signal access will damage intrinsic safety system integrity.
• Termination Mode Restriction: External termination functions are unavailable for this module. Only internal termination wiring modes are supported, and multi-core cable assembly wiring for hazardous area signals is prohibited.
• Module Layout Limitation: Multiple barrier modules should be centrally grouped in adjacent rack positions. When installing standard modules or earthing modules between two barrier modules, a minimum of two empty rack positions must be reserved for maintenance access.

3500/25-01-01-00

Standard Operating Procedure (SOP)

5.1 Pre-Operation Inspection

Verify module model integrity (3500/40 SIL-01-00) and certification validity; inspect module appearance for damage, rust or interface aging; confirm complete matching of 3500/04-01 IS earthing module; check cabinet size, wiring spacing and cable routing compliance with installation specifications; confirm software and firmware version matching requirements are met.

5.2 Standard Installation Steps

1. Power off the entire 3500 rack system and implement lockout-tagout (LOTO) safety procedures; 2. Install the dedicated IS earthing module in a reserved independent rack position and fix it firmly; 3. Insert the 3500/40 module into the designated position, ensuring stable backplane contact; 4. Route hazardous and safe area wiring separately in strict accordance with spacing standards, and complete internal termination wiring; 5. Power on the system, launch 3500 Rack Configuration Software, upload rack configuration parameters and verify module online status; 6. Match connected proximity sensors, calibrate signal scale factors and phase parameters; 7. Perform full-function testing of signal acquisition, alarm output and safety interlock functions.

5.3 Daily Operation & Maintenance

Conduct real-time monitoring of module operating status, signal accuracy and temperature parameters through the system host; perform quarterly wiring tightness inspection and dust cleaning; conduct annual safety performance calibration and barrier circuit parameter verification; record all operation, calibration and maintenance data for safety system traceability; replace aging modules in a timely manner when signal deviation or hardware failure occurs.

5.4 Shutdown & Replacement Procedure

Cut off the system power and confirm power isolation; remove field wiring in sequence and mark wiring numbers; disassemble the faulty module, install a new qualified module and rewire strictly according to the original wiring logic; re-calibrate parameters and test functions before resuming system operation.

Application Scenarios

The 3500/40 module is widely applied in safety-critical industrial scenarios requiring machinery condition monitoring and hazardous area explosion-proof protection, mainly including: petroleum and natural gas exploration and production platforms, petrochemical refining and chemical production lines, thermal power generation turbine and generator sets, wind power main shaft and gearbox monitoring systems, metallurgical high-speed rotating equipment, offshore engineering machinery, pharmaceutical and fine chemical explosion-proof workshops, and other industrial sites with Zone 2/Division 2 hazardous environments. It is specially suitable for SIS system matching scenarios that require SIL safety certification to ensure machinery operation safety and avoid major equipment downtime and safety accidents.

Supporting Components

• Core Matching Component: 3500/04-01 IS Earthing Module (mandatory configuration for intrinsic safety grounding)
• Compatible Sensors: 3300 XL 5mm/8mm Proximitor Sensor, 3300 RAM Proximitor Sensor, 7200 Series Proximity Sensor
• System Carrier: Bently Nevada 3500 Series 19-inch Standard Rack, 3500/06 Weatherproof Housing
• Supporting Software: 3500 Rack Configuration Software (V2.3 and above)
• Accessories: Special isolation cable for hazardous area, wiring terminal, fixed bracket, dustproof connector
• Calibration Tools: Bently Nevada dedicated signal calibrator, phase accuracy tester

Brand Matching Model Recommendations (10 Models)

All recommended models are original Bently Nevada 3500 series modules, fully compatible with the same rack system, matching safety standards and application scenarios, suitable for combined configuration and extended use:

1. 3500/25 Keyphasor Monitor Module: Speed and phase reference monitoring module, supporting synchronous operation with proximity monitoring
2. 3500/42 Vibration Monitor Module: Multi-channel vibration signal acquisition module, matching barrier safety specifications
3. 3500/42M Enhanced Vibration Monitor Module: Upgraded version with higher signal resolution, no firmware upgrade required for barrier matching
4. 3500/50 Temperature Monitor Module: Industrial temperature signal acquisition module, compatible with system intrinsic safety standards
5. 3500/60 Process Variable Monitor Module: 4-20mA process signal monitoring module for auxiliary condition monitoring
6. 3500/61 High-Precision Temperature Module: High-stability temperature monitoring for extreme industrial environments
7. 3500/62 Process Signal Expansion Module: Extended process variable monitoring channels, compatible with barrier system
8. 3500/70 Reciprocating Machinery Monitor Module: Special monitoring module for reciprocating equipment safety condition
9. 3500/70M Enhanced Reciprocating Monitor Module: Optimized for high-frequency reciprocating machinery signal acquisition
10. 3500/04 Full-Range Internal Barrier Module: Universal safety barrier module for full-series 3500 module safety matching
