Woodward 8200-1301 is the 505D integrated digital turbine governor
Model: 8200-1301 | 505D Digital Turbine Governor (Integrated HMI & Controller)
Product Title & Description
The Woodward 8200-1301 is the 505D integrated digital turbine governor, combining an 8.5-inch graphical HMI operator panel and turbine control logic in one unit. It is designed for speed regulation, load control and protection of steam turbines, generator sets and mechanical drive turbines (compressor/pump drives). Widely used in thermal power plants, combined cycle, cogeneration stations and oil & gas industry. It supports standalone operation or connection to plant DCS, and is a popular replacement spare for legacy 505 turbine control retrofits.
Core Product Overview

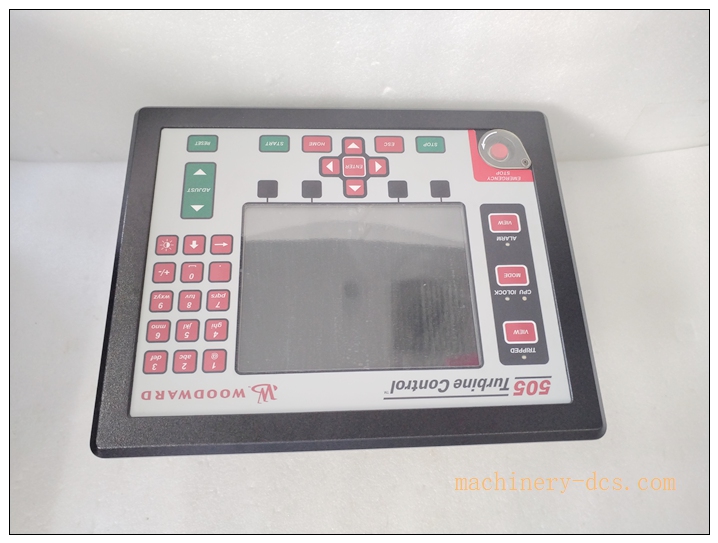

8200-1301 is a field-programmable digital governor of Woodward 505D series. It receives MPU magnetic pickup speed signal, process analog inputs and discrete interlock signals, calculates control output to drive turbine actuator. It supports single actuator or split-range dual actuator configuration, includes speed control, load control, acceleration ramp, startup fuel/valve limiting, overspeed protection and fault diagnostics. The built-in 8.5” 800×600 graphic display and keypad allow onsite tuning, parameter setting, trending and alarm viewing. It has multi-level user access permission to protect critical turbine parameters. Three operation modes: Configuration Mode / Run Mode / Service Mode. It communicates with DCS via standard communication ports for remote monitoring and setpoint control.
WOODWARD 8200-1301
Main Technical Specifications
- Manufacturer: Woodward (USA)
- Part Number: 8200-1301
- Product Type: 505D Digital Turbine Governor (Controller + Graphical HMI)
- Display: 8.5 inch, 800 × 600 resolution
- Power Supply: 88–264 VAC / 90–150 VDC wide range
- Power Consumption: Max 73W
- Actuator Output: 2 proportional actuator outputs
- Speed Input: MPU magnetic pickup signal
- I/O: Analog inputs, discrete DI/DO for interlock and protection
- Operation Modes: Isochronous / Droop speed control, load control
- Enclosure Mount: Panel mount
- Operating Temperature: -30°C ~ +70°C
- Storage Temperature: -30°C ~ +70°C
- Relative Humidity: 5%~95%, non-condensing
- Protection Class: IP20 (when panel mounted correctly)
- Certifications: CE, UL, Class I Div.2 / Zone2 hazardous area approval
Quality Control Procedures
Woodward turbine governors comply with ISO9001 and IEC power generation control standards.
- Incoming Component Inspection: CPU, display, analog circuit, signal isolation chips and keypad screening.
- Automated assembly, unique serial number for full lifecycle traceability.
- Full functional test: speed simulation, actuator output test, protection trip test, keypad & display test, communication verification.
- Environmental stress screening: thermal cycling, vibration, EMC surge test for power plant cabinet environments.

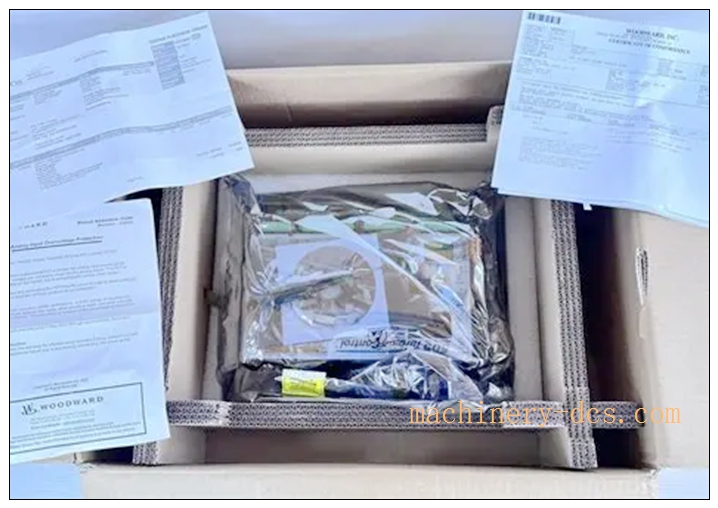

- Final inspection & packing: visual inspection, anti-static packaging with factory test report.
Brand Related Matching & Replacement Models
- 9907-014: Woodward 2301A analog governor, legacy upgrade reference to 505D
- 8200-1201: 505D base model variant without full graphic HMI
- SPM-D11 8440-110: Woodward synchronizer for generator paralleling, paired with 505D
- ProTech 203 / 3600: Woodward overspeed protection system, used together with 505D governor
WOODWARD 8200-1301
FAQ
Q1: What is 8200-1301 used for? A1: Woodward 505D integrated digital governor for steam turbine speed & load control, generator and mechanical drive turbine applications.
Q2: Does it contain HMI panel? A2: Yes, it is an all-in-one unit: control logic + graphic display + keypad, no separate HMI needed.
Q3: Can it control split-range dual actuators? A3: Yes, it supports both single actuator and split-range dual actuator configuration.
Q4: Can it connect to DCS system? A4: Yes, via onboard communication ports for remote setpoint, data trending and alarm transfer to plant DCS.
Q5: What is the warranty for original Woodward 8200-1301? A5: Original Woodward unit carries standard 12-month factory warranty against manufacturing defects under proper installation and operating conditions.
Installation & Configuration Guide
7.1 Pre-installation Preparation
Verify 8200-1301 unit, inspect screen, keypad and terminal connectors. Prepare panel cutout, MPU speed sensor, actuator, 88–264VAC/DC power supply, shielded signal cables. Lock out turbine and power before installation.
7.2 Installation Steps

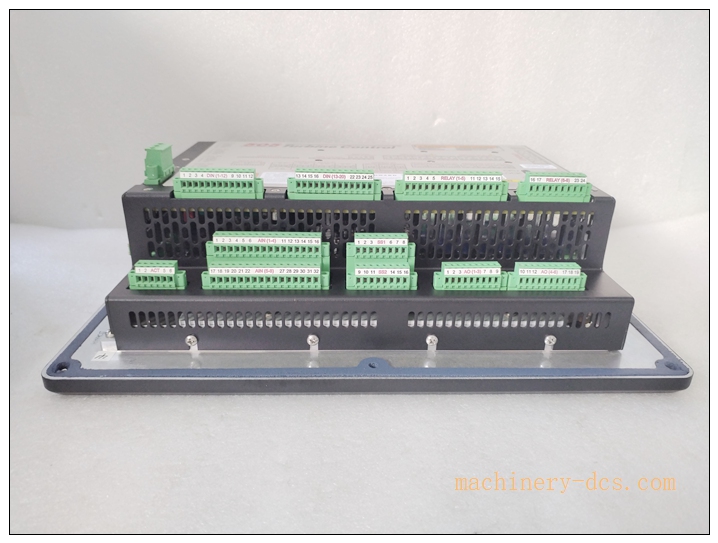

Mount governor into cabinet panel cutout and fasten mounting clips. Wire wide-range AC/DC power supply. Wire MPU speed pickup signal, actuator output, analog inputs and discrete interlock trip signals. Use shielded twisted pair cables with single-point shield grounding. Wire communication cable for DCS interface.
7.3 System Configuration & Commissioning
Power up unit and enter configuration mode. Set turbine parameters: speed setpoint, acceleration ramp, valve/actuator limits, droop/isochronous mode, overspeed protection thresholds. Save parameter set. Switch to run mode. Perform turbine crank and startup test, check speed stability and actuator response. Test protection trip functions. Connect DCS and verify remote communication. Save full parameter backup file.
7.4 Maintenance & Precautions
During unit outages, inspect keypad, screen, wiring terminals and cable shielding. Keep panel surface clean. Do not modify critical protection parameters during turbine running. If speed hunting or unstable load occurs, check MPU sensor gap, actuator and wiring before replacing the 8200-1301.
