Triconex 8311 175W Redundant 24VDC Input Power Supply Module for Tricon TMR SIS

Description

Triconex 8311 175W Redundant 24VDC Input Power Supply Module for Tricon TMR SIS

Product Description

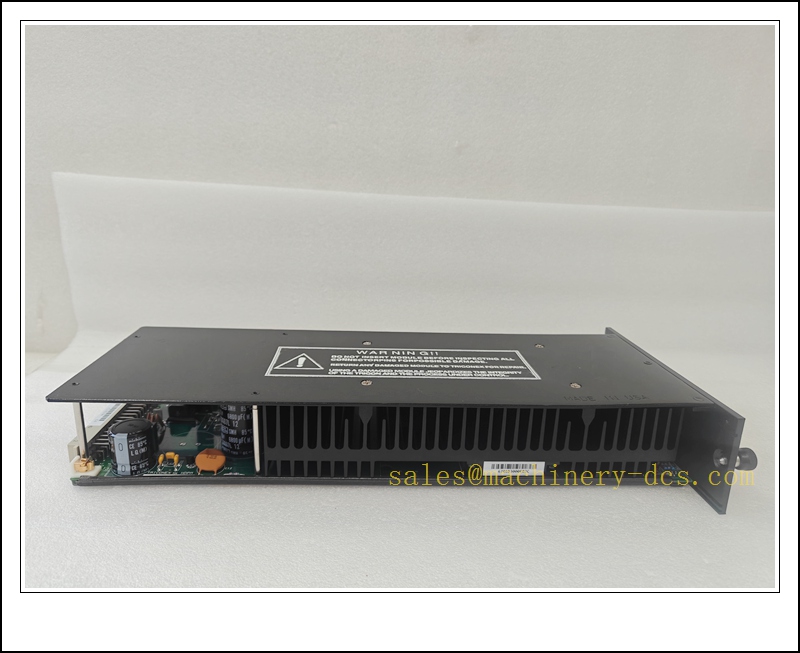

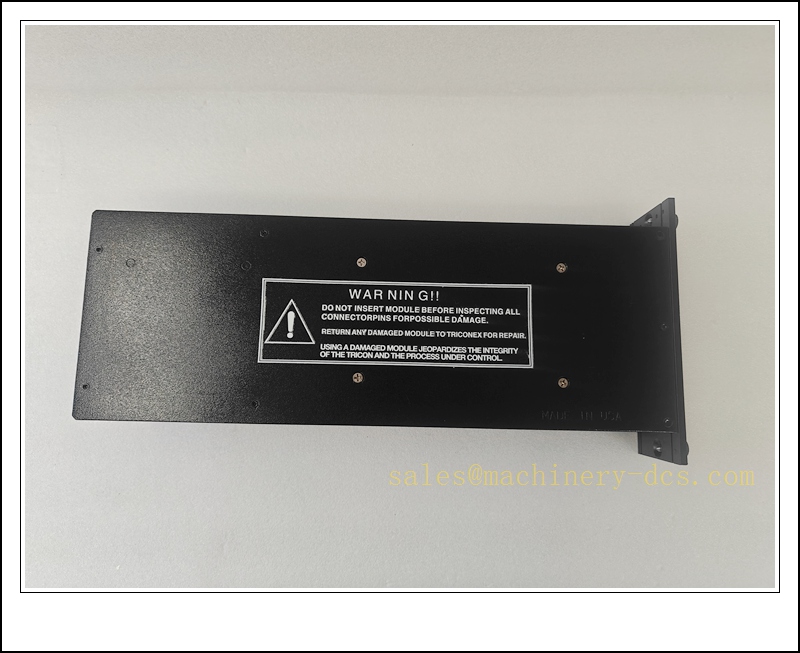

The Triconex 8311 is a high-reliability 175W power supply module designed for the Tricon triple modular redundant safety instrumented system. It accepts 24 VDC nominal field power and converts it to regulated 6.5 VDC backplane power to power Tricon main processors, I/O modules and chassis internal circuits in main racks, expansion racks and RXM remote racks. It is commonly deployed in dual redundant configuration; either single unit can carry the full chassis load independently to eliminate single-point power failure risk for safety functions. Integrated diagnostics and front-panel LEDs indicate PASS status, internal fault, overtemperature and low battery alarms. Hot-swap operation is supported when the paired redundant power supply remains healthy, enabling online maintenance without shutting down the safety system. Input and output circuits feature galvanic isolation to protect sensitive TMR electronics from electrical surges and ground transients.

TRICONEX 8311

Technical Specifications

• Brand: Triconex (Schneider Electric / Invensys Legacy)
• Model: 8311
• Module Type: Redundant Chassis Power Supply
• Rated Output Power: 175 W continuous at 60°C ambient
• Output: 6.5 VDC, ±1% regulation, max 27 A
• DC Input: 20–30 VDC, nominal 24 VDC
• Hold-up Time: ≥20 ms after input power loss
• Protection: Overvoltage, overcurrent, short-circuit protection, thermal shutdown, input surge filtering
• Internal Fuse: 5 A time-delay non-field-replaceable fuse

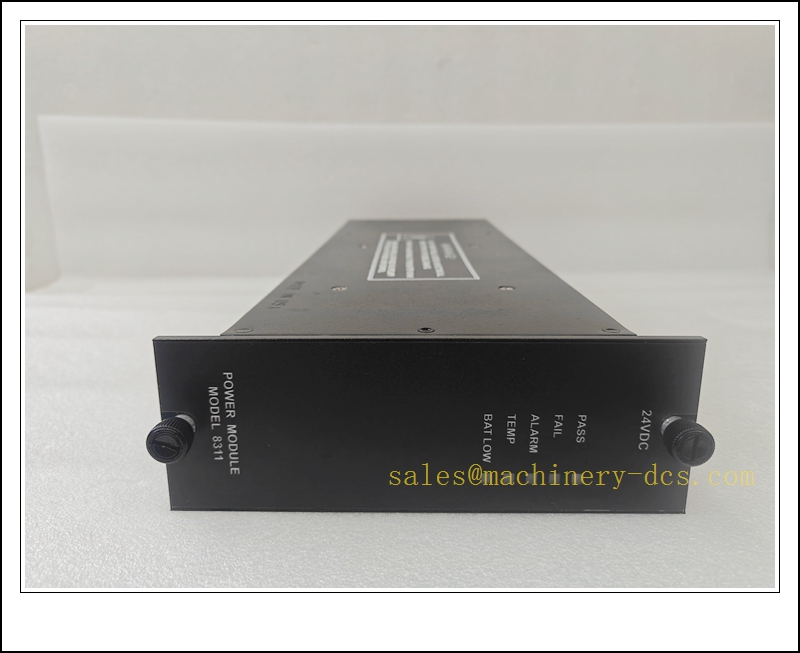

• Status Indicators: PASS, FAIL, ALARM, TEMP, BAT LOW LED indicators
• Alarm Interface: SPDT dry fault relay contact
• Galvanic Isolation: 1500 VDC input-to-backplane isolation
• Hot Swap: Supported under redundant dual power configuration
• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5% to 95%, non-condensing
• Safety Certification: SIL 3 capable per IEC 61508, ATEX Zone 2, UL, CE
• Compatible Chassis: Tricon main chassis, expansion chassis, RXM remote chassis
• Approximate Weight: 3.8 kg

Application Scenarios

• Petrochemical and refinery Tricon ESD emergency shutdown racks with 24VDC plant power
• Onshore and offshore oil & gas fire and gas safety instrumented systems
• Power plant boiler protection, turbine trip and burner management systems
• LNG terminals and cryogenic SIL 3 safety control cabinets fed by 24VDC UPS
• Remote unmanned pipeline pressure protection SIS panels
• Continuous chemical process critical safety control racks
• Hazardous Class I Div 2 / Zone 2 SIS control panels
• Spare replacement and maintenance for existing Tricon 3000 series installations

8 Related Triconex Model Recommendations

1. 8310 – 120VAC/VDC Input Tricon Power Supply Module
2. 8312 – 230VAC Input Tricon Power Supply Module
3. 3805E – Tricon Main Processor Module
4. 3703E – 8-Channel Analog Input Module
5. 3704E – 8-Channel Analog Output Module
6. 3604E – 16-Channel Non-Commoned Digital Output Module
7. 3504E – 64-Point High Density Commoned Digital Input Module
8. 3721 – Tricon Communication Interface Module

Compatibility & Installation Pitfalls

Compatibility

• Designed only for Tricon TMR chassis dedicated power slots; incompatible with Trident chassis and Bently Nevada 3500 racks.
• This is the 24 VDC input variant; do not interchange with 8310 (120VAC/VDC) or 8312 (230VAC).
• Dual redundant installation is the standard SIL design; single-unit operation is only for temporary maintenance.
• Power slot is mechanically keyed and cannot be fitted into I/O or processor slots.
• This module supplies only chassis backplane logic power; it does not provide loop power for field transmitters or solenoid valves.
• SIL 3 integrity depends on redundant power architecture plus a healthy TMR processor triplet.

Installation Pitfalls

1. Hot-swap is permitted only when the second redundant power unit is healthy and can support the full chassis load. Never remove the last active power source while the SIS is online.
2. Do not mix 8310, 8311 and 8312 in one redundant power pair. Mismatched input types will trigger alarms and system instability.
3. 24 VDC input wiring must observe polarity strictly; reverse polarity can damage the module permanently. Use proper overcurrent protection on the upstream DC feed.
4. BAT LOW alarm monitors the chassis backup battery; this is a maintenance alarm and not a module fault by itself.
5. TEMP alarm signals excessive internal temperature. Check cabinet ventilation, cooling fans and ambient temperature before acknowledging the alarm.
6. The internal 5A time-delay fuse cannot be replaced on site. Repeated fuse trips indicate backplane short or overload and require root cause investigation.
7. Do not exceed the total chassis power rating. Adding excessive I/O modules may overload the 175W capacity of each supply.
8. The dry fault relay contacts are signal-level contacts; they must not be used to switch high-current loads directly.

TRICONEX 8311

Standard Operating Procedure (SOP)

SOP for 8311 Power Supply Module Inspection, Installation and Functional Test

1. Pre-Installation Inspection Inspect the module for physical damage, deformed connectors or contamination. Confirm the part number 8311 matches the required 24 VDC input specification. Review chassis load calculations, redundant power layout and site DC power distribution drawings. Apply lockout-tagout to the SIS DC feed if isolating the last live power supply.
2. Rack Installation Power down the chassis if removing the final operational power unit. Insert the 8311 into the dedicated chassis power slot and secure the module fasteners. Terminate the 24 VDC input wiring and fault alarm relay wiring at the backplane terminals. Separate DC power cabling from low-level analog and discrete I/O wiring and implement EMC shielding per approved SIS drawings.
3. Power-on Verification Restore 24 VDC input power to the module. Confirm the PASS LED is illuminated with no active FAIL, TEMP or BAT LOW alarms. Verify the redundant paired supply stays synchronized and does not trigger load alarms. Resolve polarity, input voltage range or grounding issues if alarms persist.
4. Load and Diagnostic Test With the rack online, confirm main processors and all I/O modules boot and communicate normally. Simulate loss of the redundant partner supply to verify the single 8311 takes the full chassis load without SIS trip. Confirm the fault relay changes state when the module is de-energized or a fault is induced. Record alarm and load transfer performance in the SIS maintenance log.
5. System-Wide Interlock Verification Validate all safety logic, analog and discrete I/O channels remain operational during automatic transfer between redundant power supplies. Confirm a single power supply fault generates only a maintenance alarm and will not cause unintended ESD shutdown.
6. Return to Service Clear all temporary fault latches and alarm acknowledgements. Remove lockout-tagout as applicable. Monitor module LED status, chassis temperature and DC input quality for the required observation period. Notify operations that redundant SIS power is restored.
7. Periodic Maintenance and Replacement During planned outages, inspect terminal torque, cable insulation and cabinet cooling performance. Execute redundant power transfer testing per the site SIS proof-test schedule. If the 8311 presents persistent non-resettable faults, confirm the second supply is fully healthy before hot-swap. After replacement, verify PASS status, load sharing and alarm relay operation before releasing the rack to safety duty.
