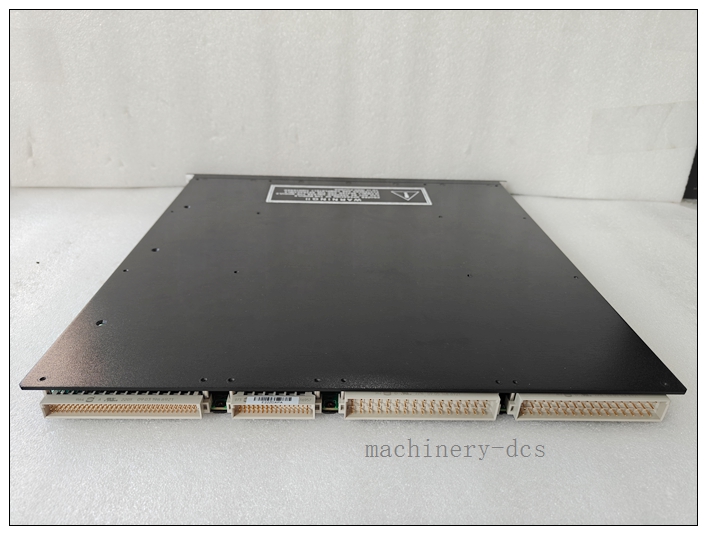

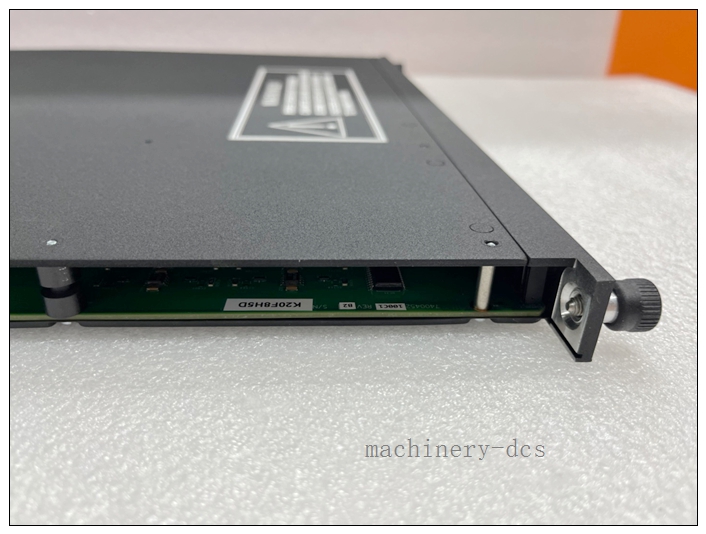

TRICONEX 3721 TMR SIL 3 32-Channel Differential Analog Input Module

Description

Brand‌: TRICONEX (Schneider Electric Safety Automation)
‌Model‌: 3721
‌Official Full Title‌: TRICONEX 3721 TMR SIL 3 32-Channel Differential Analog Input Module for Tricon Safety Instrumented Systems

Product Description

The TRICONEX 3721 is a high-performance, safety-certified Triple Modular Redundancy (TMR) analog input module purpose-built for TRICONEX Tricon safety instrumented systems. Designed for high-precision field signal acquisition in harsh industrial environments, it processes sensor data through three independent redundant channels with patented median-voting logic, eliminating single-point failures and ensuring zero downtime even if up to two channels experience faults. This module is engineered to deliver stable, reliable analog signal collection for critical safety loops, making it ideal for deployment in offshore platforms, refineries, chemical plants and other high-hazard industrial facilities.

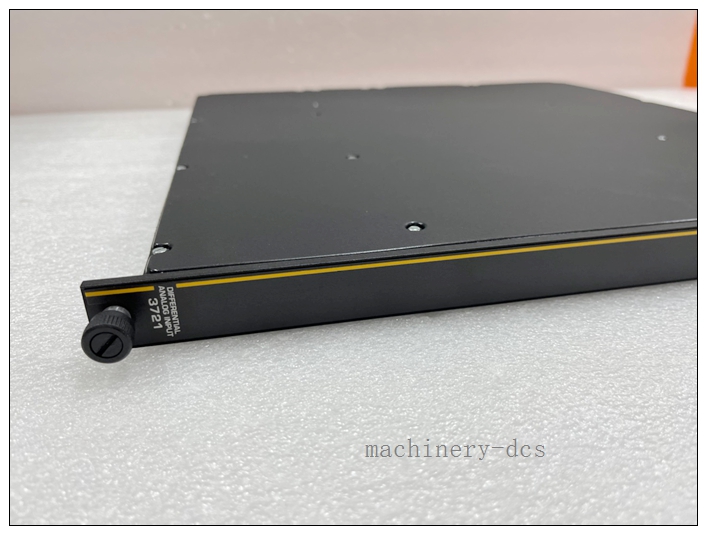

TRICONEX 3721

Technical Specifications

• ‌Module Type‌: TMR Analog Input Module (TCM)
• ‌Input Channels‌: 32 differential, DC-coupled
• ‌Voltage Signal Range‌: 0 to 5 VDC or -5 to +5 VDC ±6%
• ‌Input Update Rate‌: 10 ms
• ‌Resolution‌: 12 bits or 14 bits (programmable via system configuration)
• ‌Measurement Accuracy‌: < 0.15% of Full Scale Range (FSR) across 0°C to 60°C operating temperature
• ‌Common Mode Rejection‌: -85 dB (DC – 100 Hz)
• ‌Input Overrange Protection‌: 150 VDC/115 VAC continuous
• ‌Operating Temperature Range‌: -40°C to +70°C
• ‌Ingress Protection Rating‌: IP67
• ‌Module Net Weight‌: 1.36 kg
• ‌Shipping Weight‌: 4 kg

Main Features and Advantages

1. ‌TMR Zero-Downtime Fault Tolerance‌
   Eliminates single-point failures by processing signals through three independent redundant channels. The module continues full normal operation even with up to two faulty channels, ensuring no unplanned safety loop trips.
2. ‌Industry-Leading Measurement Precision‌
   ±0.15% full-scale accuracy guarantees highly reliable data acquisition even in high-interference, challenging industrial field conditions.
3. ‌Extreme Environmental Hardening‌
   With an operating temperature range of -40°C to +70°C and IP67 protection rating, the module withstands extreme temperatures, heavy dust and water ingress far beyond standard industrial module specifications.
4. ‌Robust Electrical Noise Immunity‌
   -85 dB common-mode rejection and 150V DC/115V AC continuous overvoltage protection fully safeguard the module against electrical surges and severe electromagnetic noise interference.
5. ‌Flexible Programmable Configuration‌
   Users can switch resolution between 12 bits and 14 bits via system software, balancing update speed and measurement precision to match different application requirements.

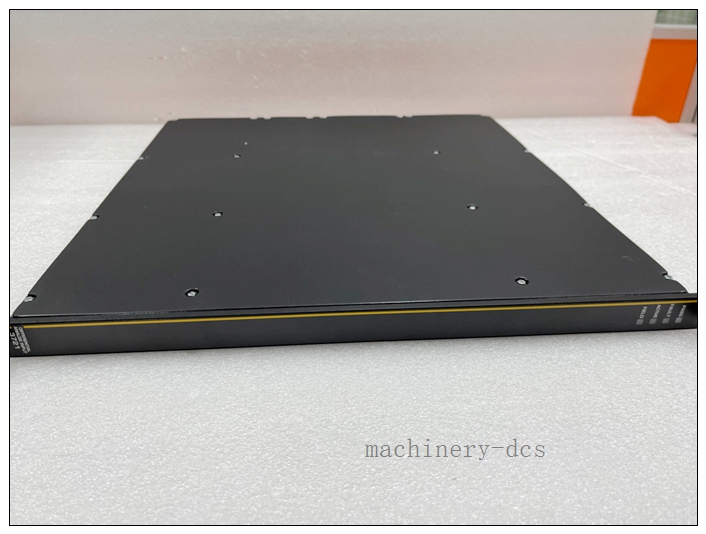

TRICONEX 3721

Application Fields

• Offshore oil & gas platform safety instrumented systems and ESD loops
• Petrochemical refinery critical process pressure, temperature and flow signal monitoring
• Chemical plant high-risk process safety control and fire & gas detection systems
• Power generation turbine safety protection and burner management signal acquisition
• Heavy industrial sites with extreme temperature, dust and high EMI conditions
• Hazardous zone classified industrial installations requiring SIL 3 certified analog input performance

Related Product Recommendations

• TRICONEX 3700A TMR 32-Channel Analog Input Module
• TRICONEX 3703E TMR 16-Channel Analog Output Module
• TRICONEX 3704E TMR 64-Channel Digital Input Module
• TRICONEX 8312 230VAC TMR Safety Power Supply Module
• TRICONEX 5301S2 Tricon TMR Core Control Processor

Installation and Maintenance

1. ‌Pre-Installation Validation‌
   Confirm the 3721 signal range setting matches your field sensor output type before wiring, avoid connecting signals outside the 0~5VDC / -5~+5VDC rated range to prevent permanent channel damage.
2. ‌Rack Mounting Procedure‌
   Align the module with the designated Tricon backplane slot, push firmly until the locking latch clicks into place, then tighten the captive mounting screws to ensure stable electrical contact.
3. ‌Field Wiring Best Practice‌
   Use shielded twisted-pair cables for all field signal wiring, separate analog signal cables from high-voltage power cables to minimize interference, and terminate all cable shields to the designated system safety ground point.
4. ‌Routine Preventive Maintenance‌
   Conduct periodic inspections to verify all channel status LEDs show normal operation, clear accumulated dust from module surfaces, and confirm the operating environment stays within the rated temperature range.
5. ‌Fault Troubleshooting & Replacement‌
   When a fault alarm appears in the system diagnostic interface, first verify field sensor and wiring integrity. Confirm the remaining TMR channels are fully operational before initiating hot-swap replacement, and validate all 32 channels return to normal readings after the new module is seated.
6. ‌Spare Part Management‌
   Store backup 3721 modules in a temperature-controlled ESD-safe industrial cabinet to preserve component integrity, ensuring rapid deployment when on-site replacement is required.
