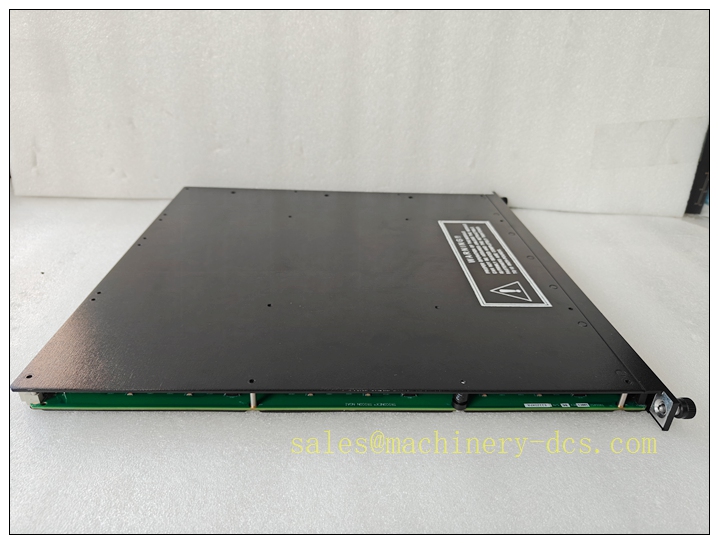

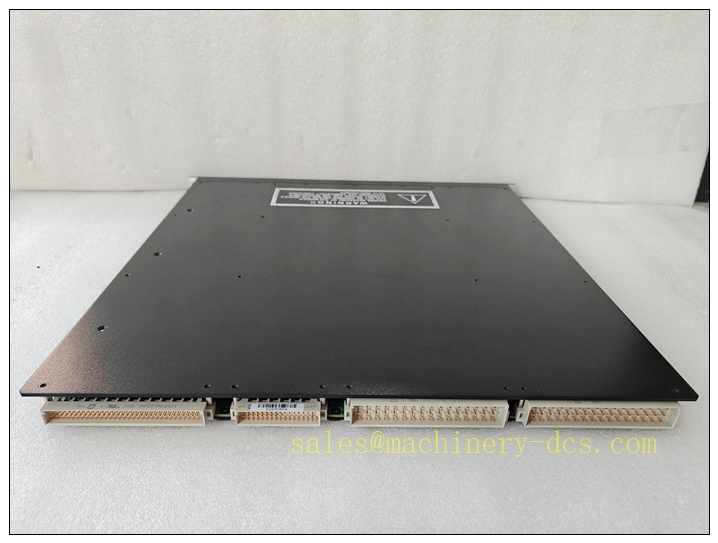

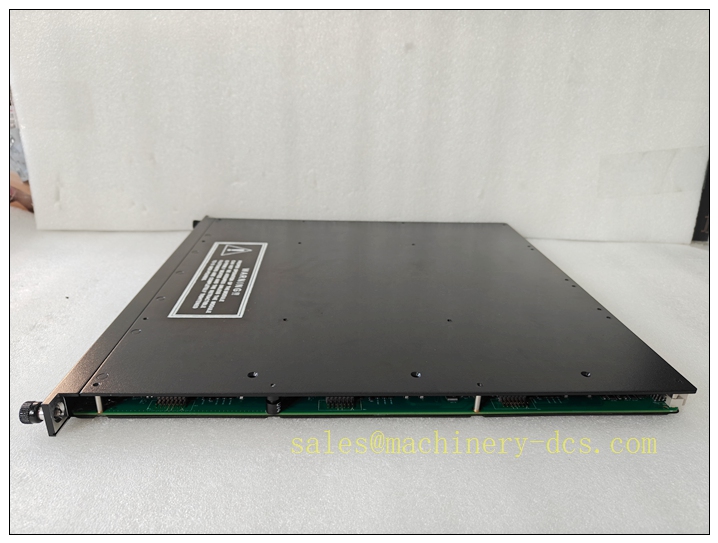

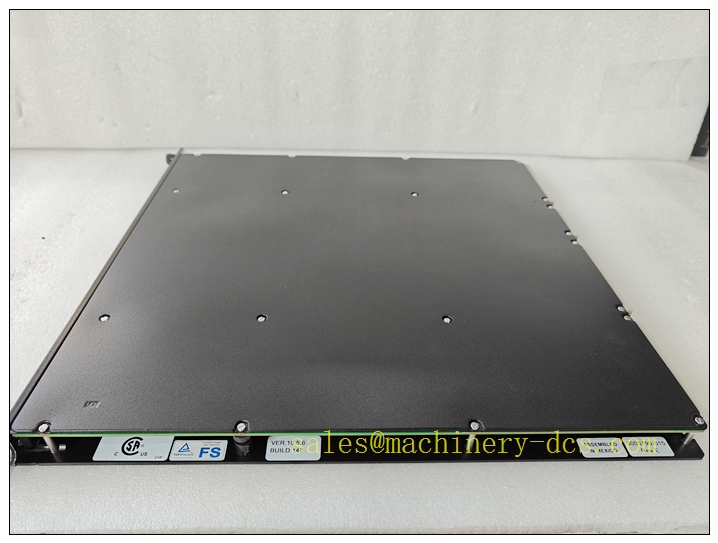

Triconex 3721 32-Point Differential TMR Analog Input Module for Tricon Safety Instrumented Systems
Product core overview
The TRICONEX 3721 is a 32-channel differential analog input module for the Triconex Tricon TMR safety control platform. It converts field analog signals into triple-redundant digital values for safety logic processing, supporting critical process variables such as pressure, temperature, level, and flow in SIL-rated safety instrumented systems.
The module uses a TMR architecture with independent acquisition paths and majority voting, so a single internal fault does not corrupt the reported analog value. It is designed for installation in Tricon v10.2 and later systems and supports online replacement without shutting down the controller.
TRICONEX 3721
Key technical specifications
| Item | Typical information |
|---|---|
| Manufacturer | Triconex (Schneider Electric / formerly Invensys) |
| Model | 3721 |
| Product type | TMR analog input module |
| Channels | 32 differential, DC-coupled |
| Input range | 0 to 5 VDC or –5 to +5 VDC |
| Resolution | 12-bit standard / 14-bit high resolution, configurable |
| Update rate | 10 ms, all-channel synchronous update |
| Accuracy | < 0.15% FSR from 0°C to 60°C |
| CMRR | –85 dB (DC to 100 Hz) |
| Isolation | Field-to-logic isolation; branch-to-branch isolation typical 420 kΩ |
| Overvoltage protection | 150 VDC / 115 VAC continuous |
| Diagnostics | PASS, FAULT, ACTIVE, FIELD indicators; per-channel diagnostics |
| System requirement | Tricon v10.2 or later |
| Mounting | Tricon chassis with field termination assembly; hot-swappable |
| Color code | Yellow |
Some third-party listings describe the 3721 as a digital input or communication module, but official Tricon documentation identifies it as a 32-point differential TMR analog input module. Always verify the installed function against the chassis configuration, TriStation project, and module label.
Recommended Triconex same-family / related modules
- TRICONEX 3720 — 64-point single-ended TMR analog input module; suitable where more analog channels are needed at lower channel density per signal type.
- TRICONEX 3704E — Isolated TMR analog input module for applications requiring higher channel isolation.
- TRICONEX 3703E — Isolated TMR analog input module for analog measurement in safety loops.
- TRICONEX 3503E — High-performance analog input module for Tricon systems.
- TRICONEX 3008 — Digital input module for discrete safety signal acquisition.
- TRICONEX 3009 — Digital output module for safety-rated discrete output control.
- TRICONEX 3805E — High-reliability digital input module for safety instrumented systems.
- TRICONEX 4210 / 4211 — Communication extender modules for Tricon system integration.
TRICONEX 3721
Professional quality control test SOP
- Incoming inspection
Verify model 3721, serial number, hardware revision, accessories, and certificate of conformity. Confirm the module is intended for a Tricon v10.2+ system. - Visual and mechanical inspection
Check the module housing, connector pins, locking mechanism, label, and color code. Ensure there is no bent-pin damage, corrosion, moisture ingress, or mechanical deformation. - Chassis compatibility check
Confirm the target Tricon chassis firmware version, slot assignment, field termination assembly type, and cable interface. The 3721 must not be forced into an incompatible slot. - Power-up and self-test
Insert the module with the chassis powered according to site procedures. Verify PASS, FAULT, ACTIVE, and FIELD LED behavior during startup and self-diagnostics. - Channel configuration verification
Use TriStation 1131 to confirm channel configuration, including unipolar/bipolar mode, resolution, scaling, filtering, and alarm thresholds. - Analog accuracy test
Apply calibrated voltage sources to selected channels. Verify measured values, linearity, resolution, and accuracy against the 0.15% FSR specification within the rated temperature range. - TMR voting and fault simulation
Simulate a single-channel or single-path fault where supported. Confirm that the module reports the fault, the FAULT indicator activates, and the voted analog value remains valid. - Isolation and noise immunity check
Verify field-to-logic isolation and common-mode rejection under site-appropriate test conditions. Check for cross-channel interference when multiple channels are active. - Hot-swap and recovery test
If permitted by site policy, perform an online replacement test. Confirm that the new module synchronizes correctly and that no spurious trips occur. - Final documentation
Record slot number, firmware/revision, configuration parameters, test results, LED status, and acceptance conclusion. Archive the TriStation configuration backup.
Application scenarios and features
- Emergency shutdown systems
Provides redundant analog measurement for pressure, temperature, level, and flow signals in ESD/PSD loops. - Oil and gas processing
Used in separator, compressor, pipeline, and wellhead safety monitoring where measurement integrity is critical. - Power generation
Supports boiler, turbine, and auxiliary system monitoring in thermal and combined-cycle plants. - Chemical and petrochemical plants
Applied in reactor, distillation, and storage safety loops requiring SIL-rated analog input. - Metallurgy and industrial utilities
Suitable for furnace, steam, cooling water, and compressed air system monitoring in harsh environments.
Key features
- 32-channel differential analog input with TMR architecture
- 10 ms synchronous update for fast safety response
- 12-bit/14-bit programmable resolution
- High common-mode rejection and field-to-logic isolation
- Continuous per-channel diagnostics and fault indication
- Hot-swappable for online maintenance
- Compatible with Tricon v10.2 and later systems
- Suitable for SIL 1–3 safety instrumented systems
FAQ
What is the TRICONEX 3721?
It is a Triconex 32-point differential TMR analog input module used in Tricon safety control systems for high-integrity analog signal acquisition.
Is the 3721 a digital input or communication module?
No. Although some third-party listings describe it differently, official Tricon documentation identifies the 3721 as a TMR analog input module.
What input signals does it support?
It supports 0 to 5 VDC unipolar and –5 to +5 VDC bipolar inputs, configured in TriStation 1131.
Can it be replaced online?
Yes. The module supports hot-swap replacement when performed according to Triconex procedures and site safety rules.
Which Tricon firmware is required?
The 3721 requires Tricon v10.2 or later.
Can the 3721 replace the 3720 directly?
Not necessarily. The 3721 is a 32-channel differential module, while the 3720 is a 64-point single-ended analog input module. Substitution requires engineering review of wiring, channel mapping, isolation, and configuration.
