Triconex 3604E 16-Channel Non-Commoned TMR Digital Output Module, SIL 3 SIS Module

Description

Triconex 3604E 16-Channel Non-Commoned TMR Digital Output Module, SIL 3 SIS Module

Product Description

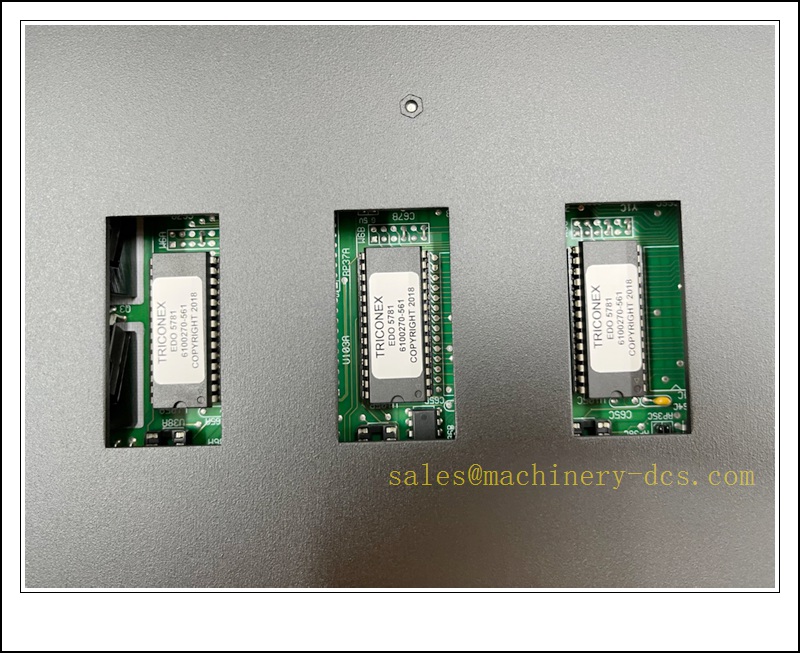

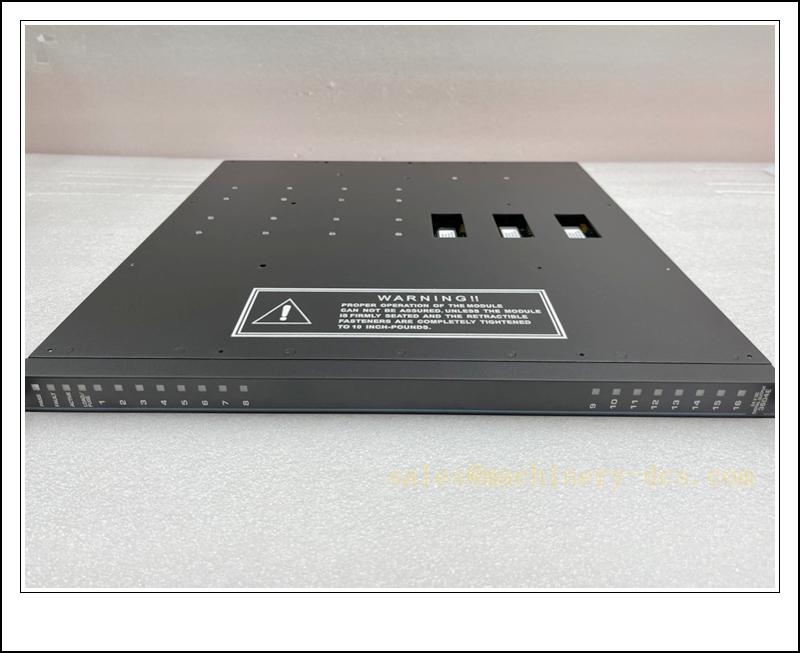

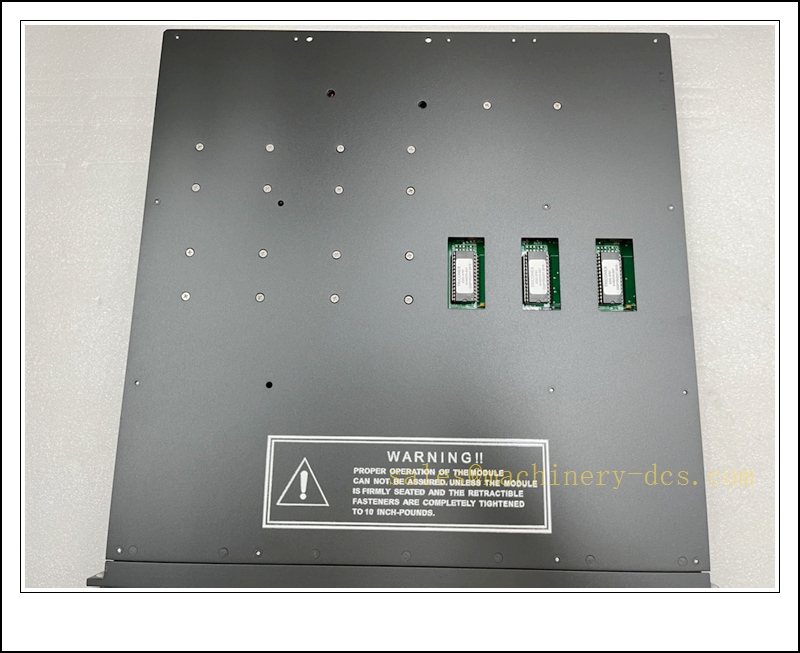

The 3604E is a triple modular redundant (TMR) digital output module built for the Tricon Safety Instrumented System (SIS). It receives voted digital commands from the Tricon main processor and drives 16 independent, non-commoned 24 VDC field outputs to energize or de-energize solenoid valves, relay coils, trip solenoids and other discrete safety final elements. Based on 2oo3 voting architecture, three isolated internal processing paths execute the same output command; the module votes the valid state to suppress single internal faults without spurious actuation or loss of trip capability. Each output channel features independent fusing and loopback diagnostics to detect open load, short circuit, overload and internal circuit faults. Fault information is transmitted to the Tricon chassis and TriStation software for alarm logging and maintenance. The module supports hot-swap operation while the rack remains online, which enables maintenance in continuous process facilities without shutting down the entire safety system. It connects to the Tricon triplicated backplane bus and requires an external termination panel (ETP) for field wiring.

TRICONEX 3604E

Technical Specifications

• Brand: Triconex (Schneider Electric)
• Model: 3604E
• Module Type: Digital Output (DO)
• Architecture: TMR Triple Modular Redundancy, 2oo3 voting
• Channel Count: 16 non-commoned isolated output points
• Nominal Output Voltage: 24 VDC
• Operating Voltage Range: 22–45 VDC
• Rated Current: 2 A per channel
• Isolation: 1500 VDC field-to-backplane galvanic isolation
• Per-channel Protection: Individual fast-acting fuses
• Diagnostics: Loopback load detection, short-circuit, overload, open load, module self-test, leg fault detection
• Backplane Interface: Tricon triplicated system bus
• Hot Swap: Supported with healthy rack online
• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5% to 95% non-condensing
• Safety Certification: SIL 3 capable per IEC 61508
• Configuration Software: TriStation
• Power Source: Powered via Tricon chassis backplane

Application Scenarios

• Petrochemical and refinery ESD emergency shutdown solenoid control
• Onshore and offshore oil & gas safety interlock systems
• Power plant boiler protection, turbine trip and burner management systems (BMS)
• LNG terminal and cryogenic process safety shutdown circuits
• Pipeline pressure protection, fire and gas suppression actuation
• Chemical continuous process safety solenoid and relay driving
• Hazardous Class I Div 2 / Zone 2 SIS control cabinets
• Safety loops requiring 24 VDC discrete outputs with SIL 3 fault tolerance

8 Related Triconex Model Recommendations

1. 3707A – Digital Output Module
2. 3603E – 16-Channel Commoned TMR Digital Output Module
3. 3504E – 64-Point High Density Commoned Digital Input Module
4. 3503E – 32-Point Digital Input Module
5. 3704E – 8-Channel Analog Output Module
6. 3805E – Tricon Main Processor Module
7. 4000098-510 – Tricon Redundant Power Supply
8. 3721 – Communication Interface Module

Compatibility & Installation Pitfalls

Compatibility

• Designed exclusively for Tricon TMR chassis and Tricon backplane; incompatible with Bently Nevada 3500 racks and other third-party SIS platforms.
• Requires compatible TriStation firmware for main processors and I/O firmware to retain SIL 3 certification.
• Non-commoned design; each output has an isolated return, so it is not interchangeable with commoned DO modules such as 3603E.
• Must be paired with the correct external termination panel (ETP) and matched ribbon cable assembly.
• Application logic is stored in the main processor, not on the 3604E; replacement does not require reloading logic.
• SIL 3 safety function depends on a complete healthy TMR rack; a standalone module cannot achieve SIL 3.

Installation Pitfalls

1. Hot-swap is permitted only when all three processor legs are healthy; never hot-swap during an active system fault or while the associated SIF is in a critical operating state.
2. This is non-commoned output; do not tie multiple channel returns together, as this creates cross-channel interference and invalidates isolation.
3. 24 VDC field wiring must be segregated from high-power AC and VFD cables; induced noise can cause unintended energization of solenoids.
4. Do not exceed 2 A per channel rating; overloading blows per-channel fuses and triggers diagnostic faults.
5. Verify failsafe state (energize-to-trip or de-energize-to-trip) in TriStation; misconfigured failsafe logic defeats the safety design.
6. Loopback diagnostics detect electrical circuit faults but cannot verify mechanical solenoid or valve actuator seizure; full functional proof-test is mandatory.
7. The module is mechanically keyed; do not force insertion into the wrong slot, which may damage the backplane connector.
8. Large inductive loads (solenoid coils) require suitable suppression; without flyback suppression, inductive kickback may degrade output circuits and cause false diagnostics.

TRICONEX 3604E

Standard Operating Procedure (SOP)

SOP for 3604E Digital Output Module Inspection, Installation and Functional Test

1. Pre-Installation Inspection Inspect the module for physical damage, connector pin deformation or contamination. Confirm the part number matches the SIS design package. Verify the matching external termination panel and ribbon cable. Review solenoid/relay coil ratings, load type and safety failsafe philosophy. Apply lockout-tagout to associated ESD and shutdown circuits before rack access.
2. Rack Installation Power down the rack if this module drives a critical safety function without redundant I/O path. Insert the 3604E into the designated Tricon I/O slot and engage the locking latch. Connect the ribbon cable from the rear module connector to the external termination panel. Terminate 24 VDC field solenoid or relay wiring on the ETP. Separate discrete output wiring from high-energy power circuits and apply inductive suppression for coil loads per approved SIS drawings.
3. Software Configuration Open TriStation and upload the existing Tricon application. Map the 3604E in the I/O configuration table. Define each channel’s failsafe state and enable loopback load diagnostics as required by the SIL safety plan. Download the validated application to the main processor and resolve all I/O configuration fault codes. Archive the safety application file for IEC 61508 audit traceability.
4. Channel Electrical and Diagnostic Test Isolate field actuators where required. Force output ON and OFF states from TriStation. Confirm channel status and load detection diagnostics respond correctly. Simulate short-circuit and open-load conditions to verify fault reporting and fuse protection. Confirm each channel reverts to the configured failsafe state on detected fault.
5. Final Element Functional Verification Reconnect solenoids or relay loads. Force safety trip and reset commands, verify actuator energization and de-energization match the safety sequence. Confirm TMR voting rejects single-leg faults and prevents spurious solenoid operation. Record all output response, diagnostic and failsafe test results in the SIS proof-test log.
6. Return to Service Clear all temporary test forces and diagnostic latches. Remove lockout tags and restore the safety shutdown loop to online status. Monitor module health and channel diagnostics for the required observation period. Notify operations that discrete safety output control is active.
7. Periodic Maintenance and Replacement During planned outages, inspect ETP terminal torque, cable integrity and coil suppression components. Repeat channel status, fault detection and full actuator stroke testing per the site SIS proof-test schedule. If persistent unrecoverable TMR leg faults occur, confirm rack health before hot-swap. After installing a replacement module, confirm automatic synchronization with the Tricon processor, re-run the full channel, diagnostic and actuator functional test before releasing the module to safety duty.
