TRICONEX 1600071-001 Trisen TurboSentry Turbine Overspeed Protection Unit, TMR Turbine Speed Monitoring Controller, Power Plant Turbo Machinery Safety Spare Part

Description

TRICONEX 1600071-001 Trisen TurboSentry Turbine Overspeed Protection Unit, TMR Turbine Speed Monitoring Controller, Power Plant Turbo Machinery Safety Spare Part

Product Application

1600071-001 is the Trisen TurboSentry overspeed protection controller developed by Triconex (Invensys / Schneider). It adopts triple modular redundancy (TMR) architecture for turbine speed monitoring, overspeed trip protection and local speed display. It receives pulse signals from magnetic pick-up speed sensors, calculates turbine rotational speed, executes overspeed alarm and emergency trip logic to prevent turbine over-speed catastrophic failure.

• Thermal power plant steam turbine overspeed safety protection
• Combined cycle gas turbine shaft speed monitoring and trip control
• Petrochemical large steam turbine / expander machinery protection
• Power plant legacy Trisen TurboSentry system spare replacement
• On-site local speed indication, alarm setting and trip test
• Integration with Tricon TMR safety system for turbine safety interlock

TRICONEX 1600071-001

Specifications

• Part Number: 1600071-001
• Brand: TRICONEX (Schneider Electric)
• Product Type: Trisen TurboSentry Turbine Overspeed Protection Unit
• Mounting: Panel / chassis mounting
• Dimension: 152 × 76 × 102 mm
• Weight: Approx. 2.1 kg
• Power supply: 24VDC auxiliary power
• Speed Input: Magnetic pickup pulse signal input
• Architecture: TMR triple modular redundancy
• Protection Class: IP20
• Condition: Original new / refurbished spare available
• Compliance: CE, IEC 61508 SIL3 certified

Parameters

• Speed Measurement Range: Configurable for turbine shaft speed
• Trip Logic: 2-out-of-3 voting overspeed trip
• Front Panel: Digital LED display, function keys, status LED indicators, key switch
• Communication: Internal bus interface to Tricon safety controller
• Operating Temperature: -20°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Relative Humidity: 5%~95% RH, non-condensing
• Shock & Vibration: Comply with IEC 60068 power plant vibration standard
• Diagnostic: Sensor fault, loss of speed signal, hardware self-test, power supply fault detection

Key Features

1. TMR triple modular redundancy overspeed protection unit, SIL3 safety integrity level for turbine critical protection
2. 2-out-of-3 voting trip logic, effectively avoid single component failure causing false trip or failure to trip
3. Accepts magnetic pickup sensor pulse signals, real-time turbine shaft speed calculation
4. Front panel digital display, local parameter configuration, overspeed threshold setting and trip simulation test
5. Multiple hardware and sensor fault diagnosis, fault alarm and event recording
6. Rugged metal housing, suitable for power plant and petrochemical heavy EMI cabinet environment
7. Can work standalone or communicate with Tricon safety PLC for turbine safety interlock
8. Discontinued legacy Triconex turbine safety spare, critical replacement unit for existing TurboSentry installations

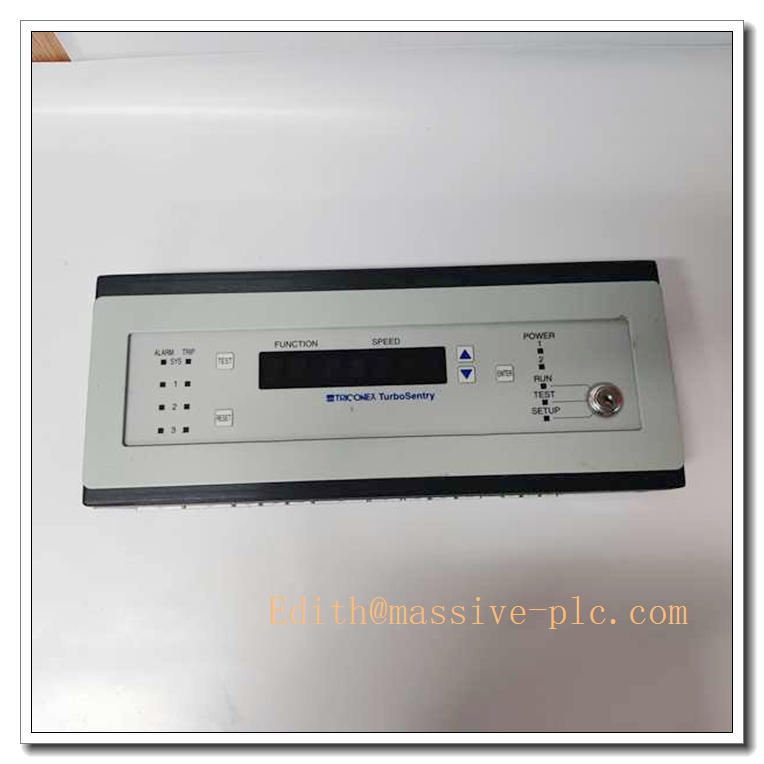

TRICONEX 1600071-001

Same Series Related Models (≥6)

1. 1600071-001
2. 1600070-001
3. 1600072-001
4. 3503E
5. 3604E
6. 3700A
7. 4000098-510

Maintenance

• Routine inspection: Check LED status, sensor wiring, power supply and front panel key switch every 6–12 months
• Clean front panel with soft dry cloth; avoid strong solvent to prevent damage to display and keypad
• ESD protection must be adopted during disassembly, anti-static wristband required
• If speed reading loss or overspeed false alarm occurs, power off and check magnetic pickup sensor cable and mounting gap
• Do not energize the unit if housing damage or condensation is found
• We support function testing, refurbishment and spare replacement service for this Trisen TurboSentry overspeed protection unit

Installation

1. Cut off 24VDC auxiliary power supply and sensor signal power before replacement, implement lockout-tagout procedure.
2. Wear anti-static wristband to prevent electrostatic damage to internal TMR circuit.
3. Mount 1600071-001 unit firmly on cabinet panel, keep housing intact.
4. Connect magnetic pickup speed sensor signal wires, 24VDC power supply and communication cable to Tricon system, properly ground cable shielding.
5. Restore power supply, enter configuration menu, set turbine rated speed, overspeed alarm and trip thresholds.
6. Check all wiring and confirm no loose connections.
7. Verify speed reading on front panel display.
8. Perform trip simulation test, validate 2oo3 voting protection logic and complete commissioning.
