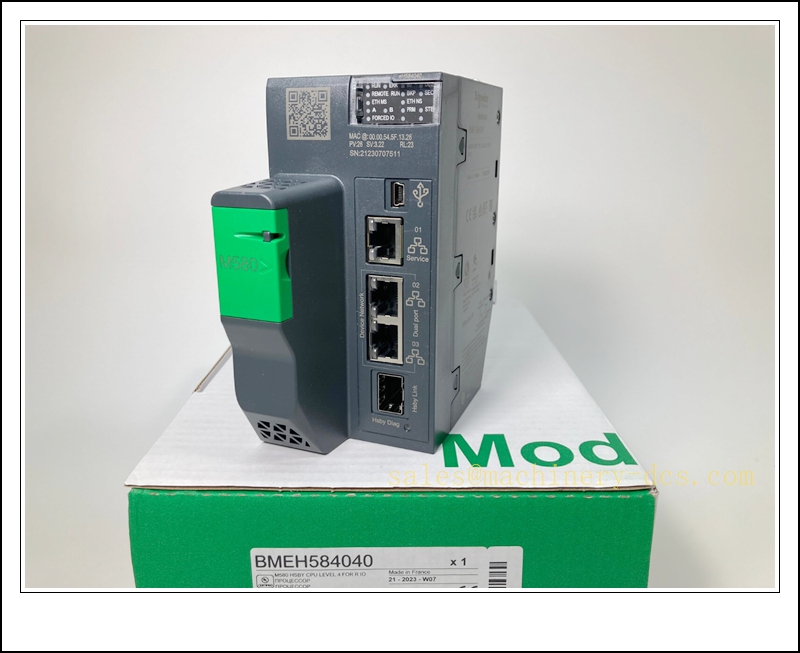

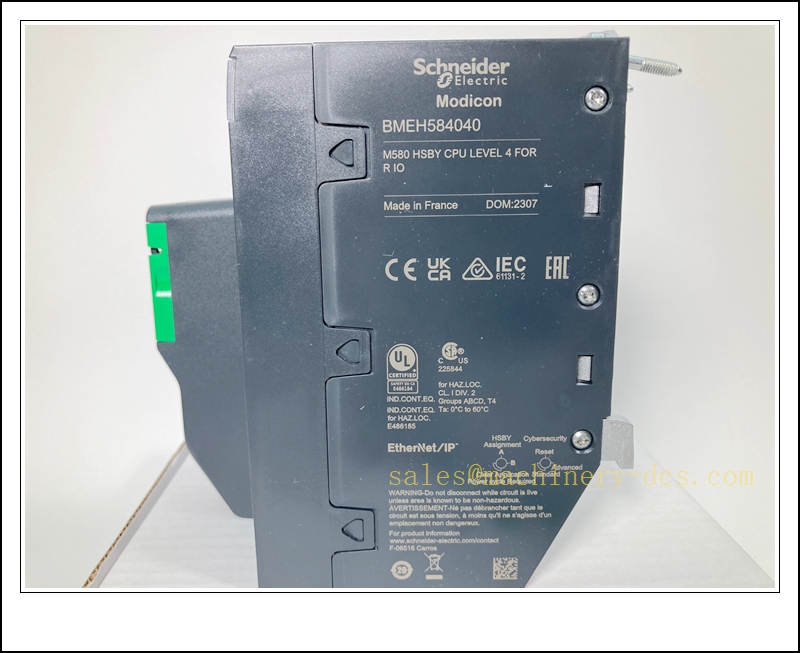

Schneider BMEH584040 Modicon M580 Hot Standby Redundant PAC Processor, Level 4 Remote, 16MB Program Memory

Description

Schneider BMEH584040 Modicon M580 Hot Standby Redundant PAC Processor, Level 4 Remote, 16MB Program Memory

Product Description

The BMEH584040 is a high-performance hot standby (HSBY) redundant processor within the Modicon M580 PAC family. Designed for high-availability industrial control systems, it supports dual-processor redundancy with automatic bumpless switchover upon primary CPU failure. This Level 4 remote processor features native Ethernet networking, executes IEC 61131-3 control logic, motion functions and closed-loop process regulation. It can manage up to 16 remote X80 or Quantum RIO racks and 61 Ethernet field devices. Integrated cybersecurity functions including embedded firewall, IPSec, audit trail and signed firmware help mitigate network attack risks. It supports high-speed peer synchronization between primary and standby controllers, ensuring data consistency and uninterrupted control for critical production assets. This model is non-safety variant and works with EcoStruxure Control Expert for project programming and commissioning.

Technical Specifications

• Brand: Schneider Electric
• Part Number: BMEH584040
• Series: Modicon M580
• Type: HSBY Redundant PAC Processor, Level 4 Remote
• Program Memory: 16 MB RAM
• Data Memory: 2048 kB RAM
• Storage: Expandable flash, up to 4 GB data logging storage
• Remote IIO Capacity: Max 16 X80 / Quantum RIO racks
• Ethernet Devices: Supports up to 61 Ethernet field nodes
• Interfaces:
  • 1 × Ethernet service port
  • 2 × Ethernet device network ports
  • 1 × dedicated HSBY synchronization Ethernet port
  • 1 × Mini-B USB programming port
• Task Structure: 1 master cyclic task, 1 fast periodic task
• Instruction Speed: 40 Kinst/ms for pure Boolean logic
• Power Supply: 24 VDC, typical consumption 360 mA
• Diagnostics: CPU self-test, backplane health, RIO communication status, sync loss, power fault, network diagnostic counters
• Cybersecurity: Achilles certified, DoS protection, embedded firewall, password enforcement, secure firmware signature, Syslog audit
• Mounting: Slot mounting on Modicon M580 backplane
• Operating Temperature: 0 °C ~ +60 °C
• Storage Temperature: -20 °C ~ +70 °C
• Relative Humidity: 5% ~ 95 %, non-condensing
• Vibration Resistance: 3 gn
• MTBF: 650000 hours
• Weight: Approx. 0.38 kg
• Certification: CE, TAA / BAA compliant

Application Scenarios

• Oil & gas upstream and midstream pipeline control with high availability requirement
• Petrochemical refining process control and critical interlock systems
• Power plant auxiliary control, boiler and turbine auxiliary PAC control
• Water & wastewater large-scale distributed remote I/O control networks
• Mining bulk material handling, conveyors and process automation
• Pharmaceutical batch production lines requiring zero-stop control
• Large packaging and material handling automation with motion synchronization
• Retrofit and spare replacement for existing M580 hot standby control racks

BMEH584040

8 Related Schneider Model Recommendations

1. BMEH584040S – M580 HSBY SIL3 Safety Redundant Processor
2. BMEH586040 – Level 6 HSBY Redundant Processor, 64MB memory
3. BMEH582040 – Level 2 HSBY Redundant Processor
4. BMEP584040 – Non-redundant Level 4 Remote Processor
5. BMENOC0301 – 3-port Ethernet Communication Module
6. BMEXBP0800 – 8-slot X80 Backplane
7. BMXCPS3500 – Rack Power Supply
8. 490NAC0100 – HSBY Synchronization Ethernet Cable Kit

Compatibility & Installation Pitfalls

Compatibility

• Belongs exclusively to Modicon platform; incompatible with Modicon Quantum, Premium or M340 native backplanes.
• Requires EcoStruxure Control Expert; safety version BMEH584040S requires Control Expert XLS safety edition, which is not applicable to this non-safety BMEH584040.
• Hot standby pair must use identical firmware revision; mismatched firmware will break synchronization.
• Hardware Product Version (PV ≤ 3) cannot be upgraded to firmware SV4.01 or newer, permanent bricking risk applies.
• Supports remote X80 RIO and legacy Quantum RIO drops, but mixed rack topologies must follow Schneider RIO bandwidth limits.
• This processor does not support local onboard I/O; all field signals are via remote RIO racks.

Installation Pitfalls

1. Isolate rack 24 VDC power before CPU insertion or removal; live insertion risks backplane bus damage.
2. HSBY synchronization port must use dedicated sync cable; shared LAN for synchronization causes switchover failure and data desync.
3. Primary and standby CPU must be assigned unique IP addresses; duplicate IPs crash the redundant pair.
4. Separate HSBY sync network, control network and service/engineering network physically or via VLAN segmentation.
5. Firmware upgrade must verify PV revision label; PV 3 and earlier units have strict upper firmware limits.
6. Project application must be fully downloaded to both primary and standby; standby CPU will not auto-sync program after replacement.
7. Maintain cabinet airflow; high ambient temperature increases cycle jitter and triggers CPU over-temperature fault.
8. After spare CPU replacement, verify redundancy switchover test; only downloading program does not confirm bumpless transfer.

Standard Operating Procedure (SOP)

SOP for BMEH584040 Redundant Processor Inspection, Installation and Functional Test

1. Pre-Installation Inspection Examine the CPU housing, backplane connector and port interface for physical damage, bent pins or contamination. Confirm part number BMEH584040 and hardware PV revision. Verify compatibility with backplane, RIO topology, firmware and EcoStruxure Control Expert version. Review control drawings and apply lockout-tagout to rack 24 VDC power and remote I/O power supplies.
2. Rack Installation Insert the primary and standby CPUs into designated slots of the backplane and lock latches. Wire 24 VDC rack supply. Connect dedicated HSBY sync cable between the two processors. Terminate Ethernet control network, service port and USB programming cable. Segregate synchronization network, control network and engineering access network, implement EMC shielding per Schneider specifications.
3. Project Configuration & Download Restore rack 24 VDC power. Launch EcoStruxure Control Expert and establish online connection. Configure HSBY redundancy parameters, IP addressing, RIO mapping and task cycle settings. Compile and download the validated control application to both primary and standby processors. Save full offline project backup including source code, hardware configuration and RIO parameters. Resolve sync, backplane or RIO identification alarms before field testing.
4. Redundancy & Communication Test Verify primary/standby status LED indication. Execute manual switchover test by forcing primary CPU to standby state, confirm bumpless transfer without control interruption. Monitor RIO status, Ethernet device health and sync data latency in diagnostic viewer. Simulate network disconnection and CPU fault conditions to validate alarm reporting. Record switchover response time and diagnostic behaviour in the test log.
5. Process Commissioning Release field I/O isolation only after redundancy and point-level tests pass. Enable automatic control sequences and closed-loop regulation. Monitor CPU load, task jitter and RIO communication stability under full process load. Confirm fault conditions trigger pre-defined safe states and alarms instead of uncontrolled actuator movement. Cross-check data transmission to SCADA and HMI systems.
6. Return to Service Reset fault latches and acknowledge diagnostic alarms. Remove lockout-tagout and close work permit. Continuously monitor redundancy status, sync health and network quality through the supervised observation window. Notify operation staff that the redundant PAC processor system is ready for normal production control.
7. Periodic Maintenance and Replacement During scheduled shutdown, inspect backplane connectors, cable condition, cabinet cooling and LED status. Execute forced redundancy switchover proof-test according to plant maintenance schedule. If persistent unrecoverable CPU or synchronization faults occur, isolate rack power before replacing the spare processor. After replacement, re-download application to both controllers, re-run full redundancy switchover test and RIO validation before returning online.
