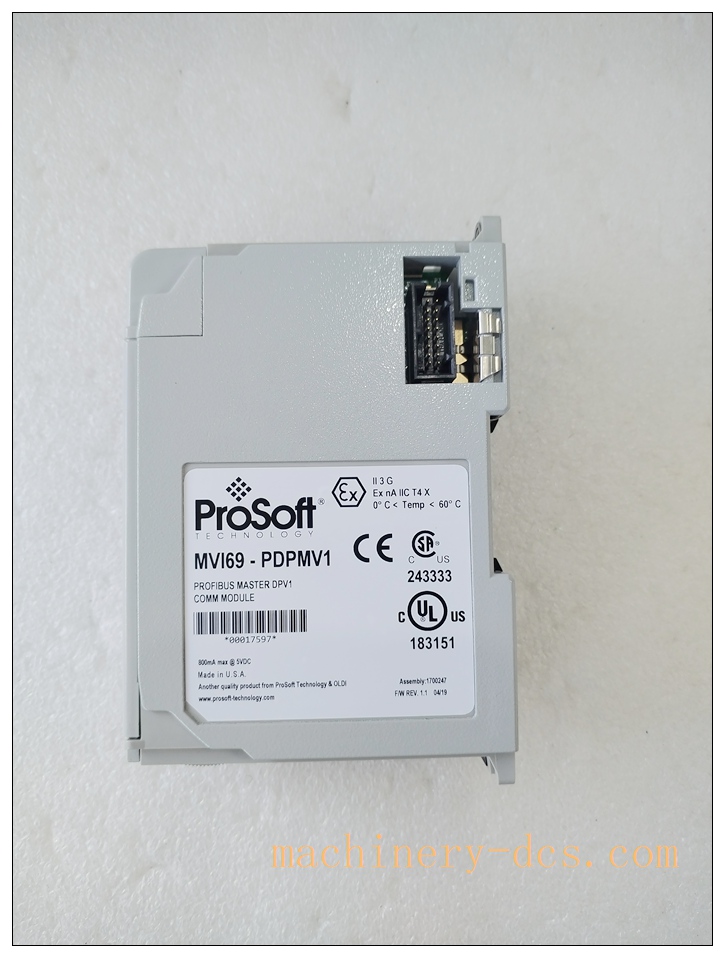

ProSoft MVI69‑PDPMV1 PROFIBUS DP‑V1 Master Communication Module for CompactLogix / MicroLogix 1500 LRP - Image 3

ProSoft MVI69‑PDPMV1 PROFIBUS DP‑V1 Master Communication Module for CompactLogix / MicroLogix 1500 LRP

  1. ILX69‑PBM (Direct successor PROFIBUS‑DPV1 master for CompactLogix)
  2. MVI69‑PDPS (PROFIBUS‑DP slave module for CompactLogix)
  3. MVI56‑PDPMV1 (ControlLogix PROFIBUS‑DPV1 master module)
  4. 1769‑L30ER (CompactLogix controller platform)
  5. PS69‑DPM (Earlier generation CompactLogix PROFIBUS master)
  6. MVI69‑MODBUS series (MVI69 communication family)
  7. CI854A (ABB AC800M PROFIBUS‑DP master module)



Add To Quote
Category: SKU: ProSoft MVI69‑PDPMV1 Brand:

Description

ProSoft MVI69‑PDPMV1 PROFIBUS DP‑V1 Master Communication Module for CompactLogix / MicroLogix 1500 LRP



Product Details

MVI69‑PDPMV1 is single‑slot 1769 backplane PROFIBUS DP‑V1 master scanner module manufactured by ProSoft Technology under Rockwell license, fits CompactLogix chassis and MicroLogix 1500 LRP racksProSoft Te…. Origin: USA. Lifecycle status: EOL discontinued, successor model ILX69‑PBM; OEM new production stopped, market supply includes NOS surplus and fully‑tested refurbished spare‑partsProSoft Te….

‑ Form factor: 1‑slot 1769 standard module ‑ Backplane load: 450 mA @5VDC; distance rating 4 ‑ Protocol: PROFIBUS‑DP‑V0 / DP‑V1 Master (IEC 61158), supports Class 1 / Class 2 acyclic DPV1 services ‑ Max slave count: up to 125 PROFIBUS‑DP slaves ‑ Baud rate: 9.6 kbps‑12 Mbps full standard PROFIBUS baud rates ‑ PROFIBUS interface: 9‑pin D‑Sub female connector, electrical isolation ‑ Configuration tool: ProSoft Configuration Builder (PSW‑PCB), import GSD files; serial debug port on front face ‑ Data exchange: via CompactLogix backplane, uses Add‑On‑Instructions(AOI) / ladder logic for tag‑based data mapping ‑ Operating temperature: 0℃ ~ +60℃; storage ‑40℃ ~ +85℃, IP20 cabinet‑mount ‑ Dimension: 145 × 35 × 94 mm, weight approx 0.27 kg ‑ Multi‑module support: multiple MVI69‑PDPMV1 can co‑exist in one chassis for multiple independent PROFIBUS networks

Note: Replacement part number is ILX69‑PBM; firmware and project migration required when substituting, cannot hot‑swap under some firmware versionsProSoft Te….



Applications

‑ CompactLogix system connecting PROFIBUS‑DP slaves: VFD, remote‑I/O, valve islands, mass‑flow meters ‑ Petrochemical, water‑treatment, packaging machinery factory automation ‑ DPV1 acyclic parameter access for intelligent PROFIBUS field devices ‑ Retrofit & spare‑part replacement for legacy CompactLogix PROFIBUS installations ‑ Spare inventory for industrial automation maintenance department

MVI69-PDPMV1

Related Series Models (6+)

  1. ILX69‑PBM (Direct successor PROFIBUS‑DPV1 master for CompactLogix)
  2. MVI69‑PDPS (PROFIBUS‑DP slave module for CompactLogix)
  3. MVI56‑PDPMV1 (ControlLogix PROFIBUS‑DPV1 master module)
  4. 1769‑L30ER (CompactLogix controller platform)
  5. PS69‑DPM (Earlier generation CompactLogix PROFIBUS master)
  6. MVI69‑MODBUS series (MVI69 communication family)
  7. CI854A (ABB AC800M PROFIBUS‑DP master module)



Key Features

  1. Single‑slot PROFIBUS‑DP‑V1 master scanner for Rockwell CompactLogix / MicroLogix 1500 LRP, licensed by Rockwell AutomationProSoft Te….
  2. Supports DP‑V0 cyclic I/O and DP‑V1 Class1/Class2 acyclic communication for parameter read/write and extended diagnostics.
  3. Up to 125 PROFIBUS‑DP slaves on network; multiple modules can be installed in one chassis for multi‑network architecture.
  4. GSD‑file import via ProSoft Configuration Builder; configuration saved to on‑board flash memory.
  5. AOI add‑on instructions and sample ladder simplify PROFIBUS‑DP data mapping to CompactLogix controller tags.

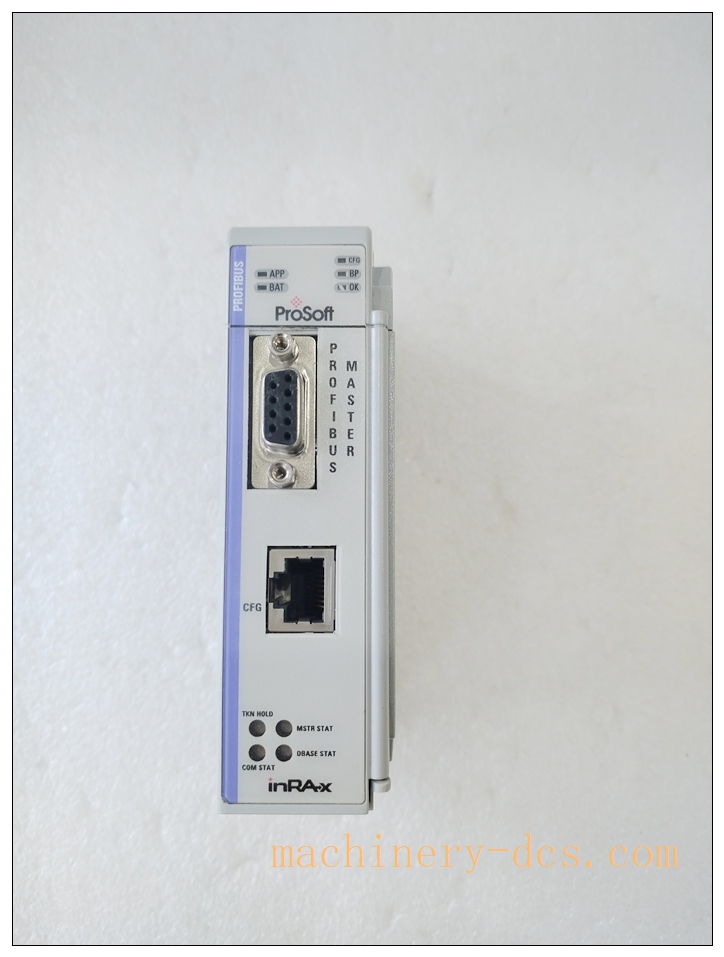

  6. Hardware‑isolated PROFIBUS electrical interface; front‑panel LED indicators for power, backplane, token‑holding and bus fault diagnostics.
  7. Recognized as standard 1769 I/O module by CompactLogix CPU; asynchronous data exchange between PROFIBUS network and Logix backplane.
  8. Manufactured in USA; EOL obsolete, ILX69‑PBM as migration replacement; only NOS or fully‑tested refurbished spare‑parts available.



Main Functions

  1. Act as PROFIBUS‑DP‑V1 network master scanner, manage cyclic input/output data exchange with PROFIBUS‑DP slave devices.
  2. Execute DP‑V1 acyclic services for intelligent field instruments: parameter upload/download, read extended diagnostic information.
  3. Realize protocol conversion between PROFIBUS‑DP and CompactLogix 1769 backplane, transfer process data to Logix controller tags.
  4. Monitor PROFIBUS bus status, slave drop‑out and fault conditions; feed diagnostic status data back to PLC program.
  5. Support multi‑module installation for independent multiple PROFIBUS‑DP networks within one CompactLogix rack.
  6. Serial debug port allows on‑site commissioning, configuration download and troubleshooting without Ethernet connection.
  7. Cooperate with CompactLogix CPU, power supply and other I/O modules to build hybrid Rockwell‑PROFIBUS automation architecture.
  8. Serve as PROFIBUS‑DP‑V1 master communication gateway inside CompactLogix control chassis.
