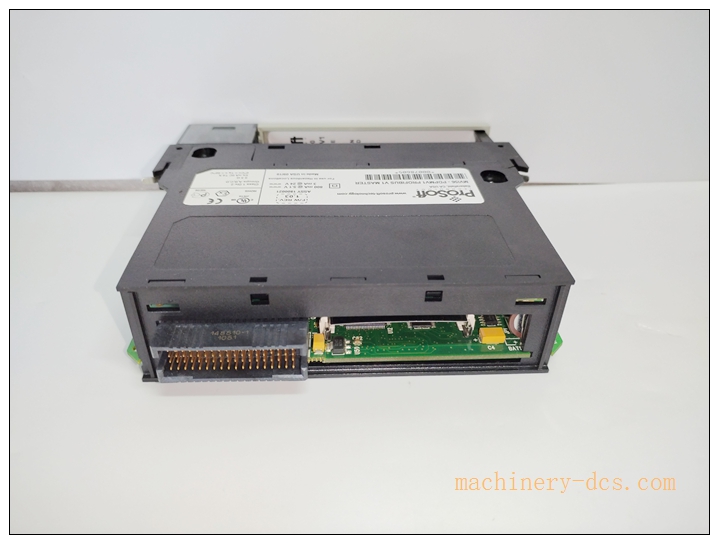

ProSoft MVI56-PDPMV1 ControlLogix PROFIBUS DPV1 Master Communication Module

Description

ProSoft MVI56-PDPMV1 ControlLogix PROFIBUS DPV1 Master Communication Module

Product Description

The MVI56-PDPMV1 is an in-chassis PROFIBUS DPV1 master gateway module manufactured by ProSoft Technology for Rockwell Allen‑Bradley ControlLogix rack. It acts as the PROFIBUS DP master, bridging ControlLogix controller and PROFIBUS DP/DPV0/DPV1 slave field devices. It exchanges cyclic I/O data and acyclic parameter data via the ControlLogix backplane. It supports PROFIdrive, Sync/Freeze commands, DPV1 alarm and asset management services, which allows reading/writing drive and instrument parameters. The PROFIBUS port uses optical isolation to protect the PLC backplane from surge and ground-loop noise. It is hot-swappable, equipped with a DB9 PROFIBUS connector and an RS232 CFG configuration port, widely used for integrating European PROFIBUS devices into Rockwell ControlLogix systems in process and factory automation.

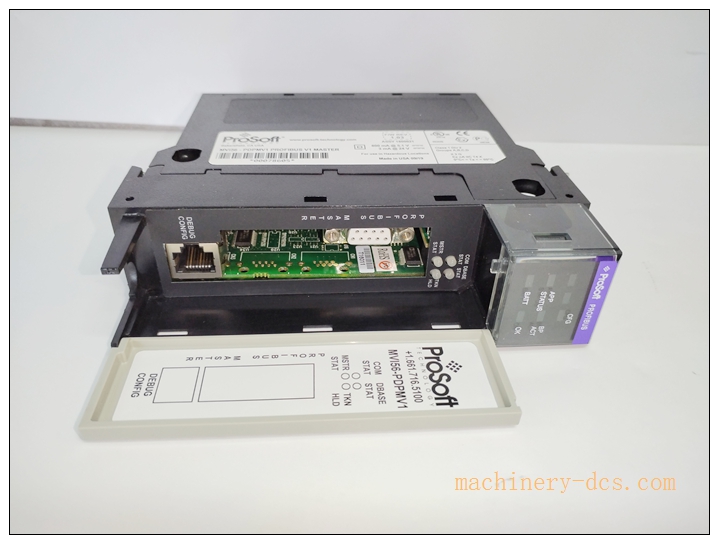

MVI56-PDPMV1

Technical Specifications

• Part Number: MVI56-PDPMV1
• Manufacturer: ProSoft Technology
• Series: MVI56 ControlLogix In-chassis Module
• Device Type: PROFIBUS DPV1 Master Gateway
• PROFIBUS Interface: DB9 female RS485, optically isolated
• Supported Protocol: PROFIBUS DP V0 / V1, PROFIdrive 3.1
• Baud Rate: 9.6k ~ 12Mbps configurable
• Max Slaves: Up to 125 PROFIBUS DP slaves
• Cyclic I/O: Max 1536 bytes input / 1536 bytes output total
• Backplane Current Draw: 800mA @5.1VDC; 3mA @24VDC
• Power Dissipation: Approx. 4.1W
• Isolation: 1500Vrms isolation between PROFIBUS and backplane
• Configuration Port: RJ45 RS232 CFG port (with DB9 adapter cable)
• CIPConnect: Supported via 1756 Ethernet module for remote configuration
• Operating Temperature: 0°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Relative Humidity: 5%~95%, non-condensing
• Mounting: Single slot inside 1756 ControlLogix chassis
• Hot Swap: Supported
• Weight: Approx. 0.29 kg
• Certifications: CE, UL, Class I Div.2 hazardous location approval

Key Features

1. PROFIBUS DPV1 master module for ControlLogix to connect PROFIBUS DP slave devices
2. Supports cyclic real-time I/O and acyclic parameter read/write, PROFIdrive compatible
3. Optical isolation on PROFIBUS RS485 port to reduce surge and ground loop risk
4. Supports Sync/Freeze, alarms, extended slave diagnostics and asset management
5. CIPConnect function for remote configuration and diagnostics over EtherNet/IP
6. Hot-swappable design for rack maintenance without full system shutdown
7. LED indicators for module, backplane, bus token and communication fault diagnosis
8. Configuration via ProSoft Configuration Builder (PCB), Add-on Instructions for Studio5000

Application Scenarios

• Petrochemical plants integrating Siemens PROFIBUS VFD, valve islands and remote I/O
• Power plant auxiliary control connecting PROFIBUS drives and field instruments
• Automotive assembly line automation with European PROFIBUS machinery
• Cement and mining heavy-duty drive and PROFIBUS field bus control
• Pulp & paper mill production line PROFIBUS motor and sensor network
• Water & wastewater treatment plant PROFIBUS analysers and actuators
• Food & beverage batch lines with PROFIBUS weighing instruments and controllers
• Migration project: integrating legacy PROFIBUS systems into Rockwell ControlLogix PLC

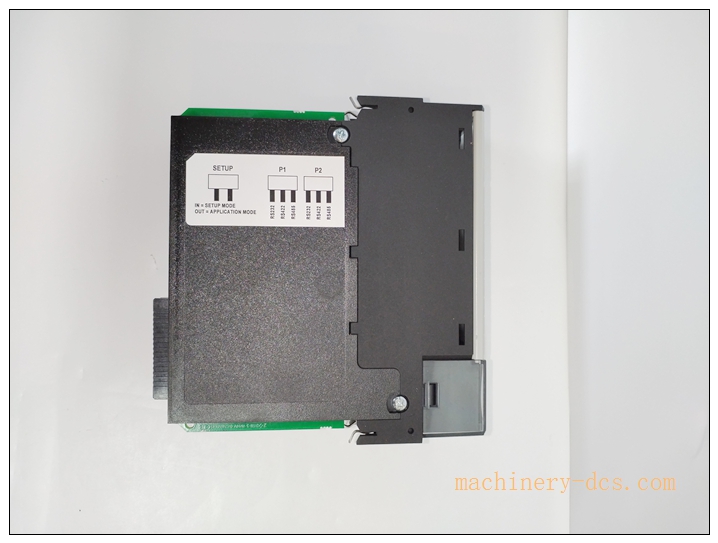

MVI56-PDPMV1

Matching / Auxiliary Components

• 1756 ControlLogix chassis and backplane
• ControlLogix CPU (1756-L71 / L72 / L73 / L81E etc.)
• 1756 series rack power supply (1756-PA75 / PB72)
• PROFIBUS shielded twisted pair cable and 120Ω bus terminator
• RS232 configuration cable (included with module)
• Studio5000 / RSLogix5000 programming software
• ProSoft Configuration Builder (PCB) software
• PROFIBUS DP slave devices: VFD, remote I/O, valve terminals, analysers
