ProSoft ILX34-MBS485 1734 Point I/O Modbus RTU RS485 Serial Communication Module

Description

ProSoft ILX34-MBS485 1734 Point I/O Modbus RTU RS485 Serial Communication Module

Product Description

The ILX34-MBS485 is a compact Modbus serial communication module developed by ProSoft Technology for Rockwell 1734 Point I/O and CompactLogix L1 series controllers. It provides an RS485/422 serial port and can be flexibly configured as either Modbus Master or Modbus Slave. It exchanges data with the CompactLogix CPU via PointBus backplane and communicates with Modbus RTU field instruments, meters, drives and remote SCADA devices over RS485 bus. It supports both Modbus RTU and ASCII modes, with built-in optical isolation for serial side to protect the PLC rack from surge and ground loop interference. It adopts modular Point I/O structure and needs to be matched with 1734-TB/TBS wiring base. Add-on instructions and UDT data structures are provided in Studio5000 for easy programming and diagnostic tag reading, widely used for protocol conversion in skid automation and legacy field device integration.

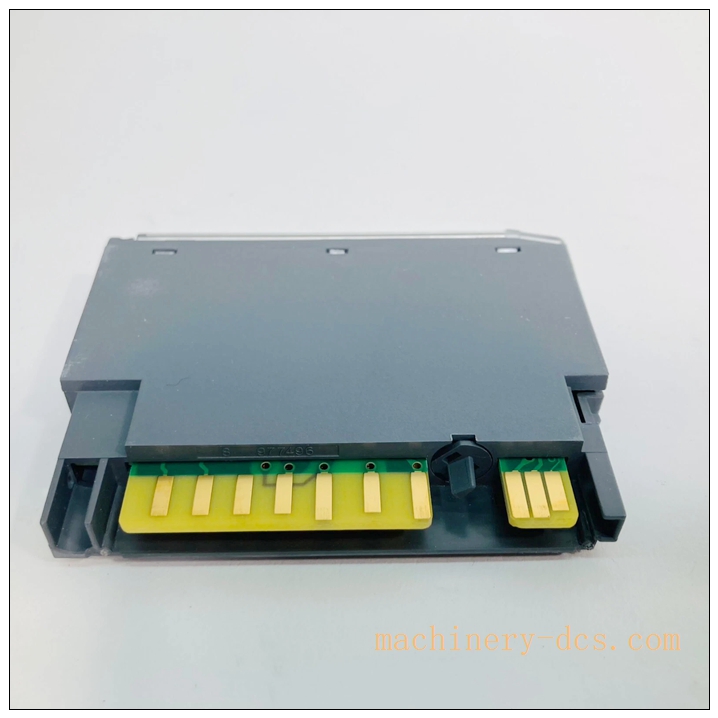

ILX34-MBS485

Technical Specifications

• Part Number: ILX34-MBS485
• Manufacturer: ProSoft Technology
• Series: 1734 Point I/O / CompactLogix L1
• Device Type: Modbus Serial (RS485/422) Communication Module
• Serial Interface: 1 × RS485/422 full-duplex port
• Protocol: Modbus RTU (CRC16) / Modbus ASCII (LRC)
• Mode: Configurable as Modbus Master or Slave
• Baud Rate: 110 ~ 38400 bps
• Data format: 7/8 bits; parity: none / even / odd; stop bit:1 or 2
• Node Address Range: 1~247
• PointBus Current Draw: 75mA @5VDC
• External Power: 10~28.8 VDC
• Isolation: 2500Vrms optical isolation on serial side
• Supported Modbus functions: 01,02,03,04,05,06,08,15,16
• Max commands: 30 Modbus commands, max 36 words per command
• Max user data: up to 1000 words

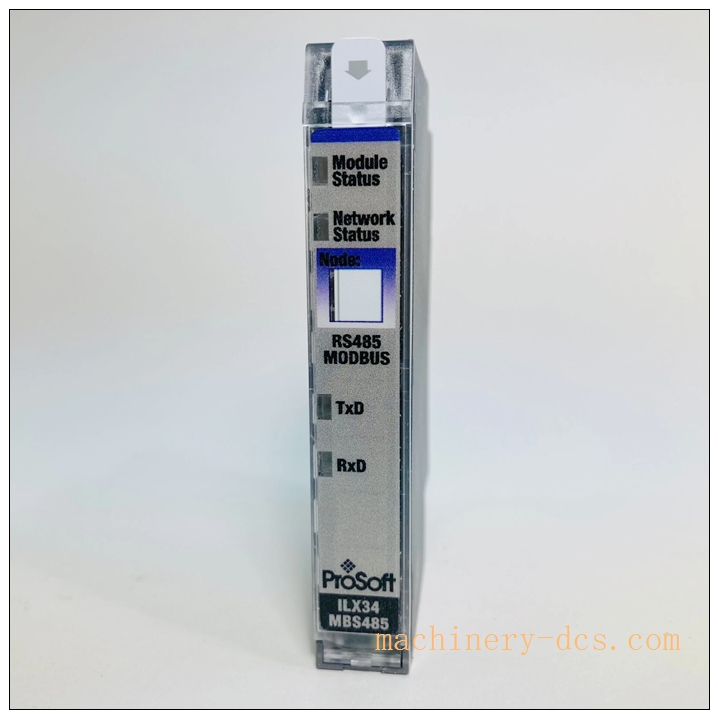

• LED Indicators: Module status, network status, TXD, RXD
• Operating Temperature: -20°C ~ +55°C
• Storage Temperature: -40°C ~ +85°C
• Relative Humidity: 5%~95%, non-condensing
• Mounting: Installed on 1734-TB / TBS wiring base, 35mm DIN rail
• Weight: Approx. 0.11 kg
• Certifications: CE, UL

Key Features

1. Dual-mode configurable: Modbus Master or Slave over RS485/422 serial bus
2. Optical isolation between serial field side and PointBus backplane for surge protection
3. Supports Modbus RTU / ASCII, covers most standard Modbus function codes
4. Built-in Add-on Instructions and UDT tags for Studio5000 programming
5. Up to 30 Modbus commands, supports batch reading & writing of registers
6. Long-distance transmission, up to 1219m (4000ft) on bus
7. Compact Point I/O modular design, easy expansion and spare replacement
8. Real-time communication diagnostic tags for quick troubleshooting in PLC program

Application Scenarios

• Petrochemical skid-mounted control connecting Modbus transmitters and valve positioners
• Water & wastewater plant flow meters, level gauges and analyser communication
• Power auxiliary equipment Modbus instrument data acquisition
• Food & beverage production line temperature controllers and weighing instruments
• HVAC and energy management system Modbus meter reading
• Cement and mining plant VFD and local instrument serial communication
• Refinery legacy Modbus field device integration with Rockwell CompactLogix
• Small remote skid SCADA telemetry and data collection

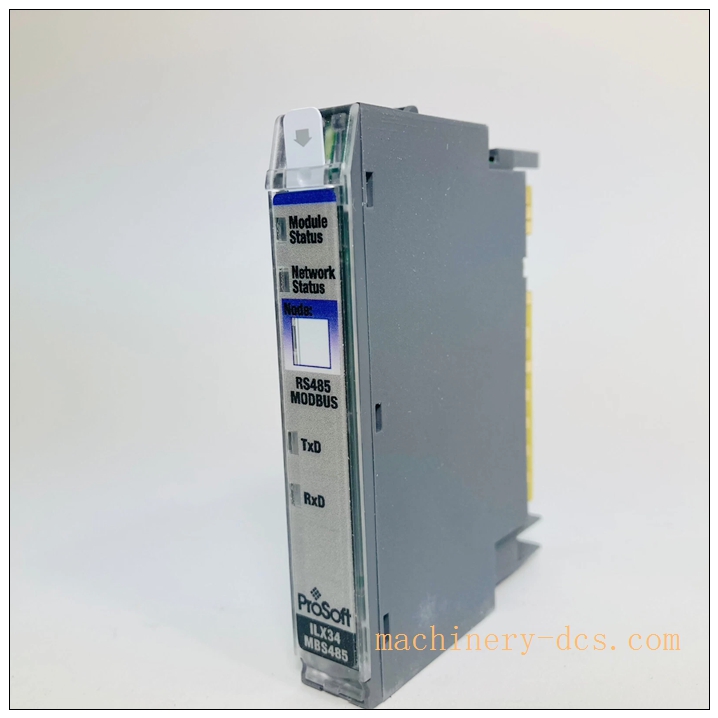

ILX34-MBS485

Matching / Auxiliary Components

• 1734 Point I/O wiring base: 1734-TB / 1734-TBS
• CompactLogix L1 controller (1769-L16ER, L18ER etc.)
• 1734 Point I/O power supply module
• Shielded twisted pair serial cable
• 120Ω terminal resistor for bus end
• Studio5000 / RSLogix5000 programming software
• ProSoft module configuration add-on profile
• Modbus RTU field devices: transmitters, meters, VFD, temperature controllers
