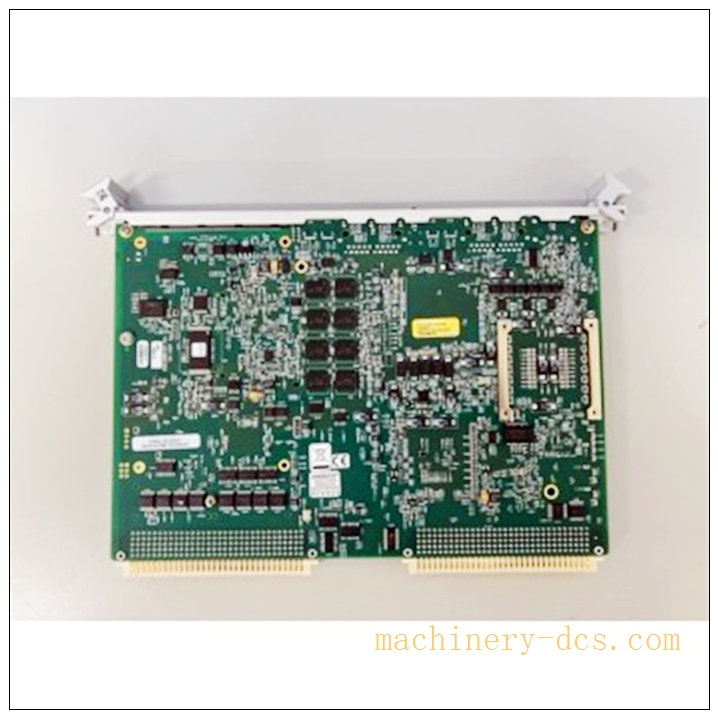

LAM RESEARCH 605‑109114‑004 VME Single‑Board Computer (OEM GE V7668A‑132L00W04)
LAM RESEARCH 605‑109114‑004 VME Single‑Board Computer (OEM GE V7668A‑132L00W04) - Image 2

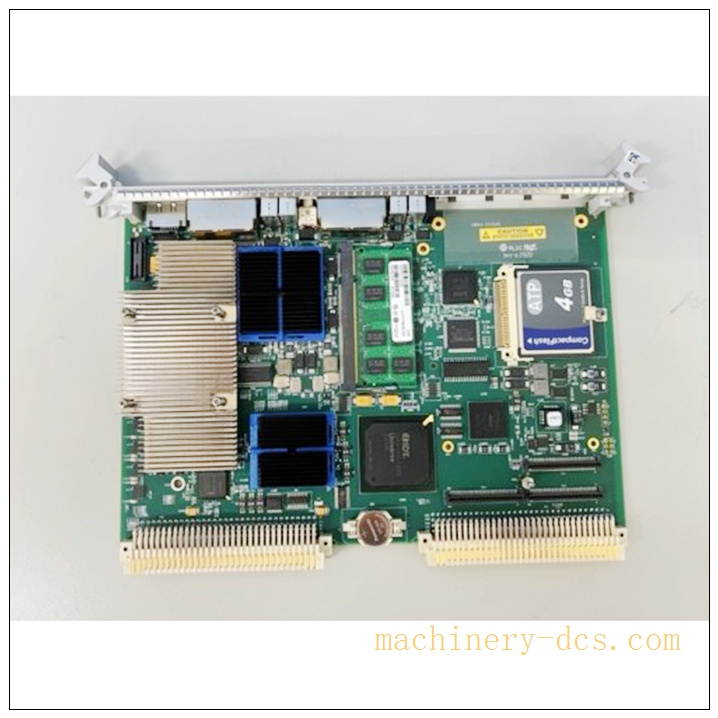

LAM RESEARCH 605‑109114‑004 VME Single‑Board Computer (OEM GE V7668A‑132L00W04) - Image 3

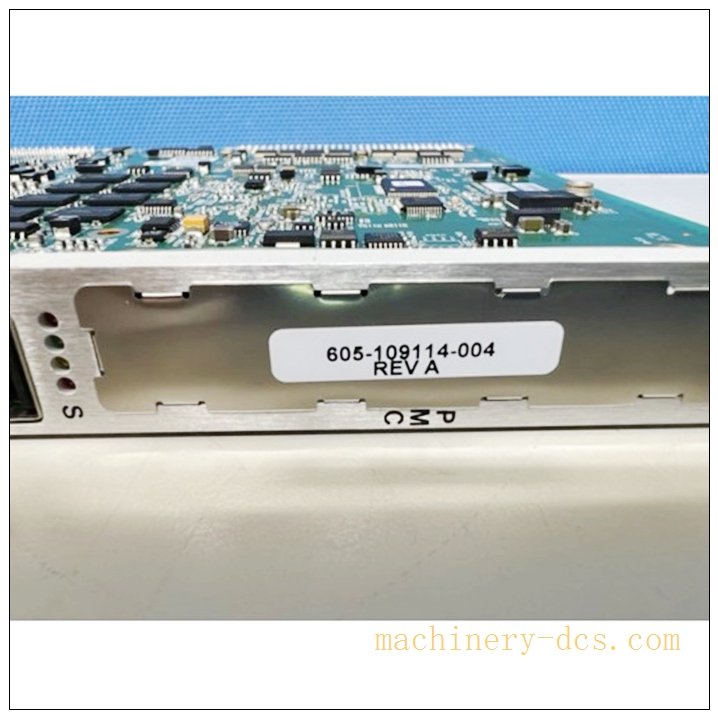

LAM RESEARCH 605‑109114‑004 VME Single‑Board Computer (OEM GE V7668A‑132L00W04) - Image 4

LAM RESEARCH 605‑109114‑004 VME Single‑Board Computer (OEM GE V7668A‑132L00W04)

  1. 605‑109114‑003: Predecessor SBC variant; hardware platform similar, requires full OS re‑configuration, not direct drop‑in replacement
  2. 605‑A02119‑001: Updated Lam VME SBC for newer tool hardware revisions, check software‑image compatibility before substitution
  3. Modern ATCA‑based controller family: New‑generation Lam computing platform for complete tool migration projects
Add To Quote
Category: SKU: LAM RESEARCH 605‑109114‑004 Brand:

Description

LAM RESEARCH 605‑109114‑004 VME Single‑Board Computer (OEM GE V7668A‑132L00W04)



Product Detailed Description

605‑109114‑004 is a high‑performance VME‑bus single‑board computer OEM‑specified by Lam Research, built upon GE Intelligent Platforms V7668A hardware platform. This SBC serves as main system controller for Lam semiconductor etch and deposition process tools. It executes real‑time equipment sequence control, recipe execution, host communication, process‑data logging and hardware interlock management. On‑board resources include multi‑core processor, soldered RAM, CompactFlash local storage, quad‑port gigabit Ethernet, front‑panel USB and serial debug interfaces. It plugs into system VME chassis and interacts with other VME I/O boards via VME64X backplane bus. OEM original manufacturing is discontinued; available stock includes new‑old‑stock, factory‑refurbished and pulled used spares for fab tool maintenance and legacy‑asset life‑extension projects.

605-109114-004

Technical Parameters

Item Specification
Manufacturer Lam Research (OEM hardware: GE V7668A‑132L00W04)
Lam Part Number 605‑109114‑004
GE Base Part V7668A‑132L00W04
Product Status OEM Discontinued, spare‑part‑only supply
Form Factor 6U VME64X single‑board computer
Processor PowerPC multi‑core embedded CPU
Memory On‑board soldered RAM + user‑expandable memory bank
Local Storage CompactFlash socket for system boot image
Network Interface 4 × 10/100/1000 Base‑T Gigabit Ethernet ports
Front‑Panel I/O USB 2.0 ports, RS‑232 debug serial port
System Bus VME64X backplane interface
Auxiliary Power +5 V, +12 V supplied via VME backplane
Operating Temperature 10 °C ~ +50 °C (fab electronics rack environment)
Storage Temperature ‑20 °C ~ +70 °C
Humidity 5‑85 % RH, non‑condensing
Cooling Passive heat‑sink thermal design, forced rack air‑flow required
Dimension 6U VME standard: 233.4 × 160 mm
Weight Approx. 1.15 kg
Compliance CE, SEMI‑S2 semiconductor equipment safety standard



Compatibility & Installation Pitfalls

Compatibility

  1. Lam Research legacy etch / dielectric deposition tools with 6U VME chassis architecture
  2. VME64X backplane and tool‑specific VME I/O peripheral boards
  3. Lam proprietary real‑time operating system, tool boot image and recipe database

Critical note: This SBC cannot run standalone. Replacement requires matching Lam system firmware, boot image, MAC‑address configuration and valid tool license files. 605‑109114‑003 is predecessor variant, not direct drop‑in substitute without OS re‑deploymentAlibaba.co….

Installation Pitfalls

  1. ESD high‑sensitivity: Memory, FPGA and CPU peripheral circuits are static‑sensitive. ESD wrist strap and anti‑static mat are mandatory during handling; invisible ESD damage triggers random system crash or Ethernet port failure without visual burn marks.
  2. VME backplane insertion risk: Misaligned insertion bends VME64X gold‑plated pins, producing intermittent bus communication, random board drop‑out or data corruption. Never force the board into slot.
  3. Firmware & boot‑image dependency: Spare bare hardware will not boot tool software. Must deploy correct Lam OS image, license keys, MAC‑address settings and equipment configuration files after swap‑out. Mismatched image causes complete tool startup failure.
  4. CompactFlash media risk: Original CF card stores tool boot and runtime software. Simply swapping physical SBC without migrating CF content will result in non‑functional controller.
  5. Cooling air‑flow requirement: Passive heat‑sink design depends on cabinet forced air‑cooling. Insufficient rack airflow leads to over‑temperature thermal throttling and sporadic process faults.
  6. Hot‑swap prohibition: Do not perform hot‑swap under powered‑on VME backplane. Full chassis power‑down is required before module removal or insertion.
  7. Part‑number revision verification: Confirm full Lam part marking 605‑109114‑004. Distinguish from 605‑109114‑003 and other V7668A sub‑variants with different memory / port configuration.

605-109114-004

Standard Operating Procedure (SOP)

  1. Pre‑work: Lock‑out‑tag‑out target semiconductor process tool, set chamber to safe idle condition, fully power‑down VME rack chassis. Wear certified ESD anti‑static wrist strap.
  2. Data backup: Backup tool recipe database, system configuration, license information, record MAC‑address table of original SBC; safely clone CompactFlash boot media.
  3. Module removal: Loosen front‑panel retention screws, operate VME ejector levers, extract SBC smoothly. Inspect VME backplane slot pins for bending, oxidation or burn damage. Remove front‑side CF storage card carefully.
  4. Incoming inspection: Visual check spare board for heat‑sink damage, component corrosion, trace damage. Verify Lam part‑number, GE base model and hardware‑revision marking.
  5. Mechanical mounting: Transfer cloned CompactFlash media onto replacement SBC. Align board with chassis guide rails; use ejector levers for smooth full insertion, fasten front‑panel screws.
  6. Cabling: Re‑connect front‑panel Ethernet, debug serial and USB cables strictly per original wiring diagram.
  7. Power‑on commissioning: Restore VME rack power supply. Monitor boot sequence. If boot‑image mismatch occurs, deploy correct Lam OS, license keys and equipment configuration parameters. Verify all four Ethernet ports link status.
  8. Functional validation: Complete tool cold‑start initialization. Confirm VME‑bus communication with all peripheral I/O boards. Run equipment diagnostic suite, verify recipe execution capability, interlock logic and process‑data logging function. Confirm no network dropout or system crash alarms.
  9. Documentation: Fill fab equipment maintenance log, archive MAC‑address and software‑image version records. Properly package defective removed unit. Release lock‑out‑tag‑out permit only after full diagnostic acceptance test passed.



Application Scenarios

‑ 200 mm / 300 mm wafer fabs: Lam legacy plasma etch systems, dielectric & conductor deposition process platforms ‑ Semiconductor wafer processing tool main VME system controller ‑ Fab preventive maintenance, SBC hardware failure replacement ‑ Legacy Lam‑tool asset life‑extension & retrofit projects



Matching & Supporting Components

  1. Lam 6U VME64X chassis and VME backplane assembly
  2. Tool‑matched CompactFlash card with Lam proprietary OS & boot image
  3. Tool software license key and equipment configuration dataset
  4. Shielded gigabit‑Ethernet field cables
  5. ESD‑shielded anti‑static storage container for SBC storage
  6. Lam tool diagnostic & configuration service software



Brand‑Related Alternative & Recommended Models

  1. 605‑109114‑003: Predecessor SBC variant; hardware platform similar, requires full OS re‑configuration, not direct drop‑in replacement
  2. 605‑A02119‑001: Updated Lam VME SBC for newer tool hardware revisions, check software‑image compatibility before substitution
  3. Modern ATCA‑based controller family: New‑generation Lam computing platform for complete tool migration projects
