Honeywell FC‑SAI‑1620M Safe High‑Density Analog Input Module

Description

Honeywell FC‑SAI‑1620M Safe High‑Density Analog Input Module

Title

Honeywell FC‑SAI‑1620M 16‑Channel SIL3 Safety Analog Input Module for Safety Manager / FSC SIS System

Meta‑Description

Honeywell FC‑SAI‑1620M is a high‑density safety analog input module for Honeywell Safety Manager / FSC SIS, accepts 4‑20 mA / 0‑4 V field transmitter signals, 12‑bit A/D conversion, galvanic isolation, comprehensive channel and internal self‑diagnostics, TÜV‑certified SIL3 IEC61508, used for pressure, flow, level safety‑critical process variable acquisition in petrochemical ESD interlock systems.

FC‑SAI-1620M

Product Core Overview

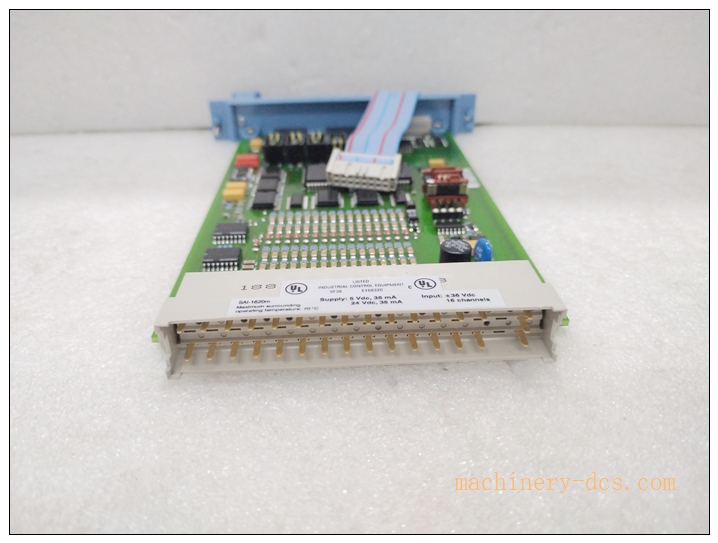

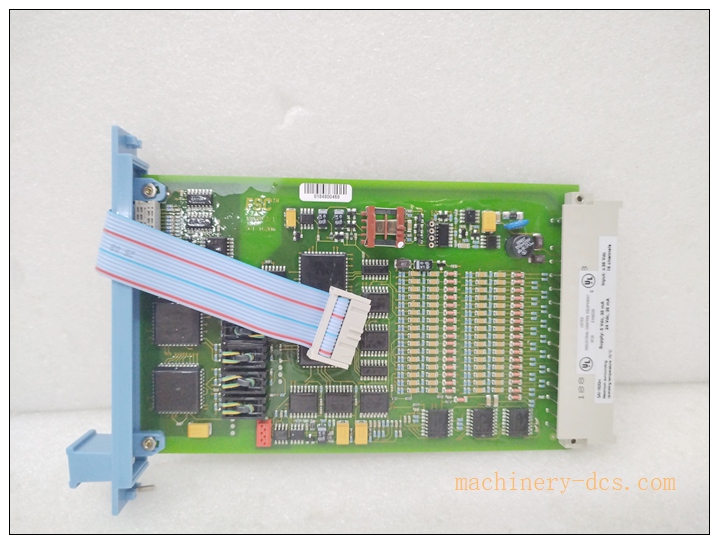

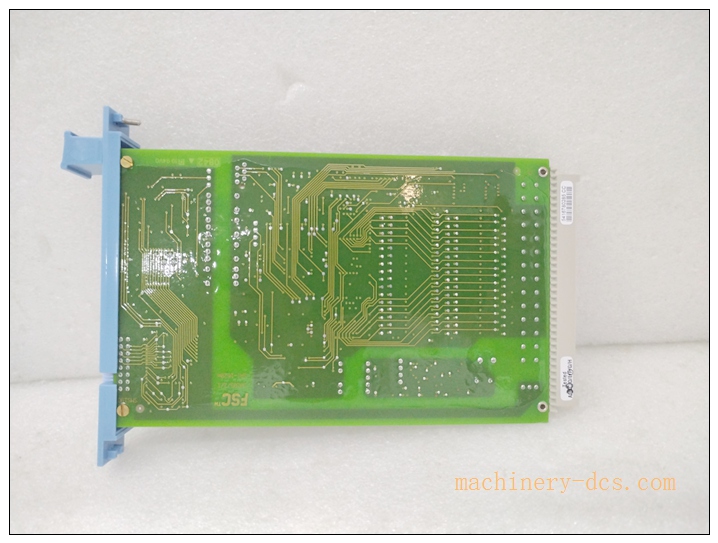

FC‑SAI‑1620M is high‑density safety‑grade analog input I/O module for Honeywell FSC / Safety Manager safety‑instrumented system. It provides 16 analog input channels for safety‑related process transmitters (pressure, flow, level transmitters). The “M” suffix denotes conformal‑coated PCB version for harsh industrial cabinet environments.

Module receives 4‑20 mA / 0‑4 V signals via matched FTA field termination assembly, converts analog field signals to digital safety values with 12‑bit precision A/D converter. Internal 1oo2 voting circuitry plus periodic self‑tests verify A/D conversion accuracy, reference voltage and channel health. Galvanic isolation separates field side and safety backplane bus, avoiding ground‑loop interference. Built‑in diagnostics detect signal over‑range, under‑range, wire‑break and module internal faults, reporting fault status to SIS controller for alarm and event logging. Each channel has front‑panel LED status indicator for on‑site troubleshooting. It plugs into FSC rack backplane and communicates via fault‑tolerant safety bus with safety processor. Widely used in oil‑gas and chemical plant ESD and safety interlock loops.

Note: This module does not natively support HART protocol; HART multiplexer or special FTA accessory is required for HART transmitter access.

Main Technical Specifications

Quality Control Procedures

1. Visual & Mechanical Incoming Inspection: Inspect PCB conformal coating, backplane DIN connector, front‑panel LED assembly and part‑number labeling. Serial‑number recorded for full‑lifecycle traceability.
2. Backplane Interface Continuity Test: Verify pin continuity, insulation and isolation performance of FSC 32‑pin backplane connector.
3. Channel‑by‑Channel Functional Calibration: Inject precision 4‑20 mA / 0‑4 V reference signals for every channel; validate conversion accuracy, linearity and full‑range performance.
4. Diagnostic‑Logic Verification: Simulate field‑loop faults: over‑range, under‑range, wire‑break conditions; confirm fault‑reporting and LED‑indication behave correctly. Verify internal A/D and reference‑voltage self‑test function.
5. Safety‑bus Communication Test: Validate reliable safety‑data exchange between module and Safety Manager / FSC controller.
6. Environmental Stress Screening: Temperature‑cycle test covering full operating‑temperature range for thermal‑stability verification.
7. EMC Compatibility Test: Test under industrial electromagnetic‑interference environment.
8. Final End‑of‑Line Validation & Archiving: Complete full‑function test suite; all test‑data archived bound to unit serial‑number before factory release.

FC‑SAI-1620M

Related Brand Model Recommendations

1. FC‑SDIL‑160824VDC: 16‑channel loop‑monitored safety digital‑input module.
2. FC‑SDO‑0824: 8‑channel safety solid‑state digital‑output module.
3. FC‑BKM‑001: Battery & key‑switch module for FSC / Safety Manager rack.
4. FC‑PSU‑UNI2450U: SIS rack universal power‑supply unit.
5. Matching Controller: Honeywell Safety Manager / FSC safety‑processor unit.
6. Accessories: Corresponding FTA field‑termination assemblies, safety‑rated screened field cables.

Frequently Asked Questions (FAQ)

Q1: What field instruments can connect to FC‑SAI‑1620M? A: 4‑20 mA two‑wire / four‑wire safety transmitters for pressure, flow, level. Signal conversion is completed via FTA termination assembly. Native HART is not supported.

Q2: What diagnostics does this module support? A: Per‑channel over‑range / under‑range alarm, wire‑break detection; periodic internal self‑test for A/D converter and reference‑voltage drift. Fault events are reported to SIS controller for alarm and event logging.

Q3: Can I hot‑swap FC‑SAI‑1620M in live SIS rack? A: Hardware hot‑plug is mechanically possible. But safety‑bypass procedure must be strictly executed before replacement. Direct hot‑swap without bypass may cause safety‑trip. Follow Honeywell official SIS maintenance manual.

Q4: What safety level can FC‑SAI‑1620M achieve? A: TÜV‑certified SIL3 per IEC 61508, suitable for safety‑instrumented‑system safety‑loop applications.

Q5: Can FC‑SAI‑1620M work on other‑brand DCS racks? A: No. It is exclusively designed for Honeywell FSC / Safety Manager backplane rack.

Q6: Can I repair the module on‑site? A: No. Unauthorized disassembly voids SIL‑certification and warranty. Return defective unit to authorized service‑centre.

Installation & Configuration Guide

Pre‑Installation

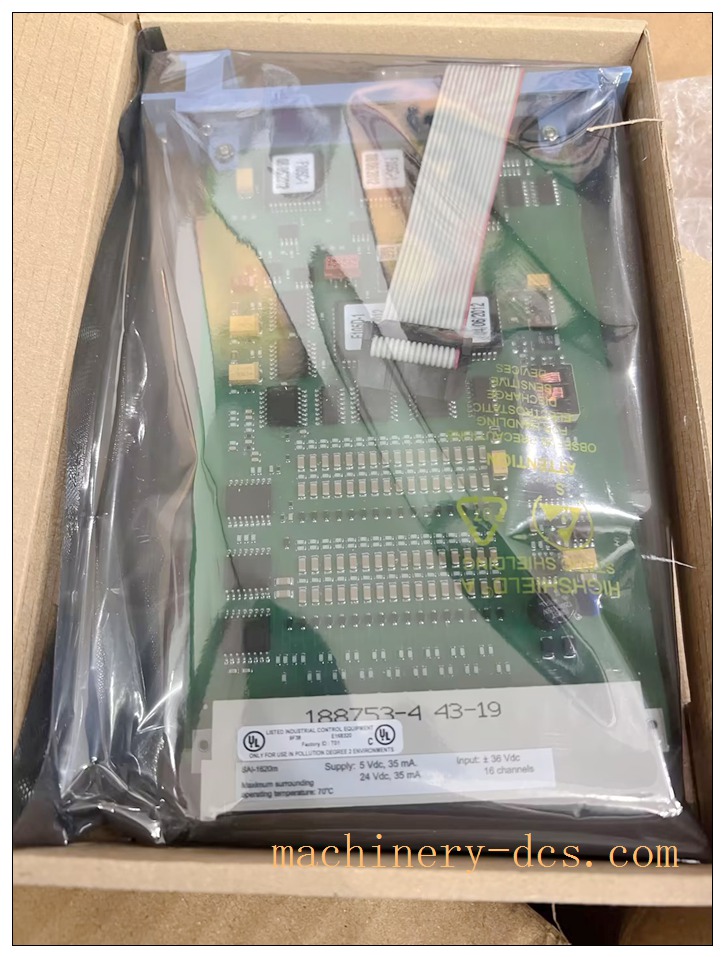

1. Inspect module for transit damage. Confirm part‑number FC‑SAI‑1620M and serial‑number match purchase‑order.
2. Confirm FSC / Safety Manager rack, carrier‑backplane and safety‑processor are fully functional.
3. Prepare 4‑20 mA safety transmitters, matching FTA termination assembly, safety‑rated screened field‑cables.
4. Review SIS safety drawing: define channel assignment, transmitter range parameters, fault‑response‑logic and safety‑bypass‑strategy.

Mechanical Installation

1. Insert FC‑SAI‑1620M into designated FSC rack‑carrier slot, push firmly until backplane‑connector fully mates. Tighten front‑panel captive fasteners.

Important: Before replacing module in running SIS rack, execute safety‑bypass‑procedure per project‑safety‑manual.

Electrical Wiring

1. Route safety‑field screened cables to FTA termination assembly. Separate safety‑signal wiring from high‑power‑cable routes to reduce EMI‑interference.
2. Strictly follow FTA wiring diagram for 4‑20 mA transmitter loop connection.
3. Complete continuity and insulation‑resistance check for each analog‑input‑loop before power‑on. Implement single‑point grounding for cable‑shield.

System Configuration & Commissioning

1. Launch Honeywell Safety‑Builder configuration‑software and connect to SIS controller.
2. Add FC‑SAI‑1620M module in corresponding rack‑slot‑position within project hardware‑configuration.
3. Configure each channel: set transmitter measuring‑range, enable/disable diagnostic‑functions, define fault‑response‑logic, download configuration to safety‑processor.
4. Field‑loop commissioning: apply known reference‑signal to each channel, verify SIS software reading matches input‑value and channel‑LED status.
5. Inject simulated‑loop‑faults (over‑range, under‑range, wire‑break), verify fault‑alarm‑reporting and diagnostic‑event‑logging.
6. Complete safety‑bypass‑function‑test as‑required. Save full‑project‑configuration‑backup‑file, then place module into formal safety‑interlock‑operation.
